Southbend (Middleby)  |  Ultimate  |  SKU: 4483DC-7L

Southbend (Middleby) 4483DC-7L Ultimate Gas Ranges

$10,902.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

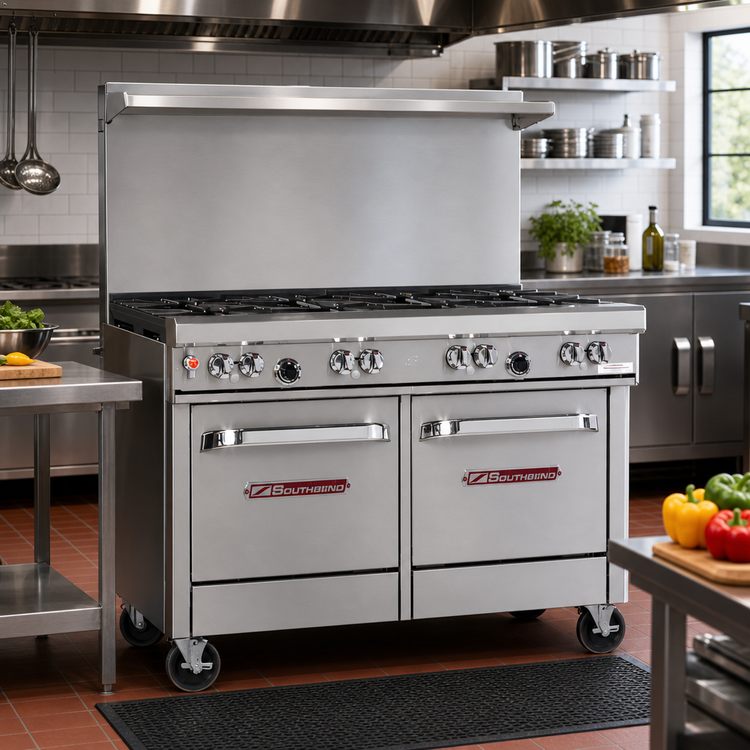

Southbend Ultimate 48" Gas Restaurant Range

Model 448DC – 4 Pyromax + 2 Star/Sauté Burners | Standard Oven & Cabinet Base

Built for kitchens that run flat-out from first ticket to last call, the Southbend Ultimate Range delivers a crushing 271,000 BTU of cooking power in a 48" footprint. Whether you’re flash-searing proteins, simmering sauces or baking off artisan bread, this range lets you do it all from one rock-solid station.

Performance Highlights

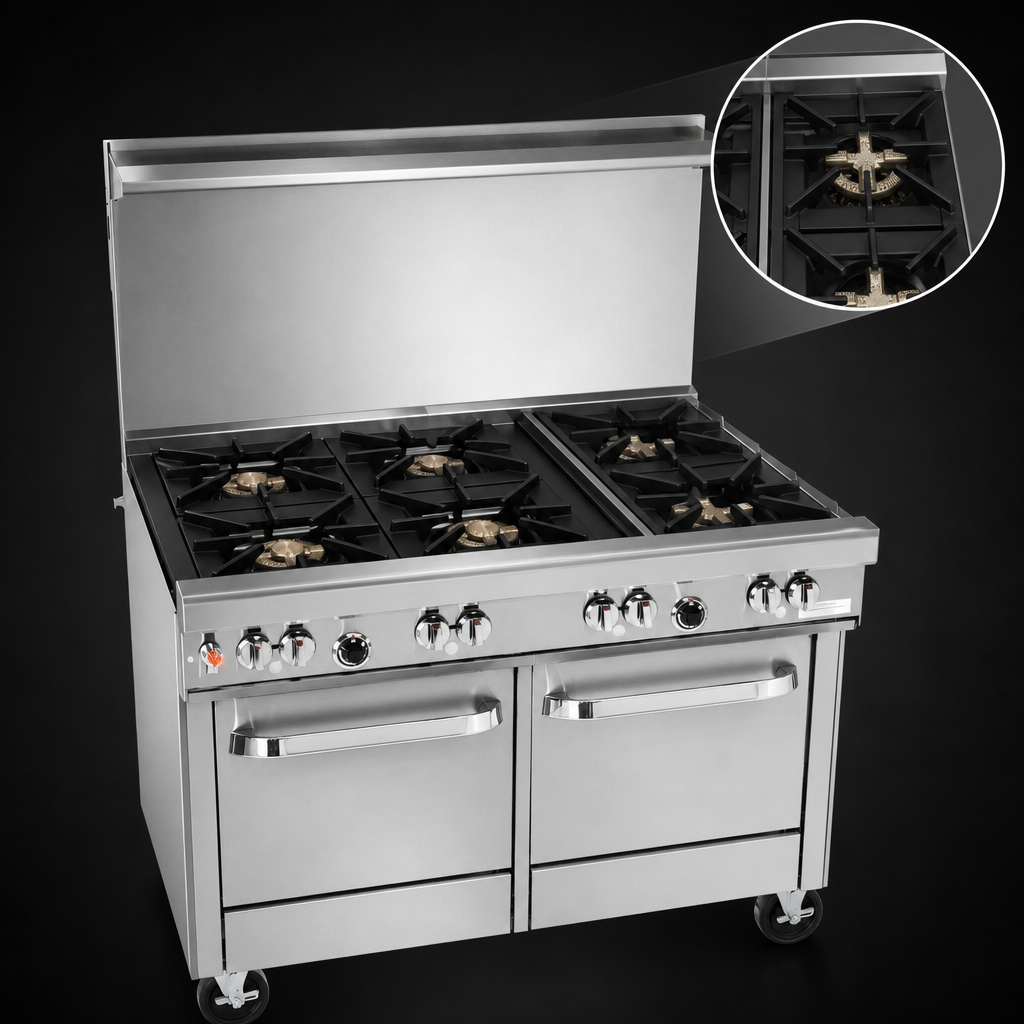

  • 4 patented, easy-clean 40,000 BTU Pyromax™ burners (left) for rapid stir-fry & stock-pot production
  • 2 cast-iron 33,000 BTU Star/Sauté burners (right) with even flame for precision sauté work

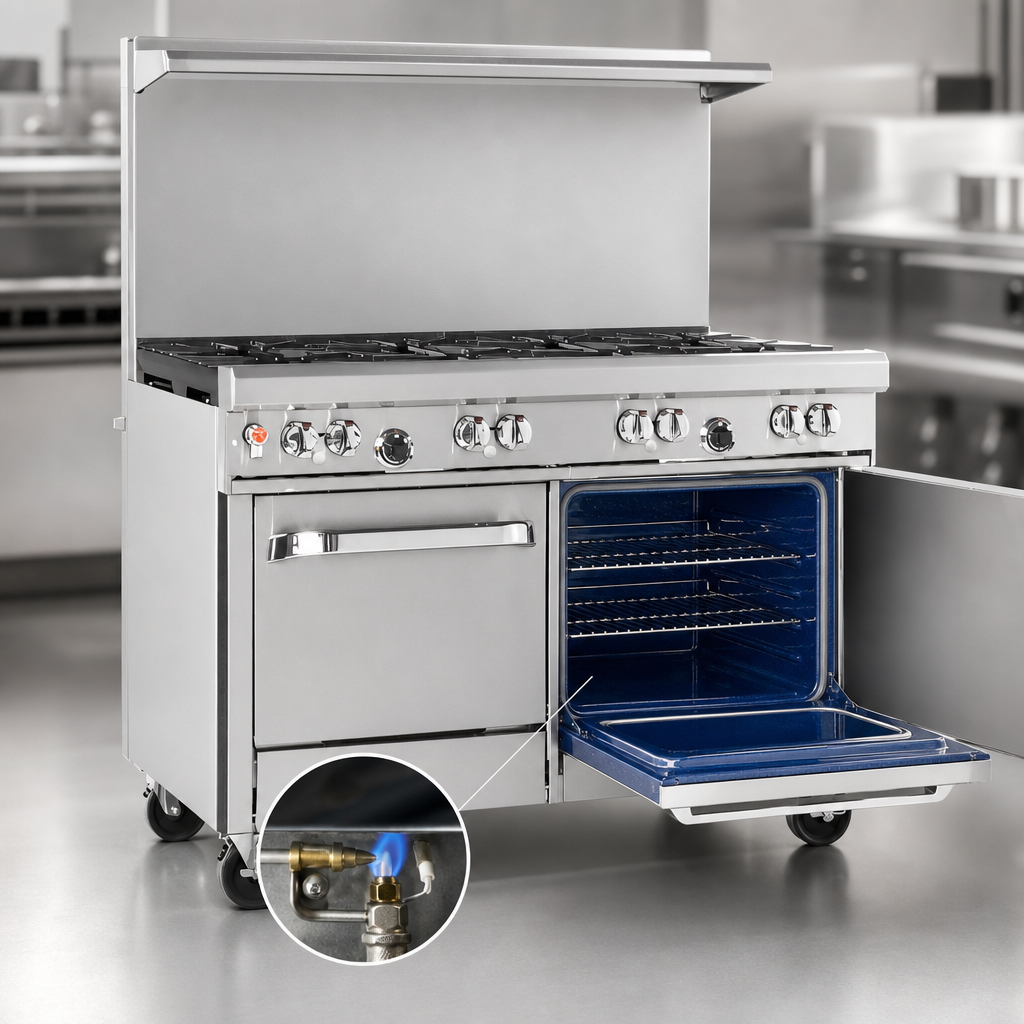

  • 45,000 BTU standard oven with battery spark ignition & 175 – 550 °F thermostat
  • 18" stainless cabinet base keeps sheet pans & small-wares within arm’s reach
  • 22-1/2" flue riser with heavy-duty plate-warming shelf
  • 4" deep stainless front rail & 37" cook height for ergonomic plating
  • Stainless front, sides, shelf & 6" adjustable legs built for rugged commercial duty
  • Front-mounted manual gas shut-off & factory-installed regulator
  • Standing pilots on all open burners for instant ignition
  • CSA & NSF listed; 1-year parts & labor warranty

Specification Snapshot

Overall Width 48.63 in / 1235 mm
Overall Depth (incl. rail) 42.13 in / 1070 mm
Cooking Surface Depth 27 in / 686 mm
Work Height 37 in / 940 mm
Total BTU (Natural Gas) 271,000 BTU/hr
Open-Top Burners 4 × 40 kBTU Pyromax
2 × 33 kBTU Star/Sauté
Oven Interior 14"h × 26"w × 26.5"d – fits full-size sheet pans both ways
Gas Connection 3/4" NPT (left side with Pyromax on left)
Min. Inlet Pressure 7" W.C. Natural Gas
Shipping Weight ≈ 735 lb / 334 kg

What’s Included

  • (1) Nickel-plated oven rack
  • Battery pack for spark ignition (alkaline batteries excluded from warranty)
  • 6" stainless adjustable legs
  • Factory-installed pressure regulator
Installation & Use: Range must be installed under a vented hood. Maintain 10" side/rear clearance to combustibles. When using cookware 12" or larger, place it on the rear burners to avoid excess heat at the front rail.

Covered by Southbend’s 1-year parts & labor warranty. Need flexible payments? Ask about Middleby equipment financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Base

(1) standard oven, (1) cabinet

Vent

backriser with hi-shelf

Top

(6) open burners

Specifications

Ultimate Restaurant Range, gas, 48", (4) pyromax burners left, (2) star/sauté burners right, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 271,000 BTU, CSA, NSF
