Southbend (Middleby) 4483DC-6R Ultimate Gas Ranges
Description
Southbend Ultimate 48" Gas Restaurant Range

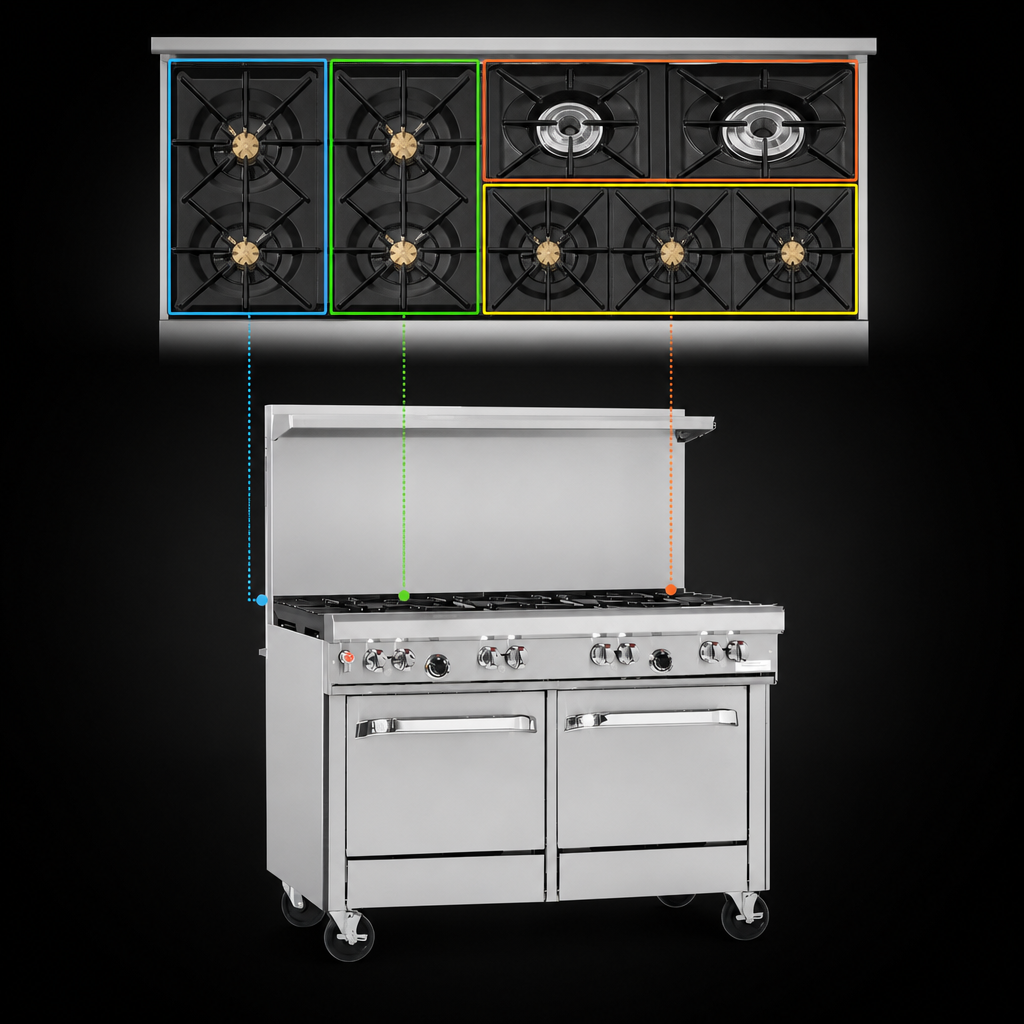

7-Burner Top • Standard Oven • Cabinet BaseBuilt for high-volume kitchens that demand power and flexibility, the Ultimate Series pairs Southbend’s legendary durability with a custom burner layout that makes quick work of every ticket.
Key Advantages
-
Precision open-top cooking
- 5 × 33,000 BTU cast-iron star/sauté burners – even flame for sauté, sear or simmer
- 2 × 40,000 BTU Pyromax™ burners – intense heat for woks & rapid boil
- 45,000 BTU standard oven with battery-spark ignition, 175-550 °F thermostat
- 18" stainless cabinet base keeps sheet pans, stock pots or hotel pans close at hand
- 22.5" flue riser with heavy-duty overshelf for spices, smallwares & plating
- Front-mounted gas shut-off and factory regulator simplify installation & service
- All-stainless front, sides, rail & shelf; four removable cast-iron grate sections
- Standing pilots on open burners; battery-spark oven ignition saves utility costs
- 6" adjustable stainless legs (swivel casters optional)
Performance Highlights
- Total output: 290,000 BTU/hr
- Rear grates accommodate stock pots up to 14" Ø

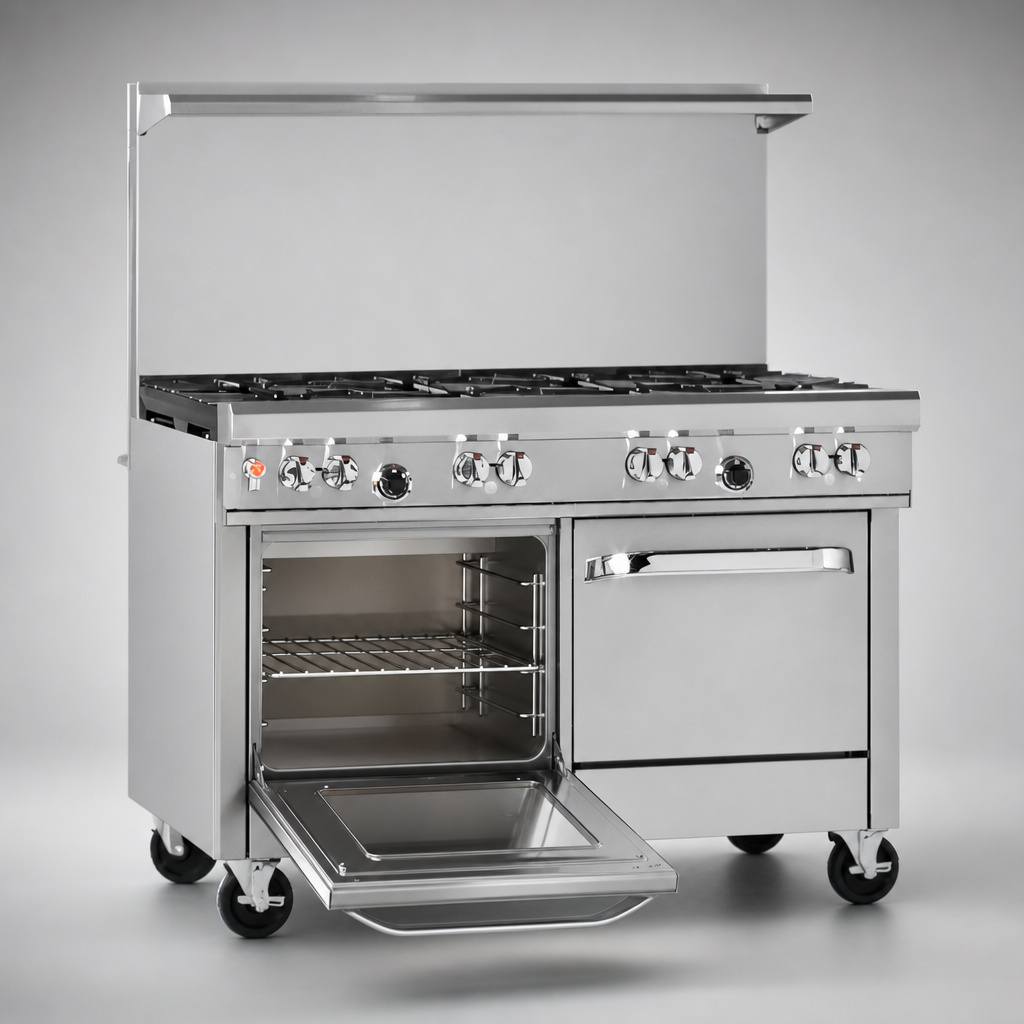

- Porcelain-enamel, coved-corner oven cavity wipes clean in seconds
- Includes 1 nickel-plated oven rack with two position rails
Technical Specifications
| Manufacturer / Model | Southbend Ultimate 448 (7-Burner) |
|---|---|
| Total BTU | 290,000 BTU/hr |
| Open-Top Burners | 5 × 33 k BTU star/sauté + 2 × 40 k BTU Pyromax |
| Oven BTU | 45,000 BTU standard bake/roast |
| Cooking Surface | 27" D cast-iron grates |
| Overall Width | 48 5⁄8" (1235 mm) |
| Depth (incl. landing rail) | 34" (864 mm) |
| Work-top Height | 37" (940 mm) |
| Flue Riser Height | 22 1⁄2" shelf-style |
| Gas Connection | 3⁄4" NPT (rear), Nat or LP |
| Certifications | CSA • NSF |
| Warranty | 1-Year parts & labor |
Why Southbend Ultimate?
Since 1898, Southbend has engineered kitchen equipment that thrives in the toughest commercial environments. The Ultimate Series features lifetime non-clog burners, service-friendly components, and the industry’s most flexible top configurations—giving chefs the power to craft the perfect line.
