Southbend (Middleby) 4483DC-5R Ultimate Gas Ranges
Description

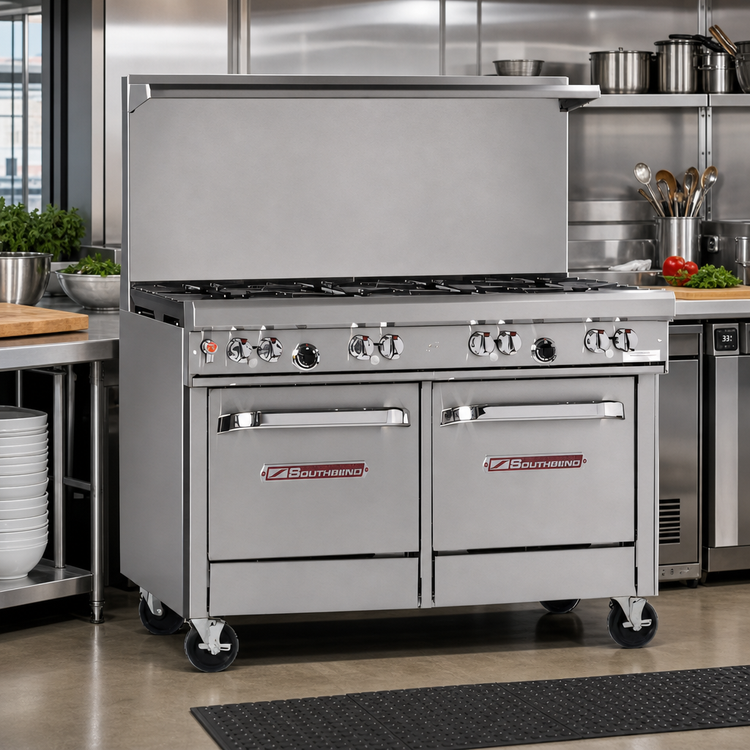

Southbend “Ultimate” 48" Restaurant Range
7-Burner Gas | Standard Oven + Cabinet Base | 290,000 BTUBuilt for high-volume, high-heat kitchens, the Ultimate Series packs three unique open-burner styles, a full-size oven, and stainless storage cabinet into a single 48" footprint. From rapid-boil Pyromax™ power to delicate sauté control, every task is right at your fingertips.
Performance Highlights
-

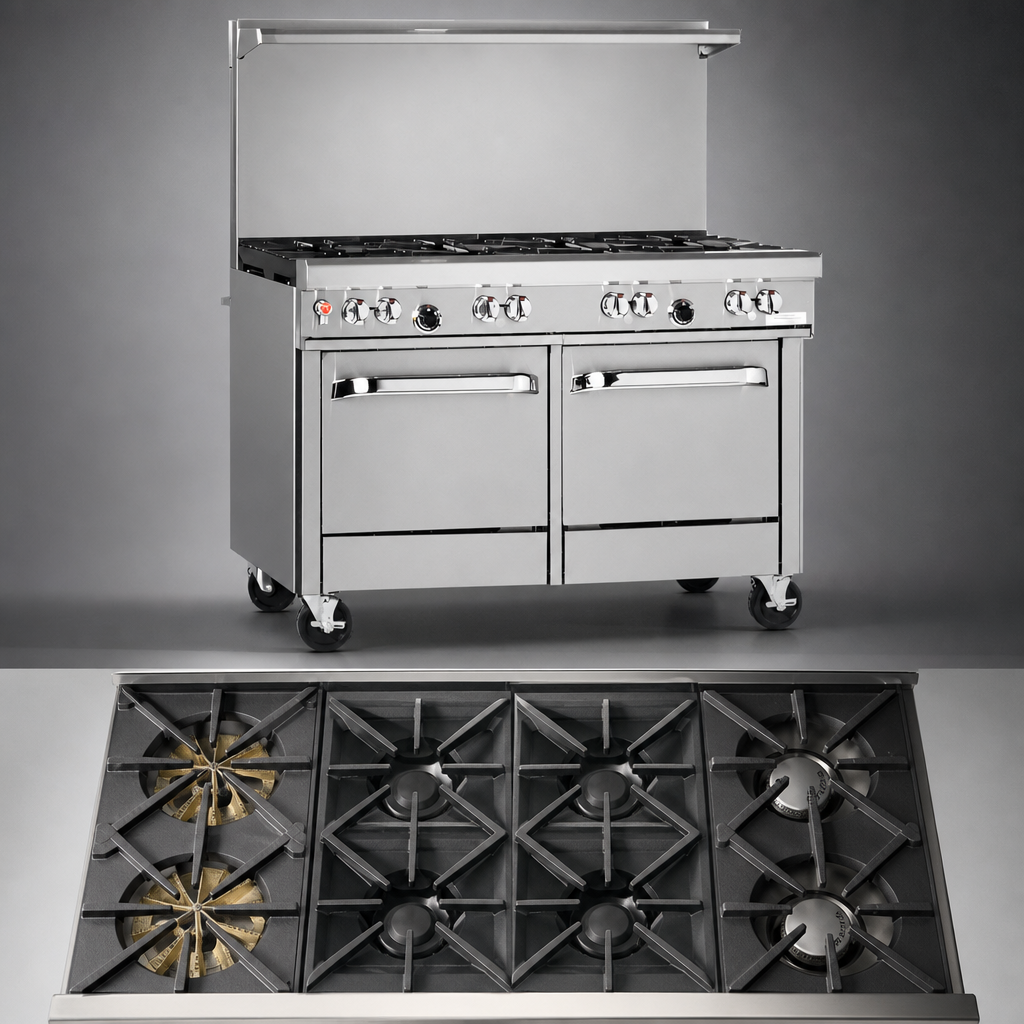

Custom 7-Burner Layout:
- 3 × 33,000 BTU non-clog burners (front right) – everyday workhorses that never plug up.
- 2 × 40,000 BTU Pyromax™ burners (back right) – Southbend’s hottest flame for stock, wok, or sear.
- 2 × 33,000 BTU star/sauté burners (left) – extra ports deliver even edge-to-edge heat.
- 45,000 BTU standard oven with battery spark ignition – no external power needed.
- 18" stainless cabinet base keeps sheet pans, lids, and spices within reach.
- 22.5" flue riser with heavy-duty shelf doubles as a plating and small-wares station.
- Front-mounted gas shut-off and factory pressure regulator speed up installation & service.
- 4" stainless rail protects knobs and offers a handy utensil rest.
Built to Outlast the Rush
- One-piece cast-iron non-clog burners – lifetime design resists grease & spills.
- Porcelain-enameled, coved-corner oven cavity wipes clean in seconds.
- Full stainless steel front, sides, shelf, & 6" adjustable legs for a professional, sanitary finish.
- Certified NSF & CSA; backed by Southbend’s 1-year parts & labor warranty.
Technical Specs
| Model | Ultimate 448 Series (7-Burner) |
|---|---|
| External Width | 48 5⁄8" (1235 mm) |
| Cooking Surface | 27" deep, cast-iron grates (rear fits 14" stock pots) |
| Total Input | 290,000 BTU/hr (Natural / LP) |
| Open Burners | 245,000 BTU (3 × 33K + 2 × 40K + 2 × 33K) |
| Oven | 45,000 BTU, 175 – 550 °F thermostat, 1 rack included |
| Oven Interior | 26" W × 26.5" D × 14" H – fits full-size sheet pans both ways |
| Gas Connection | ¾" NPT (rear) – regulator factory-installed |

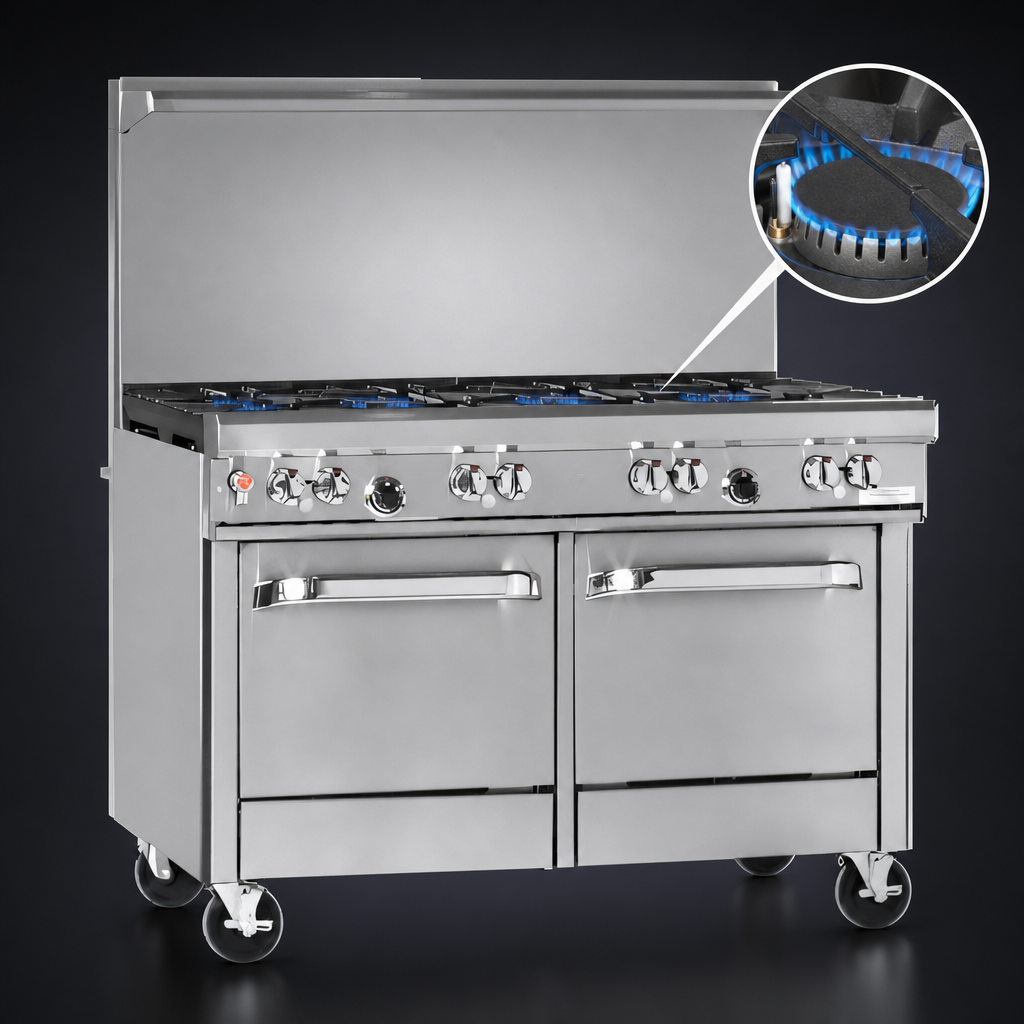

| Ignition | Standing pilots (burners) / Battery spark (oven) |
| Warranty | 1-year parts & labor |
What’s in the Box
- One chrome oven rack (two-position)
- 22.5" stainless flue riser & top shelf (factory mounted)
- Set of 6" stainless adjustable legs
- Operating & installation manual
