Southbend (Middleby) 4483DC-5L Ultimate Gas Ranges
Description
Southbend “Ultimate” 48″ Gas Restaurant Range
3 Non-Clog • 2 Pyromax • 2 Star/Sauté Burners | Standard Oven & Cabinet Base | 290,000 BTUBuilt for serious, high-volume kitchens, the Southbend Ultimate Series 48″ range combines three premium burner styles, a full-size standard oven and a convenient stainless cabinet base—all in one rock-solid, stainless-steel chassis. From rapid boils to low-simmer sauces, this mixed-top powerhouse keeps every position on the line cooking at peak efficiency.
Why You’ll Love It
-
Seven open burners, three ways:
• (3) lifetime non-clog burners (33 k BTU ea.)
• (2) patented Pyromax™ high-output burners (40 k BTU ea.)
• (2) cast-iron star/sauté burners (33 k BTU ea.) - Industry-best total output – 290,000 BTU: 245 k BTU cook-top + 45 k BTU oven

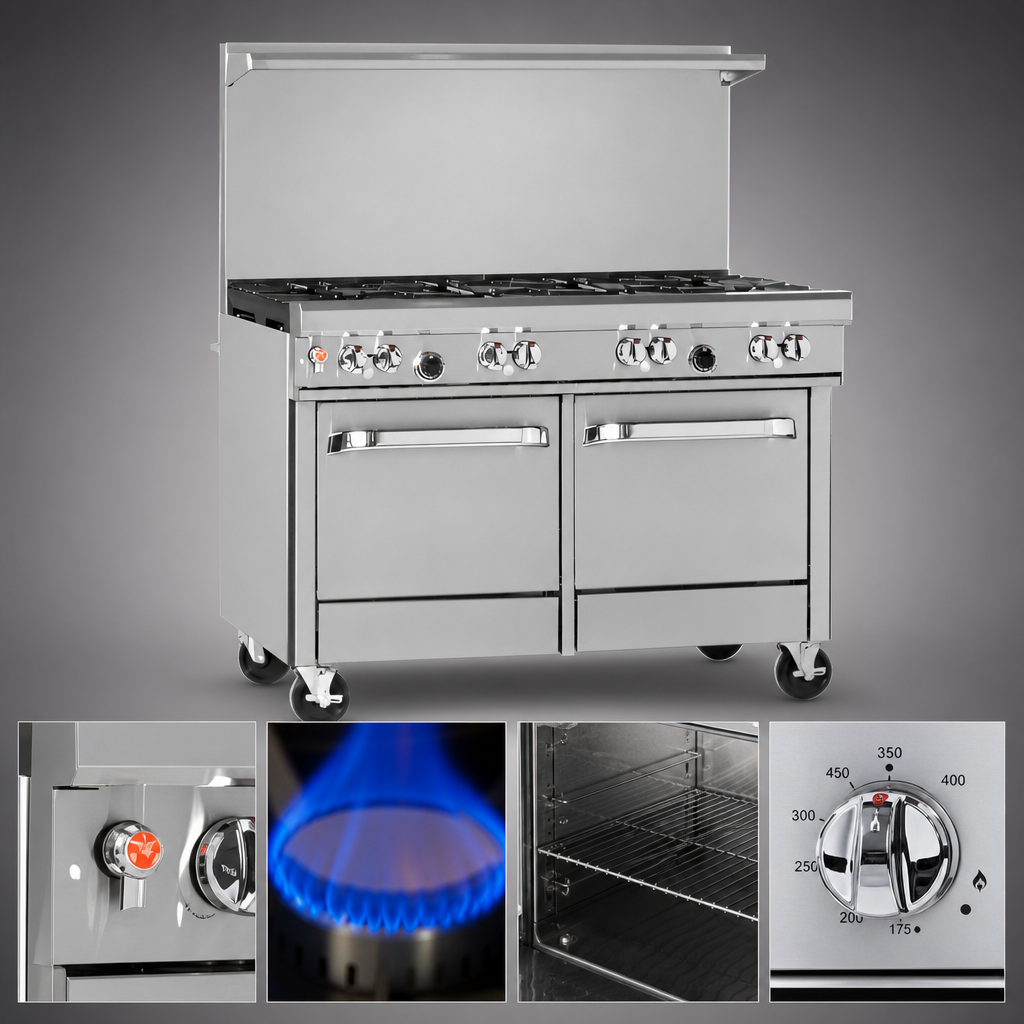

- Full-size standard oven (26″ W x 26½″ D): 175 – 550 °F thermostat, battery-spark ignition & one plated rack with 2-position rails
- 18″ stainless cabinet base: keep sheet pans, small wares or hotel pans right where you need them
- 4″ stainless front rail with manual gas shut-off for the entire range—fast, safe service access
- 22½″ flue riser with heavy-duty shelf for plates, spices or small equipment
- Removable cast-iron grates (rear grate holds up to a 14″ stock pot) & two full-width crumb trays for easy clean-up
- All stainless front, sides, cabinet, riser & 6″ adjustable legs built to withstand the toughest commercial kitchens
- Factory-installed ¾″ pressure regulator, standing pilots on open burners & CSA / NSF approvals right out of the box
- 1-year parts & labor warranty backed by the Southbend nationwide service network
At-a-Glance Specifications
| Model | Ultimate 48″ – configuration 448 DC (Standard Oven + Cabinet Base) |
|---|---|
| Total BTU | 290,000 BTU (Natural Gas) |
| Burner Breakdown | (3) 33 k BTU Non-Clog • (2) 40 k BTU Pyromax • (2) 33 k BTU Star/Sauté |
| Oven Type / Output | Standard bake oven, 45 k BTU, 175 – 550 °F, battery-spark ignition, 1 rack (2 positions) |
| Cooking Surface | 27″ deep; four removable cast-iron grate sections |
| Exterior Dimensions | 48 5⁄8″ W × 34″ D × 59 ½″ H (to top of riser) – 37″ to cooking surface |
| Oven Interior | 26″ W × 26 ½″ D × 14″ H, porcelain-enameled cavity |
| Gas Connection | ¾″ NPT, left rear (factory regulator included) – 7″ WC min. inlet pressure (Nat.) |
| Electrical | None required (battery spark) |
| Shipping Weight | Approximately 334 lb (crated) |
| Certifications | CSA, NSF |
What’s in the Crate
- Southbend Ultimate 48″ range with mixed burner top
- 22½″ flue riser & storage shelf (factory mounted)
- (1) oven rack
- Set of 6″ stainless adjustable legs
- Pressure regulator & battery for spark ignition
- Owner’s manual & warranty packet
Need casters, cabinet doors or a quick-disconnect hose? Reach out—we can add factory options to fit your kitchen.
