Southbend (Middleby)  |  Ultimate  |  SKU: 4483DC-3TR

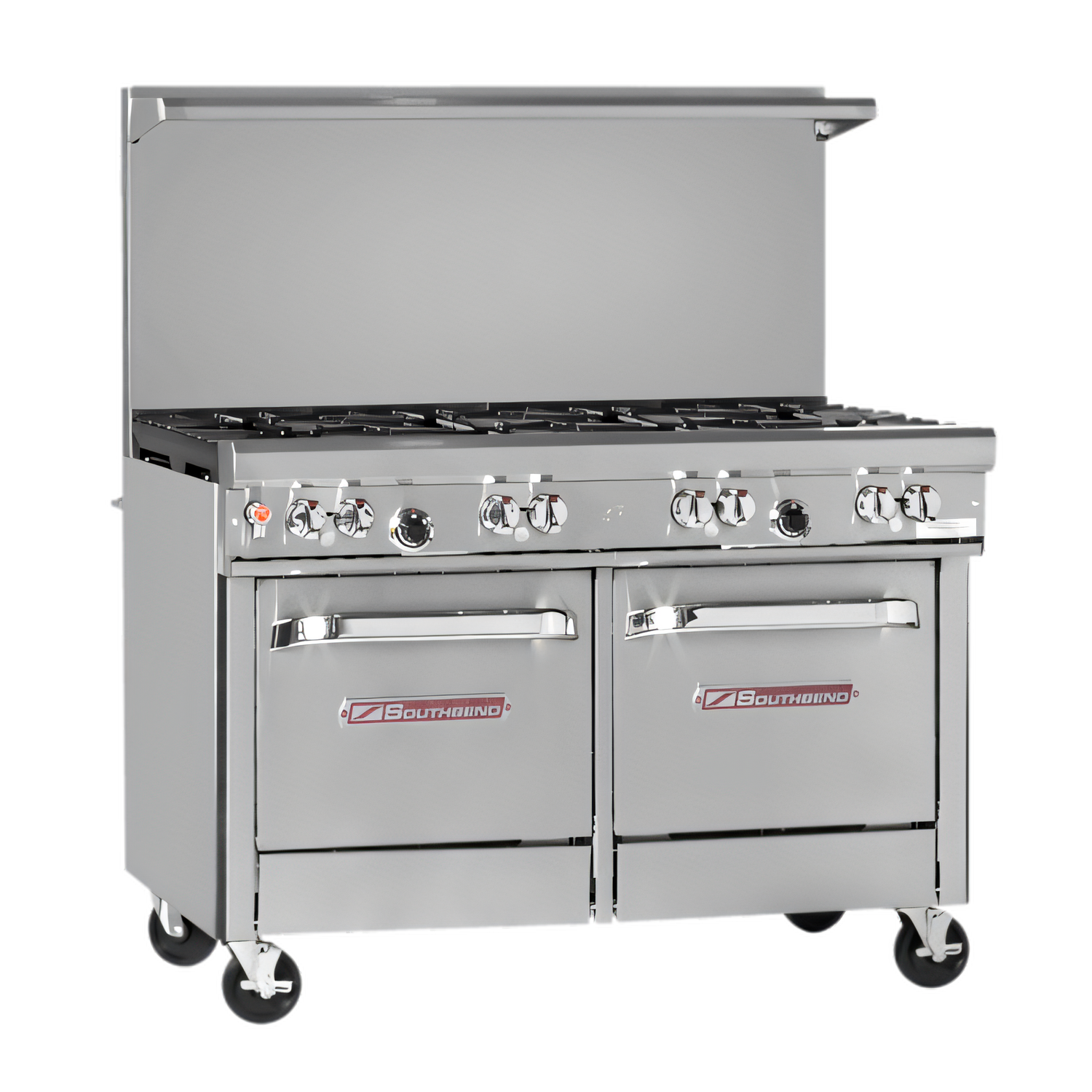

Southbend (Middleby) 4483DC-3TR Ultimate Gas Ranges

$13,559.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

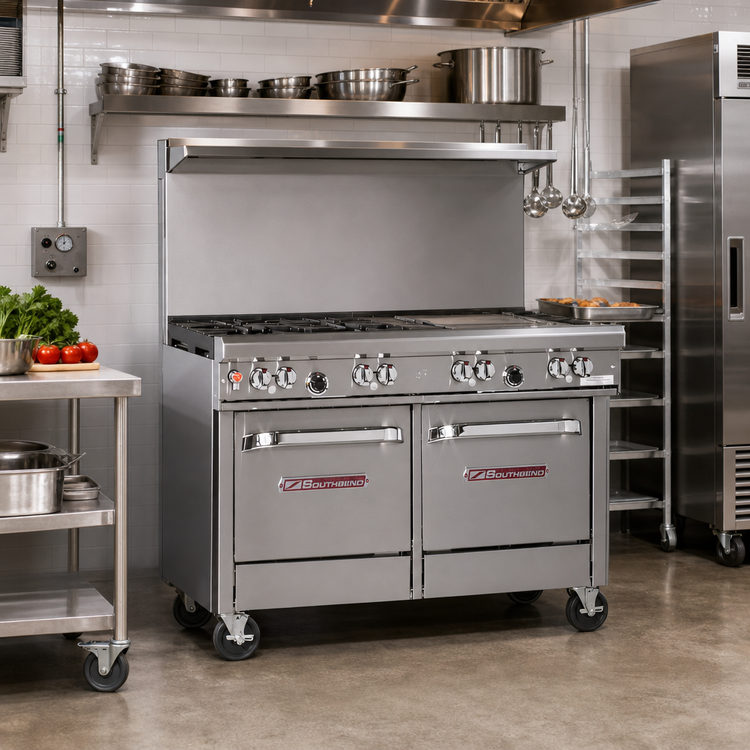

Southbend Ultimate 48" Gas Restaurant Range

2 Star Burners • 36" Thermostatic Griddle • Standard Oven & Cabinet Base

Built for demanding, high-volume kitchens, the Ultimate Series packs heavy-duty construction and category-leading performance into a single 48" footprint. Two powerful star/​sauté burners, a 36" precision-controlled griddle and a full-size oven give your team the flexibility to sear, sauté, grill and bake simultaneously—without sacrificing line space.

Highlights

  • Total input: 175,000 BTU (natural gas)

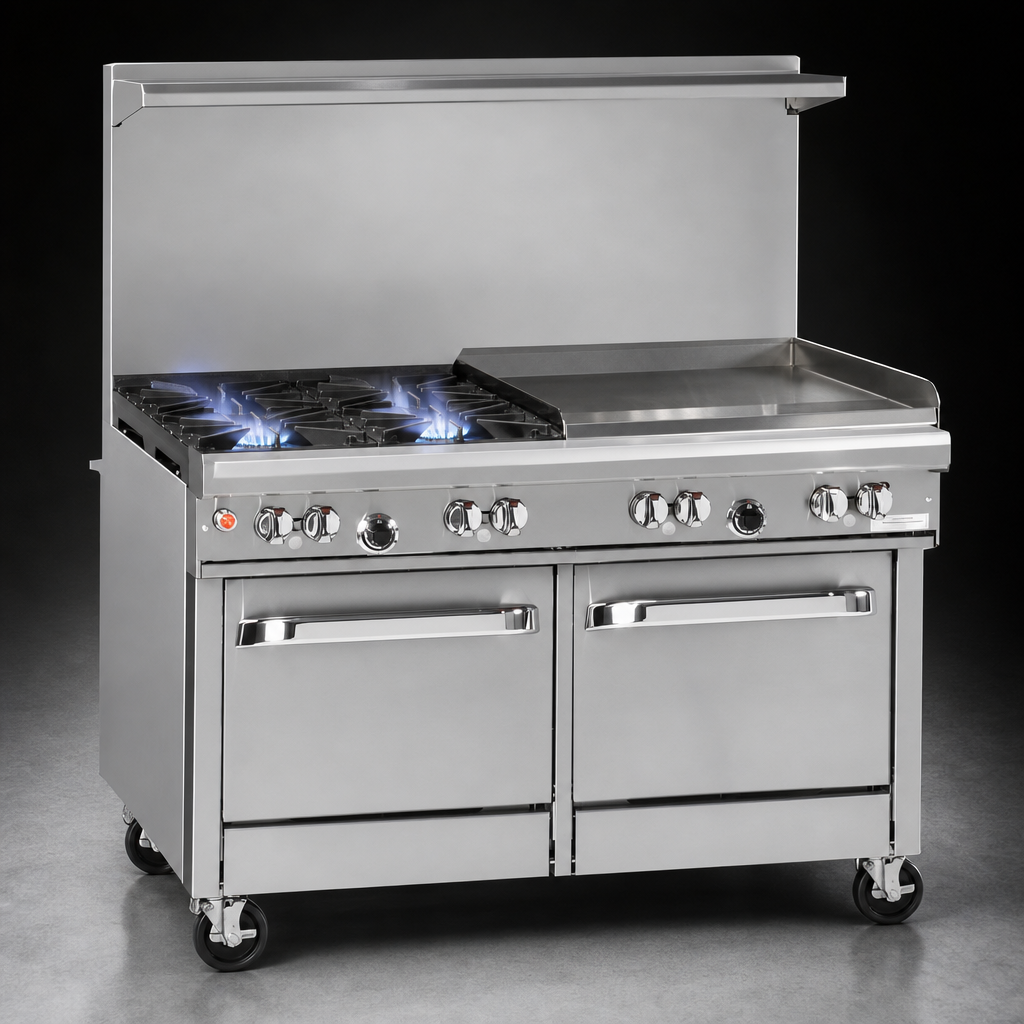

  • 2 × 33,000 BTU cast-iron star burners with lifetime clog-free ports & standing pilots
  • 36" thermostatic griddle on right side
    • 1/2" smooth, polished steel plate with raised splash sides
    • Independent thermostat 175 – 550 °F for precise zone control
    • 64,000 BTU burner pack for fast recovery
  • 45,000 BTU standard oven with battery spark ignition
    • Porcelain-enameled cavity fits full-size sheet pans both directions
    • One chrome rack with 2-position guides included
  • 18" stainless cabinet base for dry storage (optional door kit at no charge)
  • 22-1/2" flue riser with heavy-duty shelf—ideal for smallwares & plating
  • 4" stainless front rail with front-mounted manual gas shut-off
  • Removable drip trays keep cleanup quick and easy
  • 6" adjustable stainless-steel legs (locking casters available)
  • Factory-installed 3/4" gas pressure regulator
  • cCSAus, CSA Flame, CSA Star & NSF listed for commercial kitchens
  • Backed by a 1-year parts & labor warranty

Specifications

Cooking width 48-5/8" (1235 mm)
Overall depth 34" (864 mm)
Cooktop height 37" (940 mm)
Griddle plate 36" W × 27" D × 1/2" thick
Open burners 2 × 33,000 BTU star burners
Griddle burner 64,000 BTU
Oven burner 45,000 BTU
Total input 175,000 BTU/h
Gas connection 3/4" NPT (natural gas @ 7" W.C.) – left rear*
Electrical Battery spark ignition – no cord or plug required
Material Stainless steel front, sides, shelf & legs; cast-iron grates
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1 year parts & labor
Installation Note: This equipment is intended for commercial use only. Install under a properly sized vent hood and follow all local codes. For non-quarry tile floors, contact Southbend for approved installation options.

*Gas connection moves to the opposite side if the griddle is ordered on the left.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 36" griddle with thermostats

Vent

backriser with hi-shelf

Base

(1) standard oven, (1) cabinet

Plate Thickness

.500" = 1/2"

Specifications

Ultimate Restaurant Range, gas, 48", (2) star/sauté burners, standard grates, (1) 36" griddle right, thermostatic controls, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 175,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
