Southbend (Middleby)  |  Ultimate  |  SKU: 4483DC-2GR

Southbend (Middleby) 4483DC-2GR Ultimate Gas Ranges

$11,542.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 48" Gas Restaurant Range

(4) Star Burners · 24" Right-Side Griddle · Standard Oven & Cabinet Base

Built for high-volume kitchens that refuse to compromise, the Southbend Ultimate Series packs 225,000 BTU of cooking muscle into a rugged 48-inch frame—letting you sauté, sear, griddle, bake and store from one rock-solid station.

Highlights
  • (4) 33,000 BTU cast-iron star/​sauté burners with clog-free ports and standing pilots.

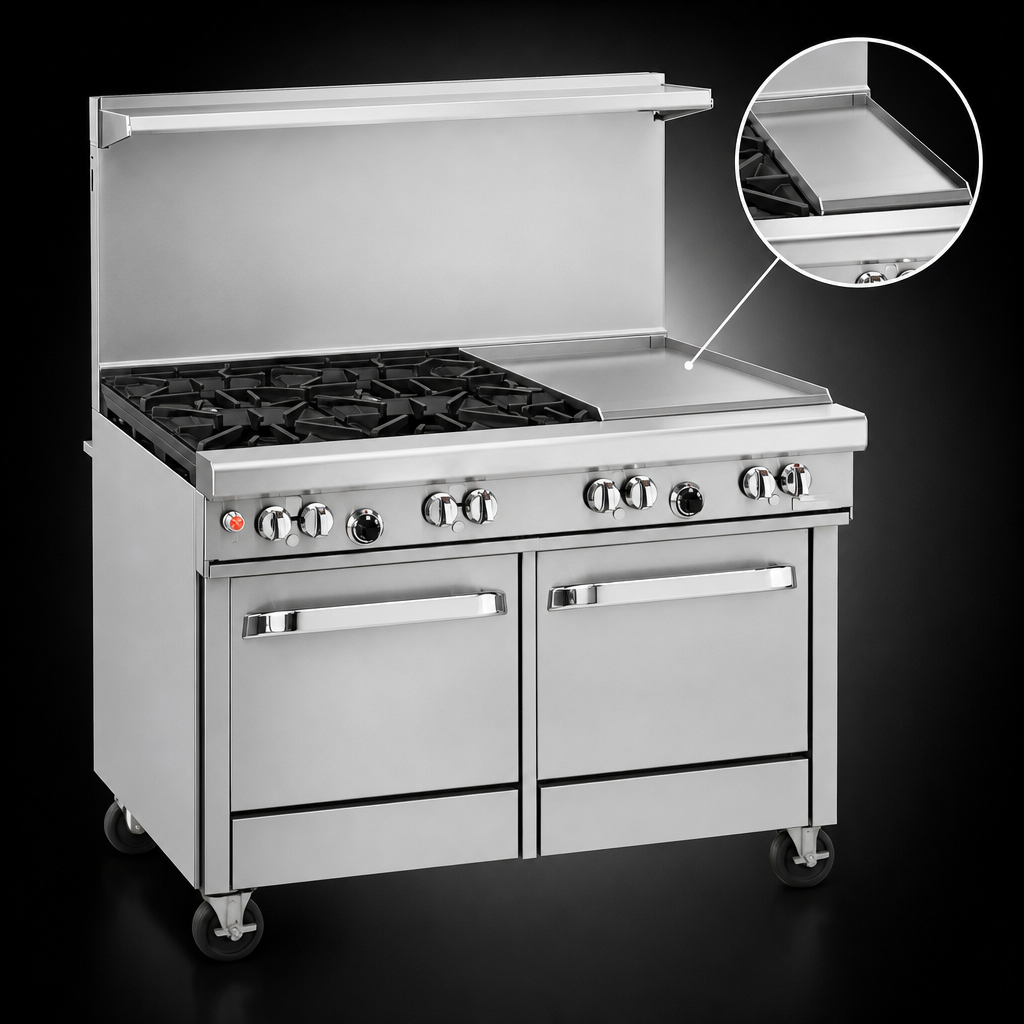

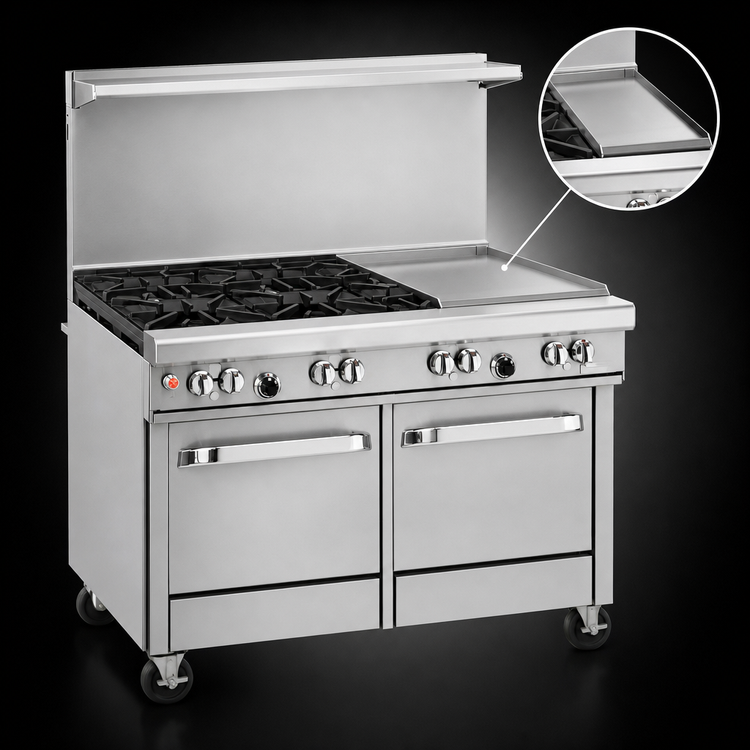

  • 1/2" polished steel griddle (24" W) on the right—perfect for breakfast fare, burgers & tortillas.
  • 45,000 BTU standard oven with battery spark ignition; 175-550 °F thermostat & porcelain interior.
  • 18" stainless cabinet base keeps sheet pans, smallwares and dry goods within arm’s reach.
  • 22-1/2" flue riser with heavy-duty plate shelf for holding, plating or warming.
  • 4" stainless front rail, all-stainless front/sides/shelf & 6" adjustable legs for easy cleanup and longevity.
  • Front-mounted manual gas shut-off and factory-installed ¾" regulator simplify hook-up.
  • Certified cCSAus, CSA Flame, CSA Star & NSF for gas safety and sanitation compliance.
Tech Specs
Manufacturer / Series Southbend Ultimate Restaurant Range
Model Configuration 48" range | 4 star burners + 24" right-side griddle | standard oven + cabinet base
Total BTU Input 225,000 BTU/hr
Open Top Burners (4) 33,000 BTU star burners, removable cast-iron grates (rear fits up to 14" stock pot)
Griddle Plate 24" W × 27" D · ½" thick polished steel · raised splash sides · manual control
Oven Standard bake oven · 45,000 BTU · 175-550 °F · 1 rack/2 positions · battery spark ignition
Cabinet Base 18" stainless storage compartment (door optional)
Cooking Height 37"
Overall Dimensions 48.63" W × 42.13" D × 59.50" H (to top of flue riser)
Gas Connection Single ¾" NPT (rear) · Min. inlet 7" W.C. NAT / 11" W.C. LP · regulator included
Shipping Weight ~735 lb (334 kg)
Exterior Construction Stainless steel front, sides, shelf & 6" adjustable legs
Warranty 1-year limited parts & labor
Certifications NSF · cCSAus · CSA Flame · CSA Star

Need casters, cabinet doors, or flame-failure protection? Ask about factory options and lead times.

Commercial use only: Install under a vent hood on non-combustible flooring (or with an approved floor shield). Limit oversized cookware to the rear burners to prevent excess heat on the front rail.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Plate Thickness

.500" = 1/2"

Exterior Finish

stainless steel front & sides

Base

(1) standard oven, (1) cabinet

Top

(4) open burners, (1) 24" griddle

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 48", (4) star/sauté burners, standard grates, (1) 24" griddle right, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 225,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
