Southbend (Middleby) 4483DC-2CR Ultimate Gas Ranges
Description

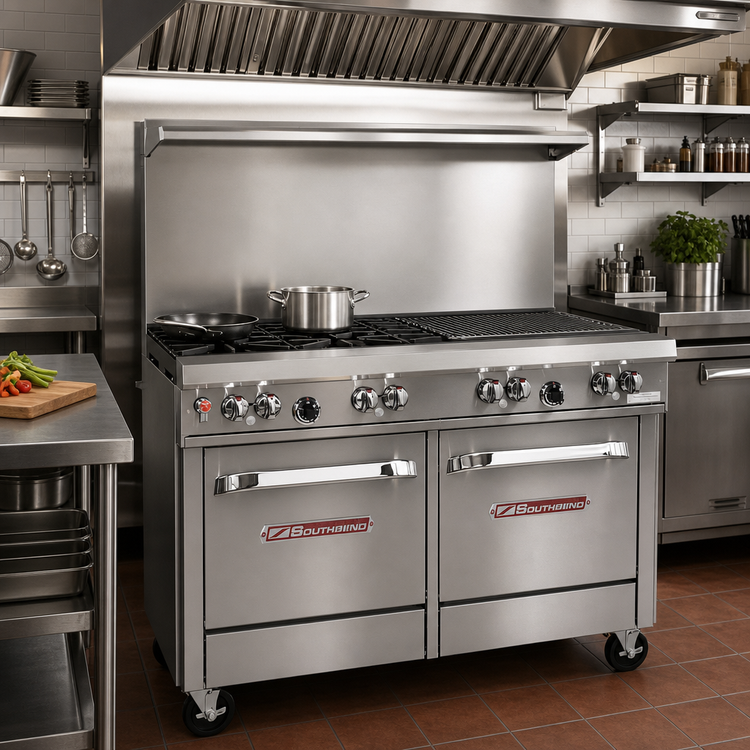

Southbend Ultimate 48″ Gas Restaurant Range – 4 Star Burners, 24″ Right-Side Charbroiler, Standard Oven
Model 448DC | 241,000 BTU | CSA & NSF ListedPower, versatility and legendary Southbend durability come together in one 48-inch footprint. From lightning-fast sauté orders to steakhouse-quality charbroiling and dependable baking, this Ultimate Series range is built to keep your kitchen moving at peak service.
Why You’ll Love It
- (4) 33,000 BTU cast-iron star/sauté burners deliver even, edge-to-edge flame.

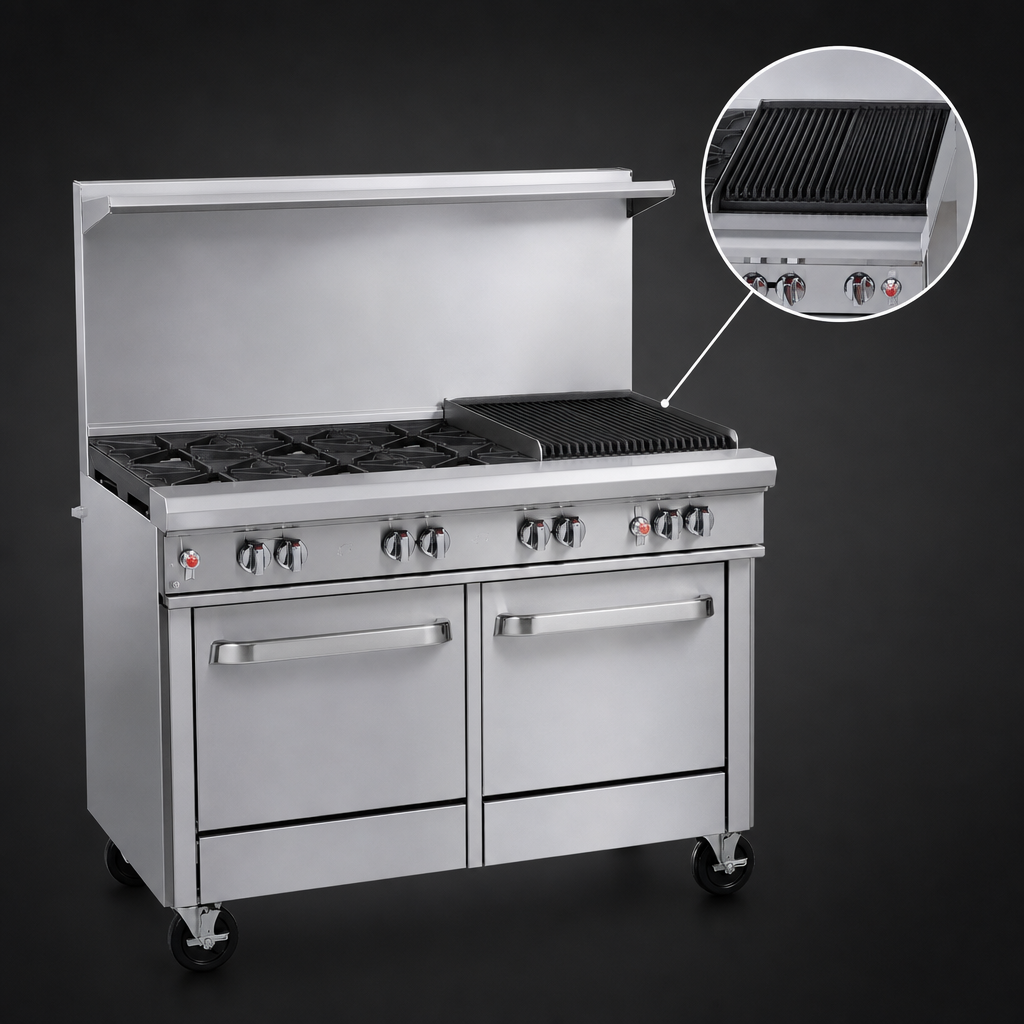

- 24″ charbroiler (right side) with 64,000 BTU input and removable cast-iron grates for bold grill marks and fast cleanup.
- 45,000 BTU standard oven with battery-spark ignition—no electrical hook-up required.
- Left-hand stainless cabinet base keeps sheet pans and smallwares close (optional door kit at no charge).
- Heavy-duty, one-piece cast-iron tops handle stock pots up to 14″ in diameter.
- 22-½″ flue riser with shelf doubles as a plating or utensil station.
- All-stainless front, sides, shelf & 6″ adjustable legs for maximum longevity.
- Front-mounted manual gas shut-off and factory-installed regulator for a quick, code-compliant install.
- Backed by a 1-year parts & labor warranty from Southbend.
Specifications
| Total Input | 241,000 BTU/hr (Natural Gas) |
|---|---|
| Open Burners | (4) Star/Sauté – 33,000 BTU each |
| Charbroiler Section | 24″ right-side, 64,000 BTU; cast-iron grates |
| Oven Type | Standard bake oven, battery-spark ignition |
| Oven Capacity | 14″ H × 26″ W × 26-½″ D; fits full-size pans both directions |
| Thermostat Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Cooking Surface | 48-⅝″ W × 27″ D; 37″ working height |
| Overall Dimensions | 48-⅝″ W × 42-⅛″ D × 59-½″ H (to top of flue) |
| Gas Connection | ¾″ NPT (rear); min. 7″ W.C. NG / 11″ W.C. LP |
| Clearances | Sides & rear 0″ to non-combustible; 10″ rear to combustible |
| Listings | CSA, NSF |
| Warranty | 1 year parts & labor |
Built-In Operator Advantages
- Standing pilots provide instant flame on demand—no downtime between orders.
- Porcelain-enameled, coved-corner oven cavity wipes clean in seconds.
- Spring-assisted door and counterweight design reduce operator fatigue.
- Battery ignition keeps your range running during power outages.
