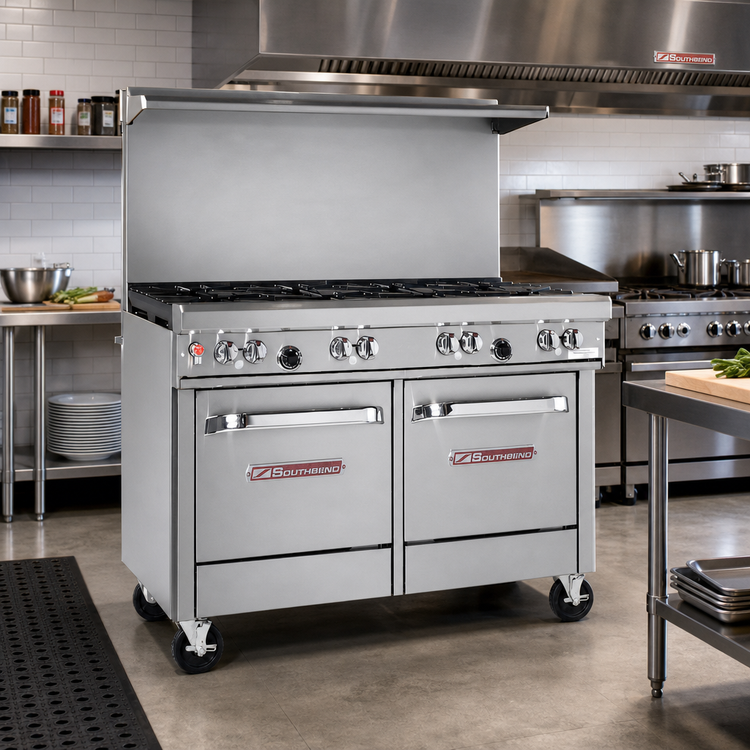

Southbend Ultimate 48-Inch Natural Gas Restaurant Range with 8 Star/Sauté Burners, Convection Oven, and Cabinet Base

Standing Pilot Top Burners, Battery Spark Ignition Oven, 22.5-Inch Flue Riser with Shelf

Built for high-volume kitchens, this 48-inch range combines eight star/sauté burners, a convection oven, and cabinet storage in a rugged stainless steel frame.

  • Eight star/sauté burners with standing pilot ignition support high-volume top cooking.
  • Natural gas convection oven includes battery spark ignition, three racks, and a 175°F to 550°F thermostat range.
  • 18-inch stainless steel cabinet base provides convenient under-range storage.
  • 22.5-inch flue riser with heavy-duty shelf adds rear clearance and a usable landing area.
  • Stainless steel front, sides, and shelf are built for daily commercial use.
  • 296,000 BTU total input with 6-inch adjustable legs and a factory-installed regulator supports demanding kitchen service.

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

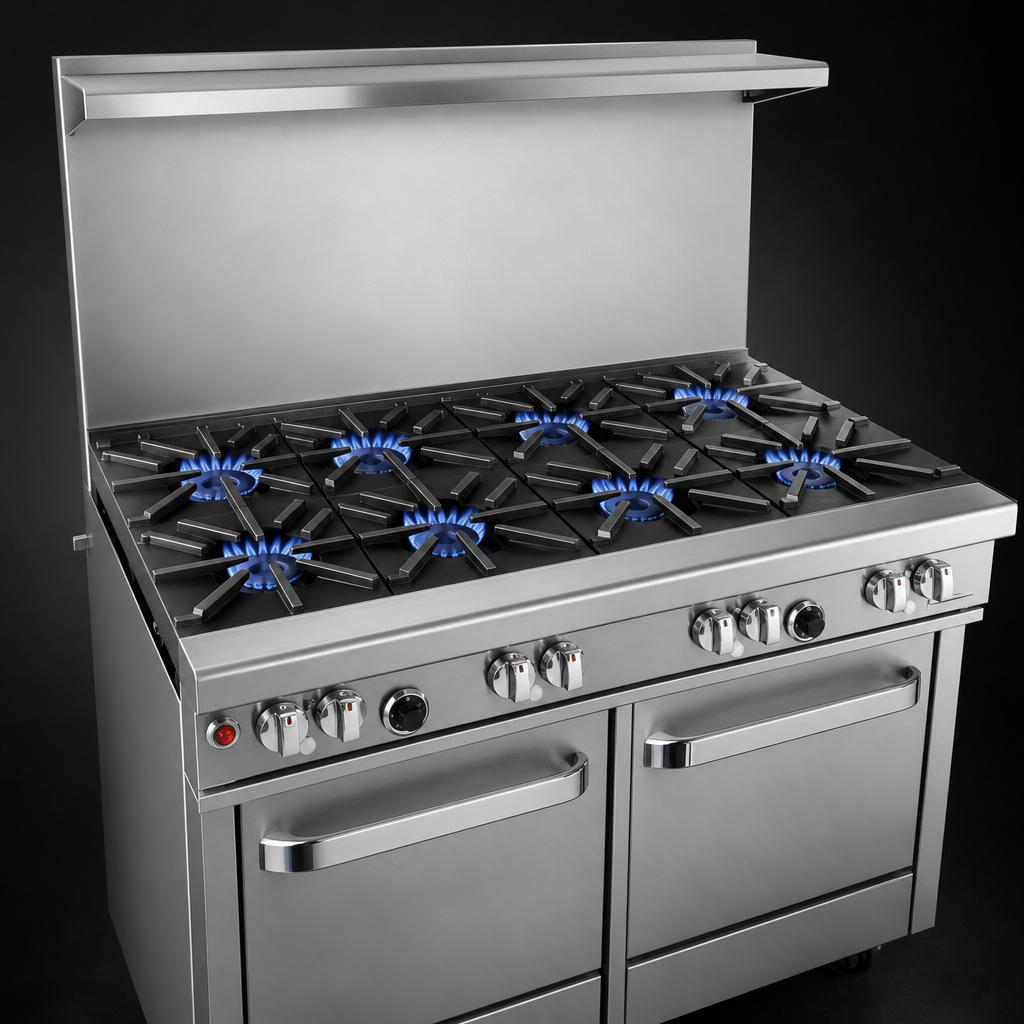

Eight Star/Sauté Burners

Eight cast iron star/sauté burners with standing pilot ignition provide dependable heat on the top section.

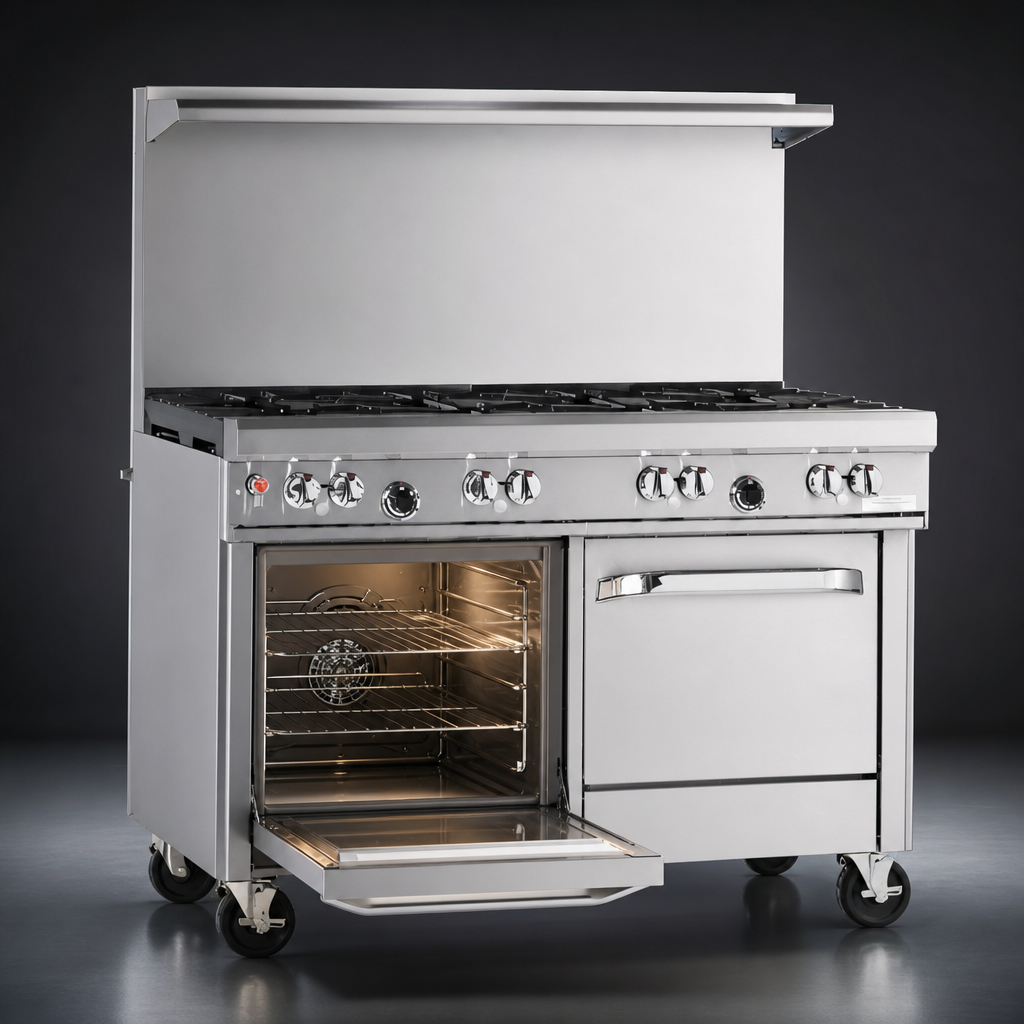

Convection Oven Base

Natural gas convection oven with battery spark ignition and a thermostat range of 175°F to 550°F.

Three Oven Racks

Includes three racks with five-position side rails for flexible loading and cooking.

Porcelain Enamel Oven Interior

Double-sided porcelain enamel cavity with coved corners supports easier cleaning and improved airflow.

Stainless Steel Cabinet Base

18-inch stainless steel cabinet base adds under-range storage space.

Stainless Steel Construction

Stainless steel front, sides, and shelf help improve durability and day-to-day cleanup.

22.5-Inch Flue Riser with Shelf

Standard flue riser includes a heavy-duty shelf for added rear workspace.

Spring-Assisted Counterweight Oven Door

Designed for smoother opening and closing of the oven door.

Factory-Installed Gas Controls

Includes a factory-installed regulator, front-located manual gas shut-off, and 6-inch adjustable stainless steel legs.

Type Restaurant Range
Style Open Burner
Installation Type Floor Model
Controls Standing Pilot, Battery Spark Ignition
Compartments 1
BTU 296,000 BTU
Gas Type Natural Gas
Temperature Range 175°F to 550°F
Voltage 115 Volts
Hertz 60 Hz
Horsepower 1/2 HP
Material Stainless Steel
Interior Finish Porcelain Enamel
Finish Stainless Steel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor warranty.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Natural gas.
Eight star/sauté burners.
One natural gas convection oven with battery spark ignition, a 175°F to 550°F thermostat range, and three racks.
Yes, it includes an 18-inch stainless steel cabinet base.
Yes, a 22.5-inch flue riser with shelf is included.
It includes a one-year limited parts and labor warranty.
