Southbend (Middleby) 4483AC-7L Ultimate Gas Ranges

$13,238.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

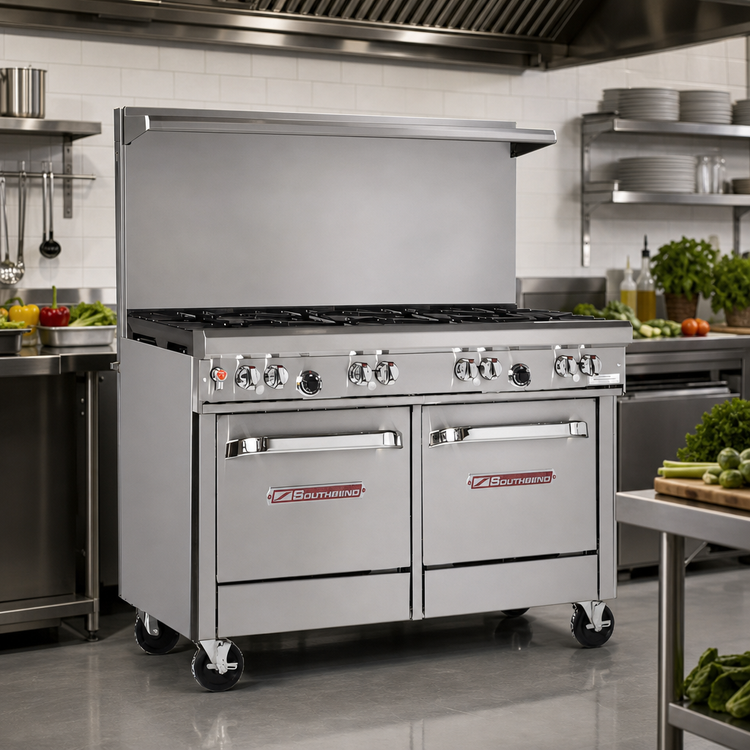

Southbend Ultimate 48" Gas Restaurant Range

4 Pyromax + 2 Star/Sauté Burners • Convection Oven & Cabinet Base • 258,000 BTU

Engineered for kitchens that never slow down, the Southbend Ultimate 48" Series delivers maximum fire-power, rock-solid construction and the flexibility to grill, sear, sauté and bake from one compact footprint.

Key Performance Features
  • 4 Pyromax 40,000 BTU non-clog burners (left) with built-in drip rings for easy cleaning & port protection.
  • 2 Cast-iron star/sauté 33,000 BTU burners (right) that spread flame evenly across any pan size.

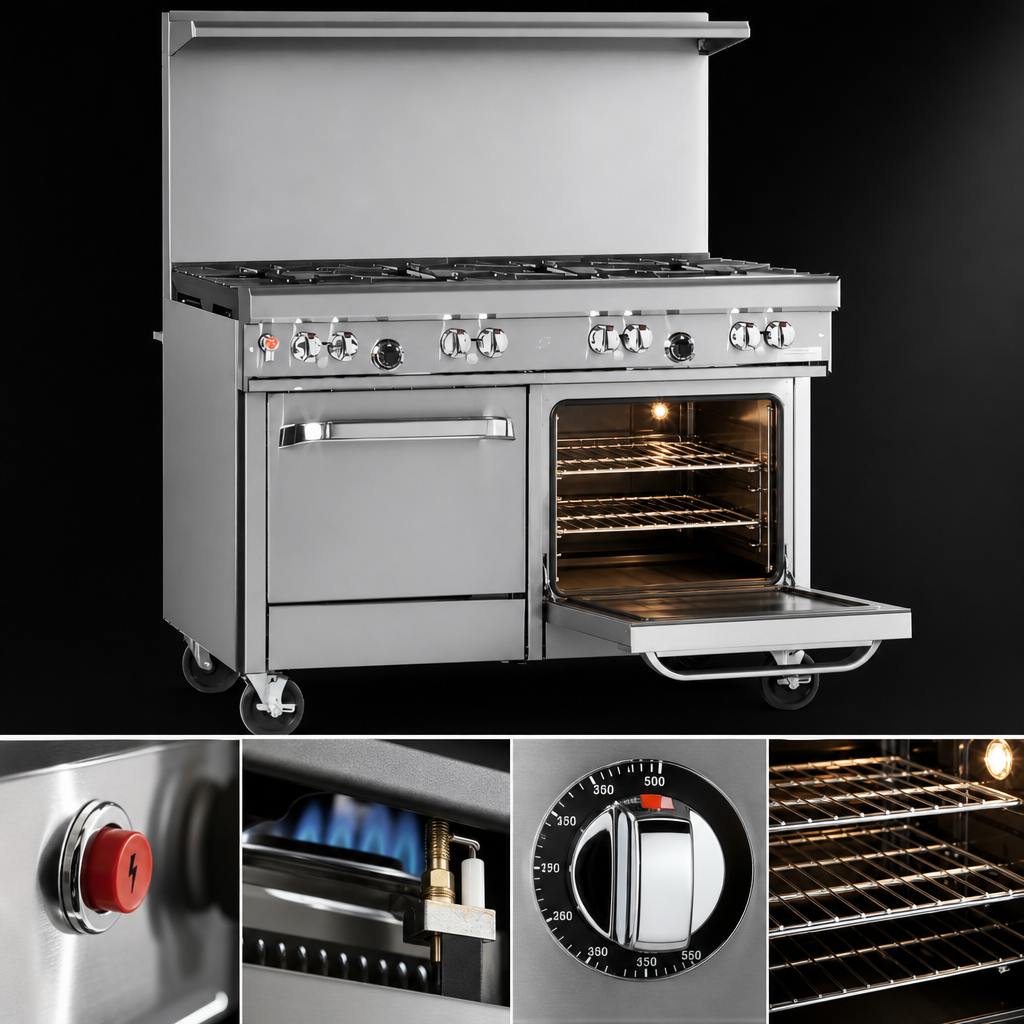

  • 32,000 BTU convection oven with battery-spark ignition, 3 racks and 5-position rails—holds full-size sheet pans both directions.
  • 18" stainless steel cabinet base keeps hotel pans, lids & utensils within arm’s reach.
  • 22 ½" flue riser and heavy-duty plate shelf double as a convenient landing zone and warmer.
  • Front-mounted manual gas shut-off and factory-installed ¾" regulator for fast, safe installation.
  • Two removable full-length drip trays plus porcelain-enamel oven cavity slash clean-up time.
  • All-stainless front, sides & 4" rail on 6" adjustable stainless legs—built for years of daily abuse.
  • CSA & NSF listed; backed by Southbend’s 1-year parts & labor warranty.
Specifications
Model / Config. Ultimate 48" Series • 448_AC
Overall Width 48.63" / 1235 mm
Overall Depth 42.13" / 1070 mm (incl. landing rail)
Work-Surface Height 37" / 940 mm
Height w/ Flue Riser 59.50" / 1511 mm
Total BTU Input 258,000 BTU/hr (Natural Gas)
Open-Top Burners 4 × 40,000 BTU Pyromax
2 × 33,000 BTU Star/Sauté
Oven Type Gas convection, porcelain interior
Oven Capacity 14"H × 26"W × 24"D (fits full-size pans both ways)
Oven Temp Range 175 °F – 550 °F / 79 °C – 288 °C
Gas Connection ¾" NPT (female), left rear
Electrical (fan) 115 V / 60 Hz / 1-ph, 5.9 A, 6' cord & 3-prong plug
Construction Stainless front, sides, shelf & legs; cast-iron grates
Certifications CSA, NSF
Warranty 1-year parts & labor

For commercial use only. Install under a vented hood and supply 115 V electrical service for the convection fan.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

44.5in

Shipping Weight

735.0lbs

Top

(6) open burners

Exterior Finish

stainless steel front & sides

Base

(1) convection oven, (1) cabinet

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 48", (4) pyromax burners left, (2) star/sauté burners right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 258,000 BTU, CSA, NSF
