Southbend (Middleby)

Southbend Ultimate 48-Inch Gas Restaurant Range with 7 Open Burners, Convection Oven and Cabinet Base

SKU: 4483AC-6R
$13,635.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Ultimate 48-Inch Gas Restaurant Range with 7 Open Burners, Convection Oven and Cabinet Base

Stainless Steel, 277,000 BTU, 22.5-Inch Flue Riser with Shelf

Built for demanding kitchens, this 48-inch Ultimate range combines a 7-burner top, convection oven, and cabinet base in a rugged stainless steel design.

  • 48-inch gas restaurant range with 7 top burners and one convection oven
  • Includes one stainless steel cabinet base for added storage
  • 277,000 BTU total output for high-volume cooking performance
  • Stainless steel front, sides, and shelf for durability and easy cleaning
  • 22.5-inch flue riser with heavy-duty shelf is included standard
  • Convection oven includes 3 racks and battery spark ignition
  • 6-inch stainless steel adjustable legs help simplify installation and leveling

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

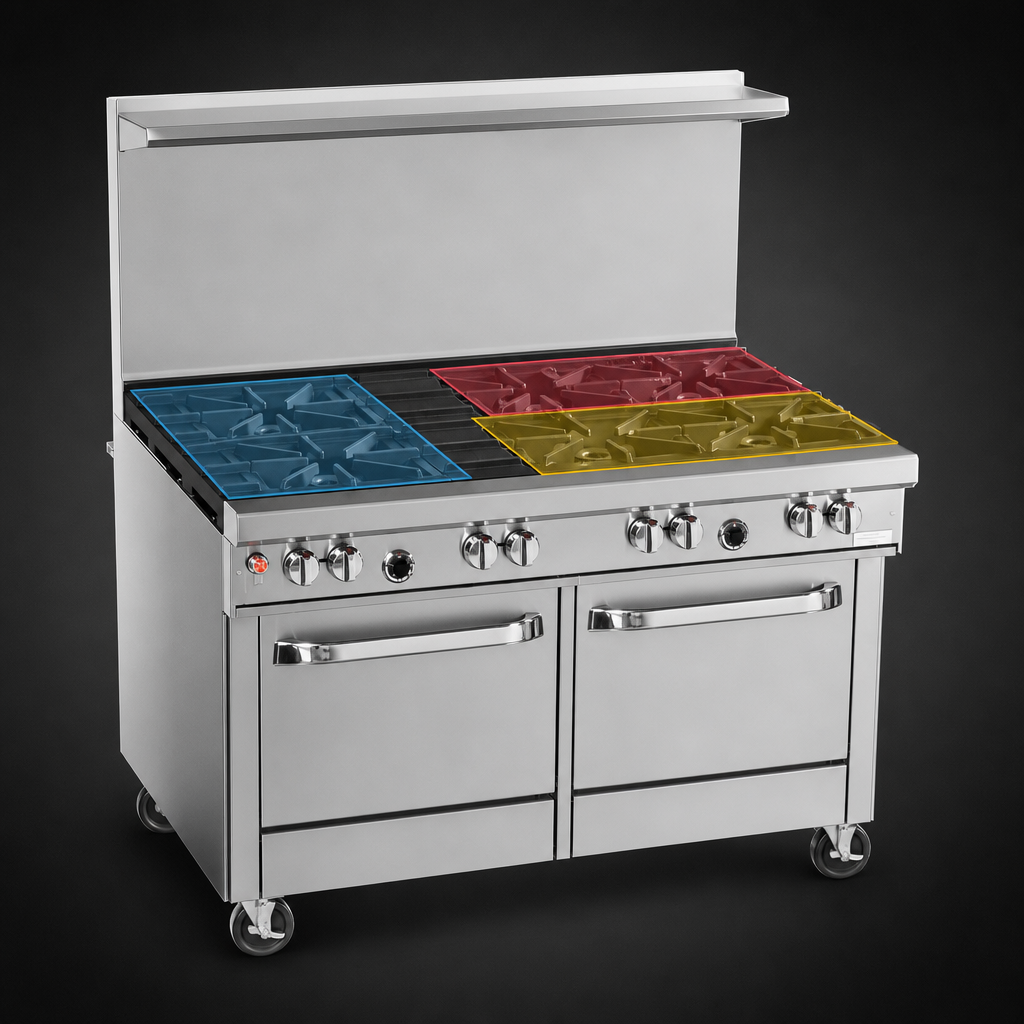

Seven-Burner Top Configuration

Configured with 3 star/sauté burners on the front right, 2 Pyromax burners on the back right, and 2 star/sauté burners on the left.

Convection Oven Base

Includes one convection oven with battery spark ignition, a 175°F to 550°F temperature range, and 115V AC operation.

Cabinet Base Storage

One stainless steel cabinet base provides under-range storage.

High-Output Performance

Rated at 277,000 BTU total for demanding commercial cooking.

Stainless Steel Exterior

Stainless steel front, sides, and shelf with a 4-inch front rail for durability.

Flue Riser with Shelf

Includes a 22.5-inch flue riser with a heavy-duty shelf.

Oven Interior and Racks

Double-sided porcelain enamel oven cavity with coved corners and 3 included racks.

Installation and Safety Features

Features 6-inch stainless steel adjustable legs, a front-located manual gas shut-off, a standing pilot, and a factory-installed regulator.

Type Gas Restaurant Range
Style Open Burner
Installation Type Floor Model
Material Stainless Steel
Interior Finish Porcelain Enamel
BTU 277,000 BTU
Voltage 115 Volts
Hertz 60 Hz
Temperature Range 175°F to 550°F
Cooking Surface Depth 27 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a 7-burner top, one convection oven, one cabinet base, 3 oven racks, and a 22.5-inch flue riser with shelf.
The range is rated at 277,000 BTU.
The convection oven uses battery spark ignition.
The convection oven motor operates on 115V AC, 60 cycle power.
It includes a 1-year limited parts and labor warranty; replacement parts installed in the field are covered for 3 months on labor and materials.
