Southbend (Middleby)

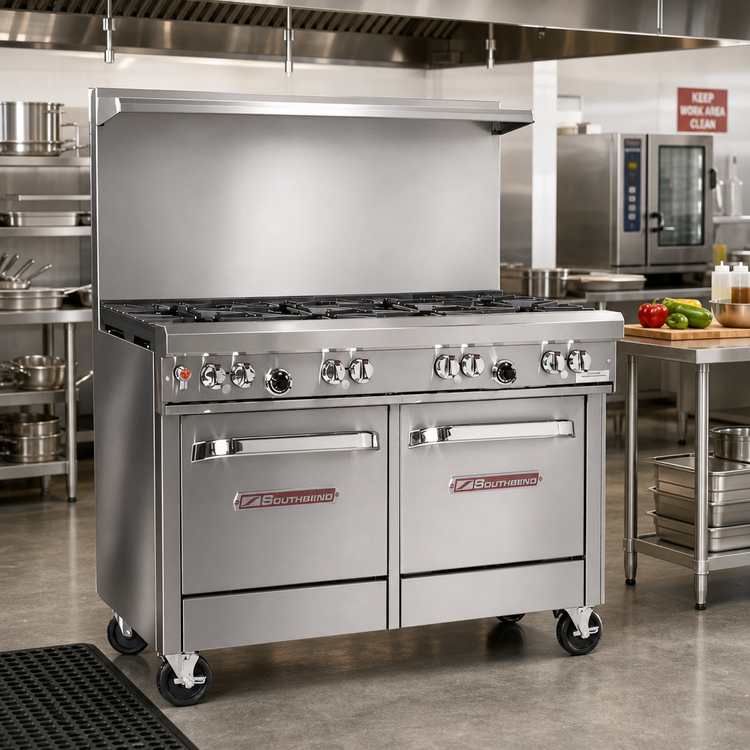

Southbend Ultimate 48-Inch Commercial Gas Range with 7 Open Burners, Convection Oven, and Cabinet Base

SKU: 4483AC-6L
$13,635.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

Southbend Ultimate 48-Inch Commercial Gas Range with 7 Open Burners, Convection Oven, and Cabinet Base

Stainless Steel Front, Sides, and Shelf; Standing Pilot; 277,000 BTU

This high-output 48-inch range combines seven open burners with a convection oven and cabinet base to maximize versatility in one footprint.

  • Seven open burners in a mixed star/sauté and Pyromax configuration for flexible high-volume cooking.
  • Convection oven base includes battery spark ignition and three racks for baking and roasting.
  • 277,000 BTU total output supports demanding commercial kitchen production.
  • Stainless steel front, sides, and shelf with 6-inch adjustable legs for durability and leveling.
  • 22.5-inch flue riser with shelf adds useful landing space.
  • Includes a cabinet base and is NSF and CSA certified.

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

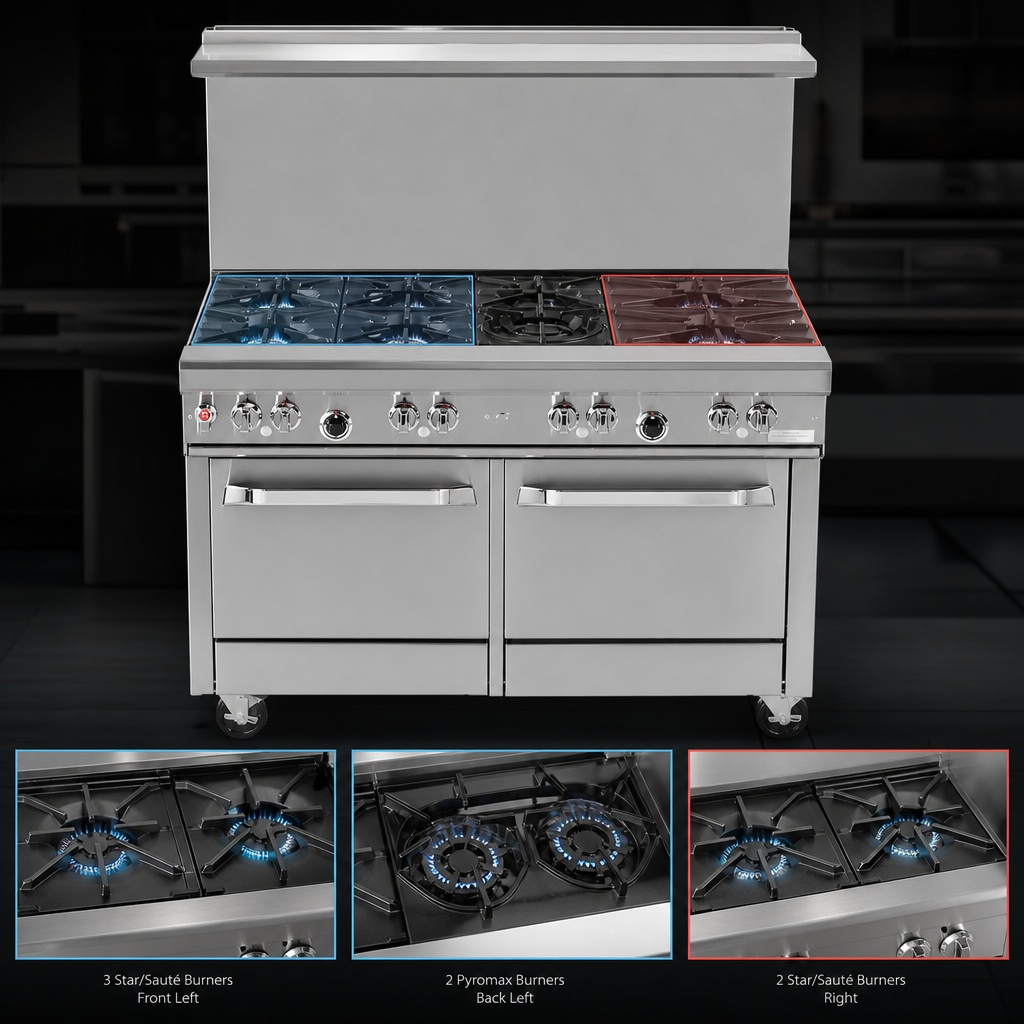

Seven-Burner Top Configuration

Configured with 3 star/sauté burners front left, 2 Pyromax burners back left, and 2 star/sauté burners right for high-output cooking flexibility.

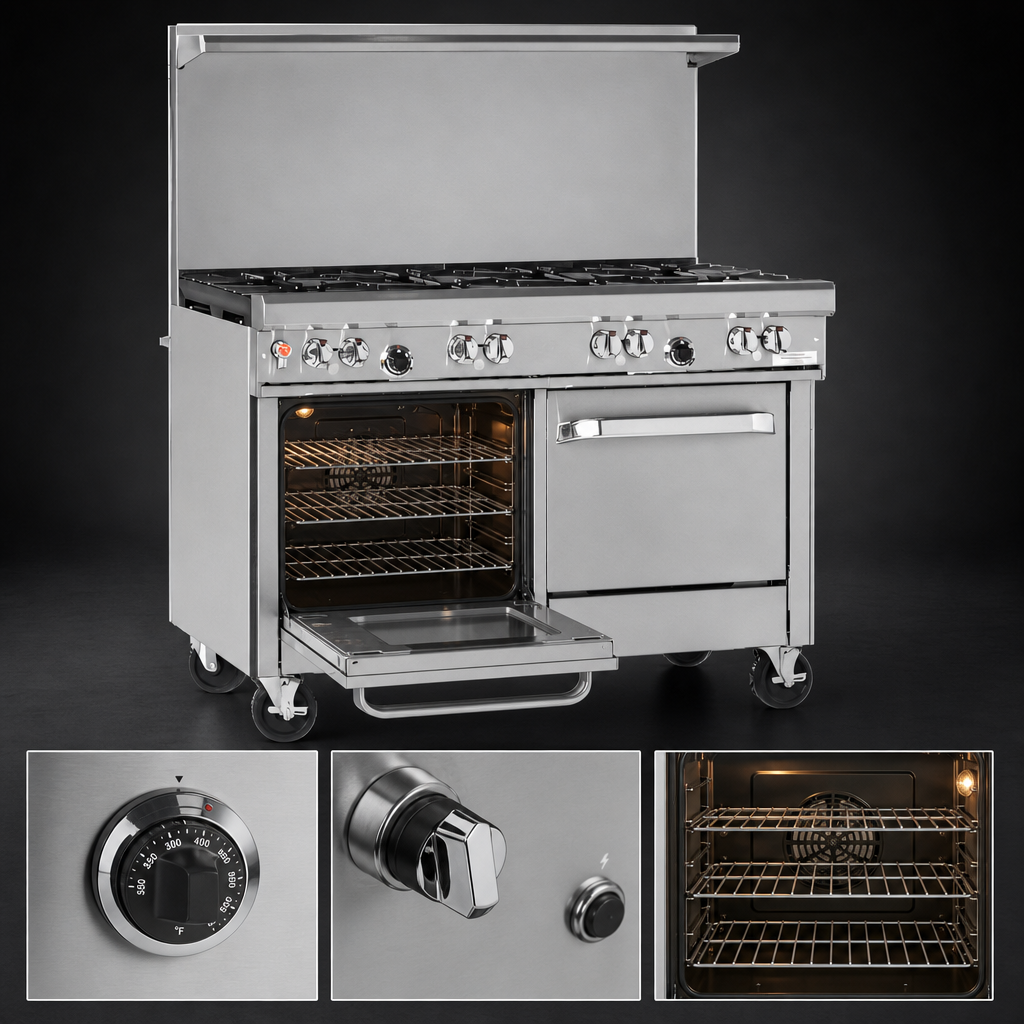

Convection Oven Base

Gas convection oven base with battery spark ignition, three racks, and a thermostat range of 175°F to 550°F.

Integrated Cabinet Base

Built-in cabinet base provides enclosed storage below the range top.

Stainless Steel Exterior

Stainless steel front, sides, and shelf provide a durable, easy-to-clean finish.

Porcelain Enamel Oven Interior

Double-sided porcelain enamel cavity with coved corners helps improve cleanability and airflow.

Flue Riser With Shelf

Includes a 22.5-inch flue riser with a heavy-duty shelf for extra landing space.

Factory-Installed Gas Components

Factory-installed regulator and front-located manual gas shut-off are included.

Adjustable Support Legs

6-inch stainless steel adjustable legs help level the unit on uneven floors.

Type Restaurant Range
Style Open Burner Range With Convection Oven
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
BTU 277,000 BTU
Voltage 115 Volts
Hertz 60 Hz
Phase 1-Phase
Temperature Range 175°F to 550°F
Cooking Surface Depth 27 Inches
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year parts and labor

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has 7 open burners: 3 star/sauté burners on the front left, 2 Pyromax burners on the back left, and 2 star/sauté burners on the right.
Yes. It includes a convection oven base with battery spark ignition, three racks, and a 175°F to 550°F temperature range.
The range is rated at 277,000 BTU.
The front, sides, and shelf are stainless steel, and the oven interior is porcelain enamel.
Available add-ons include 5-inch and 10-inch flue risers, casters, cabinet base doors, extra oven racks, a quick disconnect with flexible hose, a hot top plate, and salamander or cheesemelter mounts.
