Southbend (Middleby) 4483AC-5L Ultimate Gas Ranges
Description
Ultimate 48" Gas Restaurant Range — Southbend
7-Burner Top | Convection Oven & Stainless Cabinet BaseEngineered for kitchens that refuse to compromise, the Southbend Ultimate 48" range delivers a best-in-class mix of power, precision, and durability. A versatile burner layout, rapid-recovery convection oven, and built-in storage cabinet put high-volume sautéing, stock-pot production, and baking within arm’s reach — all in one rugged, stainless-steel platform.
Top Features

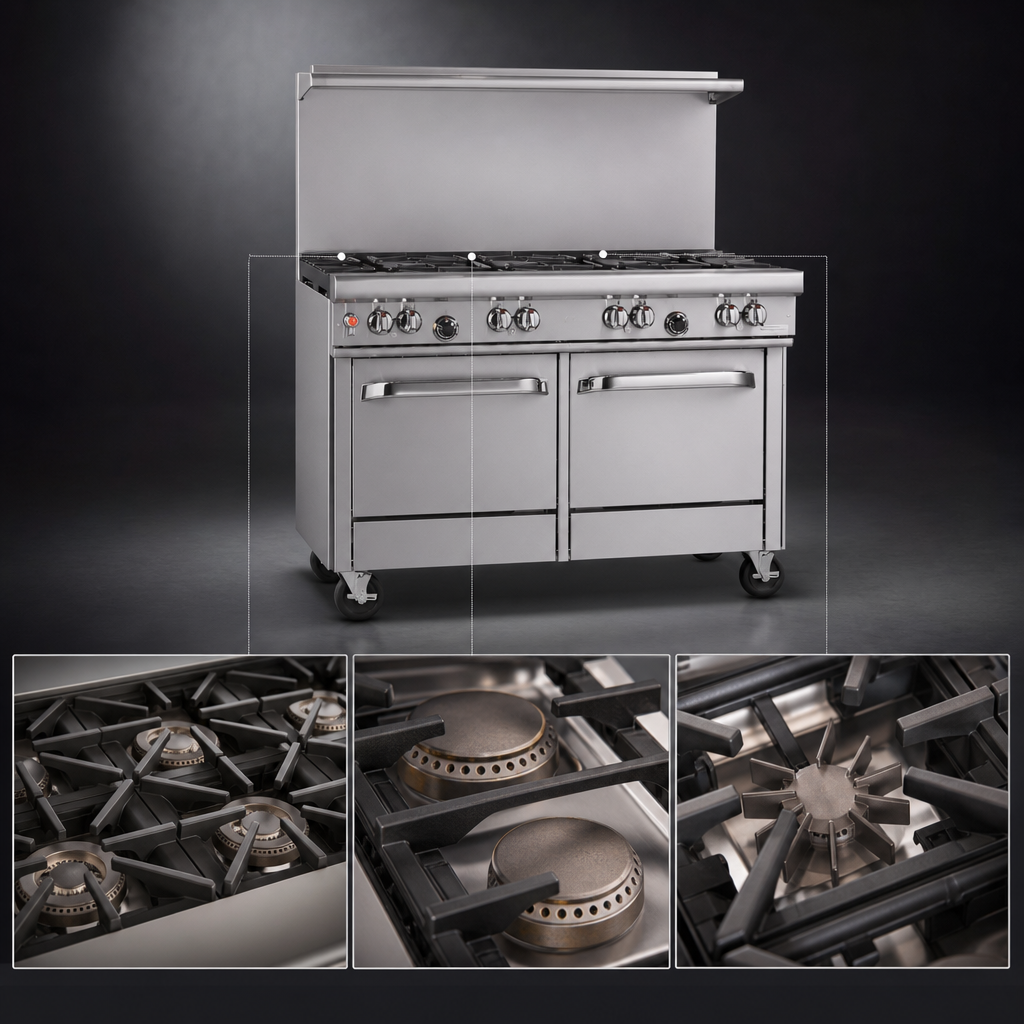

- Seven open burners, each cast-iron and lifetime clog-free:
- (3) 33,000 BTU non-clog burners – front left
- (2) 40,000 BTU Pyromax burners – rear left (high-output wok/stock-pot)
- (2) 33,000 BTU star/saute burners – right side for even flame spread
- Total range top output: 245,000 BTU
- Removable 27"-deep cast-iron grates handle cookware up to 14" in diameter
- Front-mounted manual gas shut-off and standing pilots for quick lighting

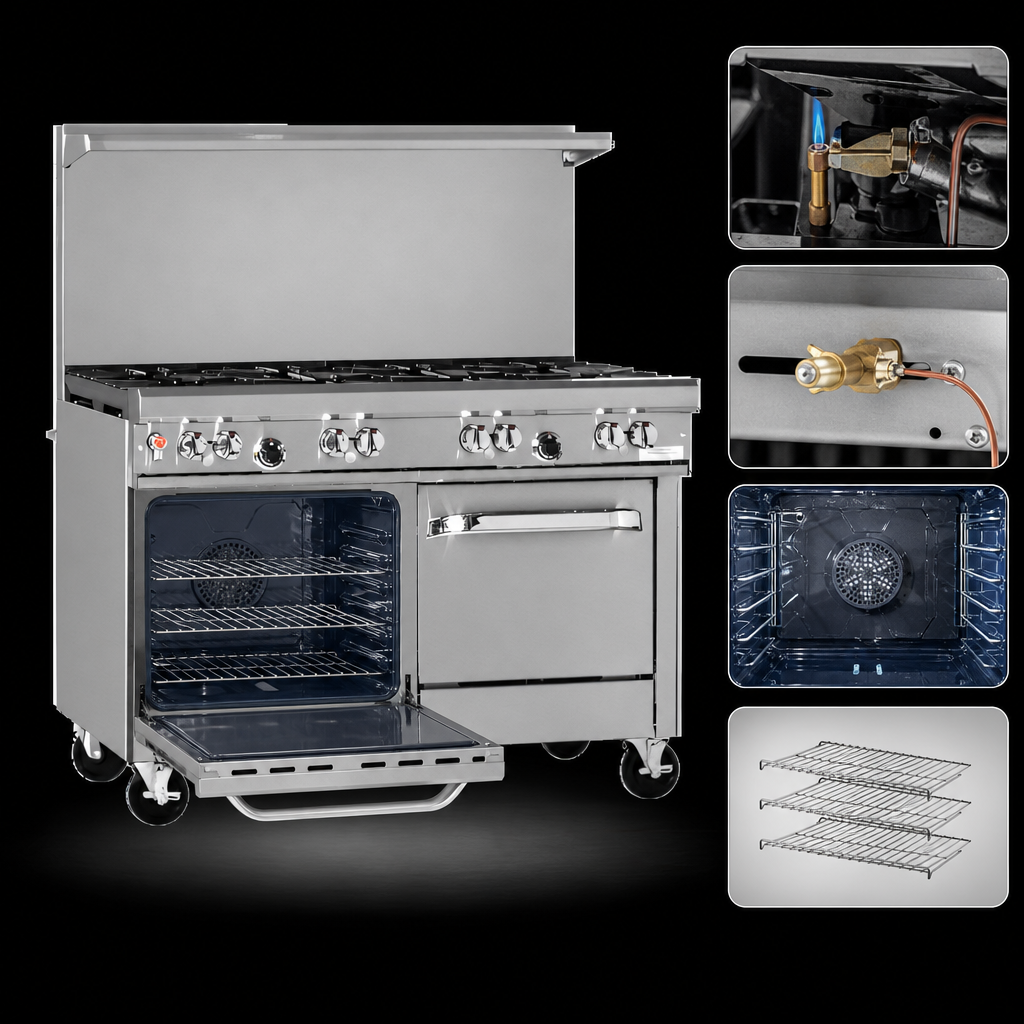

- 32,000 BTU convection oven with battery-spark ignition, 175 – 550 °F thermostat, ½ HP fan, and (3) nickel racks / 5 positions
- 18" stainless cabinet base keeps hotel pans, lids, or sheet trays organized and close
- 22.5" flue riser with heavy-duty shelf – ideal for plating or small-wares
- All-stainless front, sides, shelf, and 4" front rail; 6" adjustable stainless legs
- Factory-installed ¾" regulator and 6' cord & plug (115 V, 5.9 A) for oven fan
- CSA & NSF listed for gas safety and sanitation
- Backed by Southbend’s 1-year parts & labor warranty
Key Specifications
| Model | 448 AC (Ultimate Series) |
|---|---|
| Overall width | 48 5⁄8" / 1235 mm |
| Overall depth | 42 1⁄8" / 1070 mm (including front rail) |
| Cooking surface height | 37" / 940 mm |
| Overall height (to flue top) | 59 1⁄2" / 1511 mm |
| Total BTU | 277,000 BTU/hr (245k top + 32k oven) |
| Oven cavity | 14"H × 26"W × 24"D | full-size pans fit either direction |
| Gas connection | ¾" NPT (left or right, factory-positioned for burner layout) |
| Electrical (oven fan) | 115 V / 60 Hz / 1-ph | 5.9 A, 6' cord & 3-prong plug |
| Construction | Stainless front, sides, shelf & legs; porcelain-enameled oven |
| Certifications | CSA, NSF – Commercial use only |
| Warranty | 1-year limited parts & labor |
Built for High-Volume Kitchens
- Mix-and-match burner set lets you sear steaks, keep sauces delicately simmering, and blast through soups & stocks simultaneously.
- Porcelain-enameled, coved oven corners promote even airflow and wipe clean easily at day’s end.
- Front gas shut-off and battery ignition mean zero downtime when power is out.
- Heavy-duty components and Southbend’s Ultimate lineage are proven to survive double-shift abuse.
Warranty valid for commercial installations within the USA & Canada. Refer to Southbend’s full warranty statement for terms, exclusions, and maintenance requirements.
