Southbend (Middleby)

Southbend Ultimate 48-Inch Gas Restaurant Range with 2 Star/Sauté Burners, 36-Inch Thermostatic Griddle, Convection Oven, and Cabinet Base

SKU: 4483AC-3T
$17,204.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

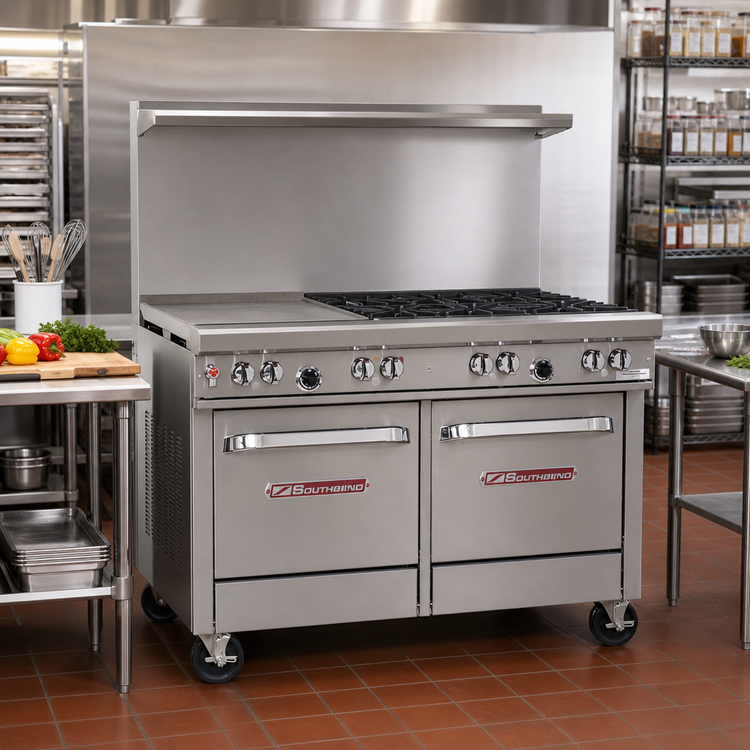

Southbend Ultimate 48-Inch Gas Restaurant Range with 2 Star/Sauté Burners, 36-Inch Thermostatic Griddle, Convection Oven, and Cabinet Base

Stainless steel front, sides, and shelf with 22.5-inch flue riser and 6-inch adjustable legs

This all-in-one 48-inch gas range combines burner, griddle, and convection oven cooking in a durable stainless steel chassis.

  • 48-inch gas restaurant range with 2 star/sauté burners and a 36-inch thermostatic griddle.
  • One convection oven base includes battery spark ignition and 3 oven racks.
  • Cabinet base section adds underrange storage alongside the cooking oven.
  • Stainless steel front, sides, and shelf are built for demanding commercial use.
  • 22.5-inch flue riser with shelf and 6-inch adjustable legs come standard.
  • 162,000 BTU total output supports high-volume kitchen production.

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

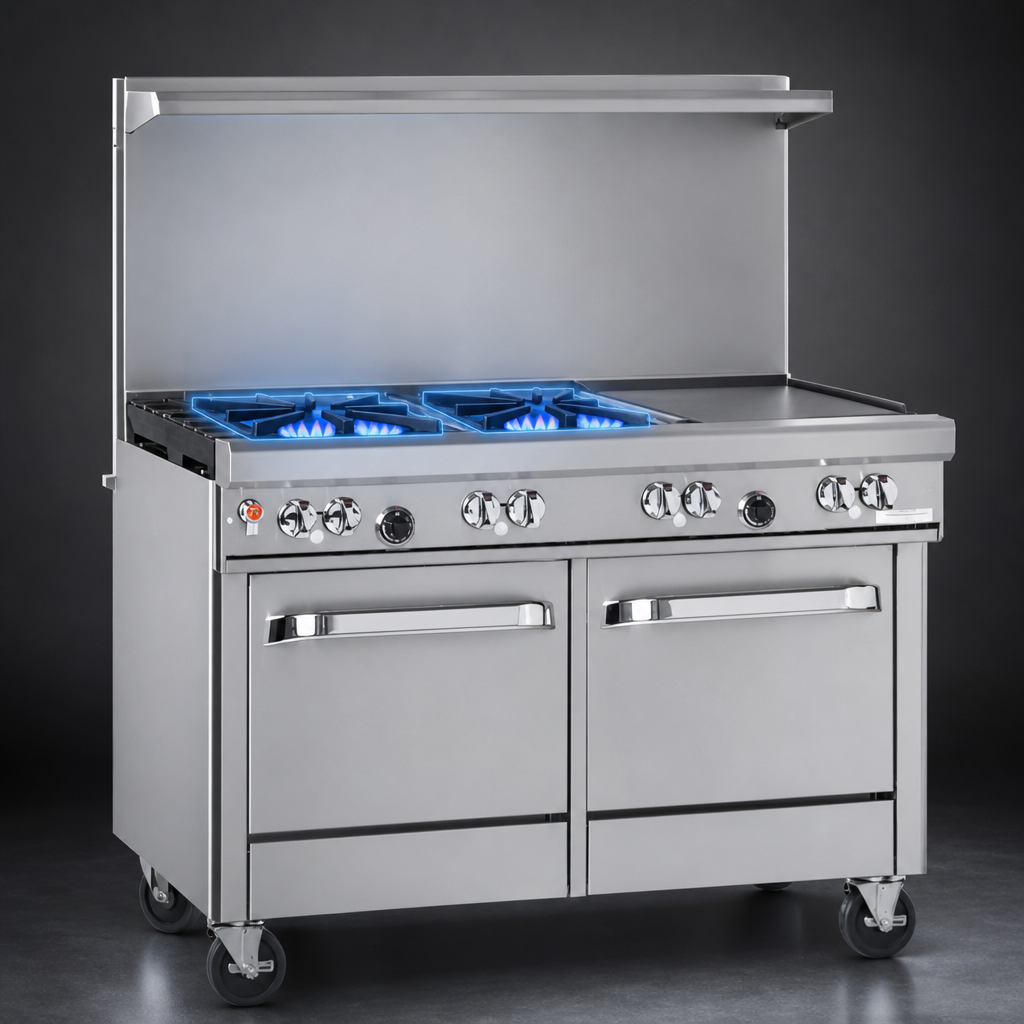

2 Star/Sauté Burners

Two star burners provide direct-heat top cooking for sautéing, searing, and boiling.

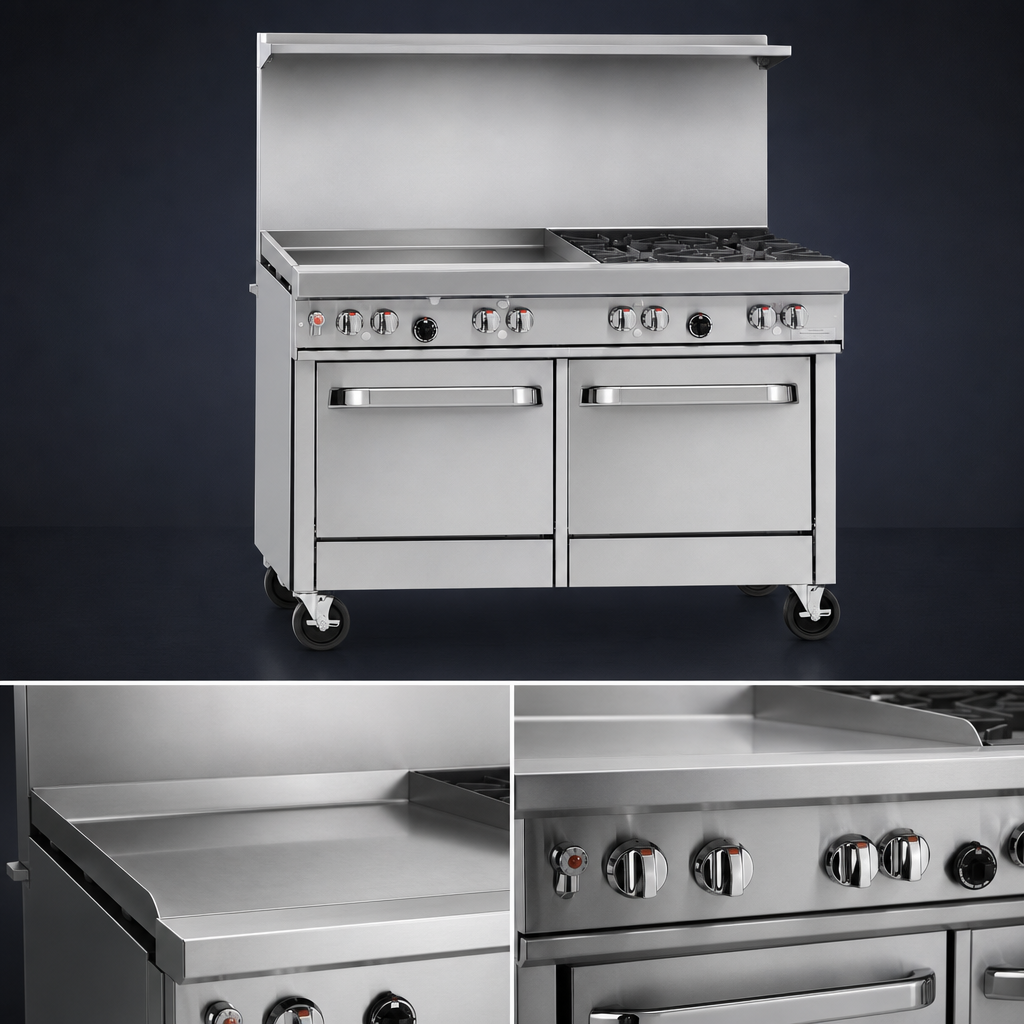

36-Inch Thermostatic Griddle

The 1/2-inch smooth polished steel griddle plate includes raised sides and thermostatic controls for even heat management.

Convection Oven Base

One convection oven base includes standing pilot ignition, battery spark ignition, a 175°F to 550°F thermostat range, and three racks.

Mixed Base Configuration

This model combines a convection oven section with a cabinet base section for cooking flexibility and storage.

Standard Cast Iron Grates

Durable removable grate tops support heavy cookware and simplify cleanup on the burner section.

Stainless Steel Construction

Stainless steel front, sides, and shelf help the range stand up to heavy commercial use.

22.5-Inch Flue Riser With Shelf

The standard backriser and shelf add useful landing space and help with clearance.

Spring-Assisted Oven Door And Adjustable Legs

A counterweight oven door and 6-inch stainless steel adjustable legs improve everyday usability and installation flexibility.

Type Gas Range
Style Combination Range
Installation Type Floor Model
Controls Thermostatic
Cooking Surface Depth 27 Inches
BTU 162,000 BTU
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1-year limited parts and labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes 2 star/sauté burners, a 36-inch thermostatic griddle, one convection oven base, and one cabinet base section.
Three oven racks are included with the convection oven base.
The range has a total output of 162,000 BTU.
The front, sides, and shelf are stainless steel.
Yes, it includes a 22.5-inch flue riser with a shelf.
It includes a 1-year limited parts and labor warranty from the date of original purchase.
