Southbend (Middleby)

Southbend Ultimate 48-Inch Gas Restaurant Range with 4 Star/Saute Burners, 24-Inch Thermostatic Griddle, Convection Oven, and Cabinet Base

SKU: 4483AC-2T
$16,391.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Gas Ranges New Arrivals Ranges Restaurant Equipment Southbend (Middleby)

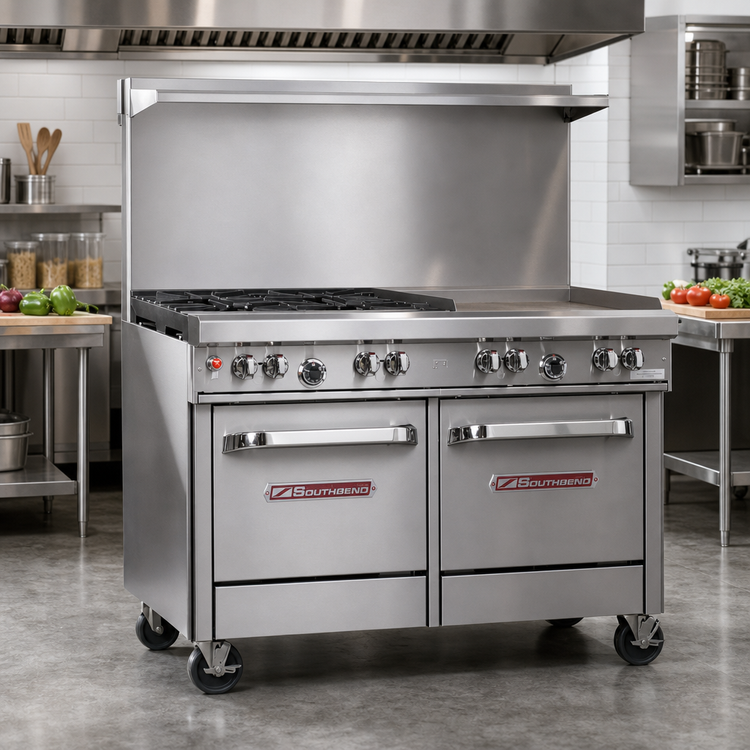

Southbend Ultimate 48-Inch Gas Restaurant Range with 4 Star/Saute Burners, 24-Inch Thermostatic Griddle, Convection Oven, and Cabinet Base

Standard Grates, Standing Pilot, 22.5-Inch Flue Riser, 212,000 BTU

Built for high-volume kitchens, this 48-inch range combines powerful burners, a thermostatic griddle, and a convection oven in a durable stainless-steel design.

  • Combines four Star/Saute burners, a 24-inch thermostatic griddle, and a convection oven in one 48-inch range.
  • Delivers 212,000 BTU for demanding commercial cooking applications.
  • Includes a convection oven with 3 racks and battery spark ignition.
  • Stainless steel front, sides, and shelf add durability and make cleanup easier.
  • 22.5-inch flue riser with heavy-duty shelf provides extra holding space.
  • 6-inch adjustable stainless steel legs help with leveling on uneven floors.

Overall Dimensions:

48.63"W x 44.5"D x 59.5"H

Product Weight:

735.0 lb

Four Star/Saute Burners

Top section includes four cast iron Star/Saute burners with standard grates for versatile burner cooking.

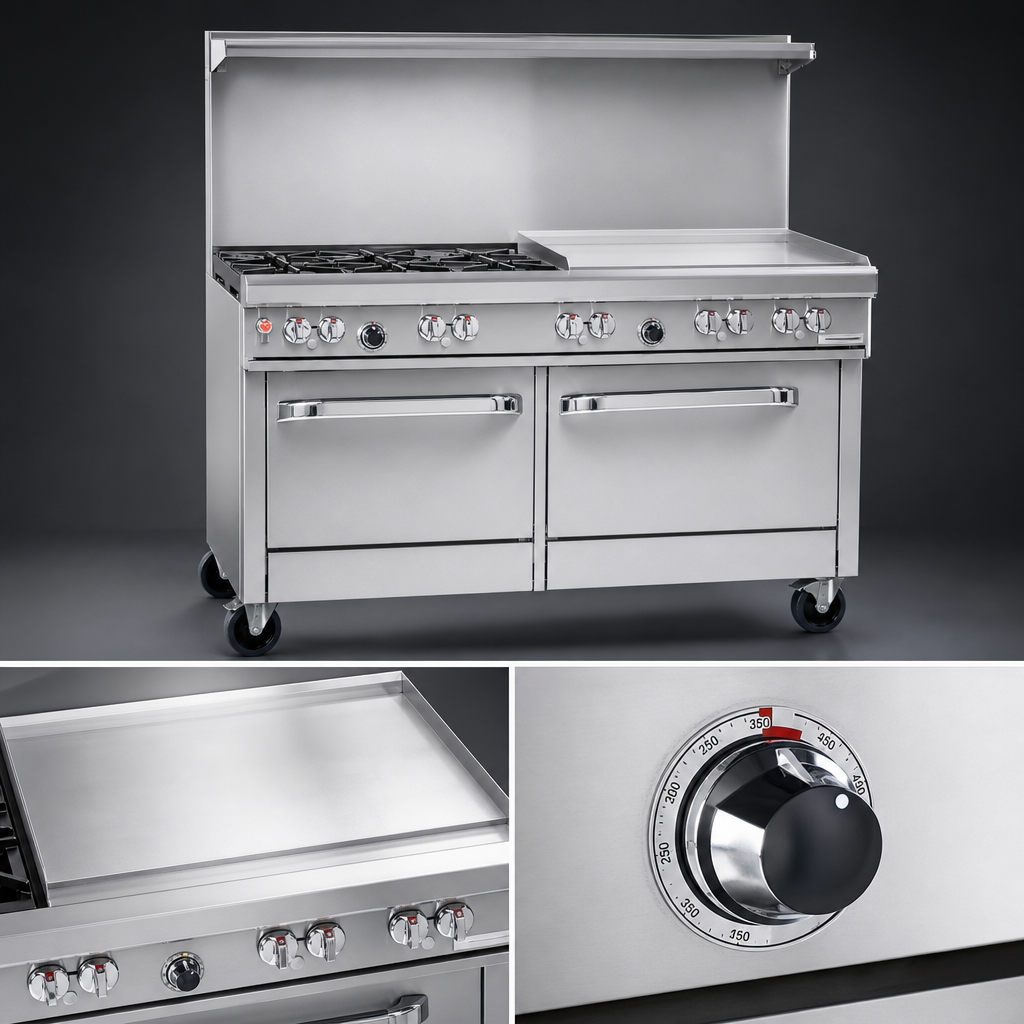

24-Inch Thermostatic Griddle

A smooth polished steel griddle with thermostatic control provides even heat for breakfast and flat-top cooking.

Convection Oven Base

One convection oven is included with battery spark ignition, thermostat control, and 3 racks.

Stainless Steel Construction

Stainless steel front, sides, and shelf provide a durable exterior suited for busy kitchen environments.

Flue Riser With Shelf

The 22.5-inch flue riser includes a heavy-duty shelf for added workspace and convenience.

Manual Gas Shut-Off And Regulator

Front-located manual gas shut-off and factory-installed regulator support safe, simplified operation.

Adjustable Legs

6-inch stainless steel adjustable legs help level the range during installation.

Type Gas Restaurant Range
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Interior Finish Porcelain Enamel
Controls Thermostatic
Temperature Range 175°F to 550°F
BTU 212,000 BTU
Voltage 115 Volts
Hertz 60 Hz
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 49 Inches
Shipping Depth 45 Inches
Shipping Height 60 Inches
Shipping Weight 735 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Warranty & Protection

1 year parts and 1 year labor

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It has four Star/Saute burners on the top section.
Yes. It includes one 24-inch thermostatic griddle with a smooth polished steel plate.
The convection oven includes 3 racks.
The oven thermostat range is 175°F to 550°F.
The range is rated at 212,000 BTU.
The warranty is one year parts and one year labor from the date of original purchase, with service performed by a Southbend Authorized Service Agency.

Need Help Deciding?

Our equipment specialists can help you match specs to your kitchen layout, electrical capacity, and menu requirements.

Talk to a Specialist
or call (888) 307-5030
