Description
Southbend “Ultimate” 48" Gas Restaurant Range – 4 Star Burners, 24" Right-Side Charbroiler & Convection Oven (Model 448AC)
Heavy-duty performance in a single, 48-inch footprintFrom flash-fire sautéing to perfectly seared steaks and evenly-baked casseroles, the Southbend Ultimate Series packs every cooking style your line needs into one rugged, stainless-steel workhorse. Deliver charcoal-style flavor, convection-quality baking and quick-response open-top heat while saving valuable floor space and utility connections.
All-in-One Power & Versatility
- Four (4) 33,000 BTU cast-iron star/sauté burners with standing pilots for instant, even heat.

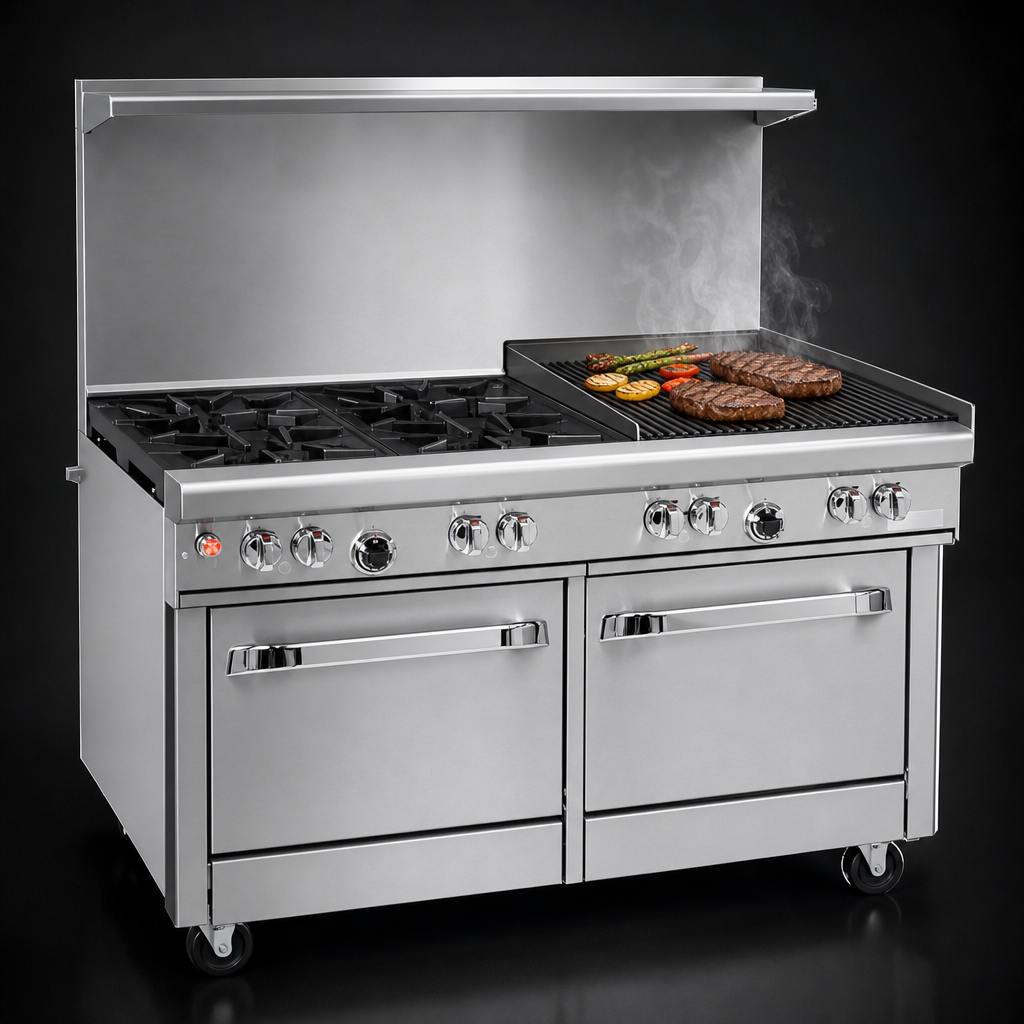

- 24" charbroiler (right-side) delivers 64,000 BTU of direct, open-flame grilling with removable cast-iron grates.
-
32,000 BTU convection oven (left base):
- Temperature range 175 °F – 550 °F
- Porcelain-enamel cavity 14"H × 26"W × 24"D
- Three (3) nickel racks with five positions
- Battery-spark ignition; ½ HP, 1 ph fan motor keeps bakes even
- 18" stainless cabinet base (right) adds convenient pan, utensil or sheet-tray storage. Optional door available at no extra charge.
- 27"-deep cooking surface with four easy-lift cast-iron grate sections (rear grate holds up to a 14" stock pot).
- 22-½" flue riser with heavy-duty integrated shelf for quick plating or condiment storage.
- Front-mounted manual gas shut-off and factory-installed regulator for fast, safe service connections.
- All-stainless front, sides, rail and 6" adjustable legs stand up to the daily rigors of a busy kitchen.
- Shipped CSA & NSF certified and backed by a 1-year parts & labor warranty.
Specifications
Model | 448AC (charbroiler right, convection oven left, cabinet right) |
---|---|
Overall Width | 48-5/8" (1235 mm) |
Overall Depth | 42-1/8" (1070 mm) with convection base |
Cook-top Height | 37" (940 mm) |
Flue Height (to shelf) | 59-½" (1511 mm) |
Open Burners | 4 × 33,000 BTU star burners | 132,000 BTU total |
Charbroiler | 24" section, 64,000 BTU |
Convection Oven | 32,000 BTU | 3 racks, ½ HP fan |
Total Input | 228,000 BTU/hr (Natural Gas) |
Gas Connection | ¾" NPT (left rear; opposite charbroiler) |
Electric | 115 V / 60 Hz / 1 ph, 5.9 A, 6' cord & 3-prong plug (convection fan only) |
Construction | Stainless steel front, sides, shelf & legs; porcelain-enamel oven cavity |
Certifications | CSA, NSF |
Warranty | 1-year limited parts & labor |
