Southbend (Middleby) 4482EE Ultimate Gas Ranges
Description

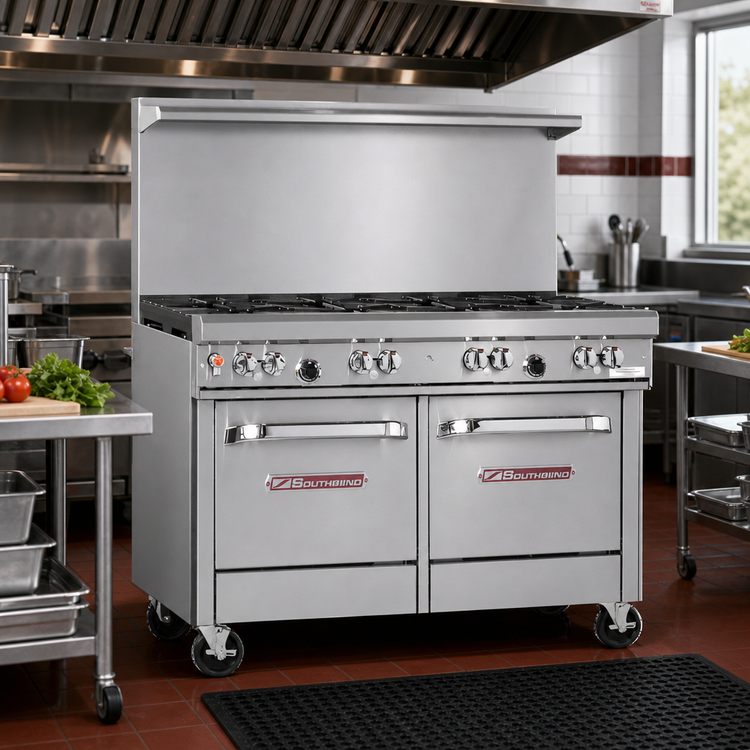

Southbend Ultimate 48" Gas Restaurant Range
8 Open Top Burners • Wavy Grates • Twin Space-Saver OvensBuilt to keep up with the busiest kitchens, the Southbend Ultimate Series delivers heavy-duty power, rugged stainless construction, and the versatility chefs demand. With 306,000 BTU of total output packed into a 48" footprint, this range fires through sauté, stock work, baking and roasting—without sacrificing valuable line space.
Why This Range Rocks

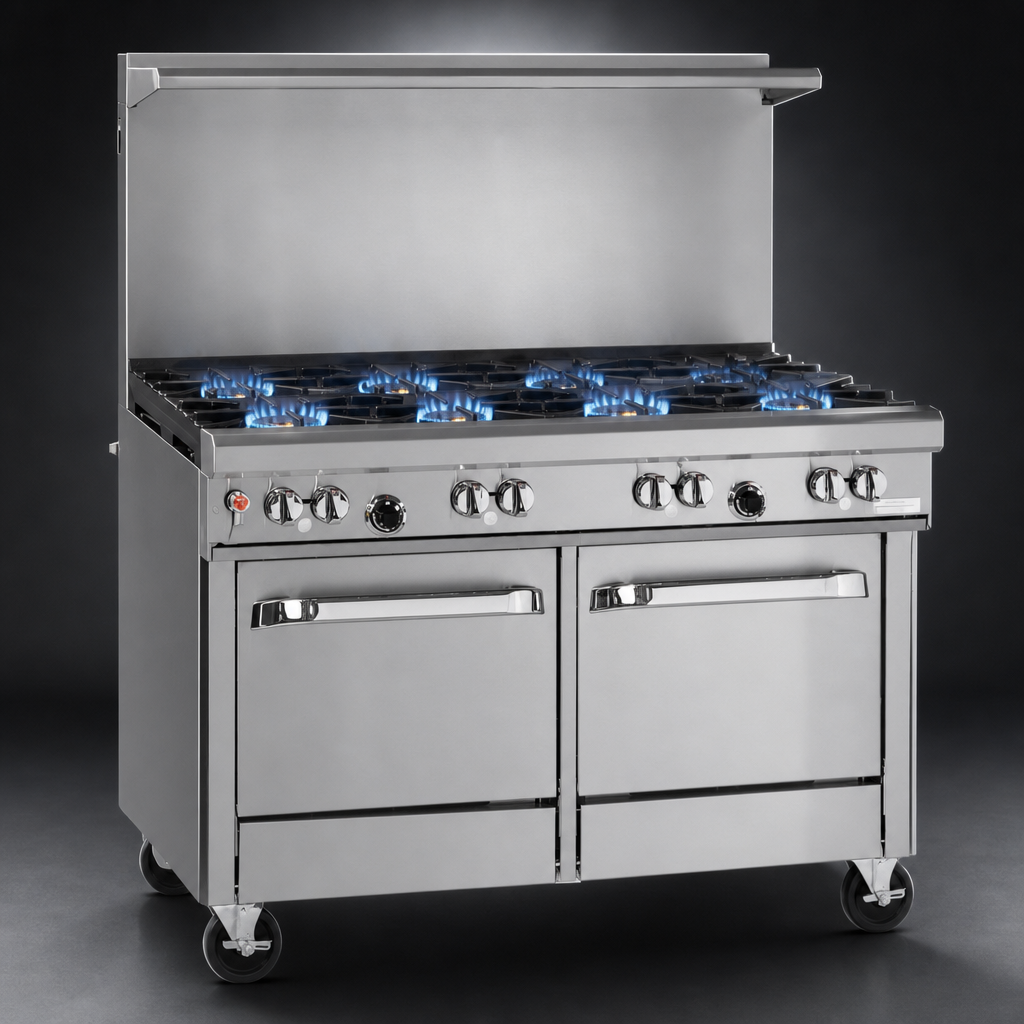

- Eight non-clog cast-iron burners (27,000 BTU ea.) with lifetime-clog-free design.

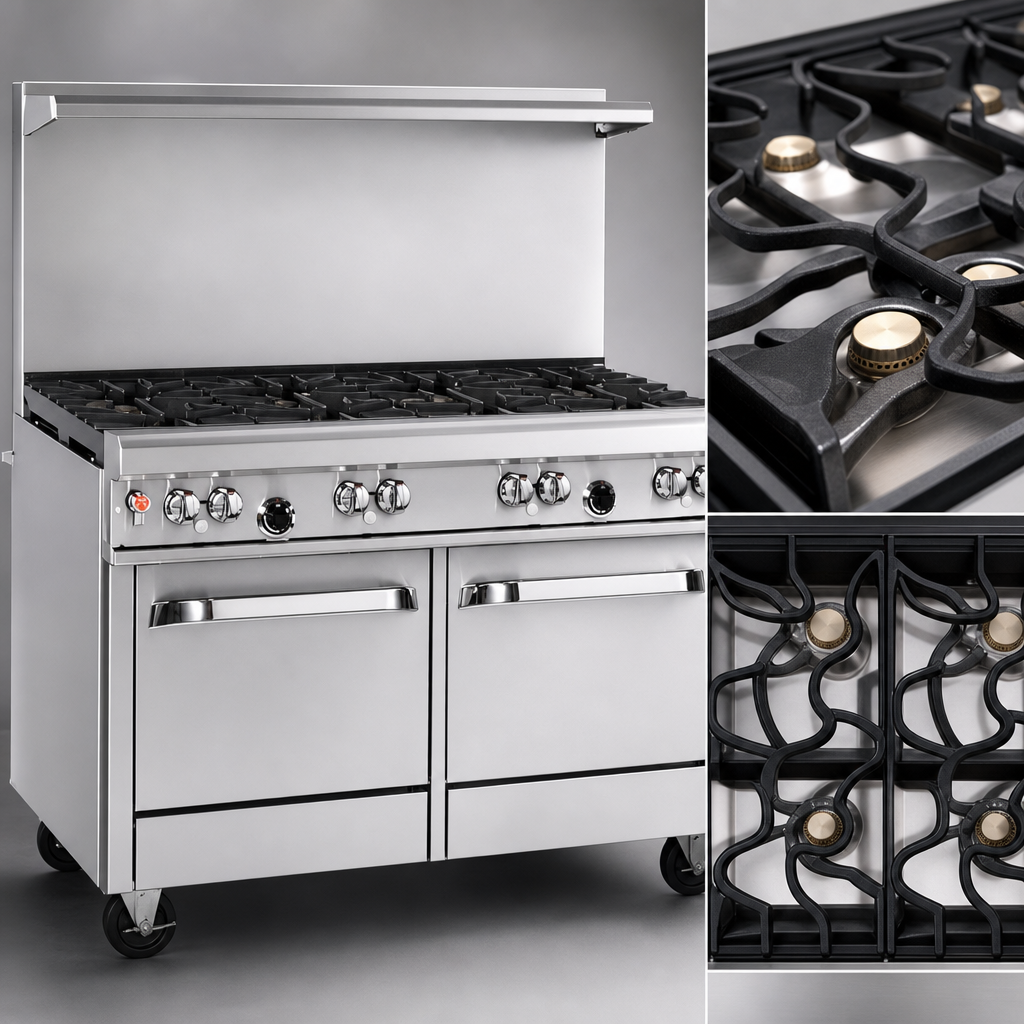

- Factory-installed wavy grates: bowl-shaped cast iron maximizes pan stability and allows full-surface cooking.
- Two 45,000 BTU “EE” space-saver ovens with battery spark ignition—full 26½" depth fits full-size sheet pans front-to-back.
- 22½" flue riser & heavy-duty shelf for easy plate staging or utensil storage.
- Front-mounted manual gas shut-off and factory regulator for fast service access.
- All-stainless front, sides & 4" rail plus 6" adjustable legs—built to survive the rush.
- Standing pilots on the top, CSA & NSF listed, and covered by a 1-year parts & labor warranty.
Space-Saver Oven Performance
- Thermostat range: 175 °F – 550 °F (79 °C – 288 °C)
- 14" H × 19.5" W × 26.5" D porcelain-enameled cavity for superior clean-up
- Spring-assisted doors with counterweight for one-hand operation
- Includes 1 chrome rack per oven with two rack positions
Technical Specifications
| Model | Ultimate 448 EE |
|---|---|
| Gas Type | Natural gas (field convertible to LP) |
| Total BTU | 306,000 BTU/hr |
| Open Top Burners | 8 × 27,000 BTU non-clog cast iron |
| Ovens | 2 × 45,000 BTU space-saver (battery spark) |
| Cooking Surface | 48 5⁄8" W × 27" D |
| Exterior Dimensions | 48 5⁄8" W × 34" D × 59 1⁄2" H (to top of flue) |
| Cook-top Height | 37" |
| Gas Connection | ¾" NPT rear (7" W.C. min. inlet pressure NAT) |
| Shipping Weight | ≈ 735 lb |
| Listings | CSA Flame • CSA Sanitation • NSF |
| Warranty | 1-year parts & labor (see note) |
Built Ultimate Tough
- Double-sided porcelain oven liners with coved corners—no cold spots, easier wipe-out.
- Removable drip trays under the burner box speed daily cleaning.
- Optional extras available: 5" / 10" flue risers, rear step-up burners, caster set, extra oven racks and more (contact us).
