Description

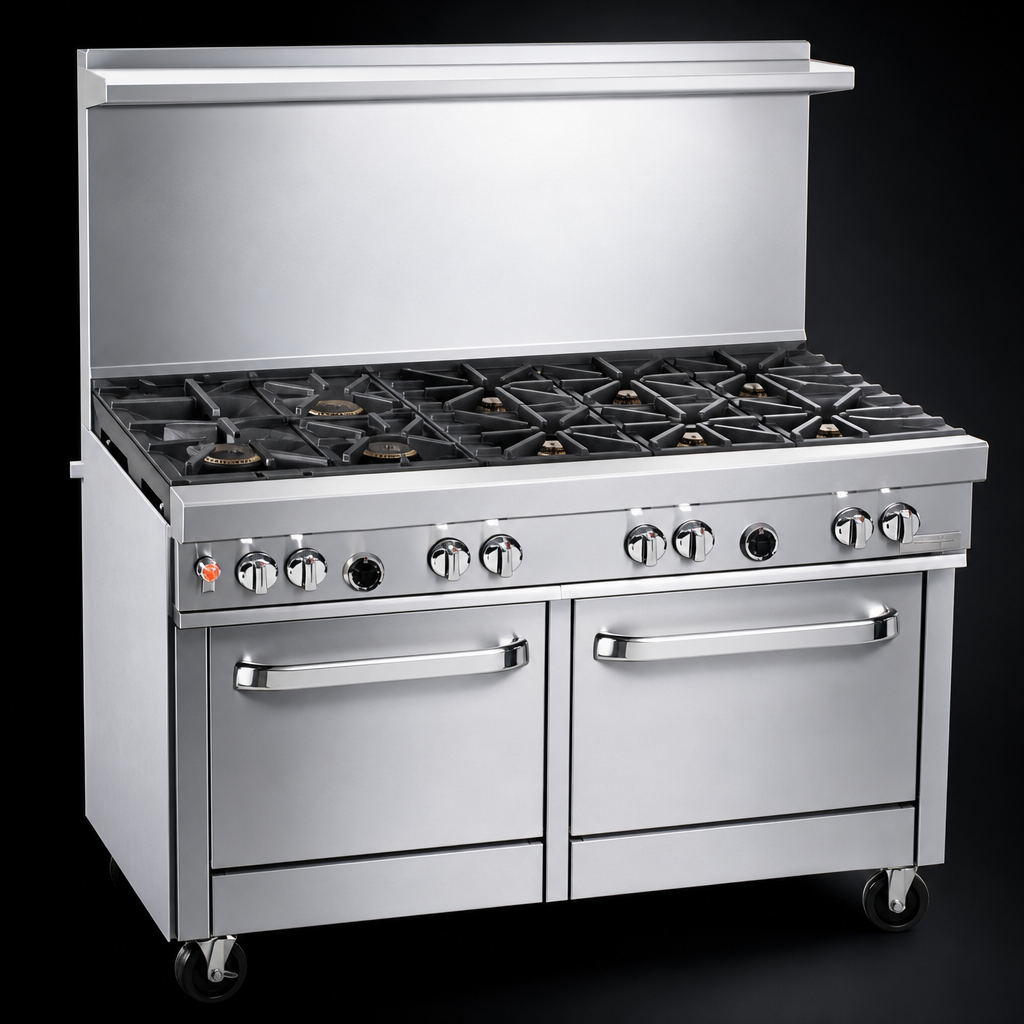

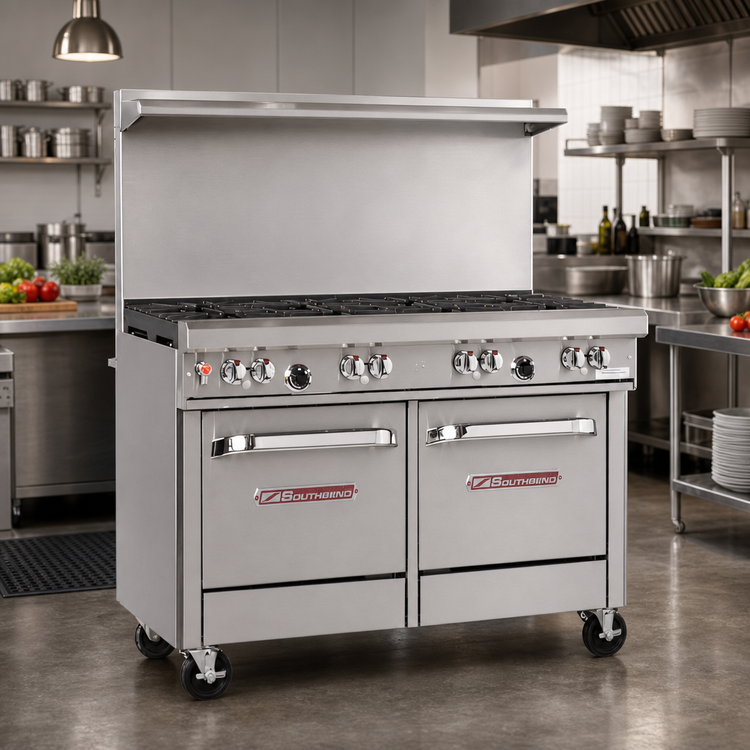

Southbend Ultimate 48" Restaurant Range – 4 Pyromax & 2 Non-Clog Burners
Dual Space-Saver Ovens • 304,000 BTU • Model 448-EE • CSA & NSF ListedPut 304,000 BTU of rugged, precision-controlled power on your cookline. The Southbend Ultimate Series packs high-output Pyromax burners, lifetime non-clog technology and twin space-saving ovens into a 48" stainless chassis built for the busiest commercial kitchens.
At-a-Glance Highlights
- Six open burners: 4 × 40,000 BTU Pyromax (right) + 2 × 27,000 BTU non-clog (left).
- Factory-installed wavy cast-iron grates for full-surface pot stability.

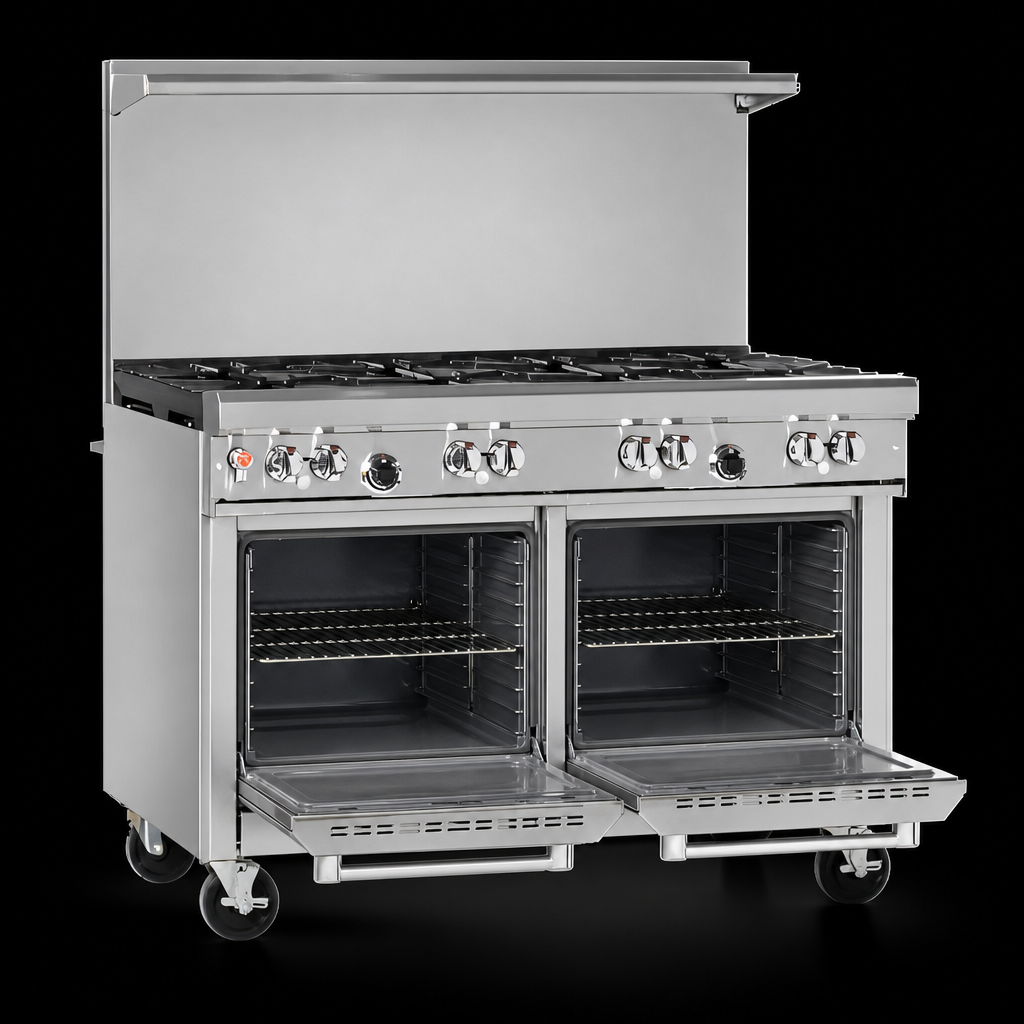

- Two Space-Saver ovens – 45,000 BTU each, 175-550 °F thermostat, one rack included per oven.
- Battery-spark ignition on ovens; standing pilots on open burners.
- 22 ½" flue riser with heavy-duty stainless shelf for plates & pans.
- 4" stainless front rail, front-mounted manual shut-off and factory regulator.
- Stainless steel front, sides & shelf with 6" adjustable stainless legs.
- Meets CSA flame safeguard & NSF sanitation standards.
- Backed by Southbend’s 1-year parts & labor warranty (details).
Performance & Specifications
| Total input | 304,000 BTU/hr (Natural gas) |
|---|---|
| Open burners | 4 Pyromax @ 40 K + 2 Non-clog @ 27 K |
| Ovens | 2 Space-Saver ovens @ 45 K each |
| Cooking surface | 27" deep, wavy cast-iron tops; rear grates accept 14" stock pots |
| Oven cavity (each) | 14" H × 19.5" W × 26.5" D porcelain enamel |
| Thermostat range | 175 °F – 550 °F |
| Gas connection | ¾" NPT (rear, left side) |
| Minimum gas pressure | 7" W.C. Natural • 11" W.C. LP |
| Overall size (W × D × H) | 48 ⅝" × 34" × 59 ½" (to top of riser) |
| Cooking height | 37" |
| Shipping weight | Approx. 735 lb |
Why Operators Love Pyromax Burners
- Patented three-piece design cleans fast and stays clog-free.
- Built-in port-protection drip ring prevents debris build-up.
- Instant 40 K BTU output – perfect for woks, stock pots and rapid searing.
Need casters, extra oven racks or rear step-up burners? Ask our team for a custom quote.
Installation note: Connect to a ¾" gas supply under a
properly vented hood. To avoid damage, keep oversized cookware off the
front rail and never block the grate surface during cleaning.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(6) open burners
Vent
backriser with hi-shelf
Base
(2) standard / space saver ovens
Specifications
Ultimate Restaurant Range, gas, 48", (4) pyromax burners right, (2) non-clog burners left, wavy grates,staniding pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 304,000 BTU, CSA, NSF
