Southbend (Middleby) 4482EE-7L Ultimate Gas Ranges
$11,004.00
Unit price
/
Unavailable
Description
Ultimate 48″ Gas Restaurant Range — 4 Pyromax + 2 Non-Clog Burners, Double Space-Saver Ovens
Southbend Model 448-EE • 304,000 BTU (Natural) • CSA & NSF CertifiedEngineered for the busiest commercial kitchens, the Southbend Ultimate 48" Range combines blistering burner power with the versatility of two independent space-saver ovens—all wrapped in a rugged stainless-steel chassis that’s built for years of daily punishment.
Why You’ll Love It

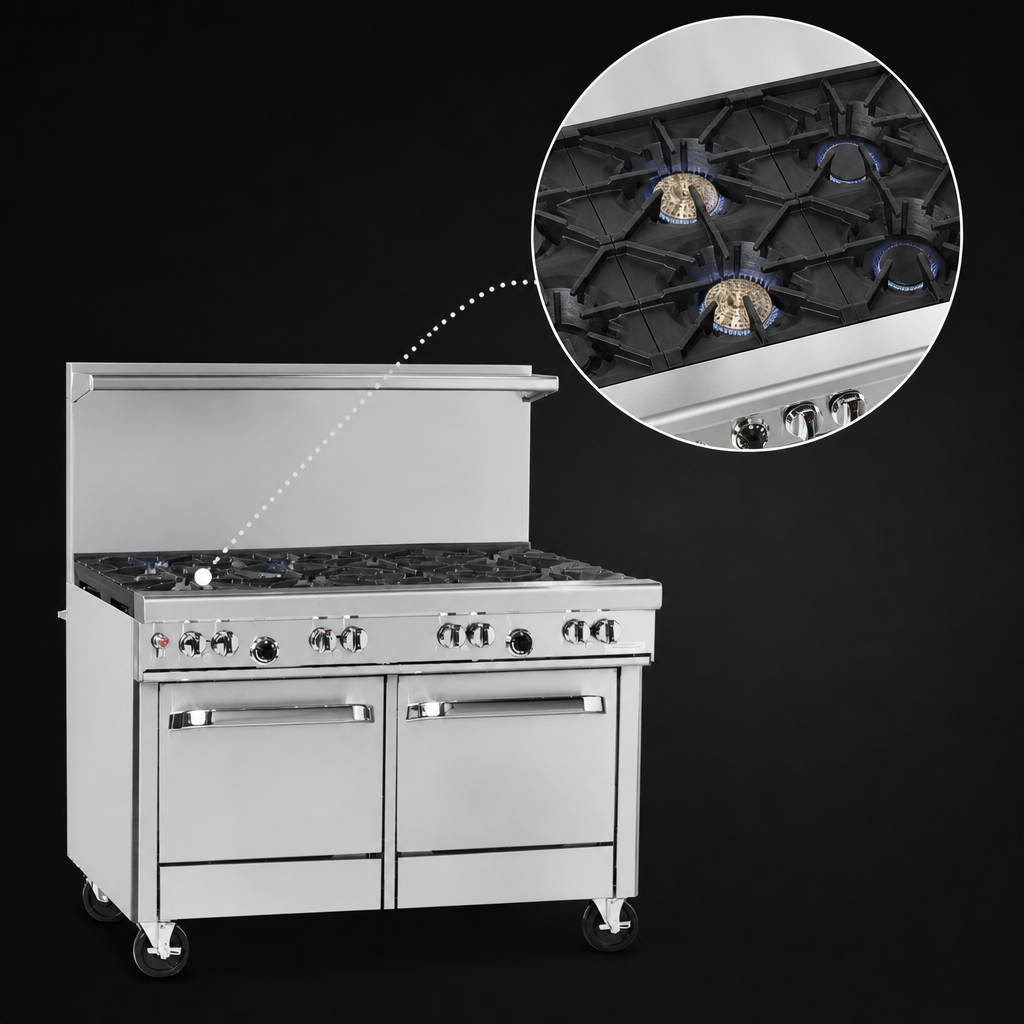

- Custom burner mix – four 40,000 BTU Pyromax high-output burners on the left, plus two 27,000 BTU lifetime non-clog burners on the right.

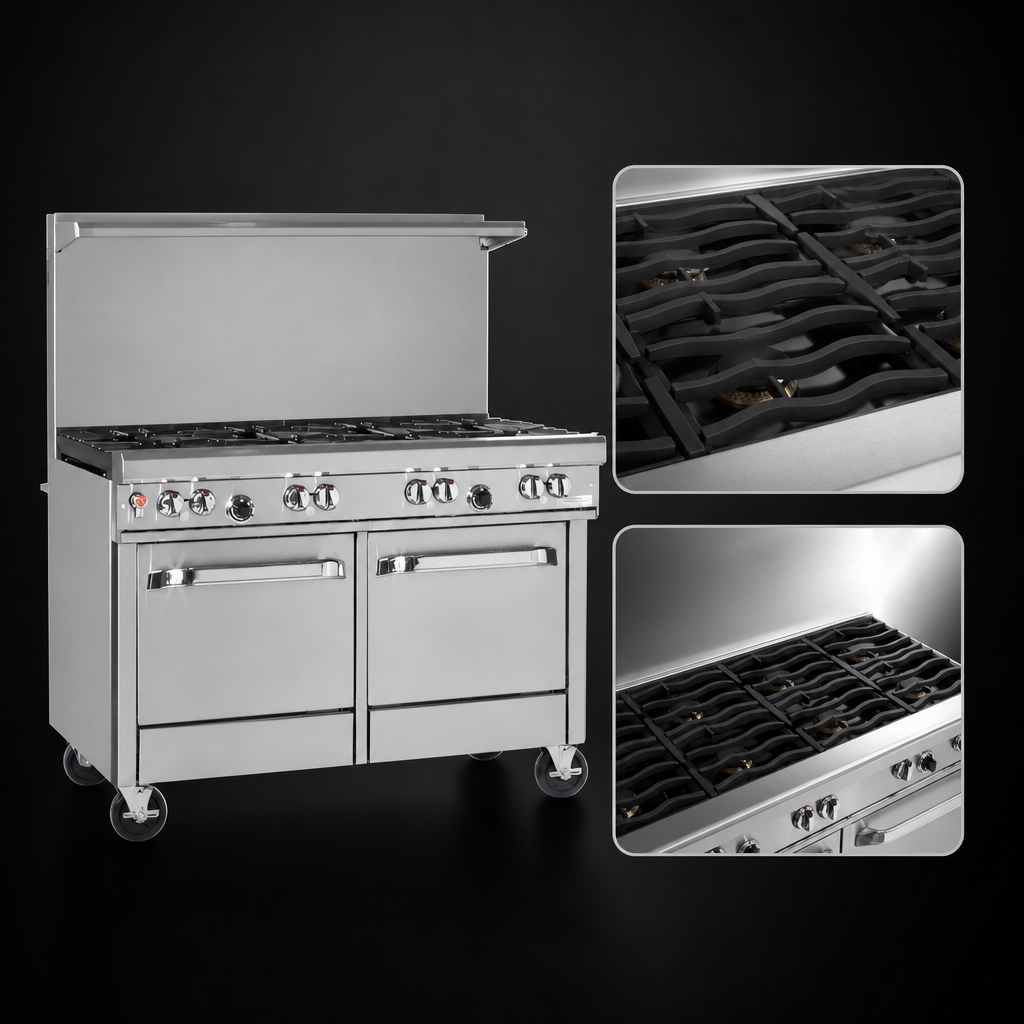

- Wavy cast-iron grates maximize pan stability and let you slide stock pots anywhere on the 27"-deep cook surface.
- Two space-saver ovens (45,000 BTU each) with battery-spark ignition and porcelain interiors for quick preheat, even baking and easy cleanup.
- Heavy-duty construction – stainless front, sides, shelf and 6" adjustable legs resist corrosion and simplify sanitation.
- Front-mounted manual gas shut-off and factory-installed regulator for safer, faster installations.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Top Burner Configuration
| Position | Qty. | Type | BTU/hr (Natural) |
|---|---|---|---|
| Left Side | 4 | Pyromax high-output | 40,000 each |
| Right Side | 2 | 27K non-clog | 27,000 each |
| Total Top Input | 214,000 BTU/hr | ||
Space-Saver Oven Performance
- 45,000 BTU NAT (40,000 BTU LP) per cavity | 175 – 550°F thermostat range
- 14"H x 19.5"W x 26.5"D porcelain interior – fits full-size pans front-to-back
- One heavy rack per oven, 2-position side rails
- Spring-assisted doors for effortless, one-handed operation
Key Specifications
| Overall Width | 48.63" / 1235 mm |
|---|---|
| Overall Depth | 34.00" / 864 mm |
| Cook-Top Height | 37.00" / 940 mm |
| Height w/ 22.5" Flue Riser | 59.50" / 1511 mm |
| Total BTU Input | 304,000 BTU (Natural) | 252,000 BTU (LP) |
| Gas Connection | ¾" NPT (female) |
| Manifold Pressure | 7" W.C. NAT | 11" W.C. LP |
| Electrical | None required – battery spark ignition |
| Certifications | CSA • NSF |
| Warranty | 1 year parts & labor |
Installation & Use Tips:
• Install beneath a properly sized vent hood.
• For best results, keep oversized (12"+ diameter) cookware toward the rear burners to protect the front rail components.
• Minimum clearance to combustible surfaces: 10" sides & rear.
• Unit is intended for commercial use only.
• Install beneath a properly sized vent hood.
• For best results, keep oversized (12"+ diameter) cookware toward the rear burners to protect the front rail components.
• Minimum clearance to combustible surfaces: 10" sides & rear.
• Unit is intended for commercial use only.
Need financing? Ask about Middleby Equipment Financing for fast approvals and low monthly payments.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(6) open burners
Vent
backriser with hi-shelf
Base
(2) standard / space saver ovens
Specifications
Ultimate Restaurant Range, gas, 48", (4) pyromax burners left, (2) non-clog burners right, wavy grates,staniding pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 304,000 BTU, CSA, NSF
