Southbend (Middleby) 4482EE-5R Ultimate Gas Ranges
Description

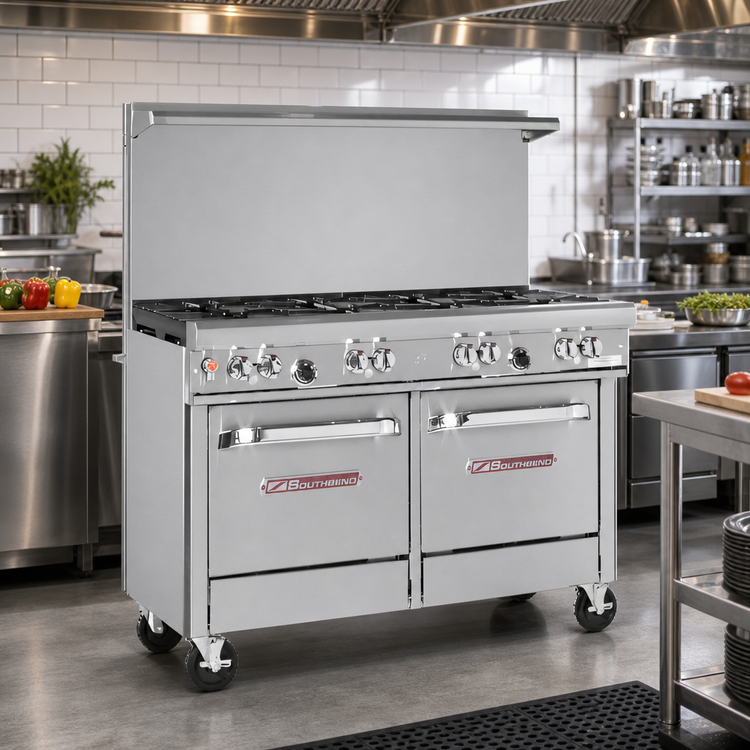

Southbend Ultimate 48" Gas Restaurant Range
7-Burner Top • Double Space-Saver Ovens • 323,000 BTUEngineered for demanding commercial kitchens, the Southbend “Ultimate” 48" Restaurant Range packs heavy-duty power, rock-solid construction and flexible cooking zones into a single, space-saving footprint. From rapid sauté service to high-volume stock production, this configuration gives you the output and reliability you expect from a Middleby brand that has been setting the standard since 1898.
Key Features & Benefits
- (3) 33 K BTU non-clog burners – front right for high-speed sauté work.
- (2) 40 K BTU Pyromax™ burners – back right for stock pots & rapid boil.

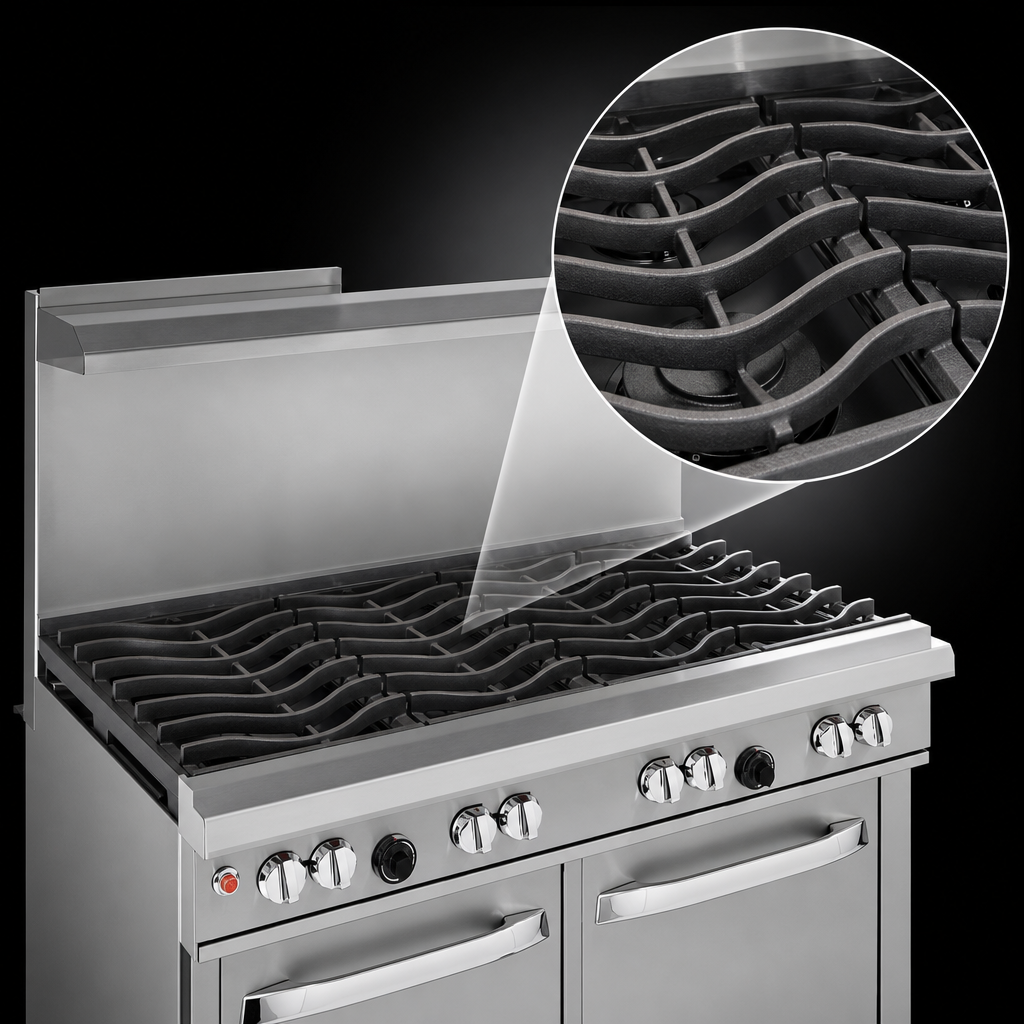

- (2) 33 K BTU non-clog burners – full-size wavy grates on the left side keep pans stable and let you slide cookware with ease.
- Standing pilots on open burners plus easy-light battery-spark ignition on ovens for match-free start-ups.
- Dual 45 K BTU Space-Saver ovens (19.5" W x 26.5" D cavities) each supplied with one rack, two-position guides & a 175–550 °F thermostat.
- 22.5" flue riser with heavy-duty stainless shelf – perfect for holding plated dishes or smallwares.
- Full stainless front, sides, rail & high-shelf resist corrosion and wipe clean fast.
- Front-mounted manual gas shut-off simplifies daily opening/closing procedures.
- 6" stainless adjustable legs allow level installation on uneven floors.
- Factory-installed ¾" gas pressure regulator included.
- Certified CSA & NSF for commercial use; ships with a 1-year parts & labor warranty.
At-a-Glance Specifications
| Model No. | 448-EE (Ultimate Series) |
|---|---|
| Overall Width | 48-5/8 in (1235 mm) |
| Overall Depth | 34 in (864 mm) |
| Cooking Height | 37 in (940 mm) to range top |
| Total Input | 323,000 BTU/hr (Natural Gas) |
| Burner Layout | 3 × 33 K non-clog (FR) | 2 × 40 K Pyromax (BR) | 2 × 33 K non-clog (Left) |
| Oven Capacity | (2) 14" H × 19.5" W × 26.5" D porcelain cavities |
| Gas Connection | ¾" NPT, left rear (factory regulator supplied) |
| Ignition | Standing pilot (top) | Battery spark (ovens) |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor |
What’s Included
- (4) Removable cast-iron grate tops with wavy profile
- (2) Porcelain-coated drip trays
- (2) Chrome oven racks
- 22.5" stainless flue riser/shelf (factory-installed)
- Adjustable 6" stainless legs
- Factory regulator & user manual
