Southbend (Middleby) 4482EE-5L Ultimate Gas Ranges
Description
Southbend “Ultimate” 48" Gas Restaurant Range w/ Double Space-Saver Ovens
Model 448-EE • 323,000 BTU | CSA & NSF CertifiedEngineered for the busiest commercial kitchens, the Southbend Ultimate Series 48" range delivers massive fire-power, menu-flexibility and the legendary durability operators expect from Middleby’s flagship line. A custom 7-burner top, full-width wavy grates and twin space- saver ovens let you sauté, sear, boil and bake simultaneously without giving up precious line space.
Why you’ll love it
- 323,000 BTU total output – muscle through peak-hour volume with power to spare.

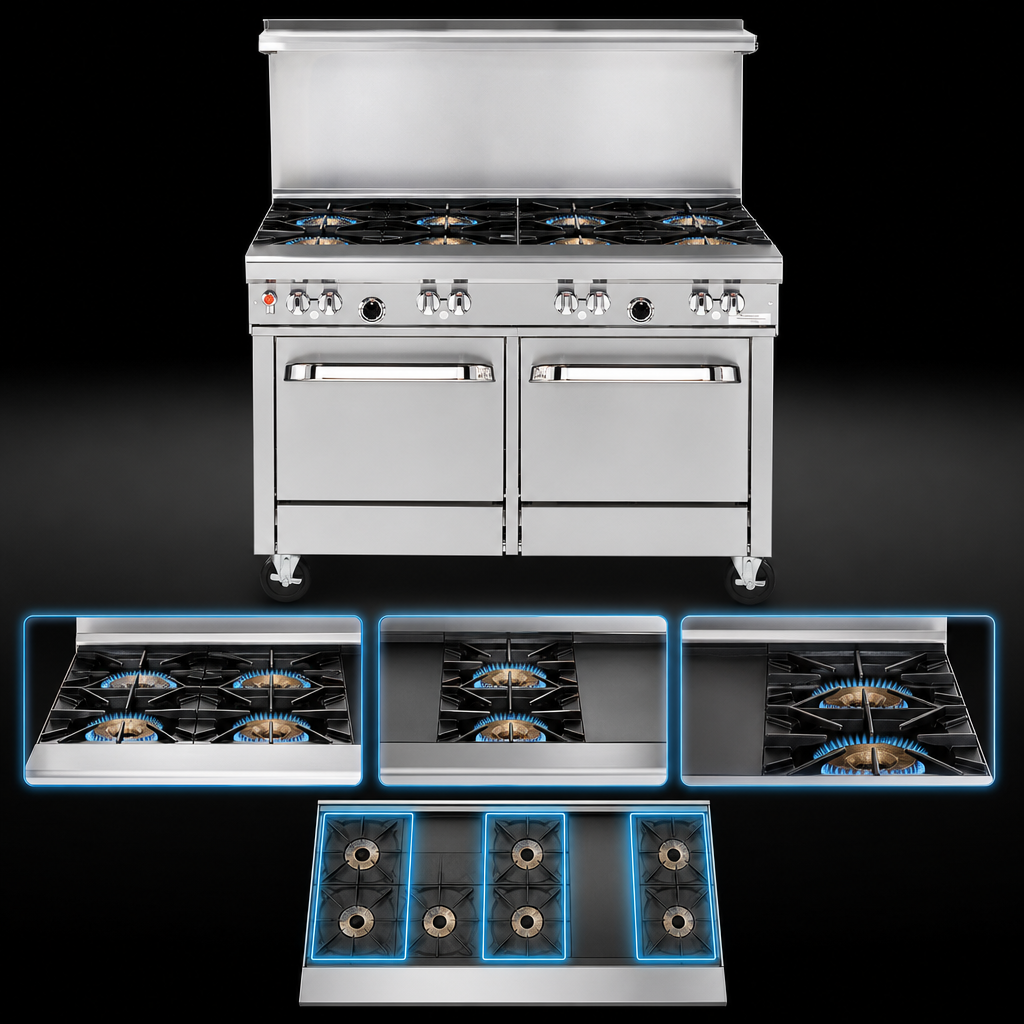

- Custom burner layout – 3 non-clog burners (front left), 2 high-output 40 K BTU Pyromax burners (back left) and 2 non-clog burners (right).

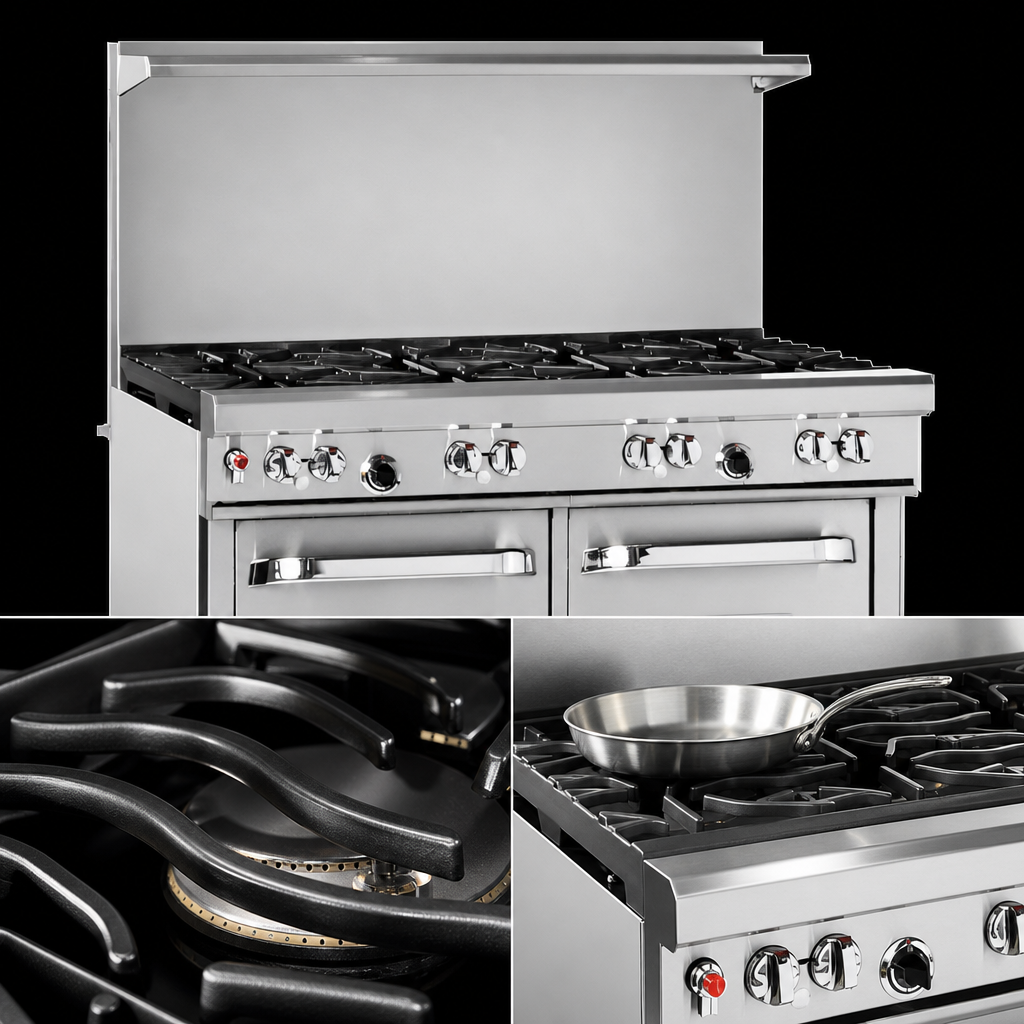

- Wavy cast-iron grates form a continuous cooking surface so stock pots slide effortlessly from burner to burner.
- (2) 45 K BTU space-saver ovens with battery spark ignition and porcelain interiors fit full-size sheet pans front-to-back.
- 22-½" flue riser with built-in plate shelf keeps plated food warm and ready for the pass.
- Stainless steel front, sides, shelf and 6" adjustable legs stand up to daily abuse and simplify cleaning.
- Front-mounted gas shut-off and factory-installed regulator streamline installation and service.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Top-side fire power
- (5) 27 K BTU lifetime non-clog cast-iron burners – ideal for stocks, sauces & sauté.
- (2) 40 K BTU Pyromax burners – patented three-piece design for wok-hot stir-fry or rapid boil.
- Standing pilots for instant lighting; optional battery spark ignition available.
Space-Saver ovens
- 45 K BTU NAT each, 175 °F – 550 °F thermostat range.
- Fully porcelain-enameled cavities (19.5" W x 26.5" D x 14" H) with coved corners for easy wipe-down.
- One heavy-duty rack per oven, two rack positions.
- Battery spark ignition—no external electrical hookup required.
Specifications
| Width | 48 5⁄8" (1235 mm) |
|---|---|
| Depth (to front rail) | 34" (864 mm) |
| Cook-top height | 37" (940 mm) |
| Overall height (to shelf) | 59 ½" (1511 mm) |
| Total BTU (Natural Gas) | 323,000 BTU/hr |
| Gas connection | ¾" NPT, 7" W.C. minimum inlet pressure |
| Oven cavities | (2) 19.5" W x 26.5" D x 14" H, 45 K BTU each |
| Construction | Stainless steel front, sides, shelf & legs; porcelain oven interior |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Looking for salamander mounts, casters or other accessories? Contact us for factory-authorized options to customize your Ultimate range.
