Southbend (Middleby)  |  Ultimate  |  SKU: 4482EE-3TR

Southbend (Middleby) 4482EE-3TR Ultimate Gas Ranges

$13,654.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

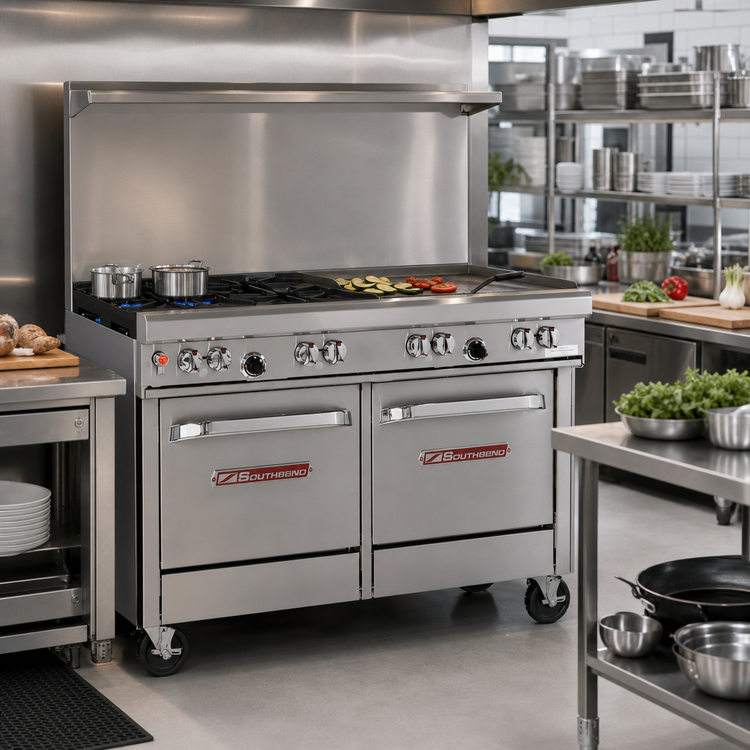

Ultimate 48" Gas Restaurant Range

Model 448EE – 2 Open Burners • 36" Right-Side Griddle • Double Space-Saver Ovens

Built for kitchens that never slow down, the Southbend Ultimate 48" Range puts high-output open burners, a precision thermostatic griddle, and two full-size space-saver ovens into one rock-solid, stainless-steel platform. From breakfast rush to late-night service, this 208,000 BTU powerhouse delivers the versatility, durability, and cooking consistency that demanding chefs expect.

Performance & Convenience

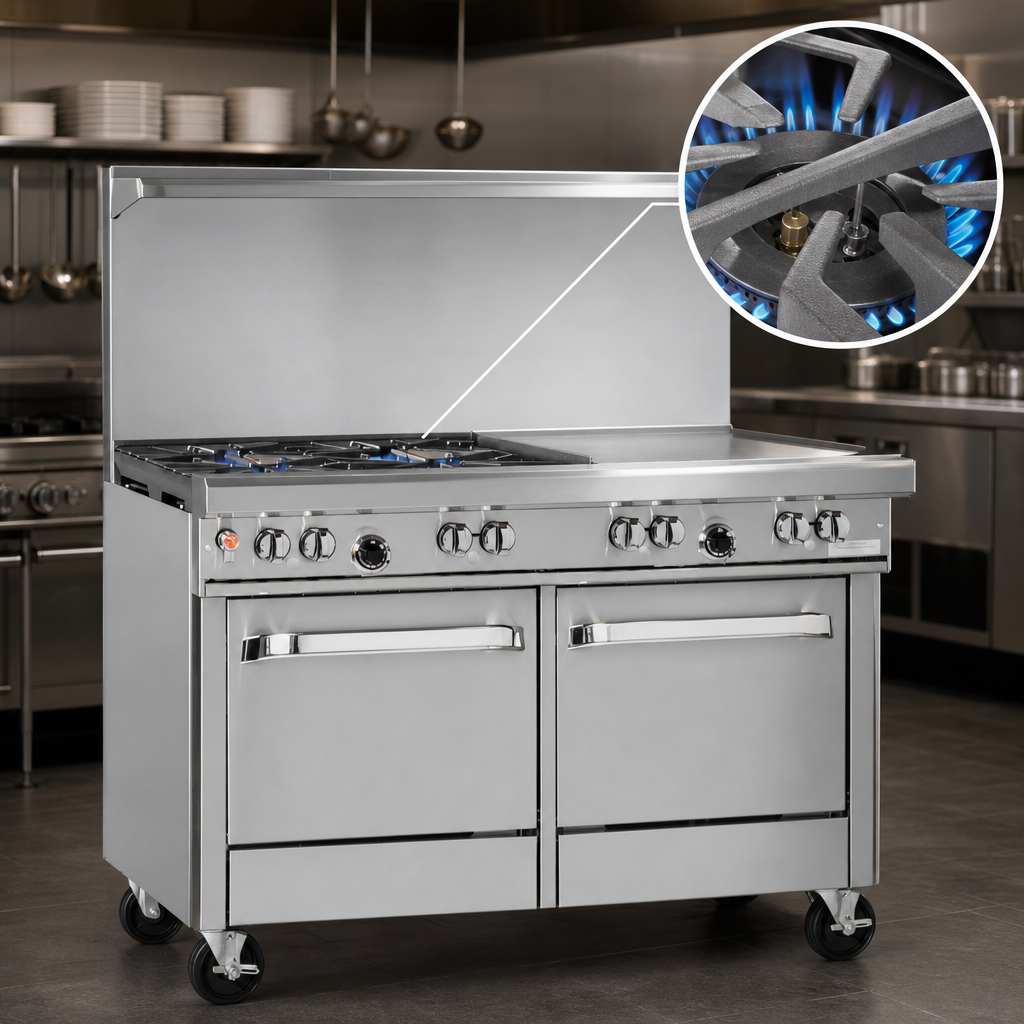

  • (2) 27,000 BTU non-clog open burners with patented wavy cast-iron grates – superior pan stability & easy cleaning.
  • 36" thermostatic griddle (right-side) with 1/2" smooth polished steel plate for even heat across the entire surface.
  • (2) 45,000 BTU space-saver ovens
    • Battery-spark ignition (no external electricity)
    • Porcelain-enameled cavity – coved corners for rapid clean-up
    • One heavy-duty rack per oven, two-position side rails
  • Standing pilots for open burners; front-mounted manual gas shut-off for quick service access.
  • 22-1/2" flue riser with integrated heavy-duty shelf – perfect for plating or small-wares storage.
  • All-stainless front, sides, shelf & 6" adjustable legs for a professional look and long-term corrosion resistance.
  • Factory-installed 3/4" regulator and battery pack included.

Specifications

Overall width × depth 48.63" × 34"
Cooking surface height 37"
Flue riser height 22.5" (to shelf)
Open burners / BTU 2 × 27,000 BTU non-clog
Griddle size / BTU 36" W × 27" D • 64,000 BTU
Ovens (2) Space-Saver (14"H × 19.5"W × 26.5"D each) – 45,000 BTU each
Total input 208,000 BTU/hr (Natural Gas)
Gas connection 3/4" NPT female, 7" W.C. minimum inlet pressure
Shipping weight Approx. 735 lb
Certifications cCSAus • CSA Flame • CSA Star • NSF
Warranty 1-year parts & labor (see Southbend limited warranty)

Why Choose the Ultimate Range?

  • One station, every task – sauté, sear, grill, bake, roast and hold.
  • Battery-spark ovens keep you cooking during power outages.
  • Wavy grate design maximizes usable surface and accepts up to a 14" stock pot on each burner.
  • Heavy-gauge porcelain interiors and stainless exterior slash clean-down time.
  • Backed by Southbend’s century-long reputation for bullet-proof reliability.
Installation Notice: Unit is intended for commercial use under a properly vented hood. For non-quarry tile floors or oversized cookware (12"+), follow Southbend guidelines to prevent heat damage and maintain warranty coverage.

Need a budget-friendly payment plan? Ask your rep about flexible equipment financing through Middleby Finance.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 36" griddle with thermostats

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(2) standard / space saver ovens

Specifications

Ultimate Restaurant Range, gas, 48", (2) non-clog burners, wavy grates, (1) 36" griddle right, thermostatic controls, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 208,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
