Southbend (Middleby) 4482EE-3GR Ultimate Gas Ranges

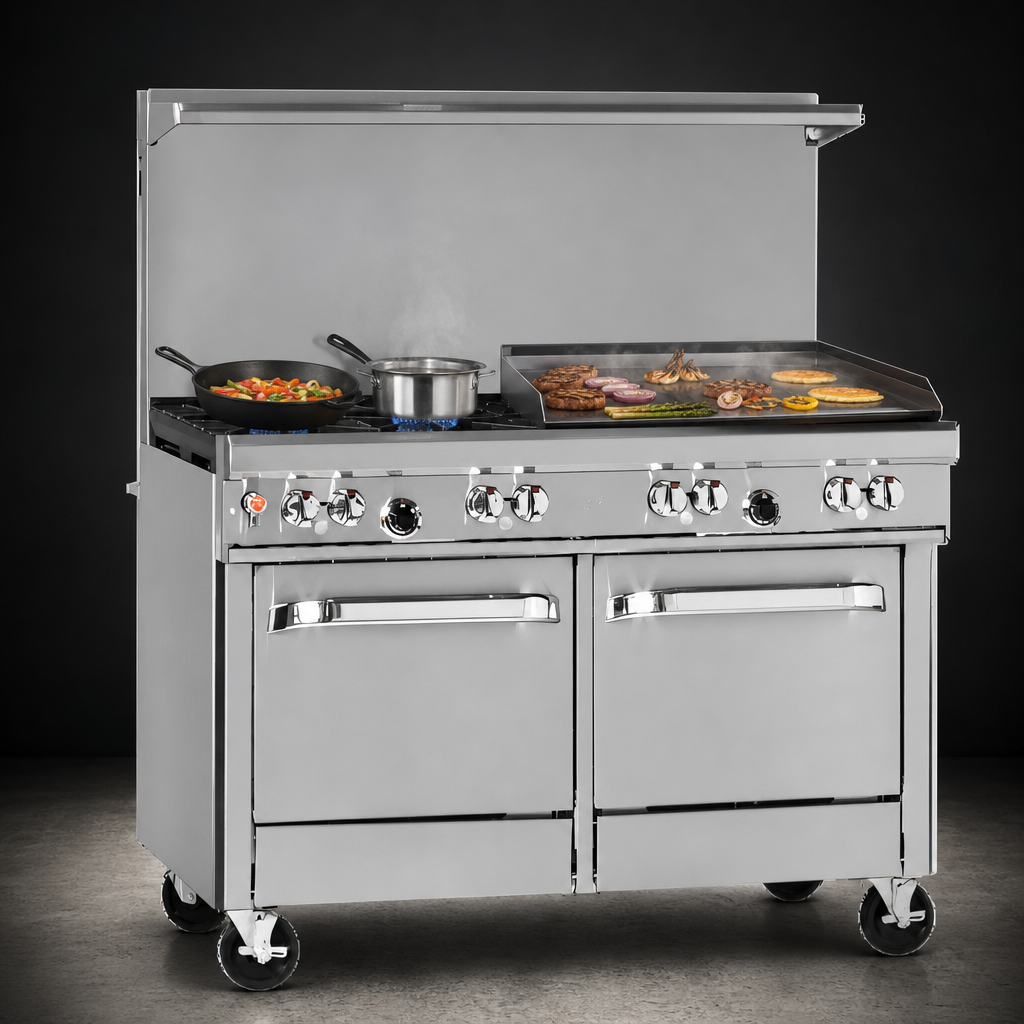

Southbend Ultimate 48" Gas Restaurant Range

Built for the busiest kitchens, Southbend’s Ultimate Series packs heavy-duty performance into a space-saving 48 inch footprint. From its lifetime non-clog burners and slide-anywhere wavy grates to the pair of high-powered ovens below, this range gives chefs the flexibility and reliability they demand during every service.

Key Cooking Features

• Two 27,000 BTU cast-iron non-clog burners with wavy cast grates for effortless pan movement.
• 36" smooth, ½" polished steel griddle (right side) rated at 64,000 BTU — perfect for breakfast, burgers and searing.
• 208,000 BTU total input delivers rapid recovery during peak periods.
• Standing pilots on open burners; battery-spark ignition on both ovens – no electrical hook-up required.

Double Space-Saver Ovens

• Independently controlled, 45,000 BTU standard ovens (one under each side).
• 175 °F – 550 °F thermostats for versatile baking and roasting.
• Porcelain-enameled interiors (14" H × 19.5" W × 26.5" D) speed clean-up and resist corrosion.
• Each oven ships with 1 heavy-duty rack and two position guides.

Engineered for the Line

• Stainless steel front, sides, 4" landing rail and integrated high-shelf.
• 22 ½" flue riser with overshelf keeps plating tools close at hand.
• Front-mounted main gas shut-off simplifies daily operation and service.
• 6" adjustable stainless legs level the unit on uneven floors.
• Factory-installed ¾" regulator; single rear ¾" NPT gas connection.

Certifications & Warranty

• cCSAus, CSA Flame, CSA Star and NSF listed.
• 1-year limited parts & labor warranty backed by Southbend’s nationwide service network.
