Southbend (Middleby) 4482EE-2CR Ultimate Gas Ranges
Description
Southbend “Ultimate” 48" Gas Restaurant Range
4 × 27 k BTU non-clog burners • wavy grates • 24" charbroiler (right) • double space-saver ovens • 262,000 BTU totalBuilt for kitchens that push the limits, the Southbend Ultimate Series 48" range delivers open-top versatility, a high-output charbroiler, and two independent space-saver ovens—all in one rock-solid, stainless-steel platform. From breakfast rush to late-night grill service, it’s the single piece of equipment your line cooks will fight to work on.
Why this range rules the line
- 262,000 BTU of fire-power—plenty of heat for searing, sautéing, broiling and baking at the same time.

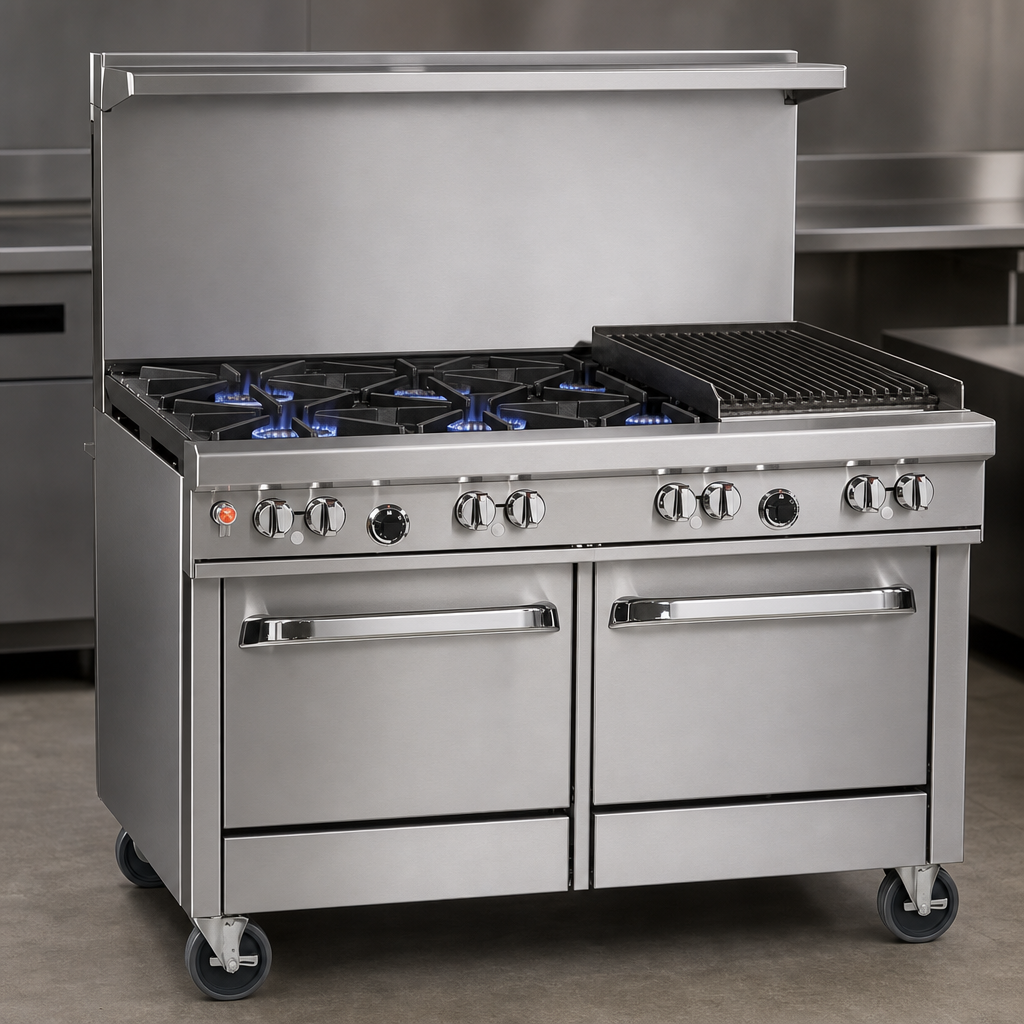

- 4 patented, lifetime clog-free cast-iron burners (27 k BTU each) with wavy grates for maximum pan stability and full-surface use.
- 24" radiant charbroiler on the right side with removable cast-iron grates—perfect for steaks, burgers and vegetables.
- Dual 45 k BTU space-saver ovens (battery-spark ignition) with porcelain interiors; each comes with an adjustable rack.
- All-stainless exterior (front, sides, shelf & 6" adjustable legs) stands up to daily abuse and cleans up fast.
- 22-1/2" flue riser with heavy-duty shelf keeps smallwares handy without crowding the cook-top.
- Front-mounted manual gas shut-off and factory-installed ¾" regulator for quick, code-compliant hook-up.
- CSA & NSF certified; 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Technical specifications
| Model | Ultimate 448-EE (open-burner / charbroiler / double oven) |
|---|---|
| Cooking surface | 48-5/8" W × 27" D; 37" working height |
| Overall dimensions | 48-5/8" W × 34" D × 59-1/2" H (to top of flue) |
| Open burners | 4 × 27 k BTU non-clog cast-iron (wavy grate) |
| Charbroiler | 24" radiant, 64 k BTU (right-hand) |
| Ovens | 2 × space-saver, 45 k BTU each • 175–550 °F thermostat |
| Total input | 262,000 BTU/hr (natural or LP gas) |
| Gas connection | ¾" FNPT (left rear; moves to right if charbroiler is on left) |
| Required inlet pressure | Natural 7" W.C. • LP 11" W.C. |
| Clearances* | Combustible: 10" sides & rear (charbroiler tops must be under hood) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (see Southbend limited warranty for details) |
*Install on 6" legs or casters. Unit is intended for commercial use under a properly sized ventilation hood.
- Limit cookware over 12" in diameter to the rear burners to avoid excess front-rail heat.
- Never place sheet pans over the charbroiler grates while burners are on—this can cause permanent damage and void the warranty.
- For non-quarry tile floors, consult factory for approved installation options.
When your menu demands uncompromising performance in a compact footprint, the Southbend Ultimate 48" restaurant range answers the call—day after day, shift after shift.
