Southbend (Middleby)  |  Ultimate  |  SKU: 4482DC

Southbend (Middleby) 4482DC Ultimate Gas Ranges

$10,902.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 48" Gas Restaurant Range – 8 Non-Clog Burners, Standard Oven & Cabinet Base

Model 448DC | 261,000 BTU | CSA & NSF Listed

Pack maximum cooking power into a compact 48-inch footprint. Southbend’s Ultimate Series delivers rugged construction, lifetime non-clog burners, and a heavy-duty oven—everything a busy kitchen needs to keep tickets moving.

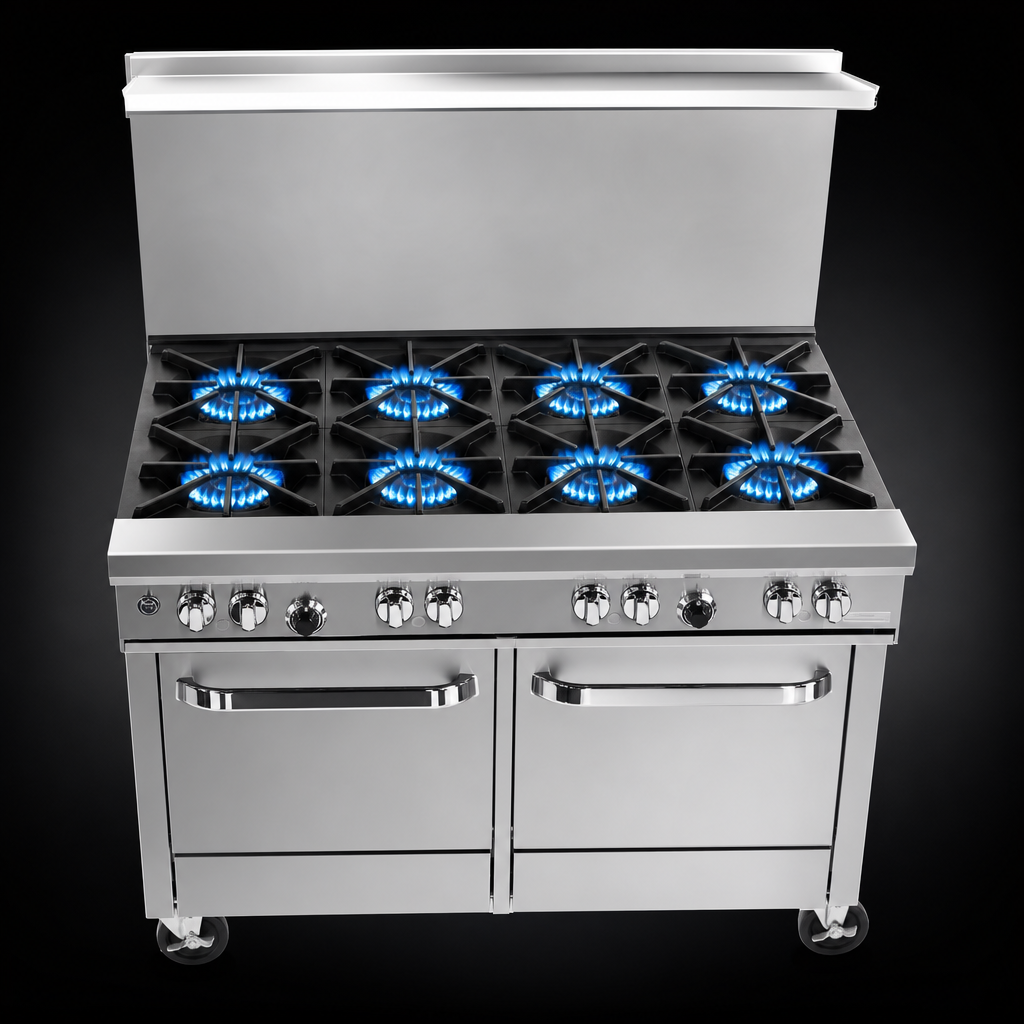

Top-Side Power & Flexibility
  • Eight (8) 27,000 BTU lifetime non-clog burners (216,000 BTU total).
  • Wavy cast-iron grates create a continuous, easy-to-slide surface for pans and stock pots.
  • Standing pilots keep burners ready the moment you need them.
  • Cool-touch 4" stainless front rail doubles as a handy plating shelf.

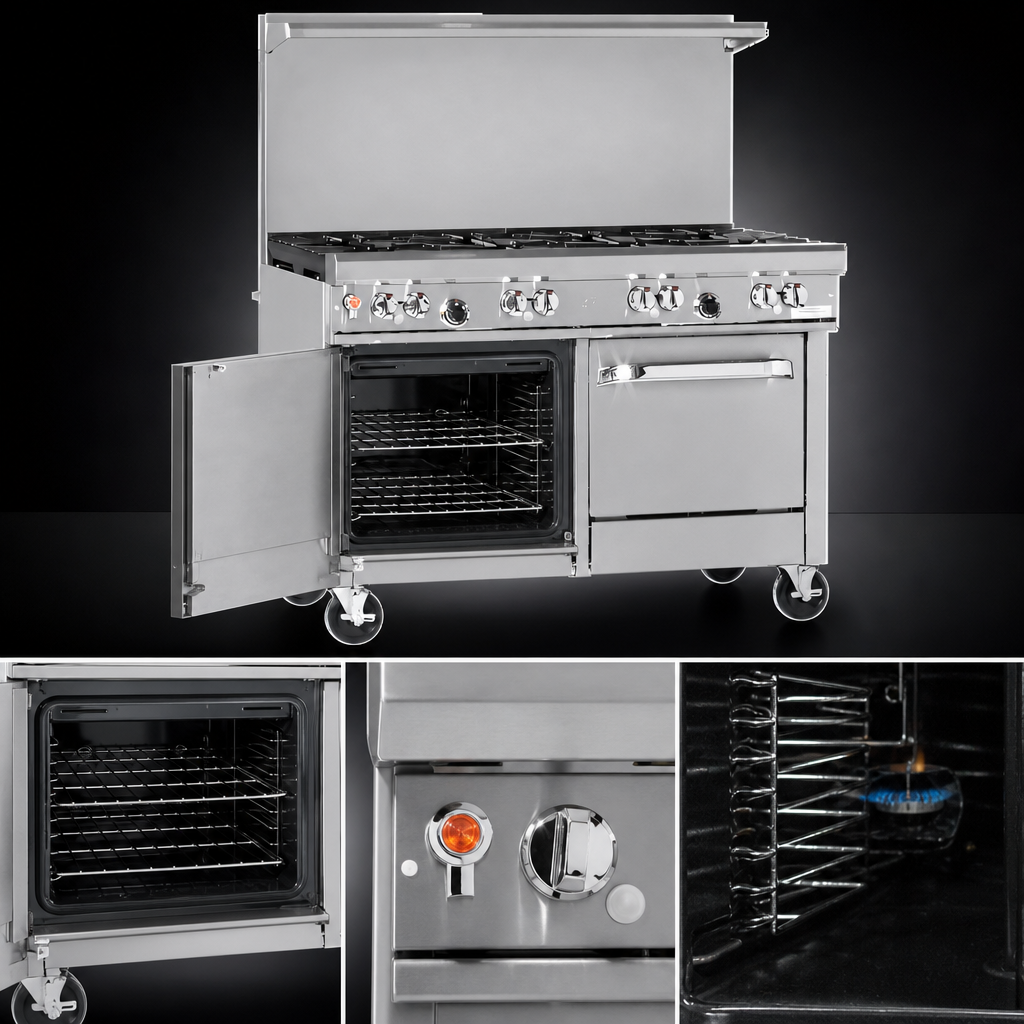

High-Performance Oven
  • One (1) standard oven with battery-spark ignition—no electrical hookup required.
  • 45,000 BTU burner maintains an even 175 °F – 550 °F (79 °C – 288 °C) temperature range.
  • Porcelain-enameled cavity (14"H × 26"W × 26.5"D) wipes clean fast and resists corrosion.
  • Includes one heavy-duty rack with two position rails; fits full-size sheet pans in either direction.
Built-In Storage
  • 18" stainless cabinet base keeps pans, utensils, or dry goods right where you need them.
  • Door kit available at no extra charge (optional).
Engineered to Last
  • Full stainless front, sides, shelf, and a 22.5" flue riser with heavy-duty utility shelf.
  • 6" adjustable stainless steel legs level the unit on uneven floors.
  • Front-mounted manual gas shut-off and factory-installed regulator for quick service access.
  • Backed by Southbend’s 1-year parts & labor warranty and nationwide service network.
Specifications
Overall Width 48 5/8" (1235 mm)
Overall Depth 34" (864 mm)
Cooking Height 37" (940 mm)
Total BTU Input 261,000 BTU/hr
Top Burners 8 × 27,000 BTU non-clog w/ wavy grates
Oven Burner 45,000 BTU, battery-spark ignition
Oven Interior 14"H × 26"W × 26.5"D; porcelain enamel, 2-position rack
Gas Connection 3/4" NPT (rear), 7" W.C. NAT inlet pressure min.
Construction Stainless steel front, sides, shelf & flue riser
Legs 6" stainless, adjustable
Certifications CSA, NSF
Warranty 1-year parts & labor
Why Choose the Ultimate Series?
  • Lifetime non-clog burner design slashes maintenance costs.
  • All-stainless chassis stands up to the punishment of high-volume kitchens.
  • Trusted brand heritage dating back to 1898.

Install under a properly sized vent hood. Intended for commercial use only.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Top

(8) open burners

Exterior Finish

stainless steel front & sides

Base

(1) standard oven, (1) cabinet

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 48", (8) non-clog burners, wavy grates, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 261,000 BTU, CSA, NSF
