Southbend (Middleby) 4482DC-5R Ultimate Gas Ranges
Description
Southbend Ultimate 48" Gas Restaurant Range – 7-Burner Split Top, Standard Oven & Cabinet Base
Model 448-DC | 278,000 BTU | CSA & NSF CertifiedEngineered for kitchens that demand unstoppable production, the Southbend “Ultimate” 48" Restaurant Range pairs a heavy-duty open-top layout with the durability operators have trusted for generations. This factory-configured 7-burner split top combines blistering Pyromax power on the right rear with lifetime Non-Clog efficiency across the rest of the deck, all under wavy cast-iron grates that let you slide stock pots and sauté pans without losing heat. A full-size, porcelain-lined standard oven and a stainless cabinet base give you baking versatility and extra storage in one rock-solid footprint.
Why You’ll Love It
- 7 open burners – (5) 27/33 k* BTU non-clog burners plus (2) 40 k BTU Pyromax burners deliver a combined 278,000 BTU*

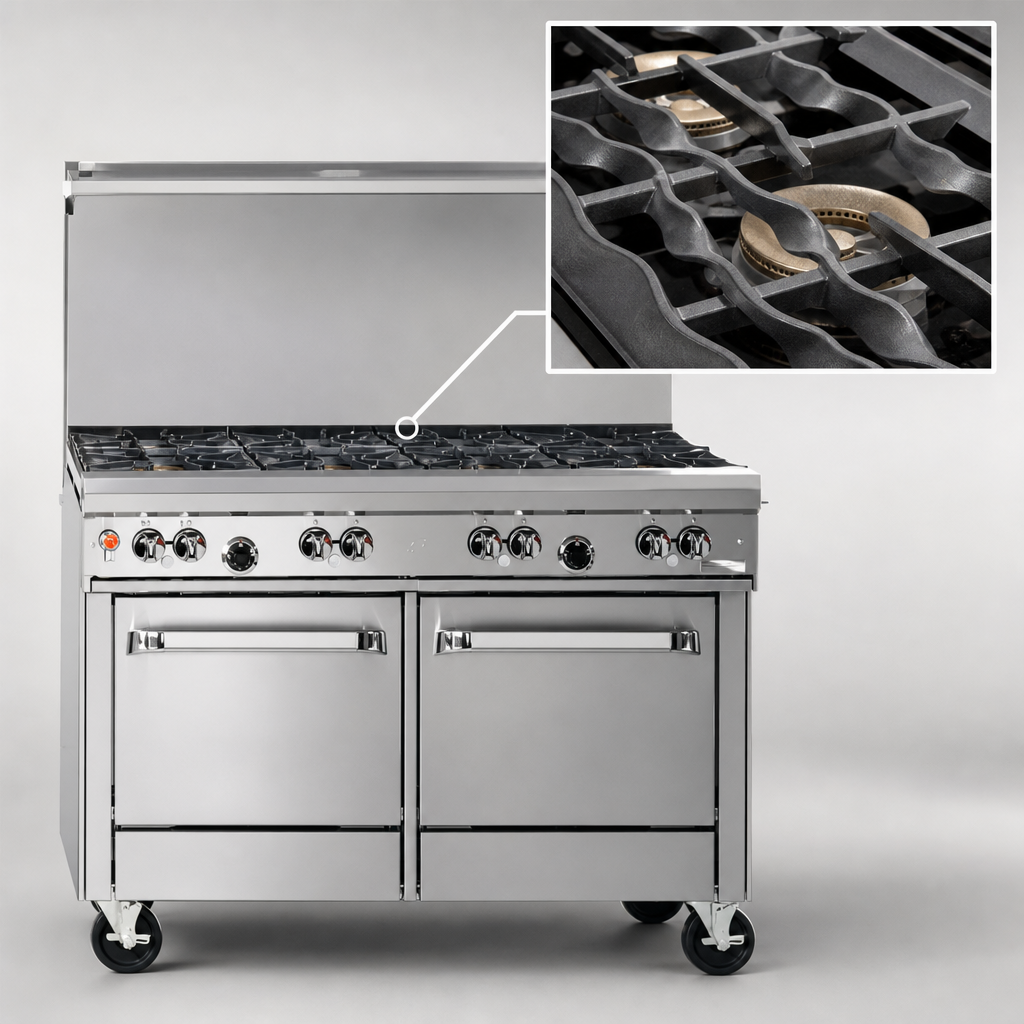

- Wavy cast-iron grates create a continuous cooking surface and cradle round-bottom cookware for superior flame contact
- Front-mounted gas shut-off instantly kills gas to the entire range for safer cleaning and maintenance
- Full-size standard oven (45 k BTU) with battery-spark ignition, 175 – 550 °F thermostat & two-position rack guides
- 18" stainless cabinet base keeps sheet pans, stock pots or attachments within arm’s reach
- 22 ½" flue riser with heavy-duty plate shelf – perfect for resting finished pans or smallwares
- All-stainless front, sides & rail plus 6" adjustable legs for easy leveling on uneven floors
- Factory-installed 3/4" gas pressure regulator & standing pilots on all open burners
- 1-year parts & labor warranty backed by the Middleby network
*Total BTU and individual burner ratings vary slightly between Natural & LP gas. Figures shown are for Natural Gas.
Performance-Tuned Burner Layout
- Front Right (3) – Non-Clog cast iron burners for sauté & pan work
- Back Right (2) – Pyromax high-output burners built for stocks, reductions & stir-fry
- Left Side (2) – Non-Clog burners keep the grill line moving during rush periods
Non-Clog burners feature a patented one-piece head that virtually eliminates plugged ports and extends service life.
Built for the Long Haul
- Fully welded, 27"-deep cooktop aligns burners 12" on-center for maximum pan clearance
- Double-sided porcelain oven interior with coved corners wipes down in seconds
- Spring-assisted door and counterweight hinge prevent slamming and heat loss
- Removable, one-piece drip trays speed up nightly cleaning
- Optional swivel casters, cabinet doors & quick-disconnect hose kits available (sold separately)
Technical Specifications
| Overall Width | 48 ⅝" (1235 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cooktop Height | 37" (940 mm) |
| Flue Riser Height | 22 ½" (572 mm) with integrated shelf |
| Total BTU Input | 278,000 BTU/hr (Natural Gas) |
| Gas Connection | 3/4" NPT (left rear) |
| Oven Interior (WxDxH) | 26" × 26 ½" × 14" |
| Oven BTU / Temp Range | 45,000 BTU | 175 – 550 °F (79 – 288 °C) |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
| Crated Weight | ≈ 735 lb (334 kg) |
