Southbend (Middleby) 4482DC-5L Ultimate Gas Ranges
Description
Southbend Ultimate 48" Gas Restaurant Range
7-Burner • Standard Oven • Stainless Cabinet Base • 278,000 BTUBuilt for kitchens that run full-tilt from prep to close, the Ultimate Series delivers uncompromising fire-power, rock-solid durability and the ergonomic touches chefs demand. This custom 48" model combines high-output Pyromax™ burners, clog-free open tops and a roomy storage cabinet—all wrapped in heavy-gauge stainless steel.
Performance & convenience
- Seven open burners
- (3) front-left 27 K BTU non-clog burners
- (2) back-left 40 K BTU Pyromax™ burners
- (2) right-side 27 K BTU non-clog burners

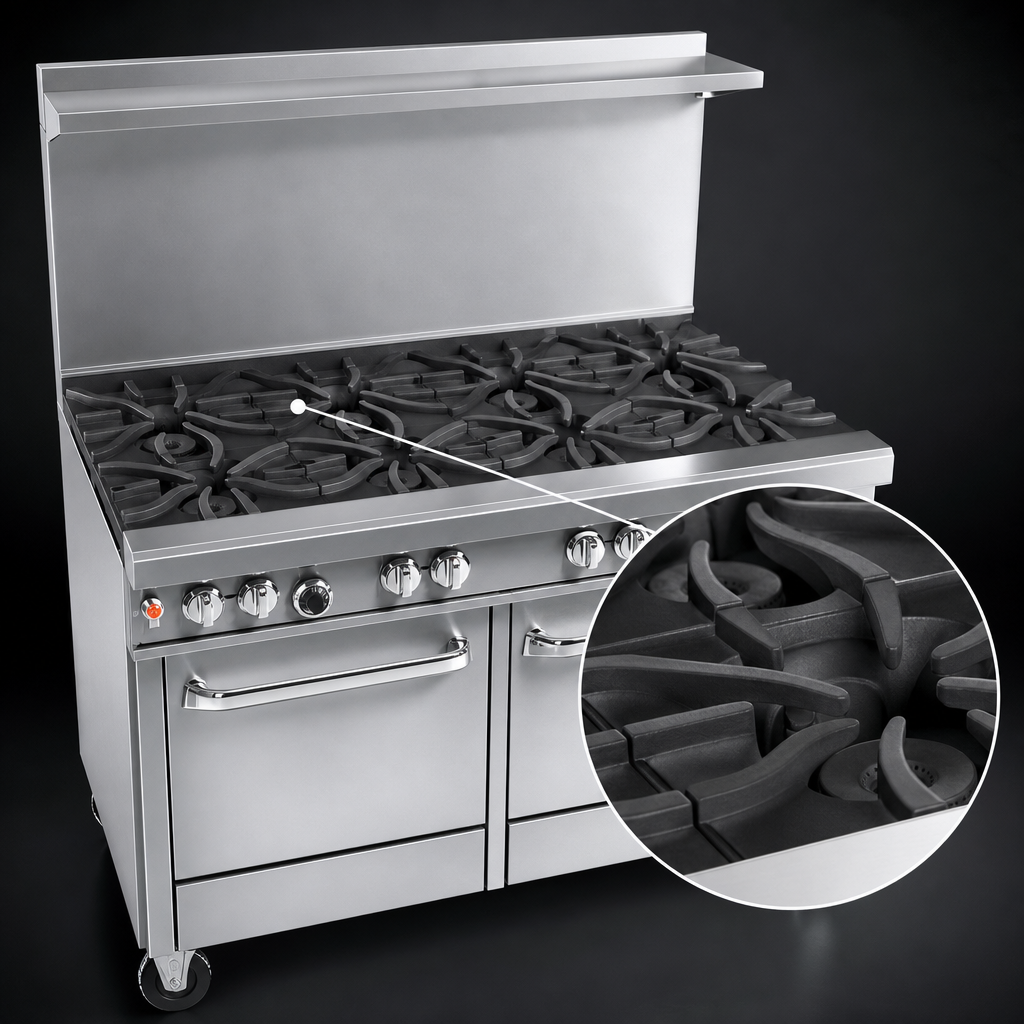

- Wavy, cast-iron grates form a continuous cooking surface and cradle stock pots up to 14" dia.
- Standard oven — 45 K BTU, 175-550 °F thermostat, battery-spark ignition & porcelain interior that fits full-size pans either direction
- 18" stainless cabinet base (right) keeps sheet pans, lids and smallwares at the ready
- 22-1/2" flue riser with heavy-duty landing shelf—perfect for plating or mounting a salamander
- Front-mounted manual gas shut-off and factory-installed regulator for fast, safe start-up
- Standing pilots for open tops; two removable drip trays simplify end-of-shift cleanup
- 6" adjustable stainless legs standard (optional casters available)
- CSA & NSF listed for commercial use
Specification snapshot
| Model | Ultimate Series 48" – 7 Burner / Std Oven / Cab Base |
|---|---|
| Total input | 278,000 BTU (natural gas) |
| Open-top input | 215,000 BTU |
| Oven input | 45,000 BTU |
| Cooking surface | 48-5/8" W × 27" D • 37" cook-top height |
| Oven cavity | 14" H × 26" W × 26.5" D (1 rack, 2 positions) |
| Gas connection | 3/4" NPT (min. inlet 7" W.C. natural) |
| Overall size | 48-5/8" W × 34" D × 59-1/2" H (to top of flue) |
| Construction | Stainless front, sides, shelf & cabinet • Cast-iron burners & grates |
| Warranty | 1-year parts & labor (see warranty details) |
Looking for convection, griddle or charbroiler options? Contact our equipment specialists for a custom Ultimate configuration.
