Southbend (Middleby) 4482DC-3GR Ultimate Gas Ranges
Description
Southbend “Ultimate” 48" Gas Restaurant Range
2 Non-Clog Burners • 36" Right-Side Griddle • Standard Oven + Cabinet Base • 163,000 BTUBuilt for kitchens that refuse to compromise, the Southbend Ultimate 448DC range delivers heavyweight cooking power in a space-saving 48" footprint. Two patented non-clog burners with wavy grates handle stock pots and sauté pans, while a full 36" steel griddle turns out perfect breakfast favorites, smash burgers or stir-fry—all at the same time. A 45,000 BTU standard oven and stainless cabinet base complete a true all-in-one workstation.

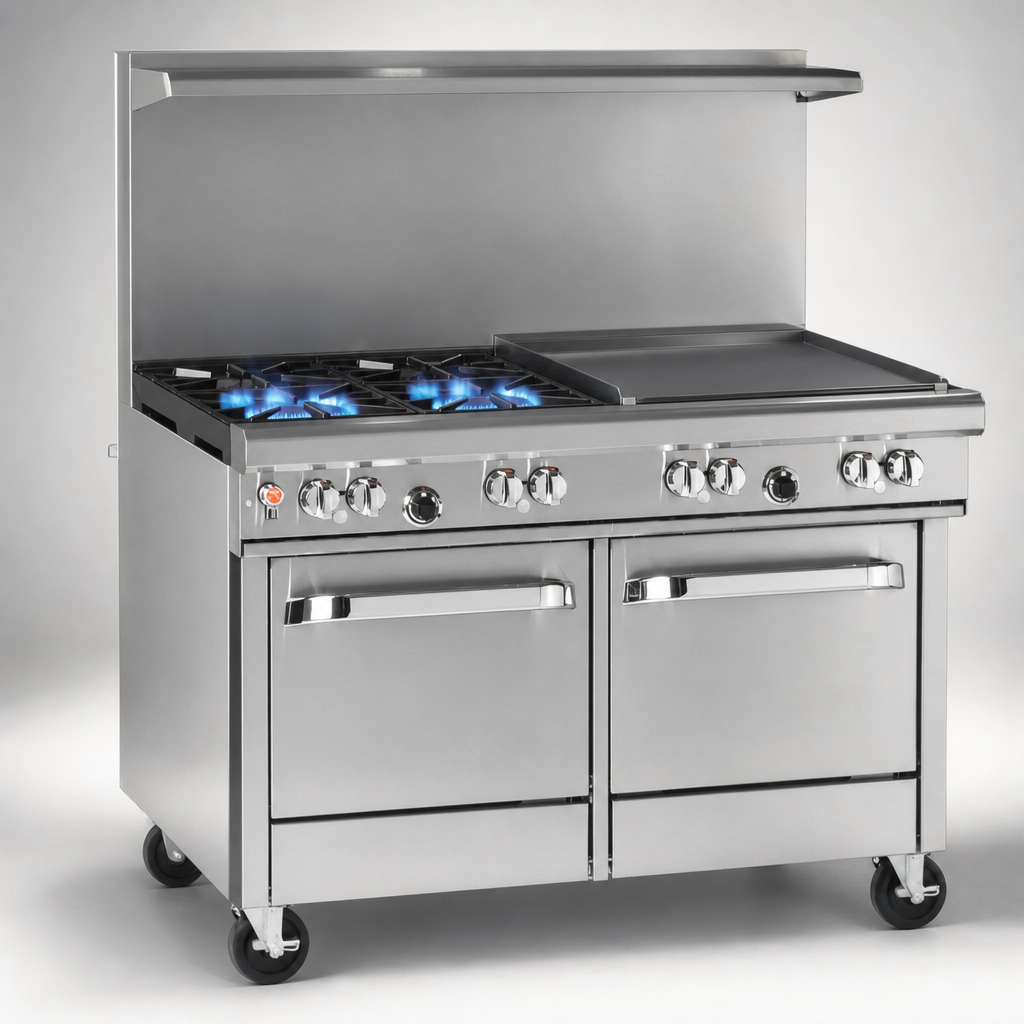

- 2 × 27,000 BTU non-clog cast-iron burners with lifetime-clog-free design
- Wavy cast-iron grates let you slide cookware across the top without lifting
- 36" right-side griddle, 1/2" smooth polished steel plate, 64,000 BTU (manual controls)
- 45,000 BTU standard oven
- 175 – 550 °F thermostat
- Battery-spark ignition—no electrical hook-up needed
- Porcelain-enameled interior, 1 rack included (2-position rails)
- 18" stainless cabinet base keeps sheet pans, smallwares or dry goods within arm’s reach
- Front-mounted gas shut-off & factory-installed 3/4" regulator for quick installation
- 22-1/2" flue riser with heavy-duty shelf for plating and small-equipment storage
- Stainless steel front, sides, shelf & 6" adjustable legs for easy cleaning and durability
- Heavy-gauge chassis and cast-iron components stand up to daily high-volume use
- Standing pilots for open burners ensure instant flame on demand
- Double-sided porcelain oven cavity with coved corners wipes clean fast
- Factory 1-year parts & labor warranty backed by the Middleby family of service agencies
| Model & Base | 448DC – Standard Oven (left) + Stainless Cabinet (right) |
|---|---|
| Overall Width | 48 5/8" / 1235 mm |
| Overall Depth | 34" / 864 mm |
| Cooking Height | 37" / 940 mm |
| Overall Height w/ Flue | 59 1/2" / 1511 mm |
| Total Input | 163,000 BTU/hr (Natural Gas or LP equivalent) |
| Gas Connection | 3/4" NPT (left side—opposite griddle) |
| Electrical | None required (battery-spark oven ignition) |
| Oven Interior (WxDxH) | 26" × 26 1/2" × 14" (full-size pans fit both ways) |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Southbend recommends keeping oversized cookware (12" Ø or larger) on the rear grate area to prevent excess heat at the front rail.
