Southbend (Middleby) 4482DC-3CR Ultimate Gas Ranges
Description

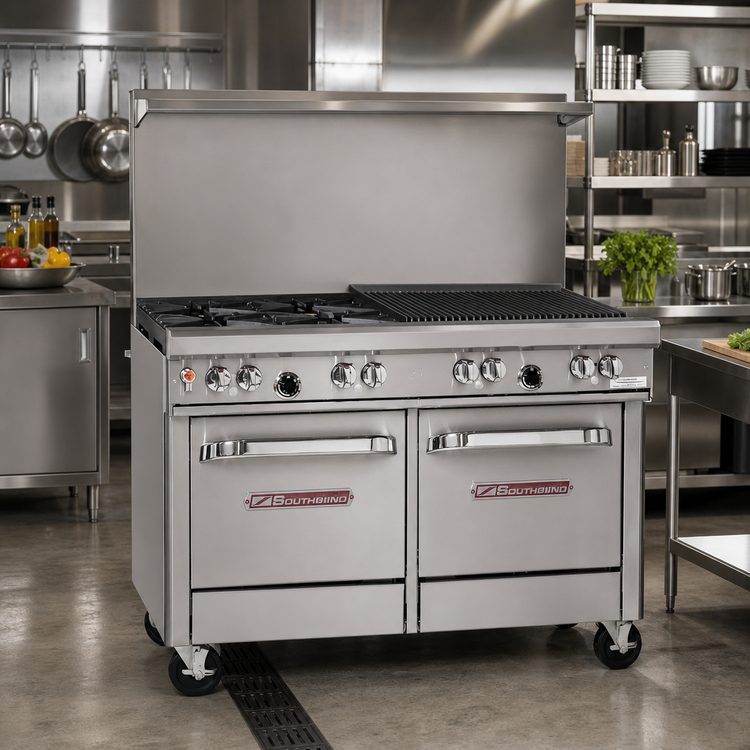

Southbend Ultimate 48" Gas Restaurant Range w/ 36" Charbroiler & 2 Open Burners
195,000 BTU • Standard Oven • Wavy Grates • Model 448 SeriesBuilt for high-volume kitchens that demand versatility and rugged reliability, the Southbend Ultimate 48" Restaurant Range combines two heavy-duty non-clog burners, a full-size 36" charbroiler and a high-performance standard oven—all in one space-saving footprint.
Key Performance Features
- Multi-zone cooking surface: 2 × 27,000 BTU non-clog burners with full-coverage wavy cast-iron grates.
- Right-side 36" charbroiler pumps out 96,000 BTU for steak-house quality sear marks; removable cast-iron grates for easy cleaning.
- 45,000 BTU standard oven with battery spark ignition—no external power required.
- 18" stainless steel cabinet base keeps sheet pans, lids and utensils within arm’s reach.
- 22-½" flue riser with heavy-duty shelf doubles as a convenient plate warmer.
- Front-mounted manual gas shut-off and factory-installed regulator for safe, fast service.
- All-stainless front, sides & shelf plus 6" adjustable stainless steel legs for durability and easy leveling.
- CSA Flame, CSA Sanitation & NSF certified—ready for code inspections nationwide.
At-a-Glance Specifications
| Exterior Width | 48 5⁄8" (1235 mm) |
|---|---|
| Exterior Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Total Input | 195,000 BTU/hr (Natural Gas) |
| Open Burners | 2 × 27,000 BTU non-clog |
| Charbroiler | 36" cast-iron grate, 96,000 BTU (right-side) |
| Oven | Standard oven, 45,000 BTU, 175 °F – 550 °F; includes 1 rack (2 positions) |
| Base Storage | 18" stainless steel cabinet (door optional) |
| Gas Connection | ¾" NPT (female) – 7" W.C. Nat / 11" W.C. LP |
| Ignition | Standing pilot (top) & battery spark (oven) |
| Construction | Stainless steel exterior; cast-iron burners & grates |
| Certifications | CSA Flame • CSA Sanitation • NSF |
| Warranty | 1-year limited parts & labor |
Built for the Long Haul
- Coved, porcelain-enameled oven cavity wipes clean fast and resists corrosion.
- 12" center-to-center burner spacing accepts up to 14" stock pots on rear grate.
- Wavy grate design lets you slide pans smoothly across the entire surface.
- Factory-installed 6" stainless legs meet health codes for toe-kick cleaning.
Need casters, cabinet doors or other factory options? Contact us for pricing and lead-times.
What’s Included
- Southbend Ultimate 48" Range (configured as listed above)
- One oven rack
- 22-½" flue riser with integrated shelf
- Four 6" adjustable stainless steel legs
- Owner’s & installation manual
- 1-year parts & labor warranty
Upgrade your cookline with the power, flexibility and legendary durability of Southbend’s Ultimate Series—engineered in the USA for chefs who refuse to compromise.
