Southbend (Middleby) 4482DC-2GR Ultimate Gas Ranges

Southbend Ultimate 48" Restaurant Range – 4 Burners, 24" Right-Side Griddle & Standard Oven

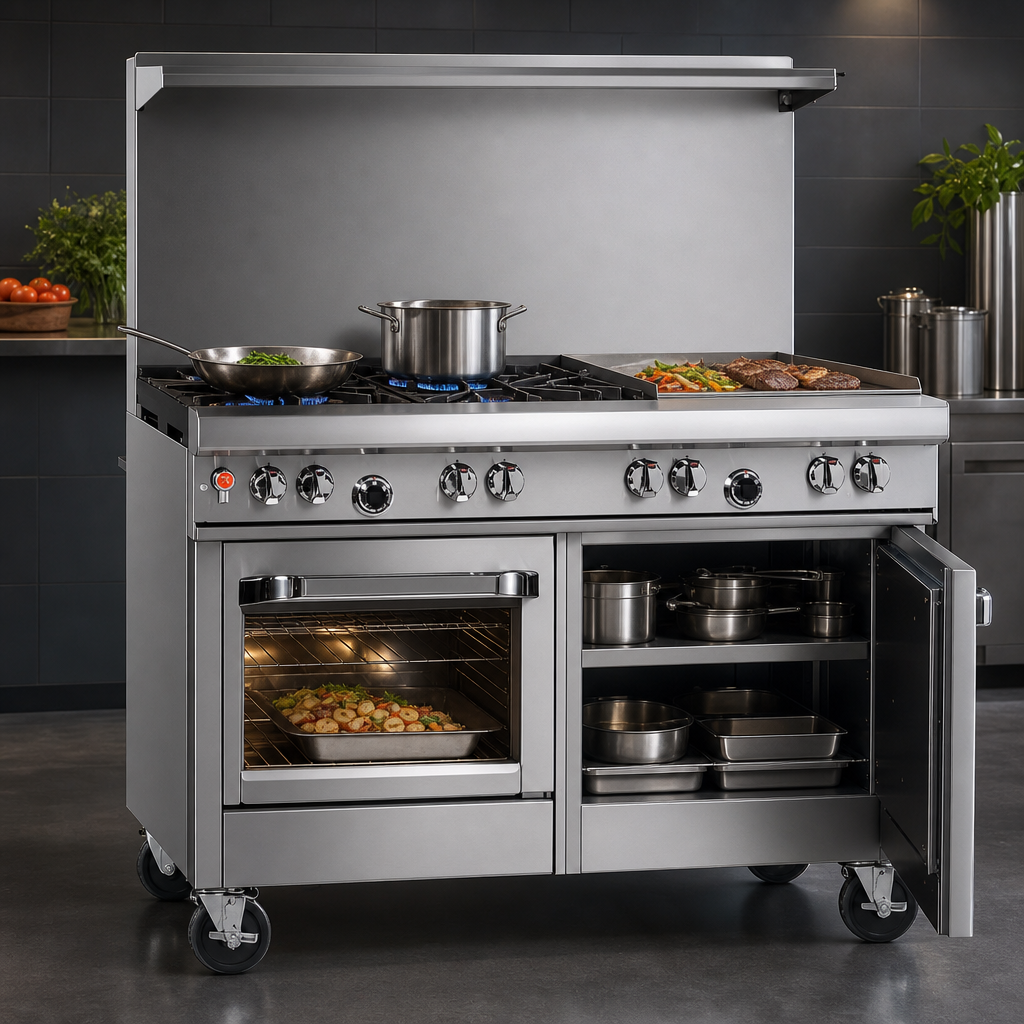

Engineered for high-volume kitchens that demand uncompromising performance, the Southbend Ultimate 48" range combines four lifetime-clog-free burners, a full-size 24" griddle, a rugged standard oven, and a stainless cabinet base in one space-saving footprint. From rapid sautéing to all-day griddling and bakery-quality roasting, this versatile workhorse keeps every station running smoothly.

Highlights at a Glance

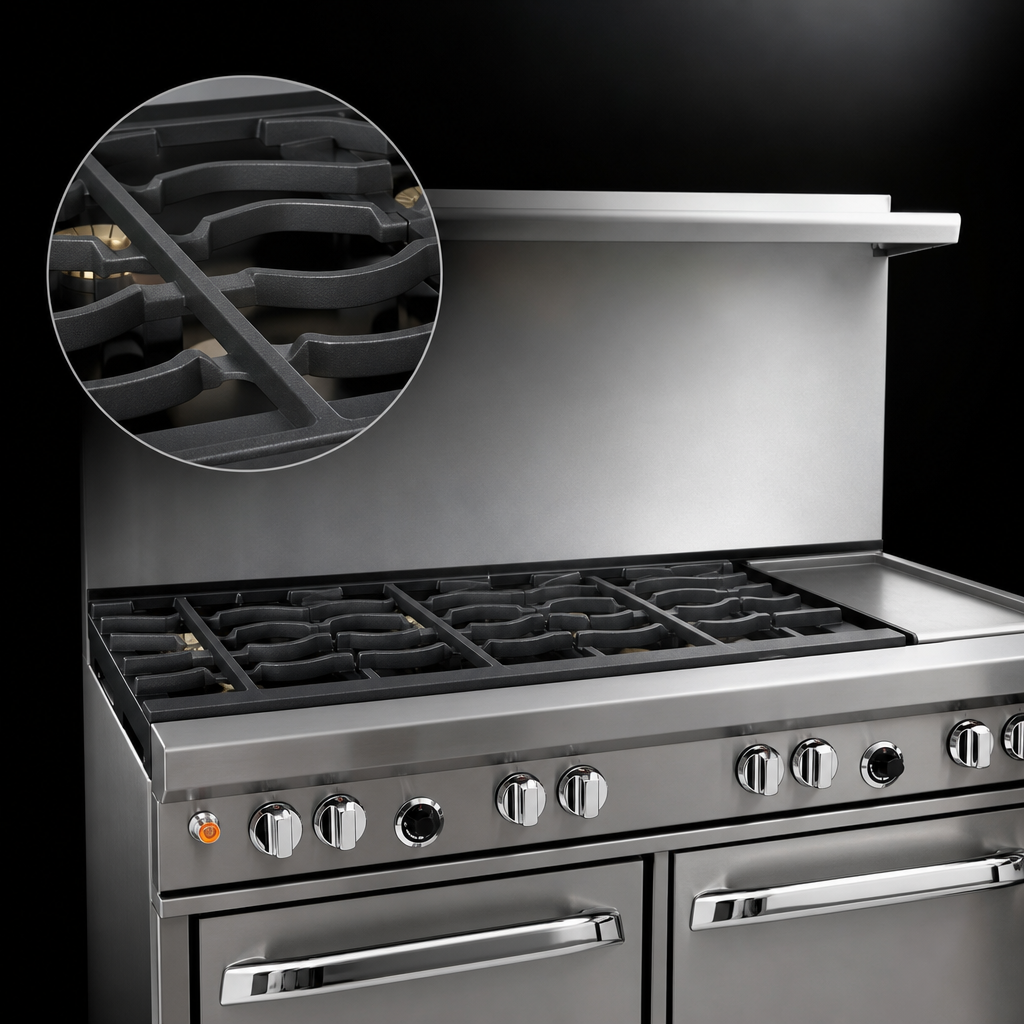

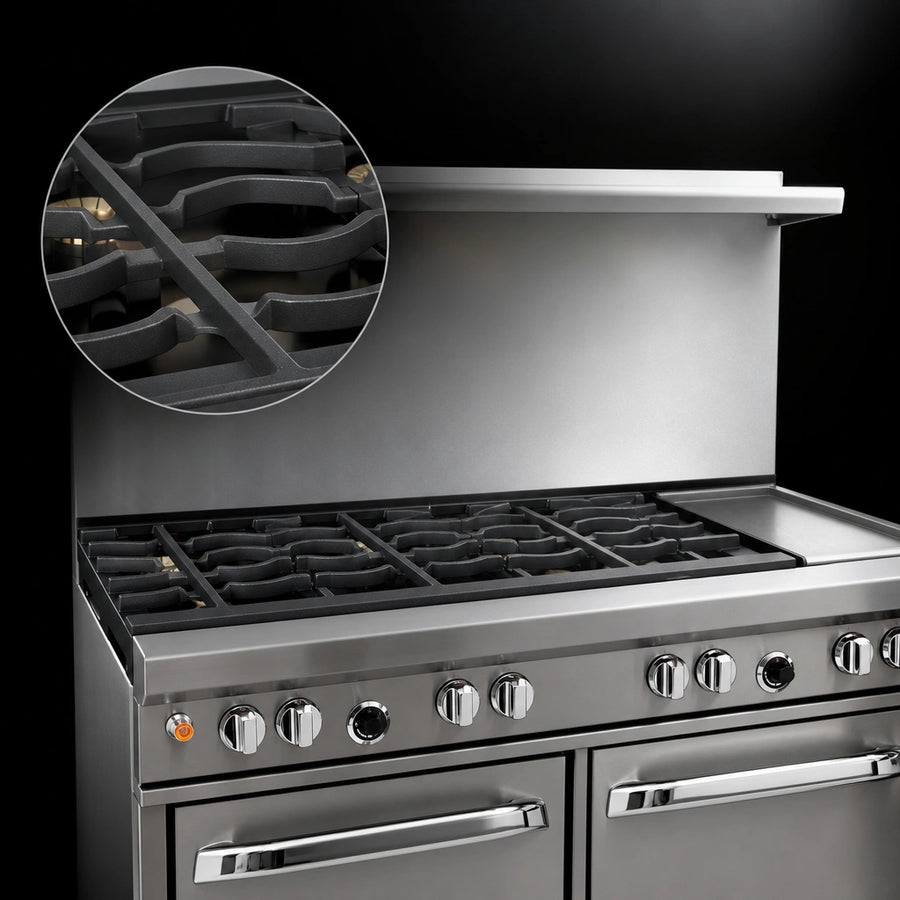

• 27,000 BTU non-clog burners (4) with wavy cast-iron grates for even flame distribution & easy stock-pot nesting.
• 24" right-hand griddle (48,000 BTU) – ½" smooth, polished steel plate with raised sides and standing pilot for instant heat.
• Standard oven (45,000 BTU) – 175-550°F thermostat, porcelain-enameled cavity, battery-spark ignition & 1 rack included.
• 18" stainless cabinet base provides convenient pan or small-wares storage; door kits available at no charge.
• 22½" flue riser & heavy-duty shelf keep cookware within reach while venting combustion gases upward.
• All-stainless exterior (front, sides, shelf) plus adjustable 6" legs for a sanitary, level installation.
• Front-mounted manual gas shut-off and factory-installed regulator for quick service access.
• 1-year parts & labor warranty backed by Southbend’s nationwide service network.

Built-in Cooking Power

• Total Output: 201,000 BTU/hr
• Standing pilots on open burners & griddle for immediate ignition
• Rear burner spacing accepts up to 14" stock pots without sacrificing adjacent positions
• Battery-spark oven ignition eliminates the need for an external electrical hookup

Construction & Durability

• 48 5⁄8" wide cooking top set at a comfortable 37" working height
• Double-sided, fully porcelain oven interior with coved corners for effortless clean-up
• Two removable drip trays under the rangetop catch grease before it reaches the floor
• 6" stainless legs adjust for uneven floors or to meet local code requirements

Popular Factory Options (sold separately)

• Cabinet-base door kit
• Swivel casters (front locking)
• 10" or 5" flue riser
• Quick-disconnect gas hose assemblies (3-5 ft)

Technical Specifications

For commercial installation only. Always verify utility requirements and local code compliance before ordering.
