Southbend (Middleby) 4482AC Ultimate Gas Ranges
Southbend (Middleby) 4482AC Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4482AC Ultimate Gas Ranges
Description
Southbend Ultimate 48" Gas Restaurant Range
8-Burner • Wavy Grates • Convection Oven + Cabinet Base • 248,000 BTUBuilt for chefs who refuse to compromise, the Southbend Ultimate 48" range unites a full-size open-top cook-surface with high-performance convection baking—all wrapped in heavy-duty stainless steel. From high-volume line cooking to artisan roasting, this single piece of equipment does it all while saving valuable kitchen space.
Why You’ll Love It

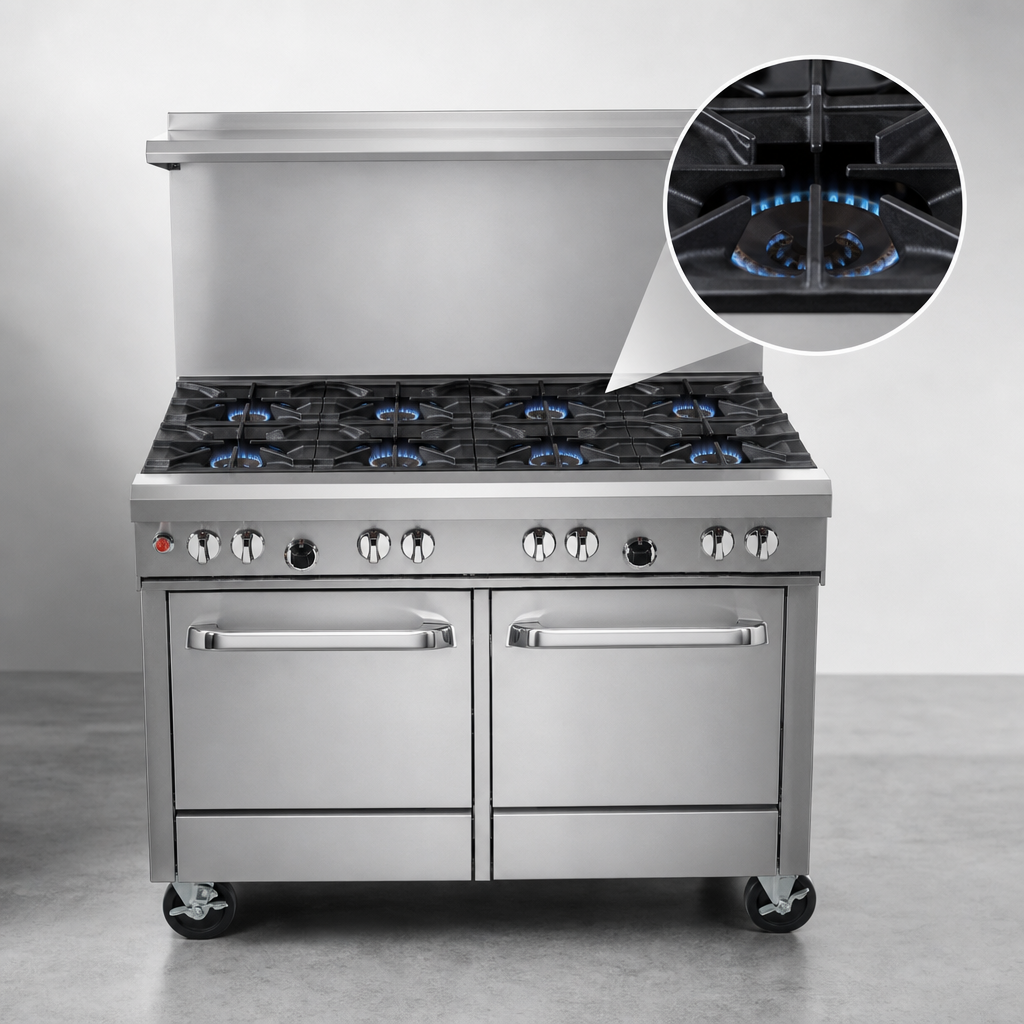

- Eight 27,000 BTU non-clog burners (216,000 BTU) deliver instant, even heat and never need de-clogging.

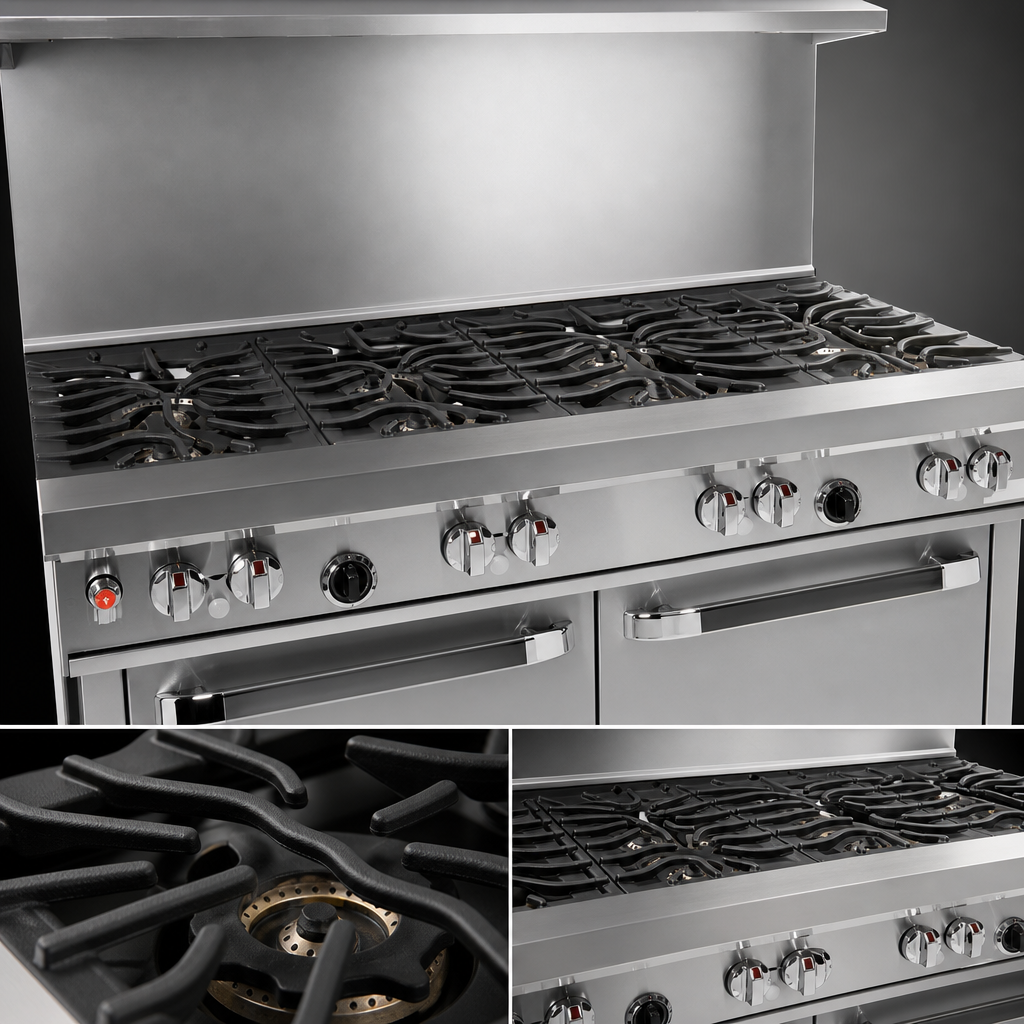

- Wavy cast-iron grates create a continuous, pot-friendly surface and boost burner efficiency.
- 32,000 BTU convection oven with battery-spark ignition circulates heat for faster, more even baking & roasting.
- 18" stainless cabinet base keeps sheet pans, lids or smallwares right where you need them—door kit available at no charge.
- 22-1/2" flue riser & heavy-duty shelf provide extra plating or small-equipment staging space.
- One-piece 4" stainless front rail with front-mounted manual gas shut-off for quick safety control.
- Battery-free standing pilots on the cooktop for true “all-day-ready” service.
- Factory-installed 3/4" gas regulator; CSA & NSF listed for code-compliant installation.
Technical Specifications
| Model | Ultimate 48" (48-5/8" wide) – factory designation 448 AC |
|---|---|
| Cooktop | 8 open non-clog burners with wavy grates |
| Total BTU | 248,000 BTU/hr (216,000 BTU top + 32,000 BTU oven) |
| Cooking Surface | 27" deep, 37" working height |
| Oven Cavity | 14"H × 26"W × 24"D – 3 racks, 5 positions, 175-550 °F thermostat |
| Cabinet Base | 18" stainless, open (optional door kit) |
| Exterior Dimensions | 48-5/8"W × 42-1/8"D × 59-1/2"H (to top of flue shelf) |
| Gas Connection | 3/4" NPT (rear), min. 7" W.C. NG / 11" W.C. LP – regulator included |
| Electrical | 115 V, 1-ph, 5.9 A, 6' cord & plug (convection fan only) |
| Shipping Weight | Approx. 735 lb (crate) |
| Certifications | CSA Flame & Sanitation, NSF |
| Warranty | 1 year parts & labor (see Southbend limited warranty) |
What’s Included
- (4) removable cast-iron grate tops
- (3) chrome oven racks
- 22-1/2" flue riser with integrated heavy-duty shelf
- 6" stainless, adjustable legs
- Factory pressure regulator & battery pack for ignition
Popular Add-Ons (Sold Separately)
- Cabinet-base doors (no-charge option)
- All-swivel locking casters for easy cleaning
- Extra oven racks
- 3-, 4- or 5-ft quick-disconnect hose kit (ANSI Z21.69)
- Limit cookware larger than 12" Ø to the rear burners to avoid front-rail overheating.
- Install under a properly vented hood—check local codes.
- If mounting on combustible flooring, 6" legs or casters are required.
Southbend equipment is intended for commercial use only. Warranty void if installed in a non-commercial setting.
