Southbend (Middleby) 4482AC-7R Ultimate Gas Ranges
Description
Southbend “Ultimate” 48″ Gas Restaurant Range
Model 448AC – Pyromax / Wavy-Grate Top • Convection Oven • Cabinet BasePurpose-built for high-volume kitchens, the Southbend Ultimate 48″ Range delivers massive fire-power, rock-solid construction, and the versatility to sauté, sear, simmer and bake from a single footprint. Four patented 40,000 BTU Pyromax burners on the right obliterate recovery lag, while two 27,000 BTU non-clog burners with wavy cast-iron grates on the left give you full-surface flexibility for saucepans and stock pots. Below, a battery-spark convection oven handles delicate pastries or full-size sheet pans, and an 18″ stainless cabinet keeps sheet pans, spice caddies or hotel pans close at hand.
Key Advantages
- 246,000 BTU total output – holds peak production during rush periods.
- (4) 40 kBTU Pyromax burners with built-in port-protection drip rings for ultra-high heat & easy cleaning.
- (2) 27 kBTU non-clog burners with wavy cast-iron grates — slide cookware anywhere across the 27″-deep top.

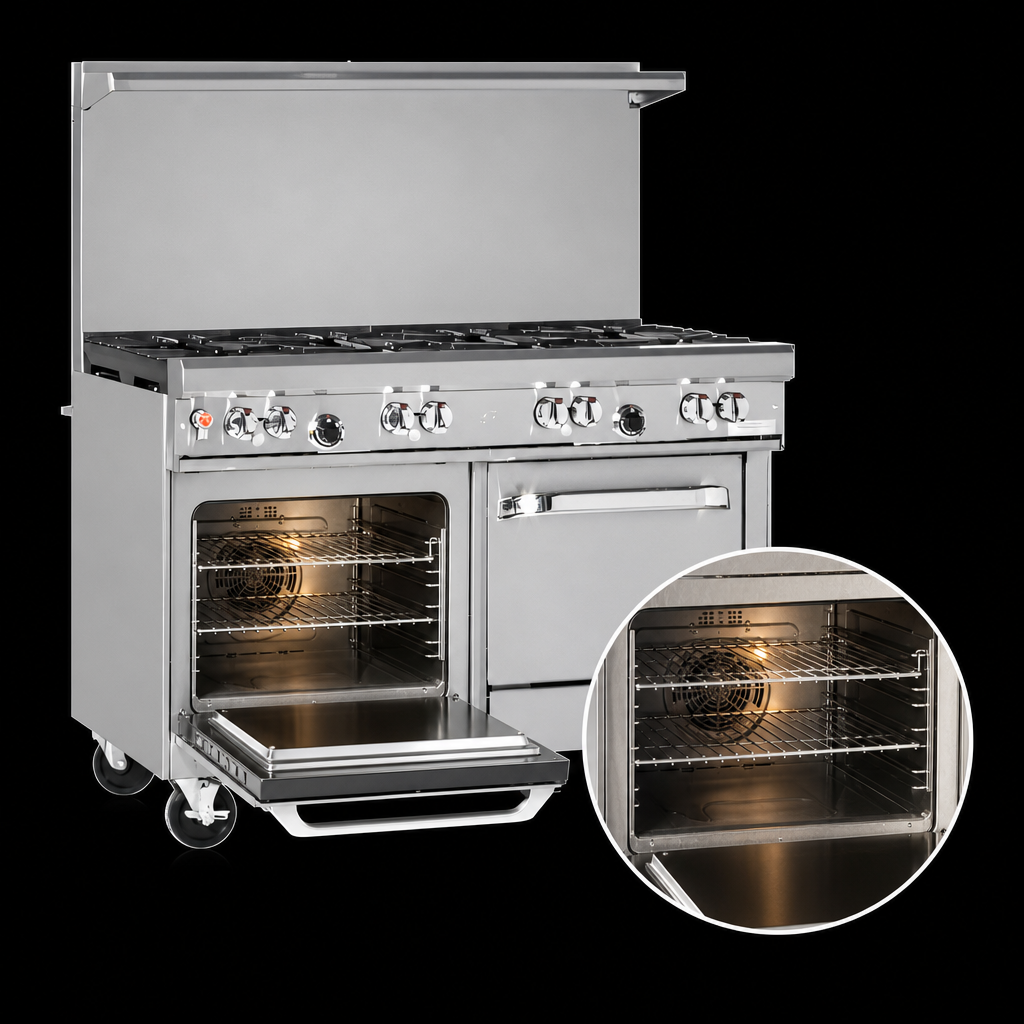

- Battery-spark ignition convection oven (32 kBTU) with 5-position rails & 3 adjustable racks included.
- 22 ½″ flue riser with heavy-duty stainless shelf adds convenient plating or small-wares storage.
- Front-mounted main gas shut-off plus factory regulator for fast, code-compliant installs.
- All-stainless front, sides, shelf and 6″ adjustable legs stand up to daily commercial abuse.
- CSA & NSF certified; one-year parts & labor warranty backed by Southbend’s national service network.
At-a-Glance Specs
| Cooking Surface | 27″ D x 48 ⅝″ W (37″ working height) |
|---|---|
| Open Top Configuration | (4) Pyromax @ 40 kBTU + (2) Non-Clog @ 27 kBTU |
| Oven Type / Capacity | Gas convection, 14″ H x 26″ W x 24″ D – fits full-size pans both ways |
| Oven Output | 32 kBTU, 175 - 550 °F thermostat |
| Total Input | 246,000 BTU/hr |
| Base Storage | 18″ stainless cabinet (right side) with optional no-charge doors |
| Ignition | Standing pilots (top) • Battery spark (oven) |
| Gas Connection | ¾″ NPT, min. 7″ W.C. Natural (11″ W.C. LP) |
| Electrical | 115 V, 5.9 A, 6′ cord & 3-prong plug (oven blower only) |
| Overall Dimensions | 48 ⅝″ W x 34″ D x 59 ½″ H (to riser top) |
| Shipping Weight | ≈ 735 lb crated |
| Certifications | CSA, NSF |
Included With Your Range
- (3) nickel-plated oven racks
- Factory-installed pressure regulator
- Rear flue riser shelf
- One-year parts & labor warranty (view details)
