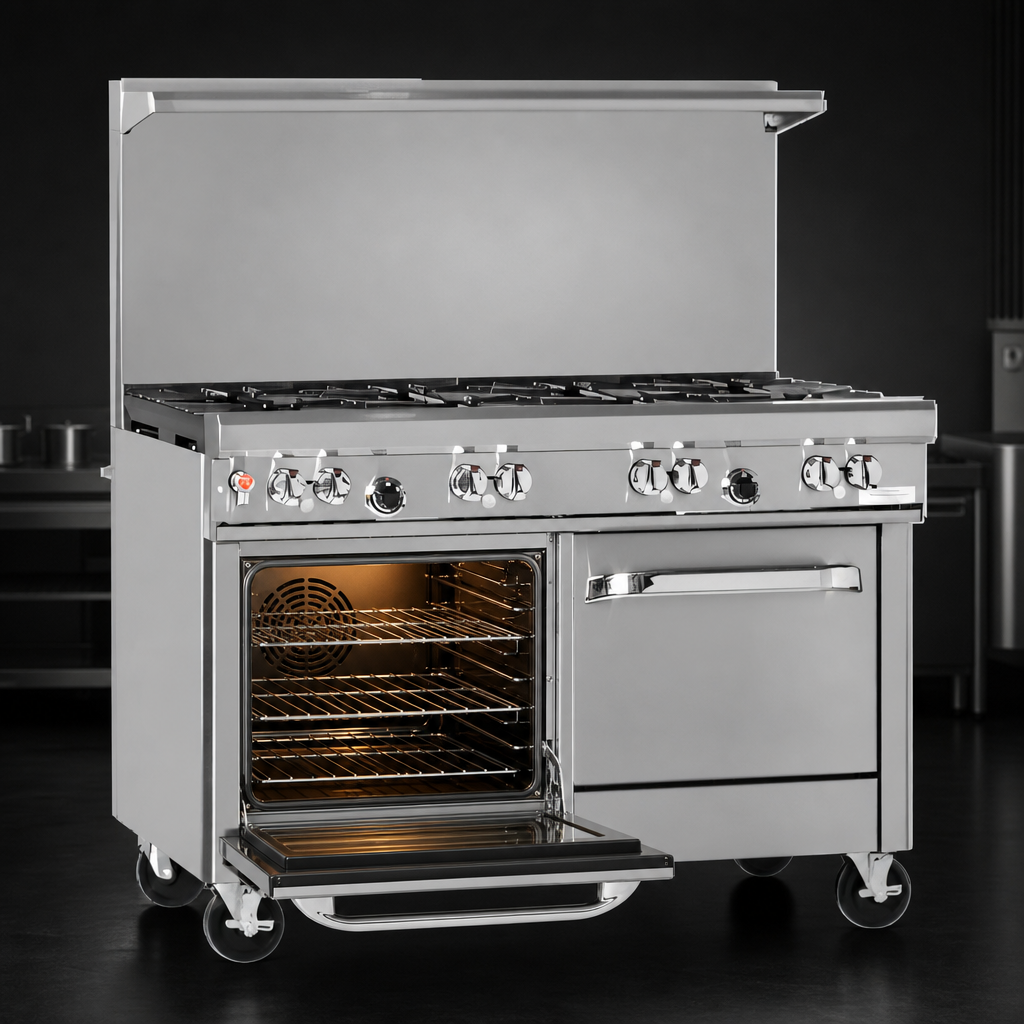

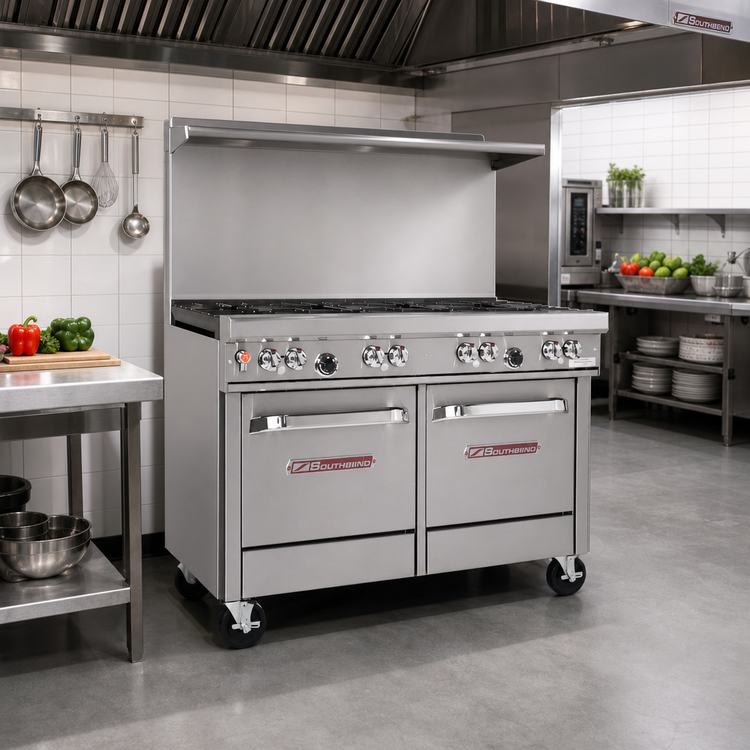

Southbend (Middleby) 4482AC-7L Ultimate Gas Ranges

Ultimate 48" Gas Restaurant Range – 4 Pyromax & 2 Non-Clog Burners

Engineered for high-volume kitchens that refuse to compromise on speed or consistency, the Southbend Ultimate 48" Range combines four heavy-duty 40 kBTU Pyromax burners, two 27 kBTU non-clog burners with wavy grates, a full-size battery-spark convection oven, and a convenient 18" stainless cabinet base—all in one rock-solid, stainless steel chassis.

Top-Line Features

• 4 Pyromax burners (left) – patented, high-output, 40,000 BTU NAT each with built-in port-protection drip ring.
• 2 Non-clog burners (right) – 27,000 BTU NAT each with cast-iron wavy grates for full-surface pan stability.
• Battery-spark convection oven – 32,000 BTU, 175-550 °F thermostat, 3 racks with 5 positions, 1/2 HP fan motor for even baking.
• 18" stainless cabinet base – keeps sheet pans, stock pots or hotel pans within arm’s reach (optional doors available at no charge).
• 22.5" flue riser with heavy-duty overshelf for plating, smallwares and garnishes.
• Front-mounted manual gas shut-off & factory-installed 3/4" regulator for fast, code-compliant hook-ups.
• 6" adjustable stainless legs (casters optional) permit easy leveling and under-range cleaning.
• Two removable, one-piece drip trays simplify daily clean-up.
• One-year limited parts & labor warranty backed by Southbend’s nationwide service network.

Power & Capacity

• Total input: 246,000 BTU (Natural Gas).
• 27"-deep cook surface; rear grates accommodate stock pots up to 14".
• Oven interior: 14"H × 26"W × 24"D – fits full-size sheet pans both directions.
• Standing pilots for open burners; battery-spark ignition for oven (no external power needed for burner lighting).

Specs at a Glance
