Southbend (Middleby) 4482AC-6R Ultimate Gas Ranges

Southbend “Ultimate” 48" Gas Restaurant Range

Bring versatile, high-volume cooking power to a single 48-inch footprint. Southbend’s Ultimate Series combines heavy-duty construction with a chef-driven burner mix, letting you sear, sauté, simmer and bake all at once—with room left over for storage.

Performance Highlights

• Right-side power station

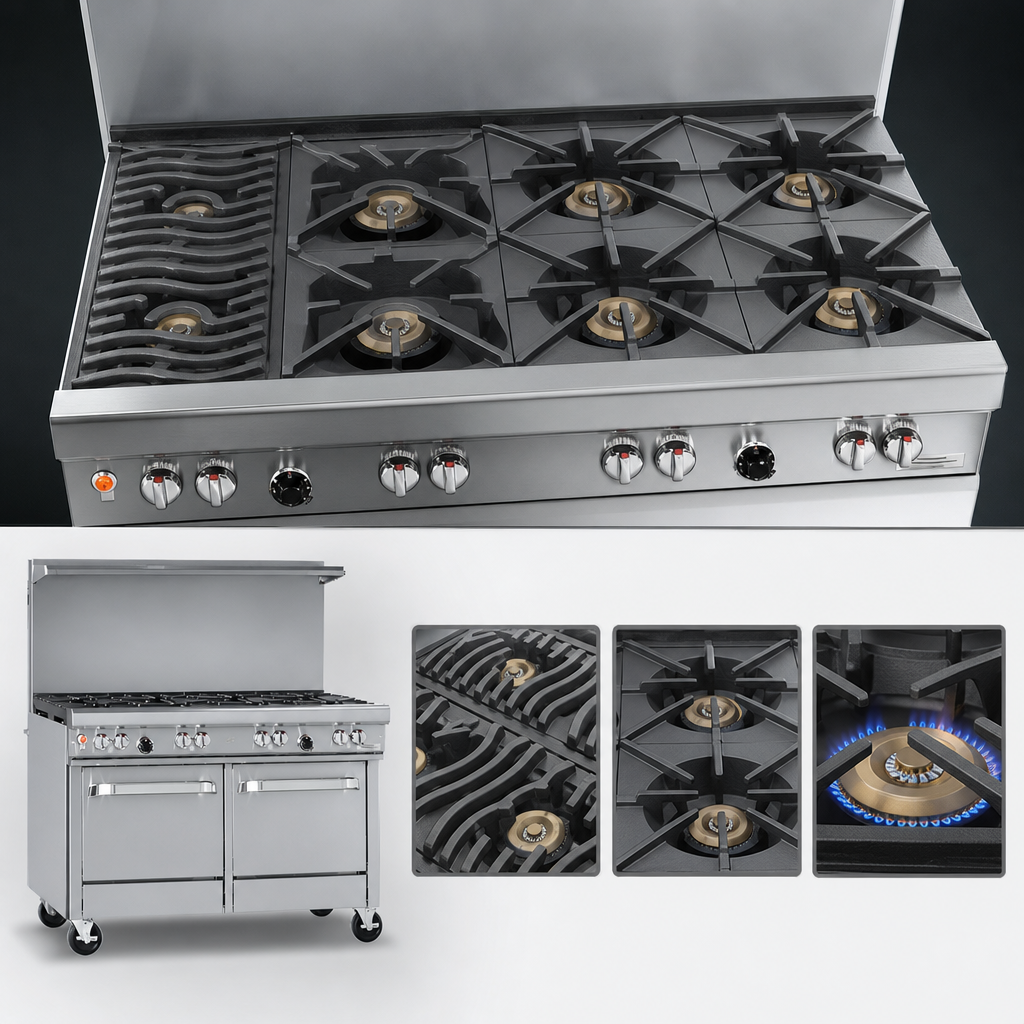

  • 3 × 33,000 BTU star/​sauté burners (front-right)
  • 2 × 40,000 BTU Pyromax high-output burners (rear-right)
• Left-side versatility
  • 2 × 27,000 BTU non-clog burners with cast-iron wavy grates for full-pan contact
• 32,000 BTU convection oven with battery-spark ignition, 5-position rails  |  (3) nickel-plated racks included
• 18" stainless cabinet base keeps pans, lids and spices in arm’s reach
• 22.5" flue riser with heavy-duty shelf—perfect for saucepots and plating trays
• All-stainless front, sides, riser shelf & 6" adjustable legs for a lifetime of clean downs
• Front-mounted manual gas shut-off and factory regulator for fast hook-ups
• Standing pilots on the open top; no cord needed for burners

Built for the Line

• 37" working height with 4" deep stainless rail—ergonomic and spill-proof
• 27" deep grate surface accepts 14" stock pots on the rear row without overhang
• Lift-off, one-piece cast-iron grates and dual drip trays make nightly cleanup quick
• Oven fan on/off switch lets you use the cavity as a standard baking oven when needed
• 1-year parts & labor warranty backed by Southbend’s nationwide service network

Technical Specifications

Need casters, salamander mounts or cabinet doors? Ask—this range is built to order in Fuquay-Varina, NC.
