Southbend (Middleby) 4482AC-6L Ultimate Gas Ranges
Description

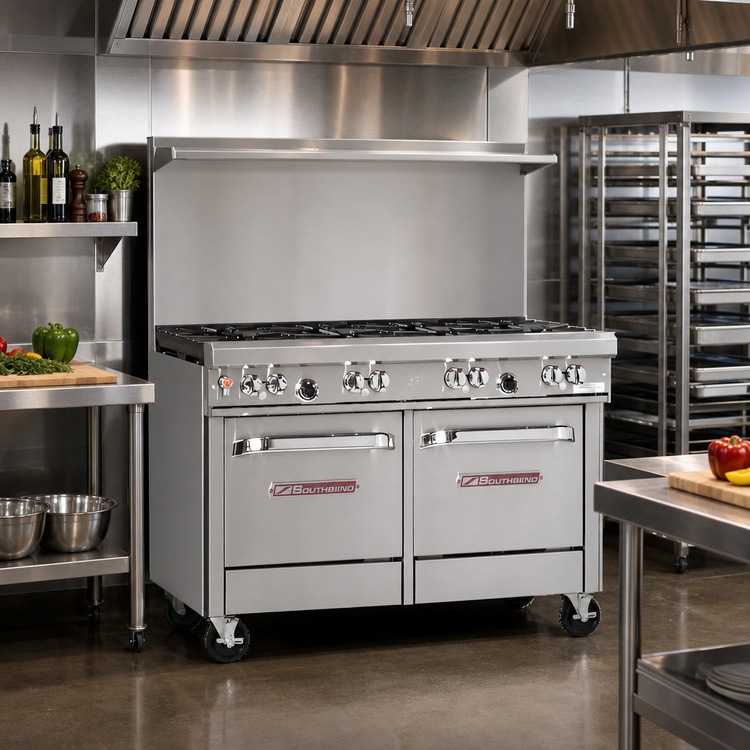

Southbend Ultimate 48″ Gas Restaurant Range
7-Burner Top • Convection Oven & Cabinet Base • 265,000 BTUBuilt for high-volume, all-day production, the Southbend Ultimate Series 48" range combines a custom burner mix with the speed and precision of a full-size convection oven—plus a stainless storage cabinet that keeps sheet pans and utensils within arm’s reach. If you need one piece of equipment that can sauté, sear, simmer, boil and bake from open to close, this is it.
Top Features

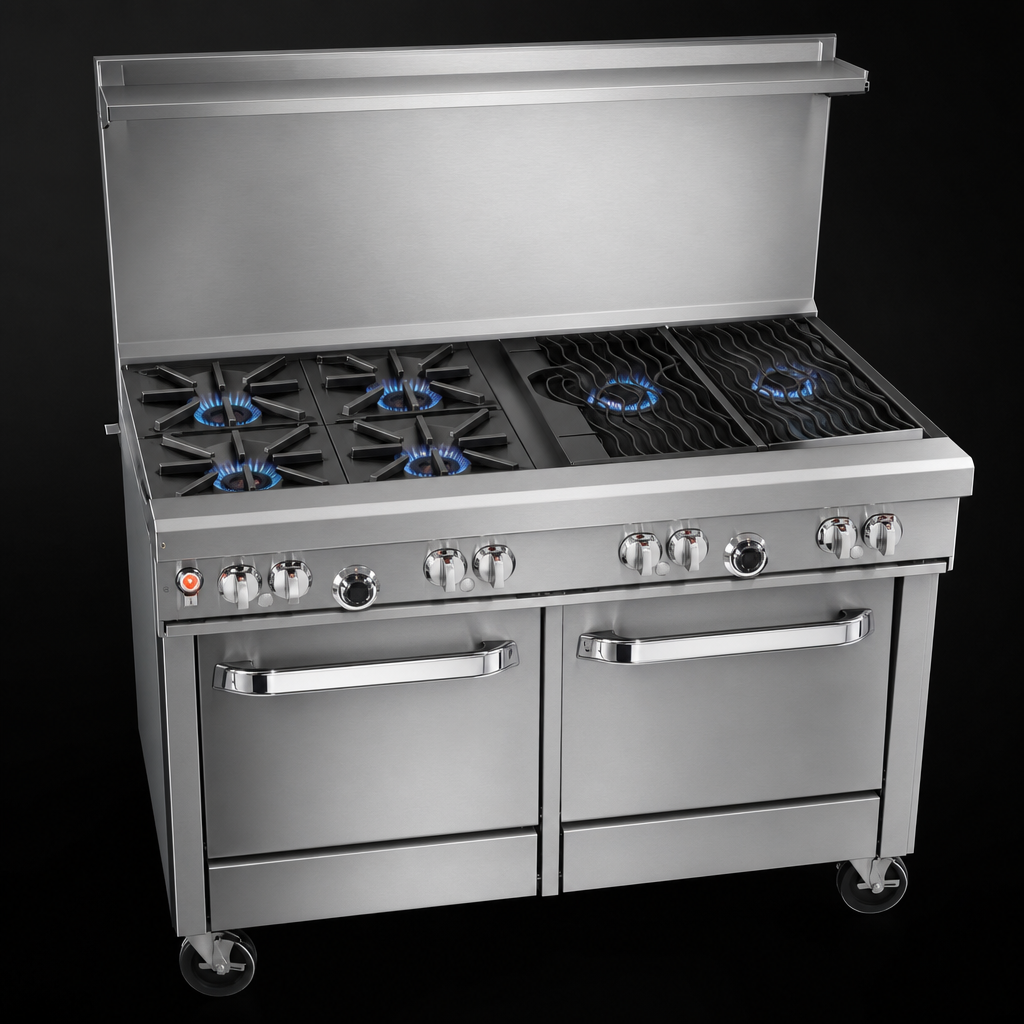

- Seven open-top burners: (3) 33,000 BTU star/sauté burners, (2) 40,000 BTU Pyromax high-output burners, (2) 27,000 BTU non-clog burners with wavy grates for maximum pot stability

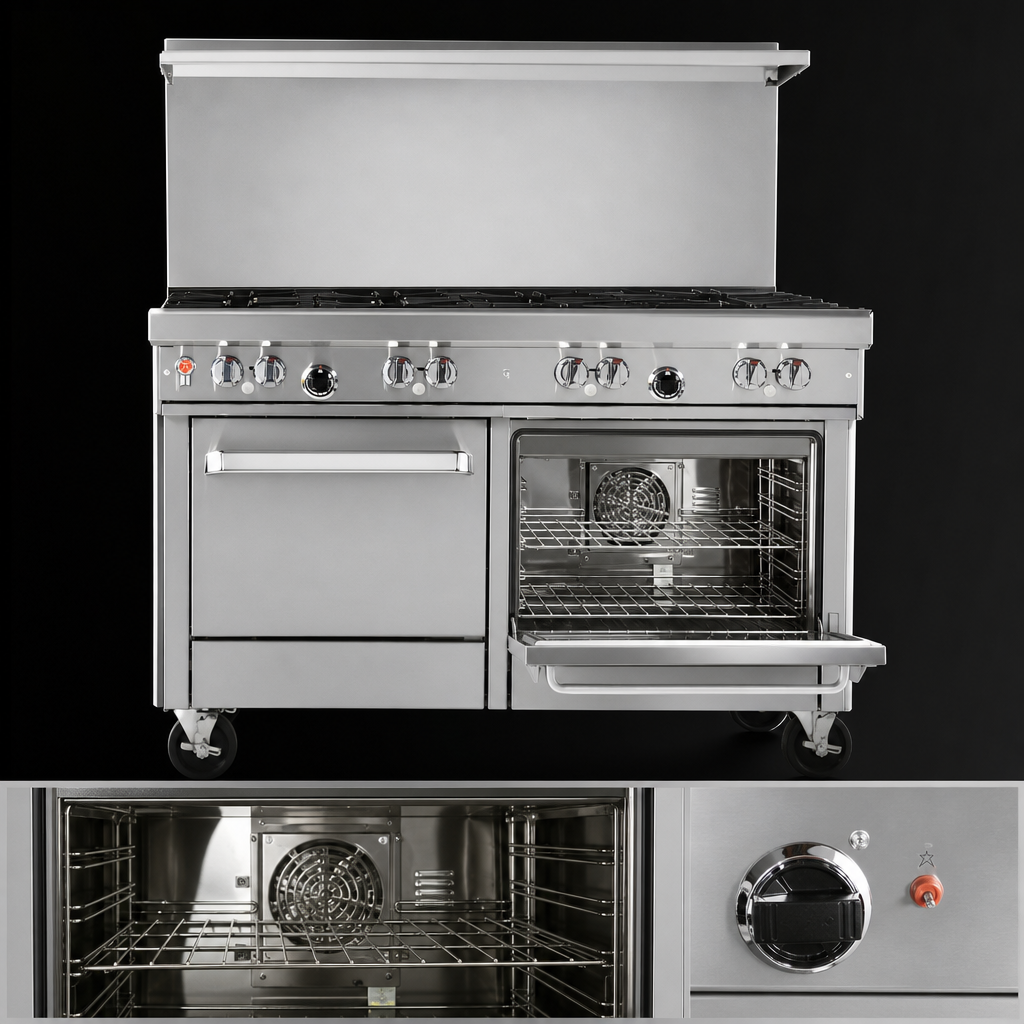

- 32,000 BTU convection oven with battery-spark ignition, 3 oven racks & 5 rack positions
- Stainless steel cabinet base on the right—perfect for pans, lids, spices and smallwares
- 22.5″ flue riser with sturdy shelf for plating or light-duty holding
- One-piece, removable cast-iron grates handle stock pots up to 14″ in diameter
- Front-mounted manual gas shut-off and factory-installed ¾″ pressure regulator
- Heavy-gauge stainless front, sides, shelf & 6″ adjustable legs stand up to daily abuse
- Certified to CSA and NSF standards; backed by a 1-year parts & labor warranty
Specifications
| Model | Ultimate 448 (Custom Burner Mix A/C Base) |
|---|---|
| Overall width | 48 5⁄8″ (1235 mm) |
| Overall depth | 34″ (864 mm) |
| Cooking surface height | 37″ (940 mm) on 6″ adjustable legs |
| Flue height / overall height | 22 ½″ riser • 59 ½″ overall |
| Open-top BTU input | 233,000 BTU/hr (natural gas) |
| Oven BTU input | 32,000 BTU/hr (natural gas) |
| Total BTU input | 265,000 BTU/hr |
| Oven cavity (WxDxH) | 26″ × 24″ × 14″ • porcelain enamel interior |
| Thermostat range | 175 °F – 550 °F (79 °C – 288 °C) |
| Gas connection | ¾″ NPT, right-hand rear (field convertible LP/NG, regulator included) |
| Electrical (convection fan) | 115 V / 1 ph / 5.9 A, 6′ cord & plug |
| Certifications | CSA Flame • CSA Sanitation • NSF |
| Warranty | 1-year parts & labor (see Southbend terms) |
For best results, install under a properly sized vent hood and limit cookware larger than 12″ to the rear burners. Contact the factory when installing on non-quarry tile flooring.
