Southbend (Middleby) 4482AC-5R Ultimate Gas Ranges
Description
Ultimate 48" Gas Restaurant Range
Southbend 448-AC | 265,000 BTU | Natural or LP GasBuilt for chefs who refuse to compromise, the Southbend Ultimate Series marries high-powered open burners, a true convection oven and rugged stainless-steel construction into one compact 48" footprint. From rapid stock-pot boils to delicate sauces and perfectly even baking, this range delivers the versatility and durability today’s busiest kitchens demand.
Why You’ll Love It

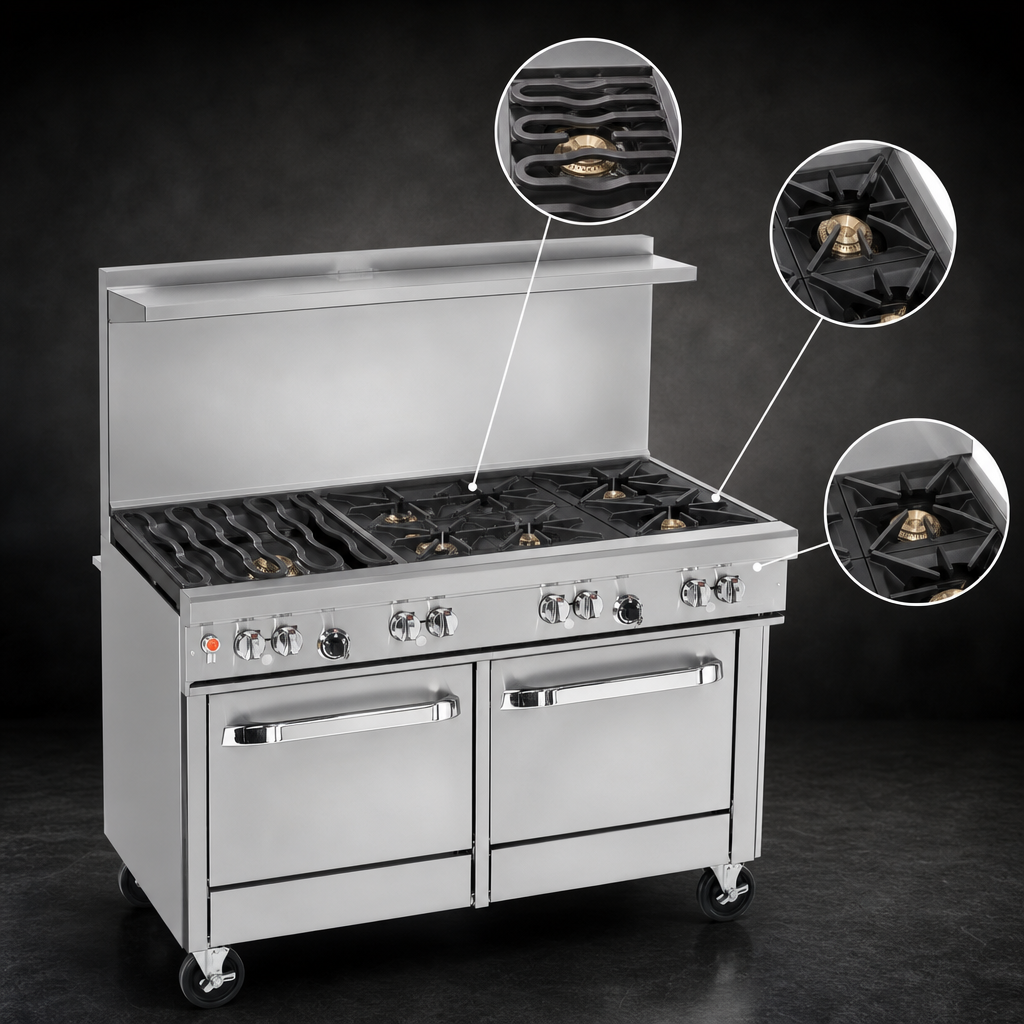

- Seven open burners with lifetime clog-free cast-iron design.
- (2) 40,000 BTU Pyromax burners in the back-right corner for lightning-fast heating of large stock pots or woks.
- (3) 33,000 BTU standard non-clog burners on the front-right line with flat grates—perfect for sauté pans and sautés.
- (2) 27,000 BTU non-clog burners on the left side with wavy grates that cradle round-bottom pans for improved heat transfer.

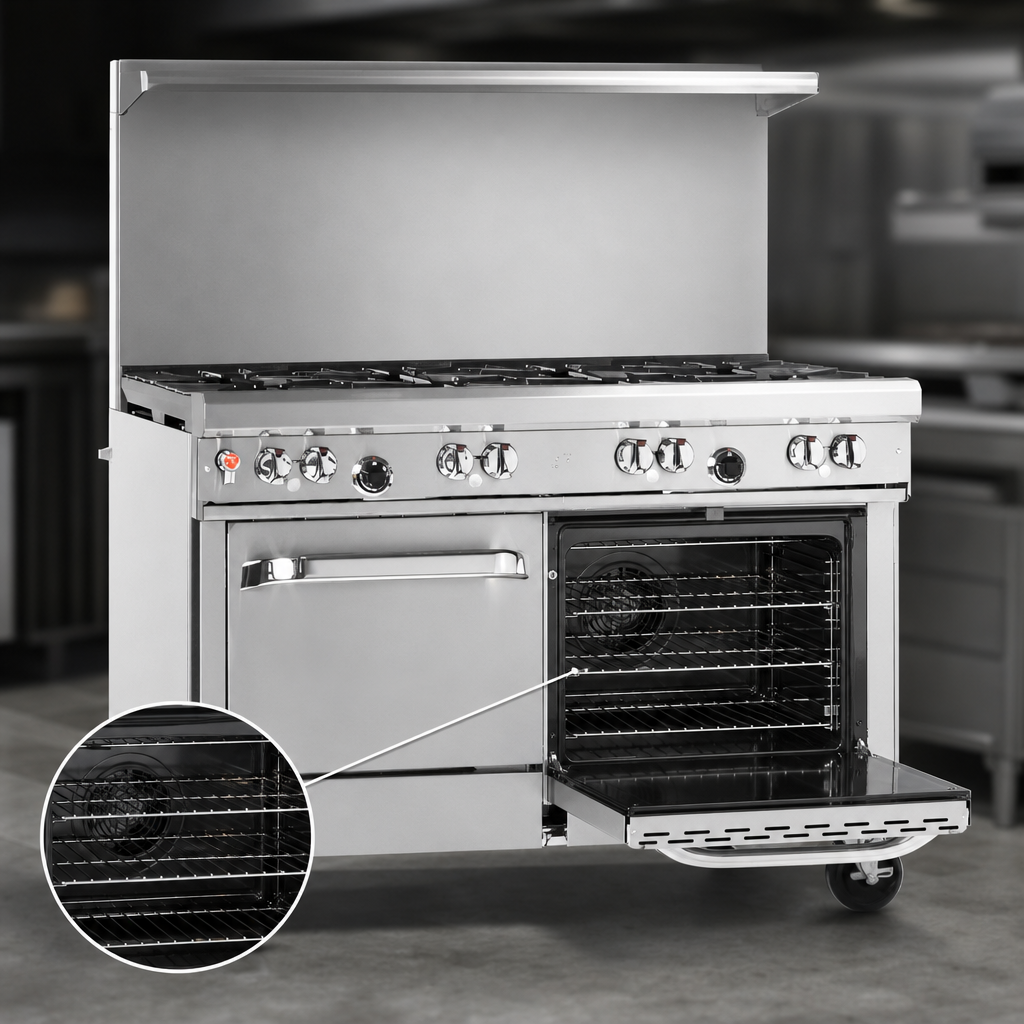

- 32,000 BTU convection oven with battery-spark ignition, 5-position rack guides and three chrome racks included.
- 18" stainless cabinet base keeps sheet pans, utensils or smallwares within arm’s reach.
- 22 ½" flue riser with heavy-duty utility shelf—ideal for warming plates or staging small pots.
- Front-mounted manual gas shut-off plus factory-installed pressure regulator for quick, safe servicing.
- All-stainless front, sides and 4" plate rail; 6" adjustable legs level the unit on any surface.
- Certified CSA & NSF for gas safety and sanitation; backed by a 1-year parts & labor warranty.
Specifications
| Exterior width | 48 5⁄8" (1235 mm) |
|---|---|
| Exterior depth | 34" (864 mm) |
| Cooking height | 37" (940 mm) to cooktop |
| Open burners | 7 total • 3 × 33,000 BTU non-clog (front right) • 2 × 40,000 BTU Pyromax (back right) • 2 × 27,000 BTU non-clog w/ wavy grates (left) |
| Oven type / BTU | Convection, 32,000 BTU |
| Oven cavity | 14" H × 26" W × 24" D, porcelain-enameled |
| Base storage | 18" stainless cabinet (right side) |
| Total input | Approx. 265,000 BTU/hr (natural gas) |
| Gas connection | ¾" NPT, min. inlet 7" W.C. NAT / 11" W.C. LP |
| Electrical (convection fan) | 115 V, 1 ph, 5.9 A, 6' cord & plug |
| Certifications | CSA Flame, CSA Sanitation, NSF |
| Warranty | 1-year parts & labor (see details) |
What’s in the Box
- Southbend Ultimate 48" Range (model 448-AC) configured as above.
- (3) Chrome oven racks.
- 6" stainless adjustable legs (field-install).
- Factory-installed gas pressure regulator.
- Owner’s manual & warranty documentation.
• Mount on 6" legs or casters when installed on combustible floors.
• Oversized cookware (12"+ diameter) should be placed on the rear burners to protect the front rail components.
• Always position the unit beneath a properly sized ventilation hood.
