Southbend (Middleby)  |  Ultimate  |  SKU: 4482AC-5L

Southbend (Middleby) 4482AC-5L Ultimate Gas Ranges

$13,620.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Gas Ranges Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend “Ultimate” 48" Gas Restaurant Range

7-Burner Top • Convection Oven • Cabinet Base • 265,000 BTU

Built for kitchens that never slow down, the Southbend Ultimate 48" range packs heavy-duty power, versatile cooking zones and rock-solid construction into a single, space-saving footprint. From searing in high-output Pyromax burners to gentle baking in the full-size convection oven, this custom configuration gives chefs total menu freedom shift after shift.

Key performance features

  • 7 open burners:
    • (3) 33,000 BTU non-clog burners with standard grates – front left
    • (2) 40,000 BTU Pyromax burners – rear left for high-capacity stock pots
    • (2) 33,000 BTU non-clog burners with wavy grates – right side, ideal for small-pan stability
  • Standing pilots on all open burners for instant, reliable lighting

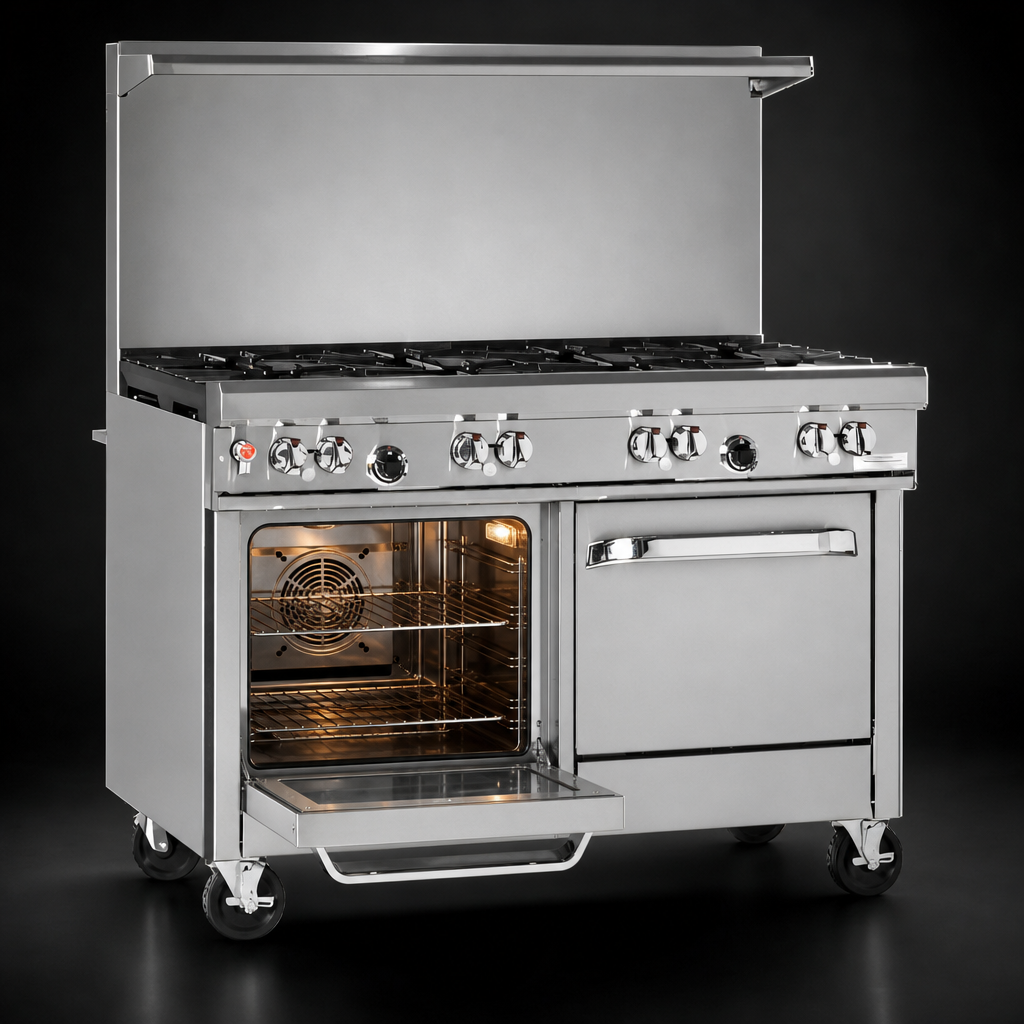

  • 32,000 BTU convection oven (battery-spark ignition) with 5-position rack guides & 3 chrome racks included
  • 18" stainless steel cabinet base on the right—perfect for sheet-pan or small-wares storage
  • 22 ½" flue riser with heavy-duty plate shelf keeps pans & plating essentials within reach
  • 4" deep stainless front rail & front-mounted gas shut-off for operator safety
  • Stainless steel front, sides, shelf & 6" adjustable legs for fast cleanup and long service life
  • Factory-installed regulator; CSA & NSF certified for commercial kitchens
  • 1-year parts & labor warranty backed by Southbend’s nationwide service network

Specifications

Overall width 48 5⁄8" (1235 mm)
Overall depth 34" (864 mm)
Cook-top height 37" (940 mm) on 6" adjustable legs
Height w/ 22.5" riser 59 ½" (1511 mm)
Total input 265,000 BTU/hr (Natural Gas or LP—field convertible)
Gas connection ¾" NPT (rear, left or right depending on riser location)
Electrical Convection fan – 115 V / 1-phase / 5.9 A, 6' cord & NEMA 5-15P plug
Oven capacity 14" H × 26" W × 24" D – holds 18" × 26" full-size sheet pans both directions
Included 3 oven racks, flue shelf, pressure regulator, manual & warranty
Certifications CSA Gas, CSA Sanitation, NSF

Need flexible payments? Ask us about fast, fixed-rate financing through Middleby Equipment Finance.

For commercial use only. Follow local codes and install under a properly sized vent hood. On non-quarry tile floors, contact Southbend for approved installation methods.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

44.5in

Shipping Weight

735.0lbs

Top

(7) open burners

Exterior Finish

stainless steel front & sides

Base

(1) convection oven, (1) cabinet

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 48", (3) non-clog burners with standard grates front left, (2) pyromax burners back left, (2) non-clog burners with wavy grates right, standing pilot, (1) convection oven with battery spark ignition, (1) cabinet base, includes (3) racks, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 265,000 BTU, CSA, NSF
