Southbend (Middleby) 4482AC-3TR Ultimate Gas Ranges

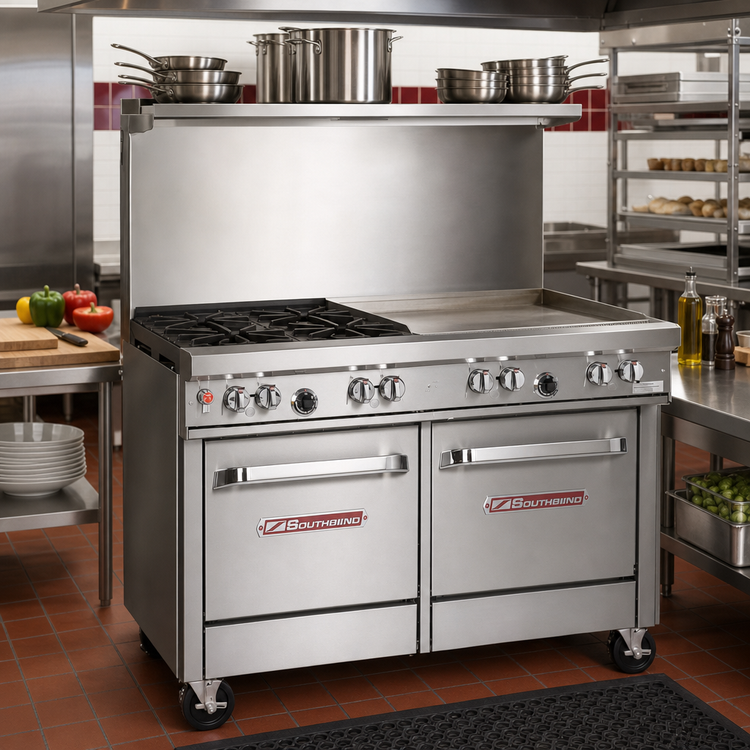

Southbend Ultimate 48″ Gas Restaurant Range

Bring uncompromising power, precision and durability to your cookline with Southbend’s flagship Ultimate Series. This 48-inch hybrid range unites high-output open burners, a full-width thermostatic griddle, rapid-recovery convection baking and built-in dry storage—everything you need for a busy kitchen, in less than four feet of floor space.

Key Features

• Heavy-duty frame with a 37″ cook-top height and 48-5/8″ overall width.

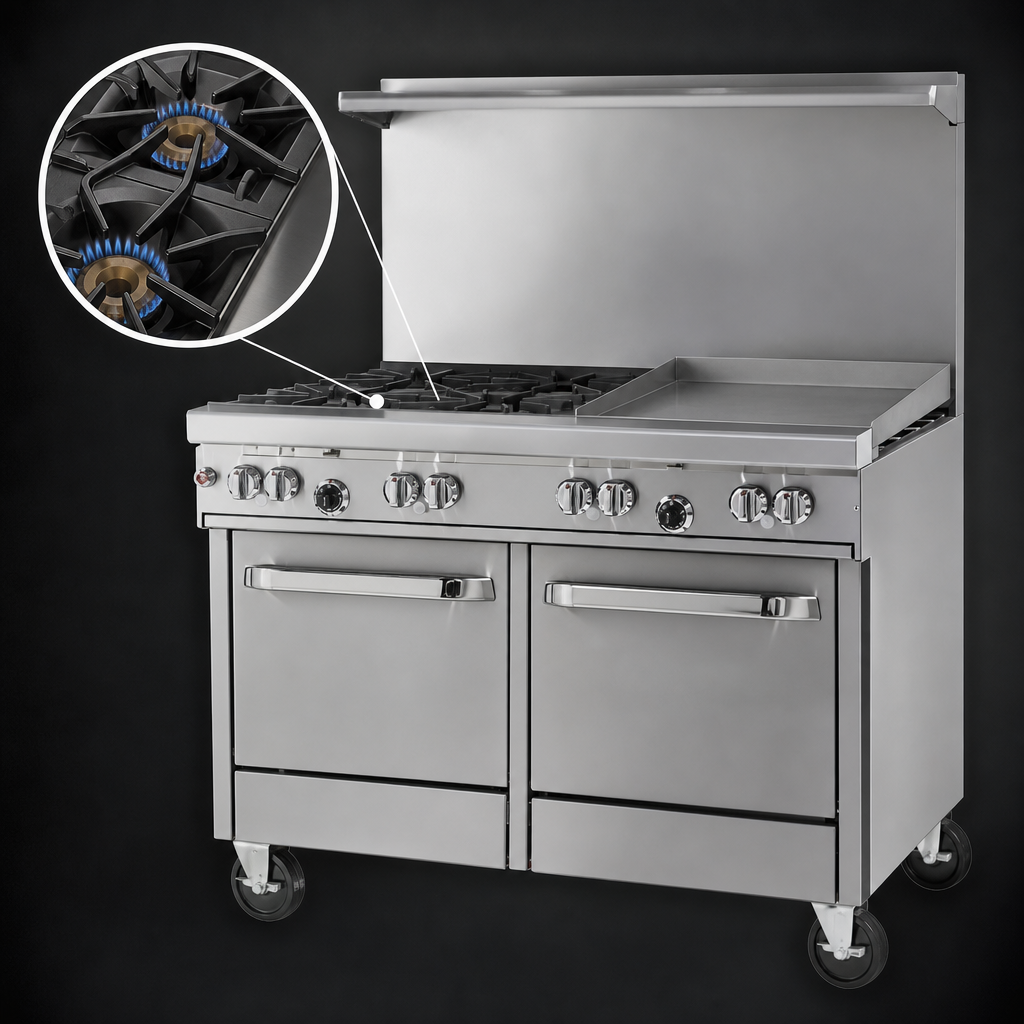

• Two 27,000 BTU non-clog cast-iron burners with standing pilots.
• Cast-iron wavy grates let cookware glide smoothly across the entire surface and hold stockpots up to 14″.

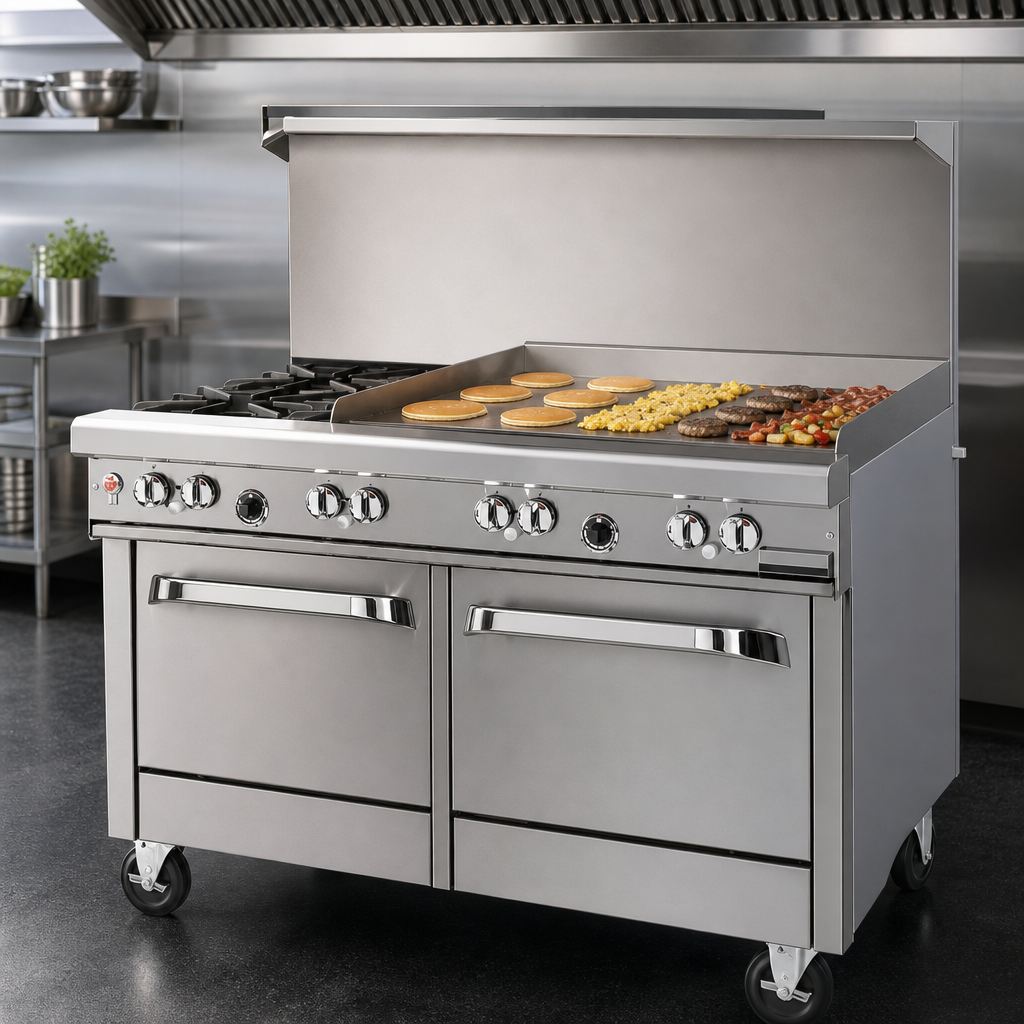

• Right-mounted 36″ griddle with a 1″ polished steel plate and precise thermostatic controls (175 – 550 °F).
• High-efficiency convection oven (32,000 BTU) with battery spark ignition, 3 chrome racks and 5 rack positions.
• 18″ stainless steel cabinet base keeps sheet pans and smallwares within arm’s reach.
• 22-1/2″ flue riser with integrated stainless shelf for plates, spices or small equipment.
• Front manual gas shut-off and factory-installed 3/4″ pressure regulator streamline service and safety.
• All-stainless front, sides, shelf and 6″ adjustable legs for easy cleaning and long life.
• Total input: 150,000 BTU/hr.

Performance at a Glance

Certifications & Warranty

• cCSAus, CSA Flame and CSA Star compliant
• NSF listed for food-service sanitation
• One-year limited parts & labor warranty

For commercial use only. Install under a properly sized, vented hood.
