Southbend (Middleby) 4481EE-7R Ultimate Gas Ranges
Description

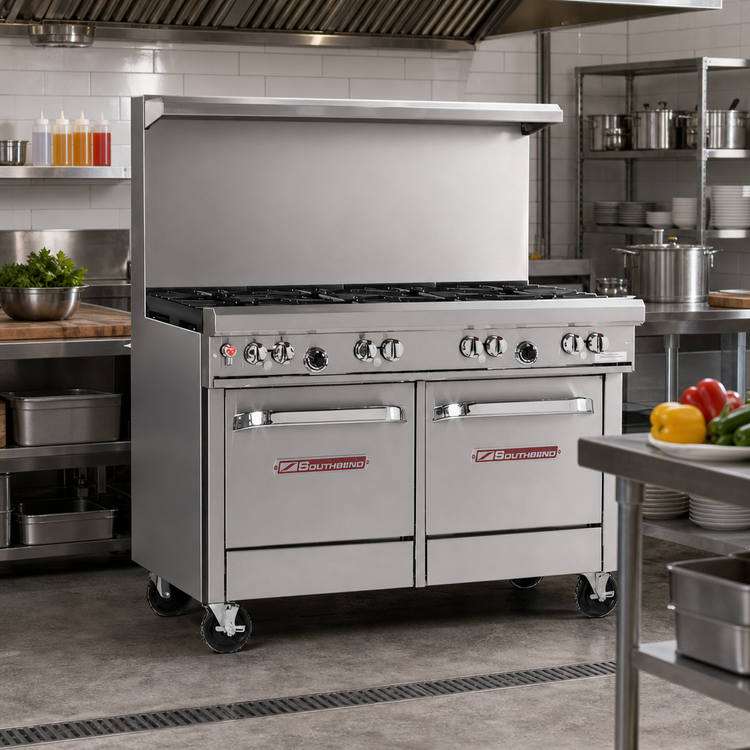

Southbend Ultimate 48" Gas Restaurant Range – Pyromax/Non-Clog Top with Twin Space-Saver Ovens
Model 448-EE-P4/NC2 | 316,000 BTU | CSA & NSF CertifiedBuilt for chefs who refuse to compromise, the Southbend Ultimate 48" Range delivers blistering heat, rock-solid durability, and the versatility to keep even the busiest line moving. Four patented 40,000 BTU Pyromax burners team up with two 33,000 BTU non-clog burners for a searing 226,000 BTU cooktop, while a pair of full-feature 45,000 BTU space-saver ovens handle baking, roasting, and finishing—all in one compact powerhouse.
Key Features

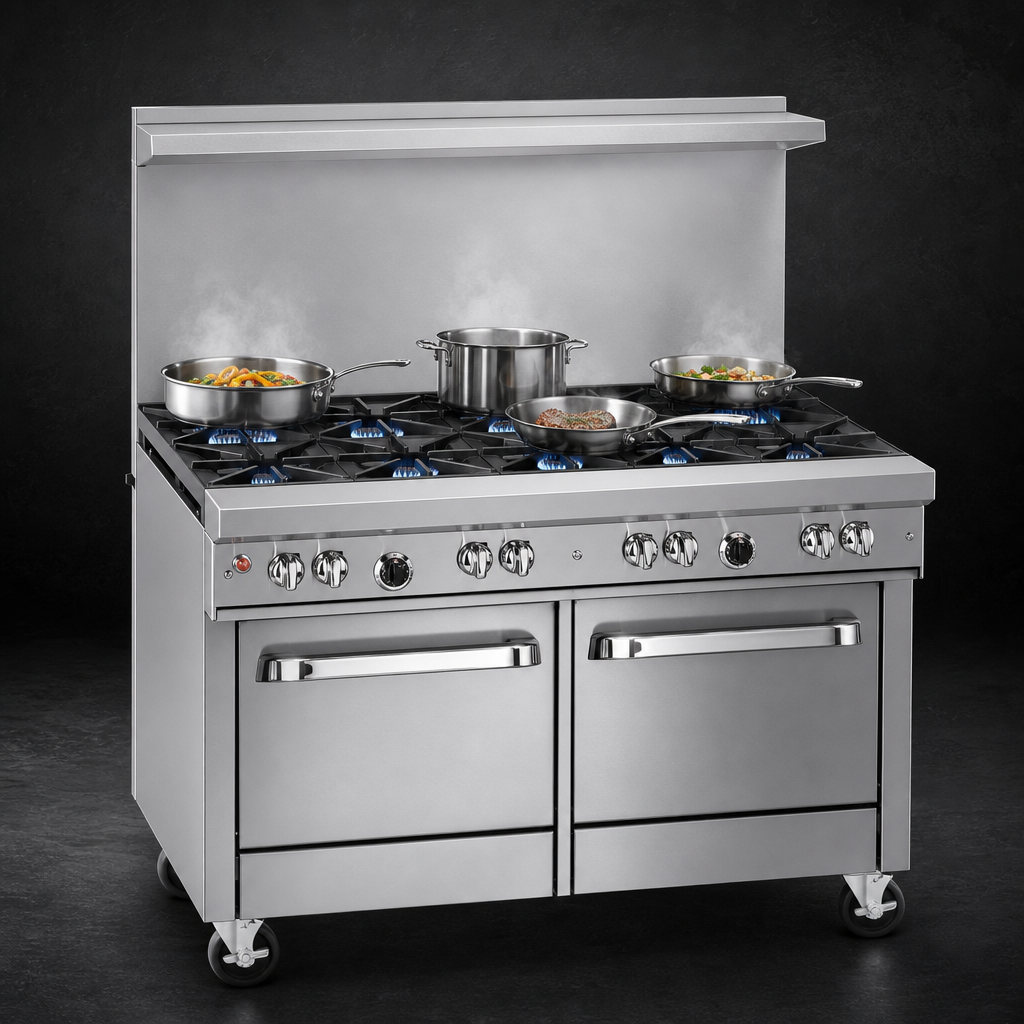

- 4 × Pyromax burners (40,000 BTU each) – three-piece, easy-clean design with built-in port-protection drip ring.
- 2 × Lifetime non-clog burners (33,000 BTU each) on the left for everyday sauté, boil, or pan-fry tasks.

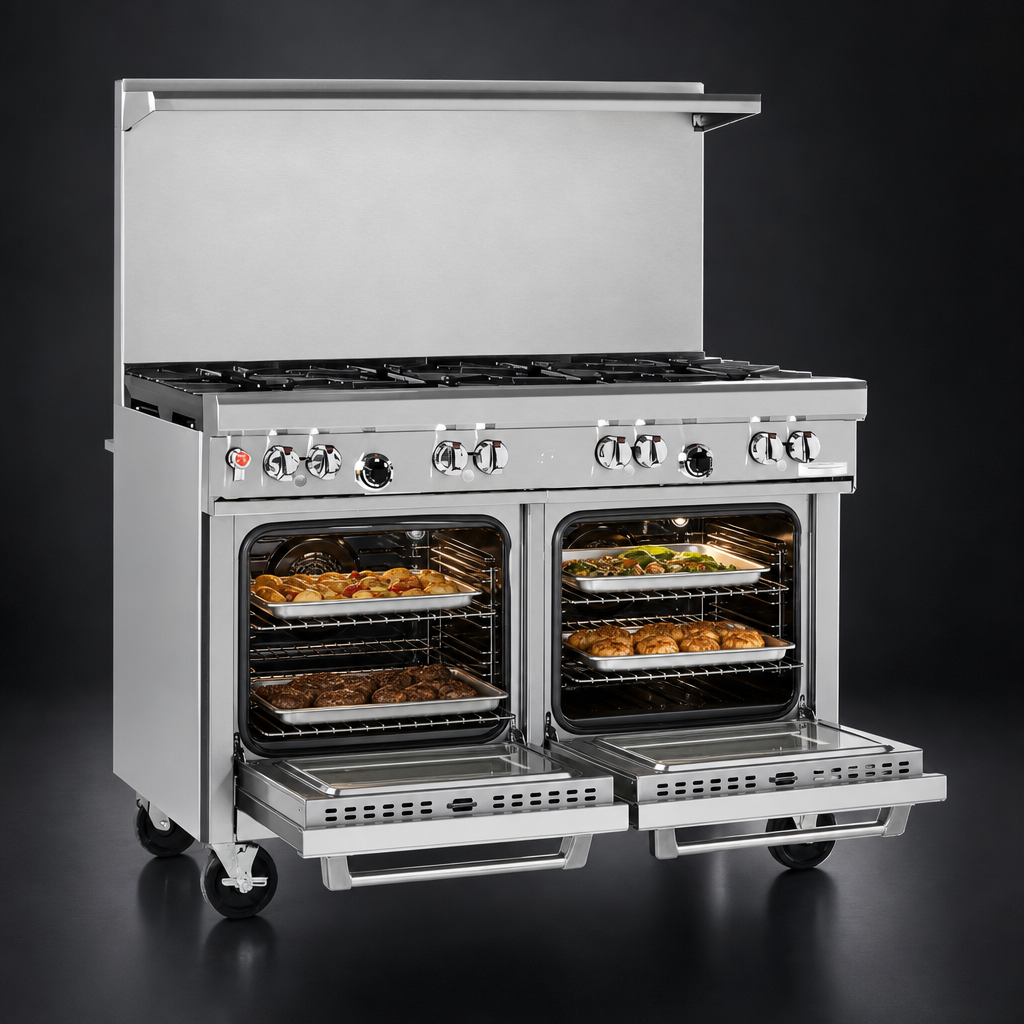

- (2) Space-Saver ovens (45,000 BTU each) with battery spark ignition—no external power required.
- Includes 1 chrome rack per oven with two position side rails.
- 22-1/2" stainless flue riser with heavy-duty shelf—perfect for smallwares and plating.
- Front-mounted manual gas shut-off and factory-installed 3/4" regulator for fast setup.
- All stainless steel front, sides, shelf, and 6" adjustable legs for easy cleaning and long life.
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Performance at a Glance
| Total BTU Input | 316,000 BTU (Natural Gas) |
|---|---|
| Cooktop Configuration | 4 Pyromax burners + 2 non-clog burners |
| Cooking Surface | 27" deep, cast-iron grates (rear holds up to a 14" stock pot) |
| Oven Interior (each) | 14"H × 19-1/2"W × 26-1/2"D, porcelain-enameled cavity |
| Ignition | Standing pilots (top) & battery spark (ovens) |
| Gas Connection | 3/4" NPT (rear) |
| Overall Dimensions (W × D × H) | 48-5/8" × 34" × 59-1/2" (to top of flue shelf) |
| Certifications | CSA, NSF |
Why Choose Pyromax?
- 40 K BTU output—ideal for woks, large stock pots, and lightning-fast recovery.
- Three-piece design disassembles in seconds for end-of-shift cleaning.
- Port-shield drip ring prevents clogging and extends burner life.
Included & Compatible Accessories
- (2) Chrome oven racks (1 per cavity)
- Stainless 22-1/2" flue riser shelf (installed)
- Factory pressure regulator
- Optional add-ons (sold separately): casters, extra racks, salamander/cheesemelter mounts, quick-disconnect hose kits, and more.
Need financing? Middleby Equipment Financing offers fast credit decisions and affordable monthly payments—ask your sales rep for details.
For full warranty terms, service, and replacement parts information, visit Southbend Service & Parts.
