Southbend (Middleby)  |  Ultimate  |  SKU: 4481EE-7L

Southbend (Middleby) 4481EE-7L Ultimate Gas Ranges

$10,902.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Owner's manual Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend Ultimate 48″ Gas Restaurant Range

Model 448EE – 4 Pyromax + 2 Non-Clog Burners with Double Space-Saver Ovens

Bring maximum fire-power to the line without sacrificing floor space. The Southbend Ultimate 48″ combines patented high-output Pyromax burners with compact, full-featured ovens—delivering a total of 316,000 BTU/hr in an all-stainless chassis that’s built for the grind of a busy kitchen.

Key Features & Benefits

  • (4) 40,000 BTU Pyromax burners – three-piece, easy-clean design with built-in port-protection drip ring.
  • (2) 33,000 BTU non-clog burners (right side) – one-piece cast iron construction eliminates burner blockage.
  • Heavy-duty cast-iron grates – four removable sections; rear grate accepts 14″ stock pots.

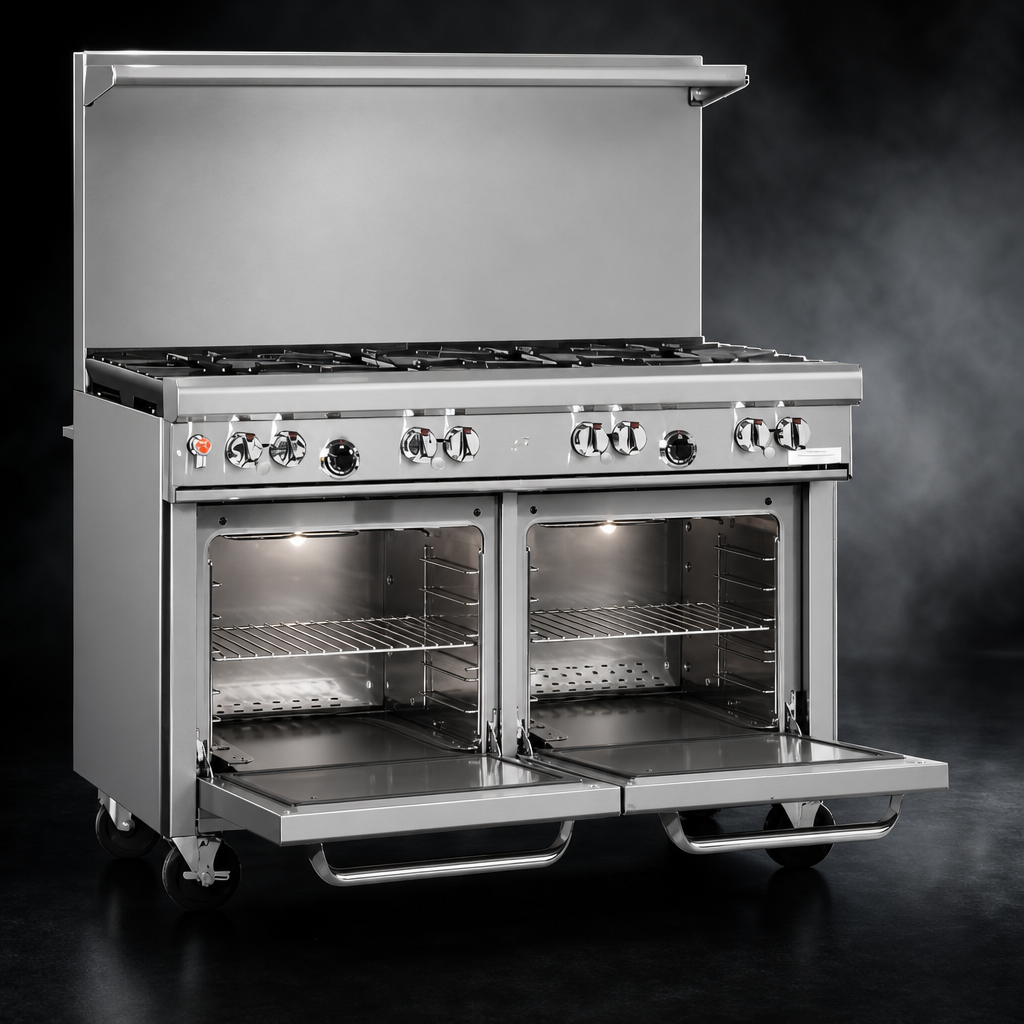

  • (2) Space Saver ovens – 45,000 BTU each, porcelain enamel interior, fits full-size sheet pans left-to-right; one rack per cavity.
  • Battery spark ignition on ovens; standing pilots on open top for reliable, match-free starts.
  • 22½″ flue riser with integrated shelf keeps cookware handy and the workspace organized.
  • Stainless steel front, sides, shelf & 6″ adjustable stainless legs for a sanitary, durable installation.
  • Front-mounted gas shut-off valve & factory-installed ¾″ regulator for quick service access.
  • Certified to CSA & NSF standards; one-year parts & labor warranty.

At-a-Glance Specifications

Overall width 48⅝″ (1235 mm)
Overall depth 34″ (864 mm)
Cooking surface height 37″ (940 mm)
Height w/ flue riser 59½″ (1511 mm)
Burner configuration (4) Pyromax 40 kBTU + (2) Non-Clog 33 kBTU
Ovens (2) Space Saver, 45 kBTU each, 175–550 °F thermostat
Total input 316,000 BTU/hr
Gas connection ¾″ NPT, rear
Required gas pressure Natural 7″ WC  |  LP 11″ WC
Oven interior (each) 19½″ W × 26½″ D × 14″ H (495 × 673 × 356 mm)
Racks supplied 1 per oven (2-position side rails)
Legs / mobility 6″ stainless adjustable legs (casters optional)
Construction Stainless steel front, sides, shelf & flue riser
Certifications CSA, NSF – Commercial use only
Warranty 1-year parts & labor (factory authorized service)

Ideal Applications

  • Independent & chain restaurants
  • Hotel banquets & catering commissaries
  • High-volume food courts & ghost kitchens
Installation Note: For combustible floors, 6″ legs or casters are required. Oversized cookware (over 12″ Ø) should be kept to the rear burners to prevent excessive front-rail heat build-up. This unit is intended for commercial use only.

Need flexible financing? Ask about Middleby Equipment Financing to turn your range purchase into predictable monthly payments.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(6) open burners

Vent

backriser with hi-shelf

Base

(2) standard / space saver ovens

Specifications

Ultimate Restaurant Range, gas, 48", (4) pyromax burners, (2) non-clog burners right, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 316,000 BTU, CSA, NSF
