Southbend (Middleby) 4481EE-6L Ultimate Gas Ranges
Description

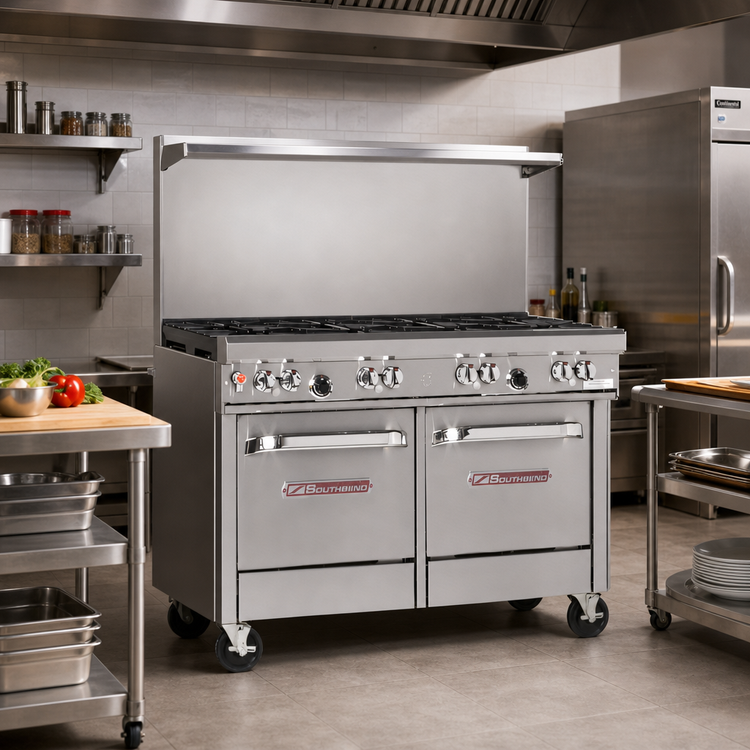

Southbend “Ultimate” 48" Gas Restaurant Range – 7-Burner / Double Space-Saver Oven
Model 448-EE | 335,000 BTU | CSA & NSF CertifiedWhen every burner, every inch, and every second count, Southbend’s Ultimate Series delivers. This custom 48" range combines three precision star/saute burners, two blasting Pyromax burners, two heavy-duty non-clog burners and a pair of independent space-saver ovens—giving you the fire-power of a full cookline in less than four feet of width.
Why It Belongs on Your Line
- Purpose-built burner mix – 7 open burners sized for every task, from flash sautéing to stock-pot boiling.
- Double 45 K BTU space-saver ovens – Independent cavities let you roast, bake or hold at 175-550 °F simultaneously.
- Heavy-duty construction – All-stainless front, sides, rail & shelf plus one-piece cast-iron grates rated for 14" pots.
- Front-mounted gas shut-off & standing pilots – Instant access for fast change-outs and safer service.
- 22-½" flue riser with integrated shelf – Keeps plating garnishes, pans and seasonings right where you need them.
- Factory-installed regulator & battery spark ignition – No electrical hook-up required for the open tops or ovens.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.

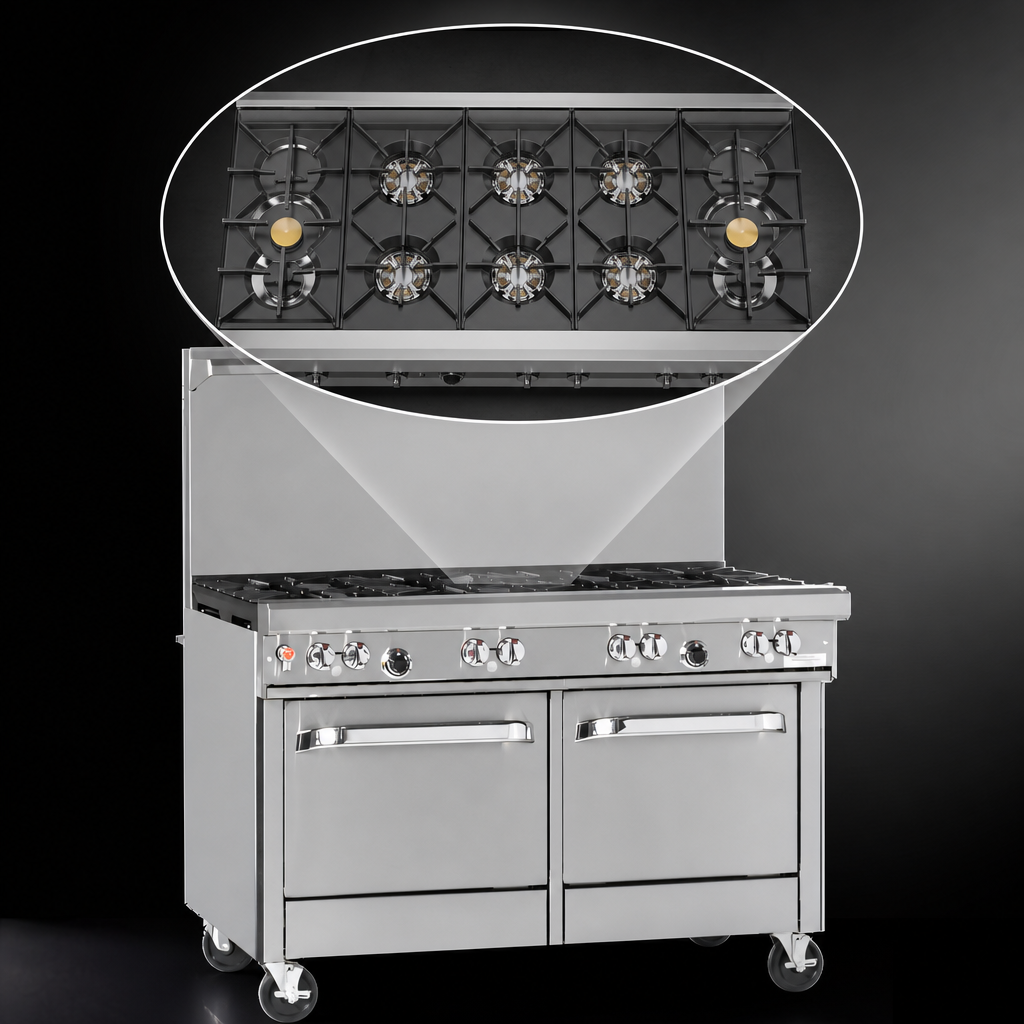

Cooktop Configuration
- 3 × 33,000 BTU Star/Sauté Burners (front-left bank) – Even flame pattern for pan work.
- 2 × 40,000 BTU Pyromax Burners (rear-left bank) – High-output three-piece design for large-volume applications.
- 2 × 33,000 BTU Non-Clog Burners (right bank) – Patented one-piece cast iron; lifetime clog-free guarantee.
- Removable drip trays below each burner section for quick clean-ups.

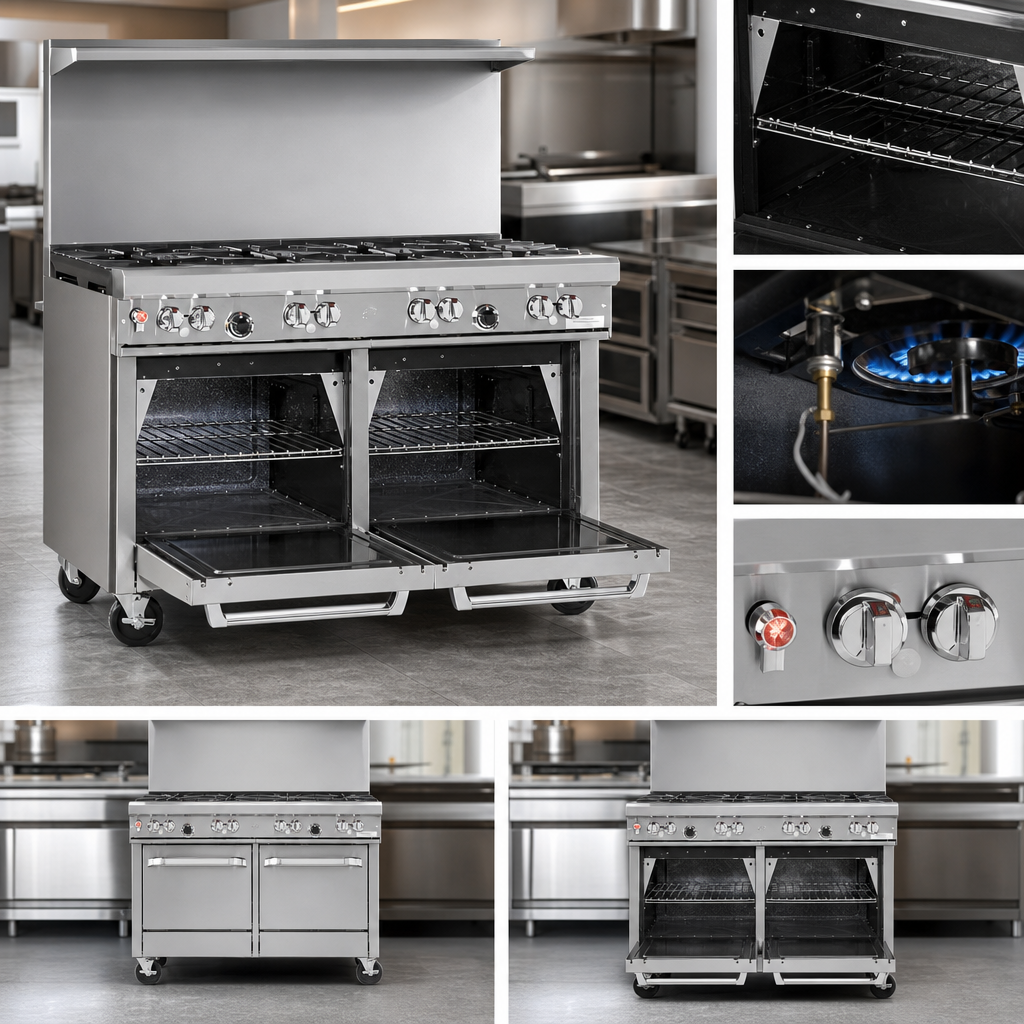

Space-Saver Ovens (2)
- 45,000 BTU each with battery spark ignition & standing pilot.
- Temperature range 175-550 °F (79-288 °C).
- Full-porcelain, coved-corner cavity: 14"H × 19.5"W × 26.5"D.
- Includes one nickel-plated rack per oven; two rack positions.
- Counter-weighted, spring-assisted doors for effortless access.
Technical Specifications
| Overall Width | 48.63" (1235 mm) |
|---|---|
| Overall Depth | 34" (864 mm) |
| Cook-top Height | 37" (940 mm) |
| Overall Height w/ Flue | 59.5" (1511 mm) |
| Total BTU Input | 335,000 BTU/hr (Natural Gas) |
| Gas Connection | ¾" NPT female, rear; factory regulator included Min. inlet pressure: 7" W.C. (Natural) |
| Material | Stainless steel front, sides, 4" rail, flue shelf & 6" adjustable legs |
| Shipping Weight | Approx. 735 lb (334 kg) |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
Need a custom base, salamander mount, or casters? Reach out—most Ultimate Series options can be factory-fitted.
