Southbend (Middleby) 4481EE-5R Ultimate Gas Ranges
Southbend (Middleby) 4481EE-5R Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4481EE-5R Ultimate Gas Ranges
Description

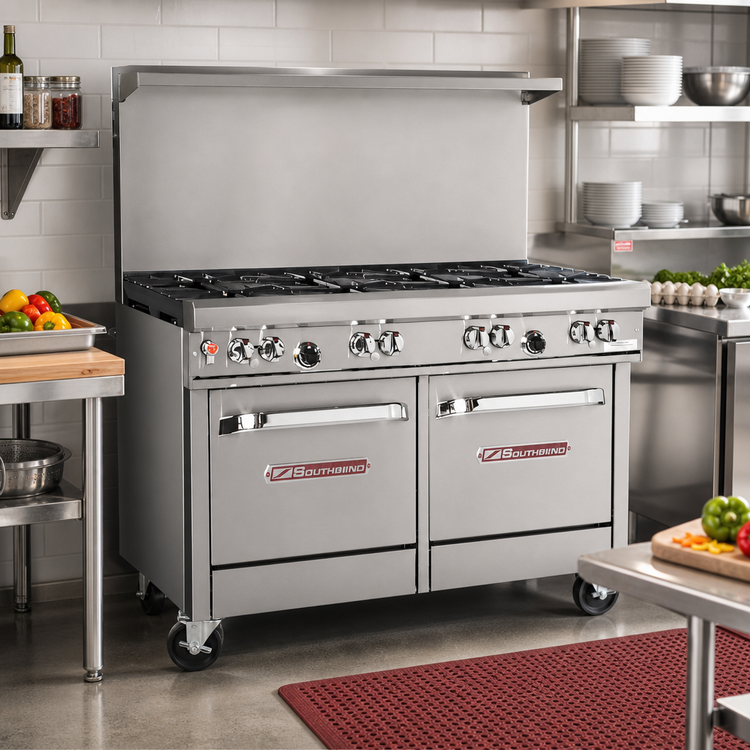

Ultimate 48" Gas Restaurant Range – 7-Burner / Double Space-Saver Oven
Southbend (Middleby) • Model 448EE • Natural Gas • 335,000 BTUBuilt for high-volume, high-output kitchens, the Southbend Ultimate 48" Restaurant Range packs seven heavy-duty open burners and a pair of full-size space-saver ovens into a rugged, all-stainless frame. From rapid wok searing on the 40 kBTU Pyromax burners to low-simmer sauces on clog-free cast-iron tops, this range delivers the versatility chefs demand— with the reliability that has made Southbend an industry icon since 1898.
Why You’ll Love It
- Custom 7-burner layout: 3 × 33 kBTU non-clog (front right), 2 × 40 kBTU Pyromax (back right), 2 × 33 kBTU non-clog (left).
- Lifetime-clog-free, one-piece cast-iron burner heads with standing pilots.
- Two 45 kBTU space-saver ovens (battery-spark ignition) fit full-size sheet pans front-to-back.
- 22½" flue riser with heavy-duty shelf—perfect for resting pans & keeping plates warm.
- 4 removable cast-iron top grates support up to 14" stock pots.
- Front-mounted manual gas shut-off and factory-installed regulator for fast service access.
- Durable stainless steel front, sides, shelf & 6" adjustable legs (casters optional).
- CSA & NSF certified for commercial kitchens; 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Open-Top Power
| Location | Burner Type | BTU/hr (each) | Subtotal |
|---|---|---|---|
| Front Right (3) | Non-clog cast-iron | 33,000 | 99,000 |
| Back Right (2) | Pyromax high-output | 40,000 | 80,000 |
| Left Side (2) | Non-clog cast-iron | 33,000 | 66,000 |
| Total Open-Top BTU | 245,000 | ||

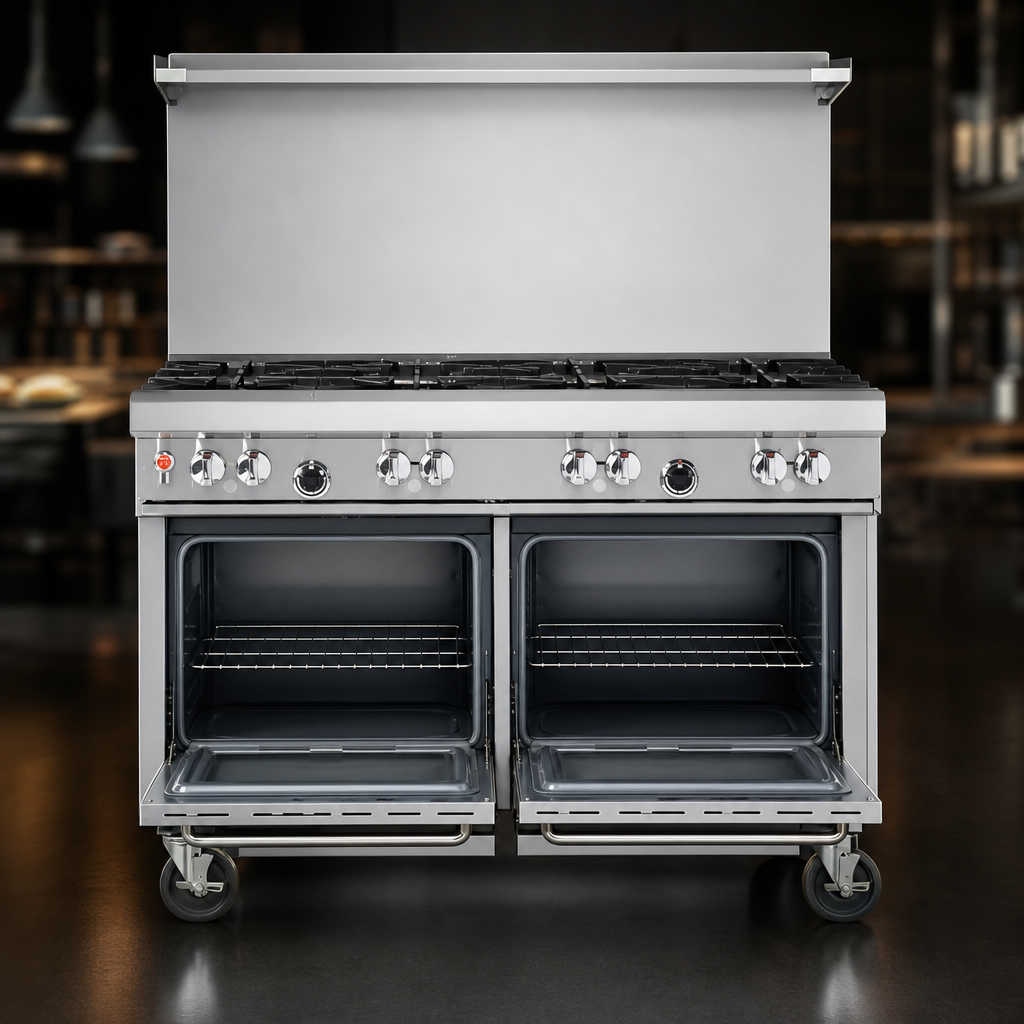

Space-Saver Ovens (2 per unit)
| Capacity | Full-size sheet pan (front-to-back), one rack included per oven |
|---|---|
| Interior (H × W × D) | 14" × 19.5" × 26.5" (356 × 495 × 673 mm) |
| BTU Input | 45,000 BTU each (90,000 BTU combined) |
| Temperature Range | 175 °F – 550 °F (79 °C – 288 °C) |
| Ignition | Battery spark (no external electricity required) |
Specifications
| Overall Width | 48 5/8" (1235 mm) |
|---|---|
| Depth | 34" (864 mm) |
| Cooking Surface Height | 37" (940 mm) |
| Height w/ Riser | 59.5" (1511 mm) |
| Total BTU Input | 335,000 BTU/hr |
| Gas Connection | ¾" NPT (left or right, matches griddle/charbroiler option location) |
| Manifold Pressure | Natural Gas – 7" W.C. (min. inlet) |
| Ship Weight | Approx. 735 lb (334 kg) |
| Certifications | CSA, NSF |
| Warranty | 1 year parts & labor |
Optional casters, salamander mounts, quick-disconnect hoses, and other accessories are available—ask your food-service consultant for details.
