Description

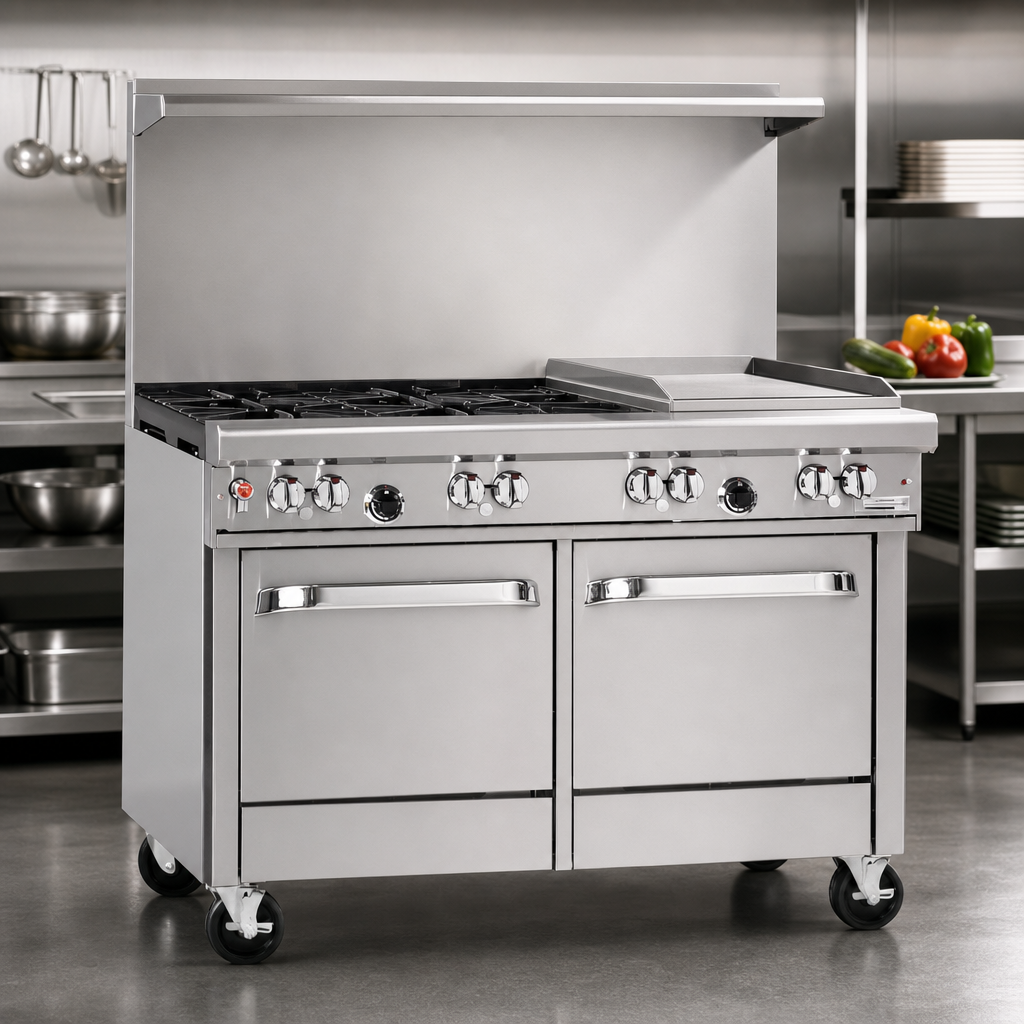

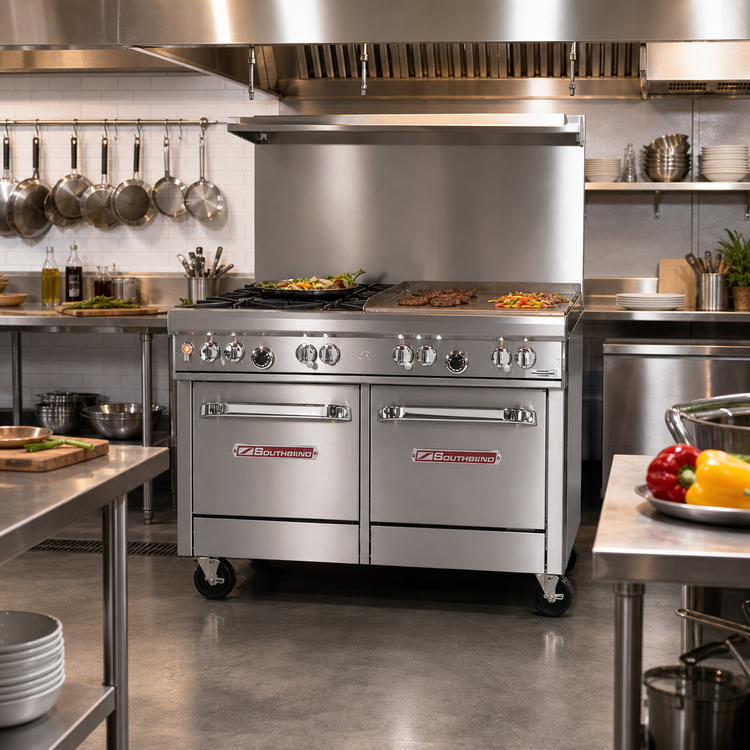

Southbend “Ultimate” 48" Gas Restaurant Range – 2 Burners & 36" Right-Side Griddle

Model 448-EE | 220,000 BTU | Natural or Propane

Built for high-volume kitchens that demand versatility, the Southbend Ultimate Series 48" range delivers searing open-top power, an expansive thermostatic griddle and dual space-saver ovens— all in one stainless-steel workhorse.

Why you’ll love it

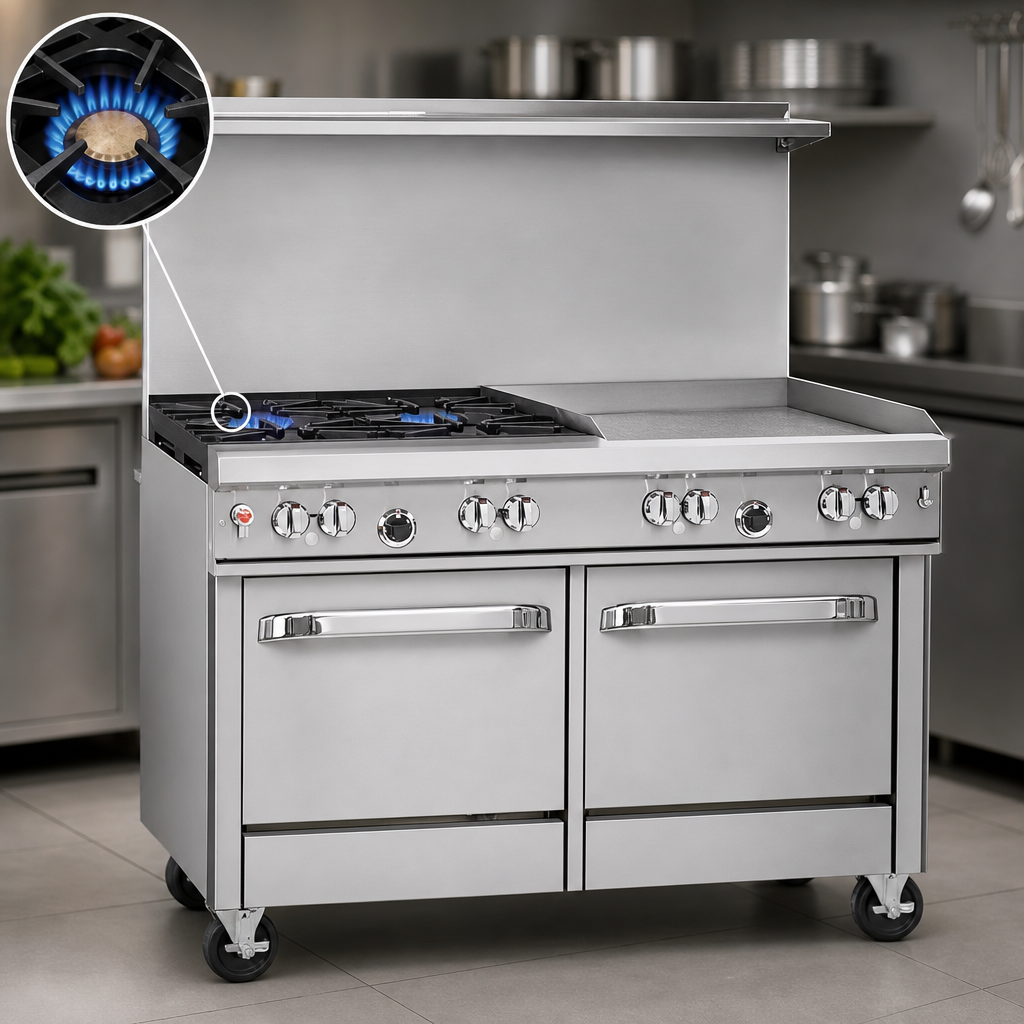

  • 2 × 33,000 BTU non-clog cast-iron burners with standing pilots for instant ignition.
  • 36" right-side griddle (1″ polished steel) with thermostatic control for 175 °F–550 °F precision.
  • Dual 45,000 BTU space-saver ovens (14" H × 19.5" W × 26.5" D) featuring battery spark ignition; includes one rack per cavity.
  • 22-1/2" flue riser with heavy-duty shelf keeps plates, pans and seasonings within reach.
  • 27" deep cooking surface and 4" stainless front rail accommodate stock pots up to 14".
  • All-stainless front, sides, shelf and 6" adjustable legs for long-term durability and easy cleaning.
  • Front-mounted manual shut-off and factory-installed ¾" regulator simplify service & safety.
  • Fully certified: cCSAus, CSA Flame, CSA Star & NSF.

At-a-glance performance

Total input 220,000 BTU/hr
Open burners 2 × 33,000 BTU cast-iron, non-clog
Griddle 36" right, 1″ plate, 64,000 BTU, thermostatic
Ovens 2 × space-saver; 45,000 BTU each; 175 °F–550 °F
Cooking height 37″
Overall size (W × D × H) 48-5/8″ × 34″ × 59-1/2″ (to top of flue)
Gas connection ¾″ NPT (rear; opposite griddle side)
Electrical None required (battery spark)
Shipping weight ≈ 735 lb (334 kg)

What’s in the box

  • (2) removable drip trays
  • (2) chrome oven racks
  • Factory-installed 6″ stainless legs
  • One-year limited parts & labor warranty
Installation notes: Provide 10″ clearance from combustible surfaces (sides & rear) and install under a vented hood. If casters and flex-hose are used, a restraining device is required. To protect front components, keep oversized cookware on rear burners.

Looking for easy monthly payments? Ask us about Middleby Equipment Financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(2) open burners, (1) 36" griddle with thermostats

Vent

backriser with hi-shelf

Plate Thickness

.500" = 1/2"

Base

(2) standard / space saver ovens

Specifications

Ultimate Restaurant Range, gas, 48", (2) non-clog burners, standard grates, (1) 36" griddle right, thermostatic controls, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 220,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
