Description

Southbend Ultimate 48" Gas Restaurant Range

2 Open Burners • 36" Right-Side Griddle • Dual Space-Saver Ovens

Built for kitchens that never slow down, the Southbend Ultimate Series packs rugged durability and high BTU performance into a compact 48 inch footprint. From searing on the 36" griddle to finishing entrées in two independent ovens, this all-in-one workhorse keeps every station cooking.

Key Features

  • 48 5⁄8" wide commercial gas range with a 37" high, 27" deep cooking surface
  • Two 33,000 BTU patented non-clog cast-iron burners with removable grates (rear grate holds up to a 14" stock pot)

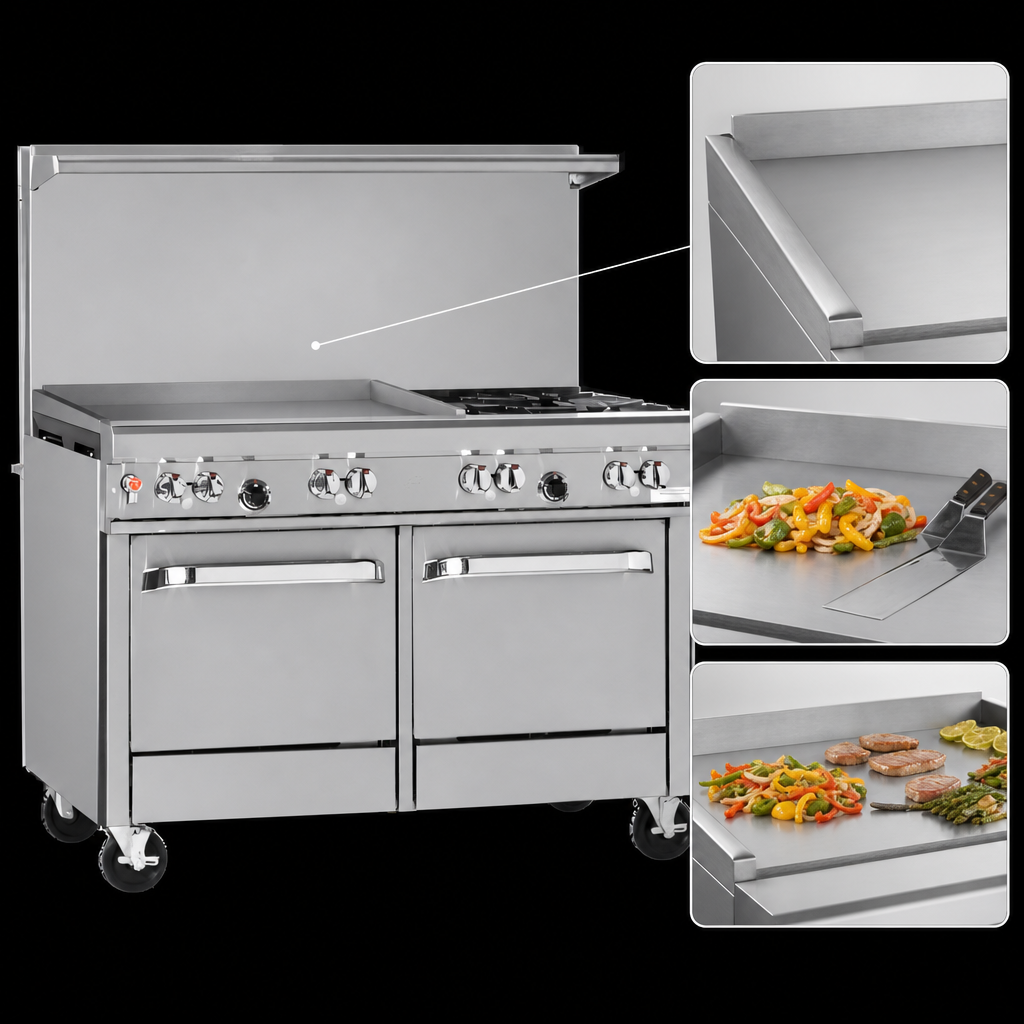

  • 36" right-side manual griddle — ½" polished steel plate with raised splash sides and 64,000 BTU output
  • Dual 19 ½"W x 26 ½"D x 14"H Space-Saver ovens (EE style)
    • 45,000 BTU each with battery spark ignition
    • Thermostat range 175 °F – 550 °F
    • Porcelain-enameled interior & one nickel rack (2 positions) per oven
  • Heavy-duty 22 ½" flue riser with storage shelf — ideal for keeping plates or smallwares warm
  • All-stainless exterior (front, sides, shelf) plus 6" adjustable stainless steel legs
  • Front-mounted manual shut-off valve & factory-installed ¾" pressure regulator
  • Total input: 220,000 BTU/hr
  • cCSAus, CSA Flame, CSA Star & NSF listed
  • One-year limited parts & labor warranty

Specifications

Model Ultimate 448 EE-G36R-2B (griddle right, 2 burners)
Overall width 48 5⁄8" (1235 mm)
Overall depth 34" (864 mm)
Height to cooking surface 37" (940 mm)
Height w/ flue riser 59 ½" (1511 mm)
Open top burners 2 × 33,000 BTU non-clog
Griddle section 36" W x 27" D, ½" plate, 64,000 BTU
Ovens (qty 2) Space-Saver, 45,000 BTU each; 19.5" W × 26.5" D × 14" H cavity
Total BTU input 220,000 BTU/hr (Natural Gas)
Gas connection ¾" NPT (left-rear, opposite the griddle)
Gas pressure 7" W.C. NG (11" W.C. LP)
Electrical None required – battery spark ignition
Certifications cCSAus, CSA Flame, CSA Star, NSF
Warranty 1-year parts & labor (see Southbend limited warranty for details)

Why Choose Southbend Ultimate?

  • Lifetime non-clog burners keep service calls to a minimum.
  • Battery ignition ovens eliminate the need for a power outlet under the line.
  • Porcelain oven liners and removable drip trays simplify daily cleanup.
  • Front gas shut-off and full stainless construction boost safety and longevity.
For commercial use only. Follow local codes and install under a properly vented hood. When using cookware 12" or larger, place it on rear grates to avoid excessive front-rail heat.

Need flexible payment options? Ask us about Middleby Equipment Financing for fast credit decisions and fixed monthly terms.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, cCSAus, CSA Star, CSA Flame

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Plate Thickness

.500" = 1/2"

Exterior Finish

stainless steel front & sides

Base

(2) standard / space saver ovens

Top

(2) open burners, (1) 36" griddle

Vent

backriser with hi-shelf

Specifications

Ultimate Restaurant Range, gas, 48", (2) non-clog burners, standard grates, (1) 36" griddle right, standing pilot, (2) space saver ovens with battery spark ignition, includes (1) rack per oven, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 220,000 BTU, cCSAus, CSA Flame, CSA Star, NSF
