Southbend (Middleby) 4481EE-2TR Ultimate Gas Ranges
Description

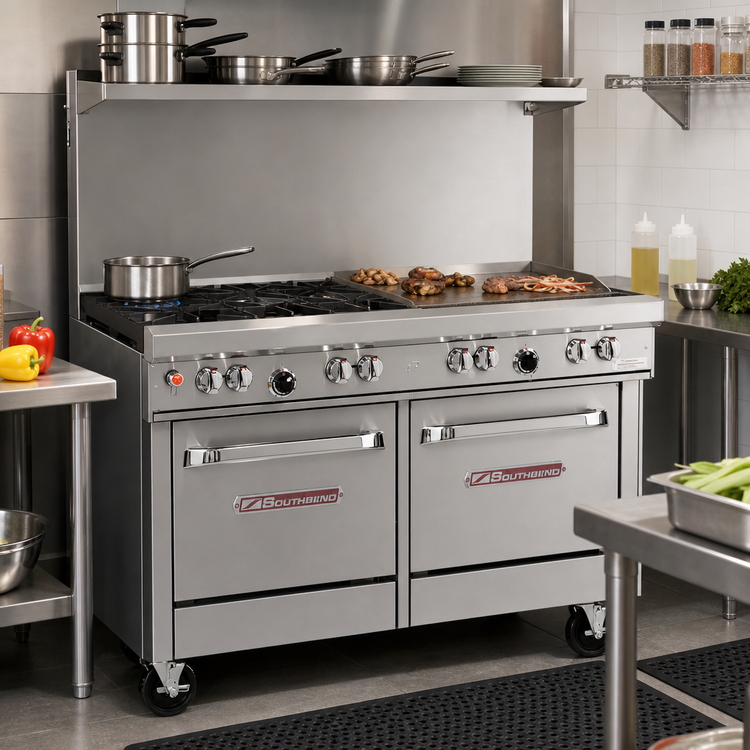

Ultimate 48" Gas Restaurant Range – 4 Burners, 24" Right Griddle, Double Space-Saver Ovens
Model #: 448EE-24RG | Southbend (a Middleby Brand)Built for kitchens that refuse to compromise, the Southbend Ultimate Series packs massive power, rugged construction and chef-preferred ergonomics into a single 48-inch footprint. Four patented non-clog burners, a thermostat-controlled 24" steel griddle and two space-saving bake/roast ovens let you sauté, sear, grill and bake at once—perfect for high-volume restaurants, hotels and institutions.
Why You’ll Love It
- 270,000 total BTU for serious production capacity

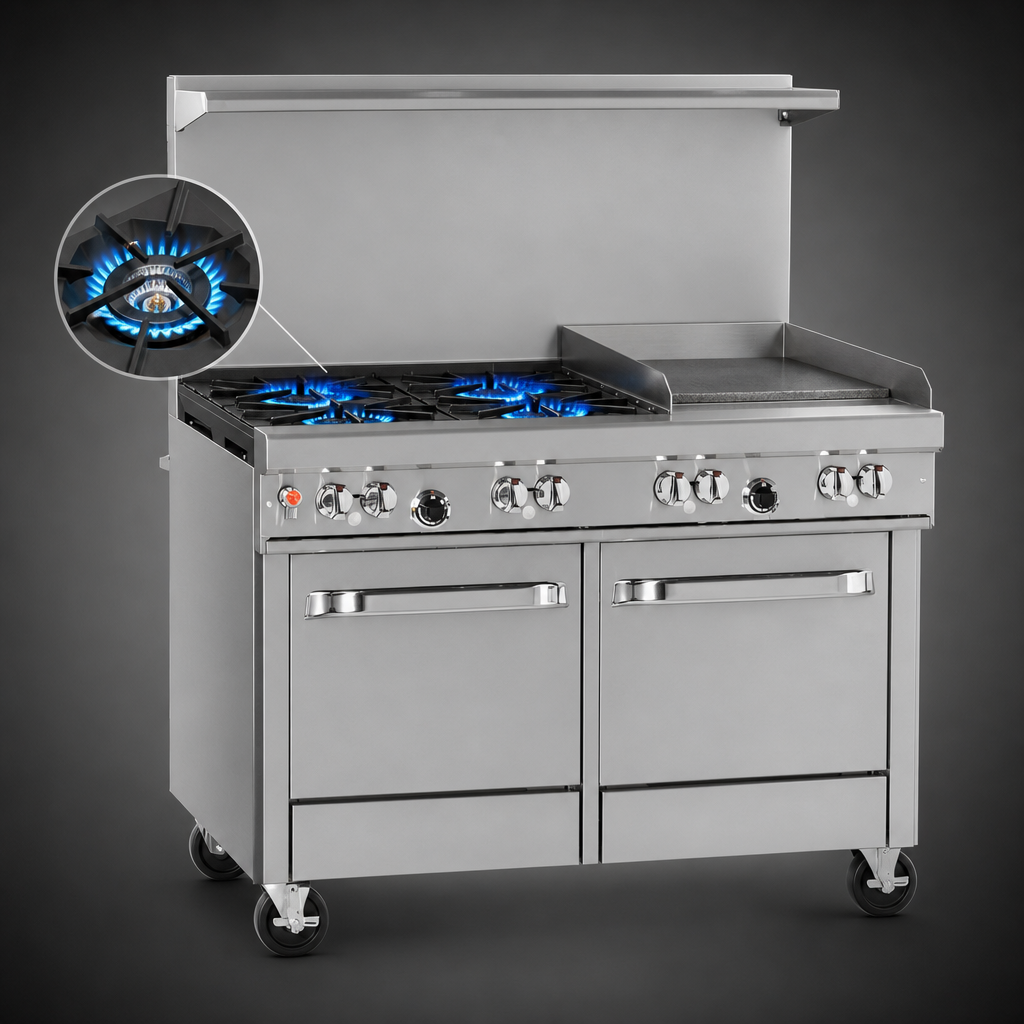

- Four 33,000 BTU cast-iron non-clog open burners—lifetime clog-free design handles stock pots up to 14"
- 24" right-hand ½" polished steel griddle with thermostatic controls for pinpoint plate temps
- Two 45,000 BTU space-saver ovens (14"H x 19½"W x 26½"D each) with battery-spark ignition; includes 1 rack per cavity
- 22½" flue riser with heavy-duty integrated shelf keeps plating essentials within reach
- All-stainless front, sides, shelf & 6" adjustable legs for easy cleaning and long service life
- Front-mounted manual gas shut-off and factory-installed pressure regulator
- cCSAus, CSA Flame, CSA Star & NSF listed for gas safety and sanitation
- Backed by a 1-year parts & labor warranty and nationwide southbend authorized service network
Technical Specifications
| Overall width / depth / height | 48 5/8" W × 34" D × 59 1/2" H (to top of flue) |
|---|---|
| Cooking surface height | 37" |
| Open burners | 4 × 33,000 BTU patented cast-iron non-clog |
| Griddle section | 24" right-side, ½" smooth steel, thermostatic, 48,000 BTU |
| Ovens (2) | Space-Saver gas, 45,000 BTU each, 175 °F – 550 °F thermostat, battery spark ignition |
| Total input | 270,000 BTU/hr, Natural or LP (field convertible) |
| Gas connection | ¾" NPT female (rear, opposite griddle side) |
| Electrical | None required (battery ignition) |
| Included racks | 1 chrome rack per oven (2 total) |
| Construction | Stainless steel front, sides, rail & shelf; 6" stainless adjustable legs |
| Certifications | cCSAus, CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (see warranty statement) |
Factory Options & Accessories
- 5" or 10" flue riser (in place of standard 22½")
- All-swivel locking casters
- ¾" quick-disconnect hose kits (3-, 4- or 5-ft)
- Extra oven racks
- Rear step-up or Pyromax high-output burners
- Shelf mounts for cheesemelter or salamander
Printed specification based on Southbend Form 448 Rev 16 (Dec/2024). Specifications subject to change without notice.
