Southbend (Middleby) 4481DC Ultimate Gas Ranges
Description
Southbend Ultimate 48" Gas Restaurant Range – 8 Burner w/ Standard Oven & Cabinet Base
Model 448DC | 309,000 BTU | Natural GasBuilt for high-volume commercial kitchens, the Ultimate Series combines Southbend’s legendary durability with chef-friendly performance. Eight powerful non-clog burners up top, a full-size standard oven below, and a convenient stainless cabinet base put everything you need in one rugged 48-inch footprint.
Key Features

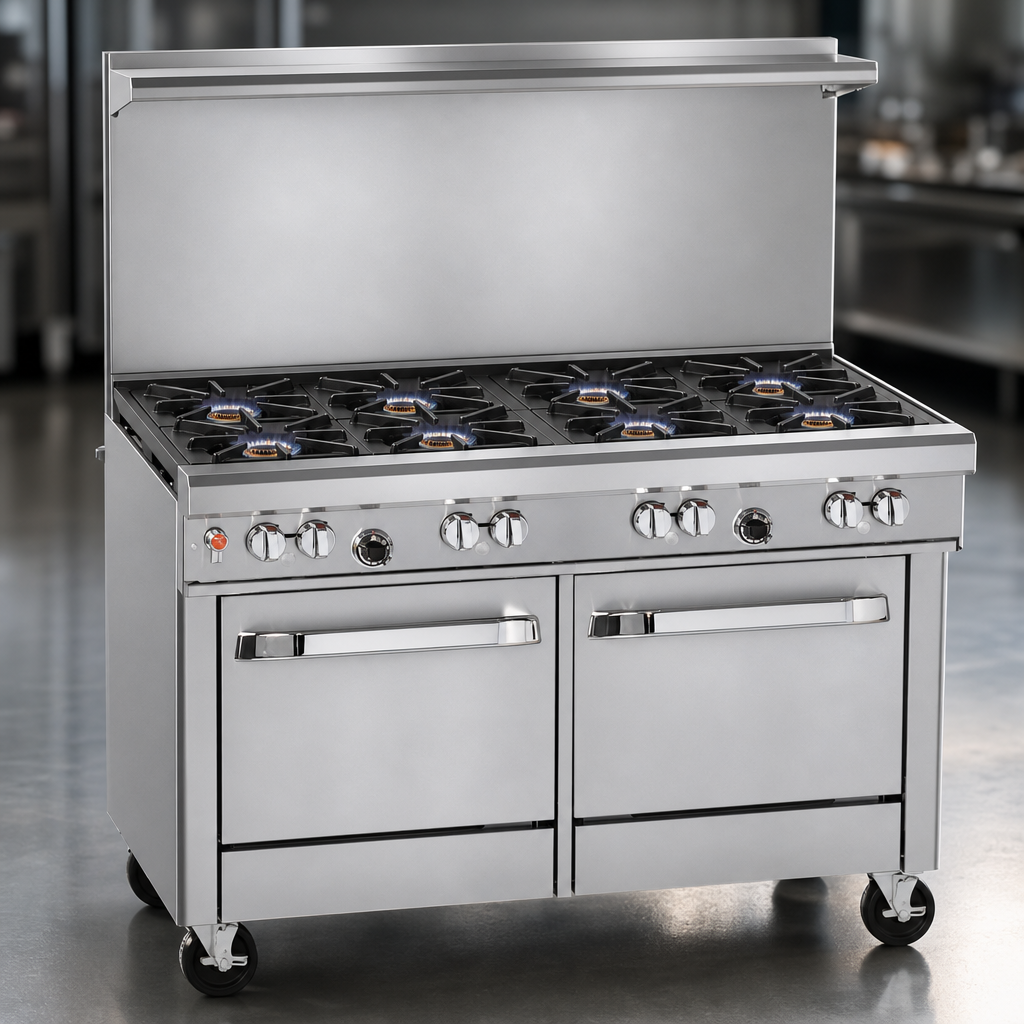

- (8) patented, one-piece non-clog cast-iron burners – 33,000 BTU each (standing pilot)
- Removable cast-iron grates; rear grates accept up to 14" stock pots

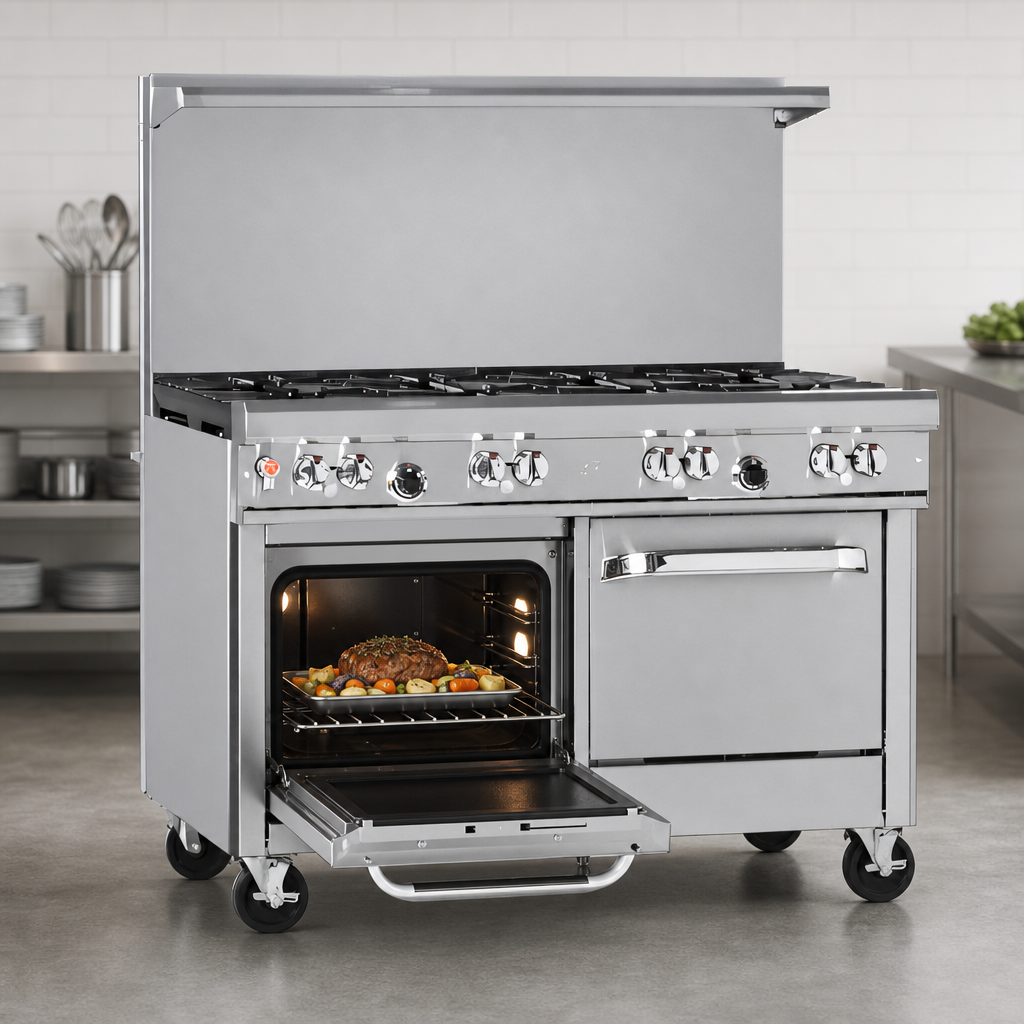

- 45,000 BTU standard oven with battery-spark ignition & 175 °F–550 °F thermostat
- Porcelain-enameled, coved-corner oven interior for easy clean-up; (1) chrome rack included
- 18" stainless steel cabinet base for dry storage (doors included)
- 22 ½" stainless flue riser with heavy-duty overshelf
- 4" stainless front rail and front-mounted manual gas shut-off valve
- Factory-installed pressure regulator; ¾" NPT rear gas connection
- 6" stainless steel adjustable legs for proper leveling
- No electrical hookup required – ideal for retrofit installations
- CSA & NSF listed for safety and sanitation
Chef-Focused Advantages
- Eight high-output burners accelerate sauté, sear and boil times during peak service
- Battery-spark oven ignition provides push-button lighting without electricity
- Raised burner design keeps the front rail cooler for operator comfort
- Stainless cabinet keeps pans, seasonings and utensils within arm’s reach
Specifications
| Overall width | 48 5⁄8" (1235 mm) |
|---|---|
| Overall depth | 42 1⁄8" (1070 mm) |
| Cooking height | 37" (940 mm) |
| Flue riser height | 22 ½" (572 mm) with shelf |
| Total BTU input | 309,000 BTU/hr |
| Top burners | (8) × 33,000 BTU non-clog cast iron |
| Oven BTU | 45,000 BTU standard oven |
| Oven interior (WxDxH) | 26" × 26 ½" × 14" – fits full-size sheet pans either way |
| Temperature range | 175 °F – 550 °F (79 °C – 288 °C) |
| Gas connection | ¾" NPT rear; min. 7" W.C. NG inlet pressure |
| Electrical | None required – battery ignition |
| Shipping weight | Approx. 735 lb (334 kg) |
| Warranty | 1-year limited parts & labor |
| Certifications | CSA, NSF |
Looking for griddles, charbroilers or alternative burner layouts? Southbend offers a full menu of factory options—contact us for a customized Ultimate range built for your kitchen.
