Southbend (Middleby) 4481DC-7R Ultimate Gas Ranges
$10,902.00
Unit price
/
Unavailable
Description

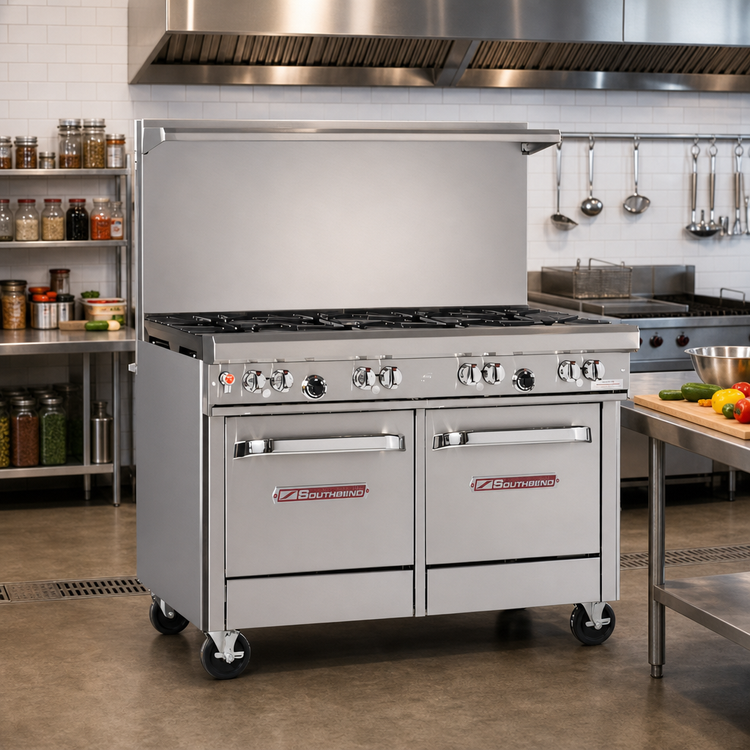

Southbend Ultimate 48" Gas Restaurant Range
4 Pyromax + 2 Non-Clog Burners | Standard Oven & Cabinet Base | 271,000 BTUBuilt for kitchens that never slow down, Southbend’s Ultimate Series 48" range delivers extreme fire-power, precise oven performance and rock-solid construction—everything you need to keep tickets moving and profits climbing.
Why It Belongs on Your Line

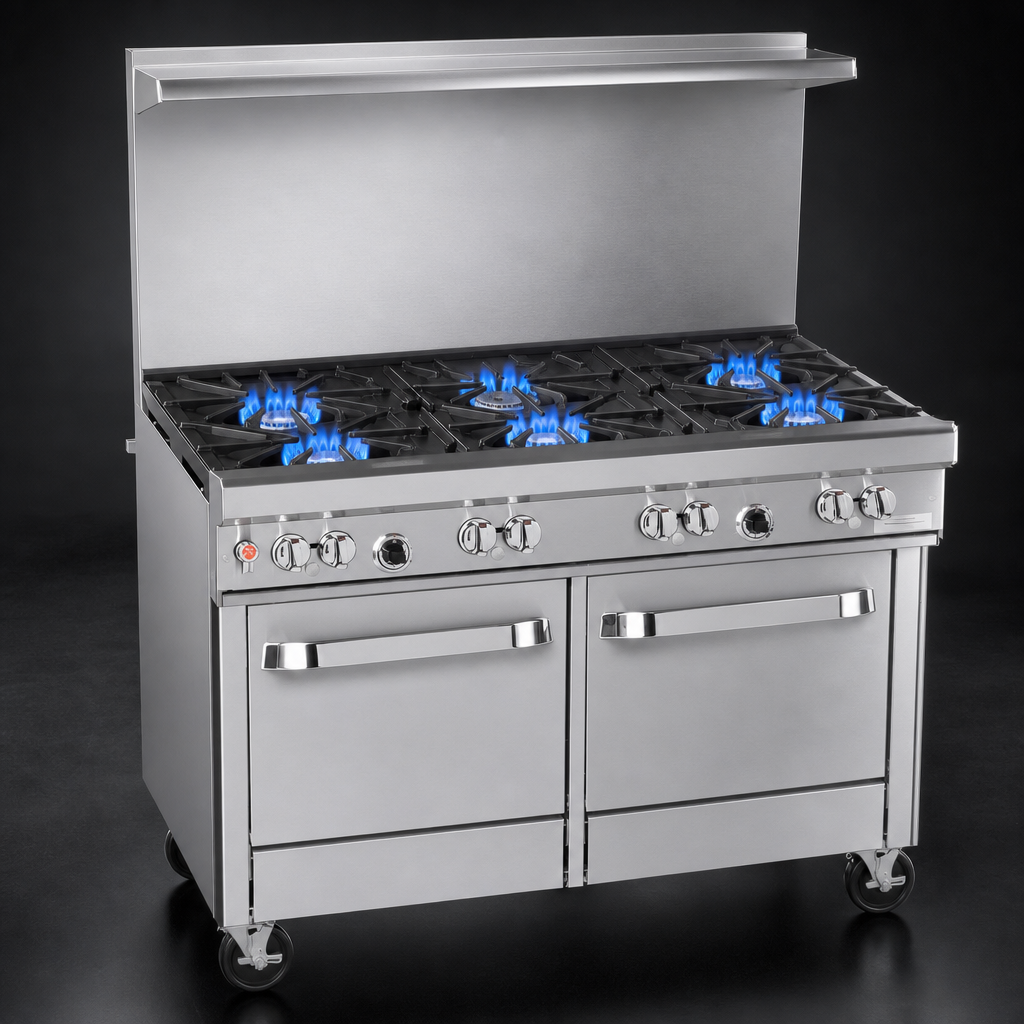

- Powerhouse cooktop – four 40 k BTU patented Pyromax burners + two 33 k BTU lifetime non-clog burners (left side) = 226 k BTU on the top alone.
- Cast-iron durability – removable grates handle stock pots up to 14" Ø and make daily cleanup fast.
- Standard oven – 45 k BTU NAT, battery-spark ignition, 175 – 550 °F thermostat and porcelain interior that accepts full-size sheet pans both ways.
- Integrated 18" cabinet base keeps sheet pans, sauté pans or hotel pans right where you need them (optional doors available).
- 22-½" flue riser with heavy-duty shelf for warming plates or staging smallwares.
- Stainless steel everywhere – front, sides, shelf & 4" rail stand up to daily scrubbing.
- Front-mounted manual gas shut-off and standing pilots for fast burner lighting.
- 6" stainless adjustable legs standard; field-install casters available.
- Certified safe & sanitary – CSA & NSF listed for commercial use.

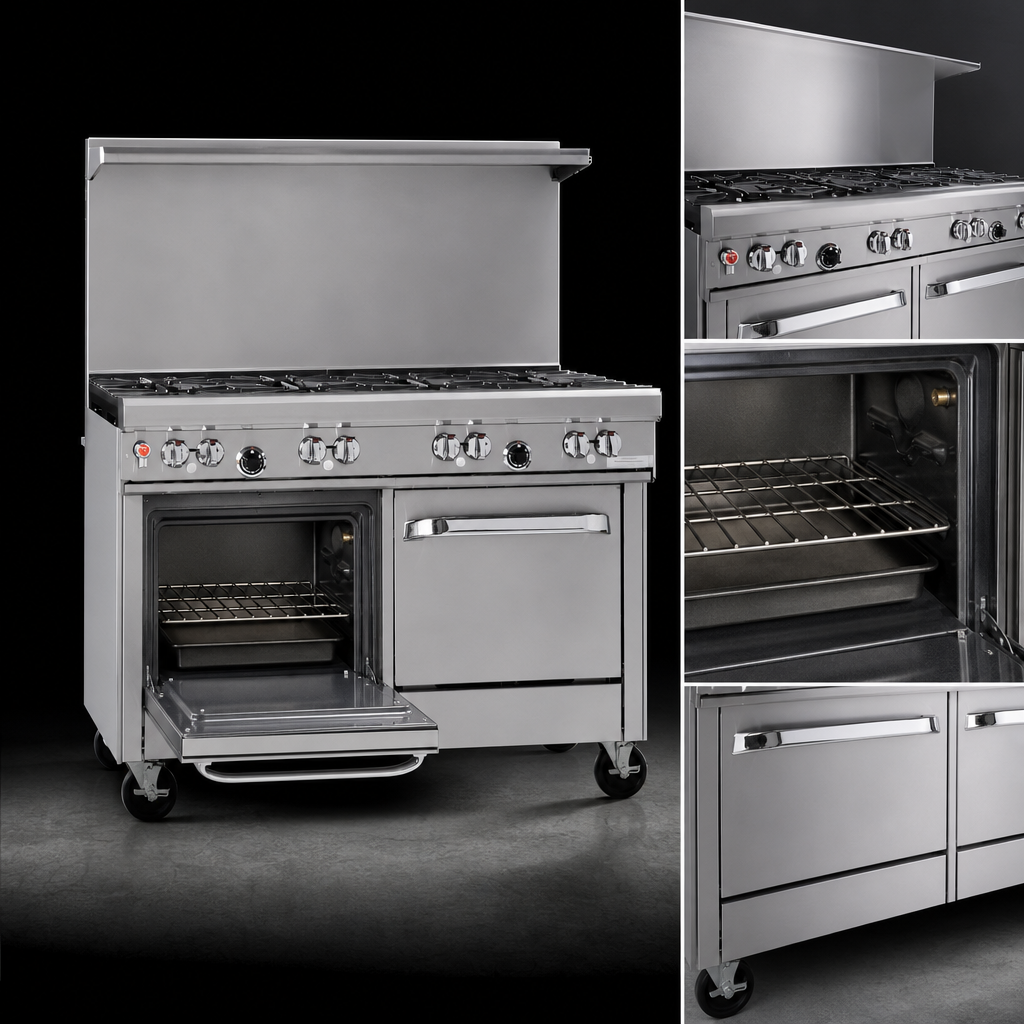

Oven Highlights
- 45 k BTU NAT atmospheric burner with standing pilot.
- Battery spark ignition—no cord or outlet needed.
- Porcelain-enameled cavity: 14"H × 26"W × 26.5"D.
- Ships with one rack; two-position side rails.
- Spring-assist, counter-weighted door for effortless lift.
Built to Outlast the Rush
- 27" deep cooking surface with drip trays beneath every burner bank.
- Factory-installed gas pressure regulator.
- Fully welded frame reduces twist and rattle on busy lines.
- One-year limited parts & labor warranty backed by Southbend’s nationwide service network.
Specifications
| Model | Ultimate Series 448 (Pyromax + Non-Clog) |
|---|---|
| Total BTU (Natural Gas) | 271,000 BTU/hr |
| Open Top Burners | (4) Pyromax 40 k BTU + (2) Non-Clog 33 k BTU |
| Oven BTU | 45 k BTU (standard oven) |
| Cooking Surface | 48-5/8" W × 27" D |
| Overall Dimensions | 48.63" W × 34" D × 59.5" H (to top of riser) 37" H to cooking surface |
| Gas Connection | 3/4" NPT (left or right—follows griddle/broiler location) |
| Required Inlet Pressure | Nat 7" W.C. | LP 11" W.C. |
| Electrical | Not required – battery spark ignition |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor |
Popular Factory Options
- Swivel casters (front locking)
- Cabinet-base doors (no-charge option)
- Extra oven racks
- 10" or 5" flue riser
- Rear step-up burners or salamander/cheesemelter mounts
Important Installation Notes
• This appliance is for commercial use only and must be installed under a vented hood per local codes.
• If installing on flooring other than quarry tile, concrete or natural stone, contact Southbend for approved leg/caster solutions.
• Oversized cookware (12" Ø or larger) should be used on the rear burners to avoid heat damage to the front rail.
• Minimum clearances: 0" sides & rear to non-combustible construction; 10" sides & rear to combustible construction.
• This appliance is for commercial use only and must be installed under a vented hood per local codes.
• If installing on flooring other than quarry tile, concrete or natural stone, contact Southbend for approved leg/caster solutions.
• Oversized cookware (12" Ø or larger) should be used on the rear burners to avoid heat damage to the front rail.
• Minimum clearances: 0" sides & rear to non-combustible construction; 10" sides & rear to combustible construction.
Need help with financing? Ask us about Middleby Equipment Financing plans with fast credit decisions and affordable monthly payments.
Features & Specs
Features & Specs
Manufacturer
Southbend (Middleby)
Brand_name
Ultimate
Certifications
NSF, CSA
Height
59.5in
Width
48.63in
Depth
34.0in
Shipping Weight
735.0lbs
Exterior Finish
stainless steel front & sides
Top
(6) open burners
Vent
backriser with hi-shelf
Base
(1) standard oven, (1) cabinet
Specifications
Ultimate Restaurant Range, gas, 48", (4) pyromax burners, (2) non-clog burners left, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 271,000 BTU, CSA, NSF
