Southbend (Middleby) 4481DC-7L Ultimate Gas Ranges
Description

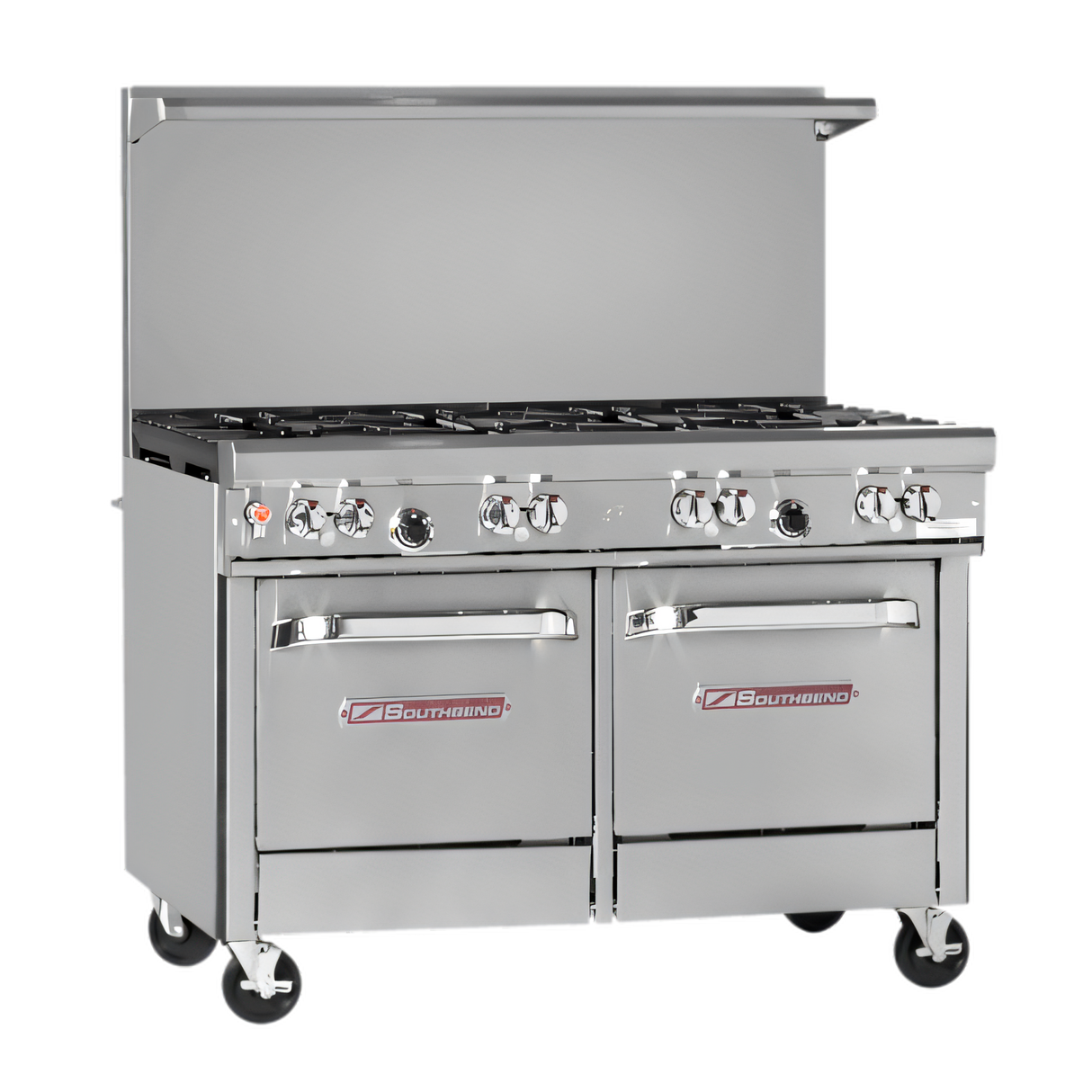

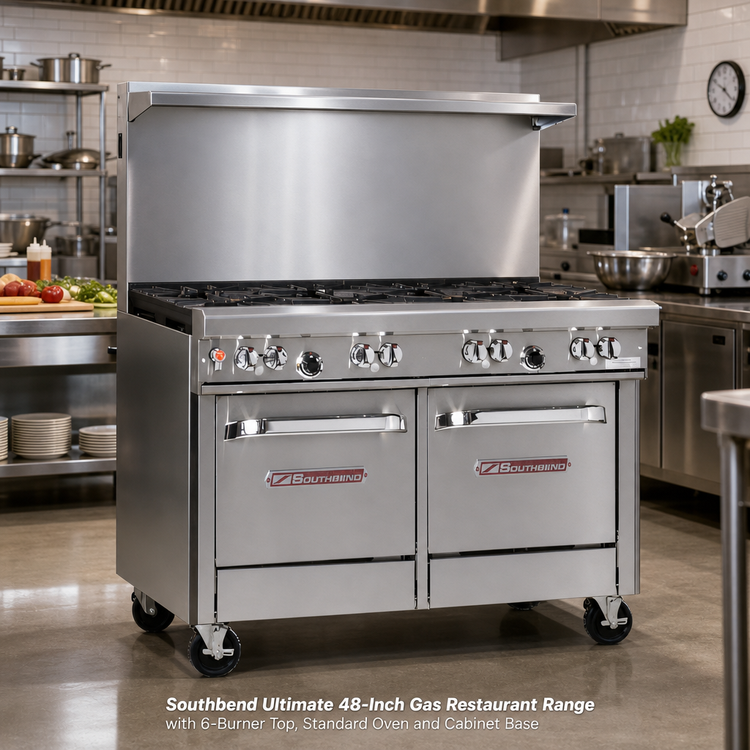

Southbend Ultimate 48" Gas Restaurant Range – 4 Pyromax + 2 Non-Clog Burners
Standard oven • cabinet base • 22-½" flue riser • 271,000 BTU • CSA & NSFBuilt for kitchens that demand relentless performance, the Southbend Ultimate 48" Range pairs blistering Pyromax power with the industry’s most reliable non-clog burners. Add a full-size oven, extra storage and rock-solid stainless construction, and you have a range engineered to keep tickets moving through the busiest rush.
Key performance features

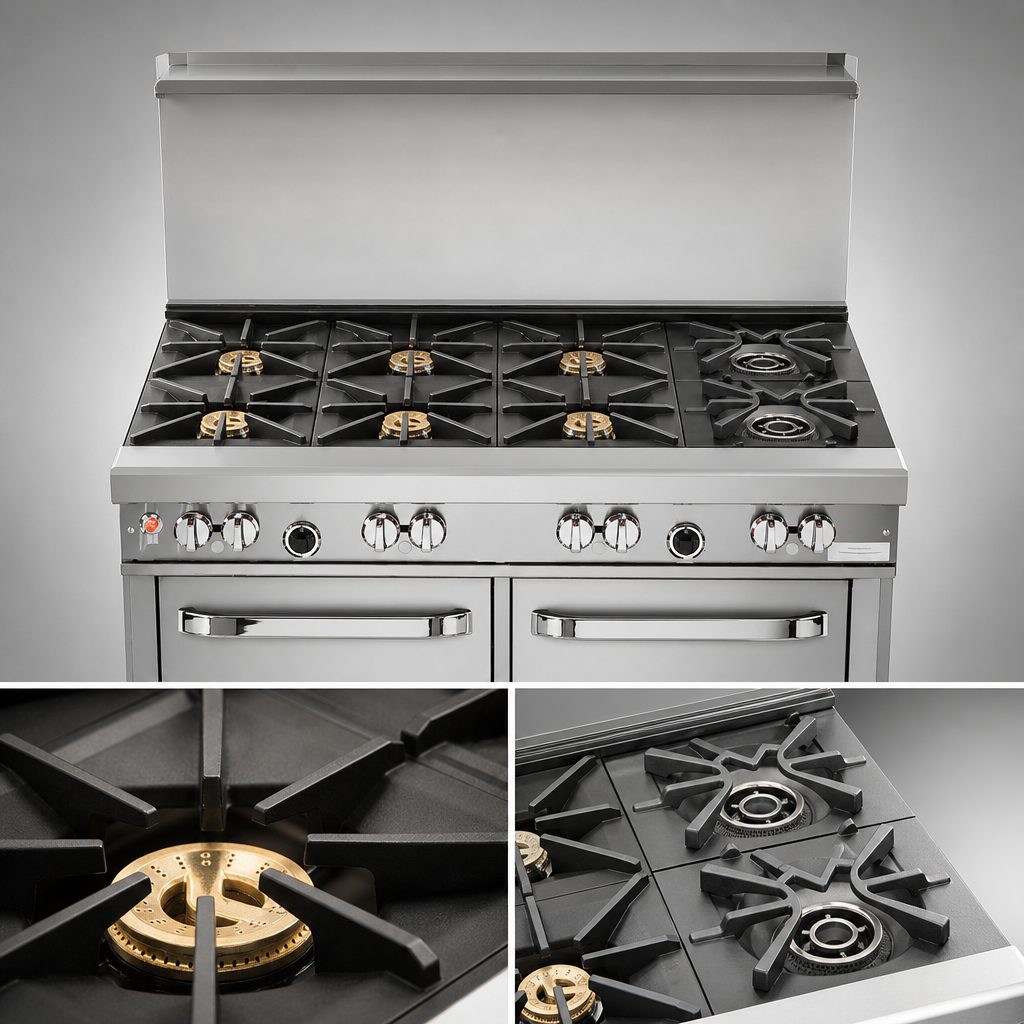

- (4) 40,000 BTU Pyromax burners – patented three-piece design with built-in drip ring for quick cleanup.
- (2) 33,000 BTU lifetime non-clog burners (right-hand) – cast-iron construction, even flame pattern.
- 271,000 BTU total output with front-mounted master shut-off valve for fast, safe service.

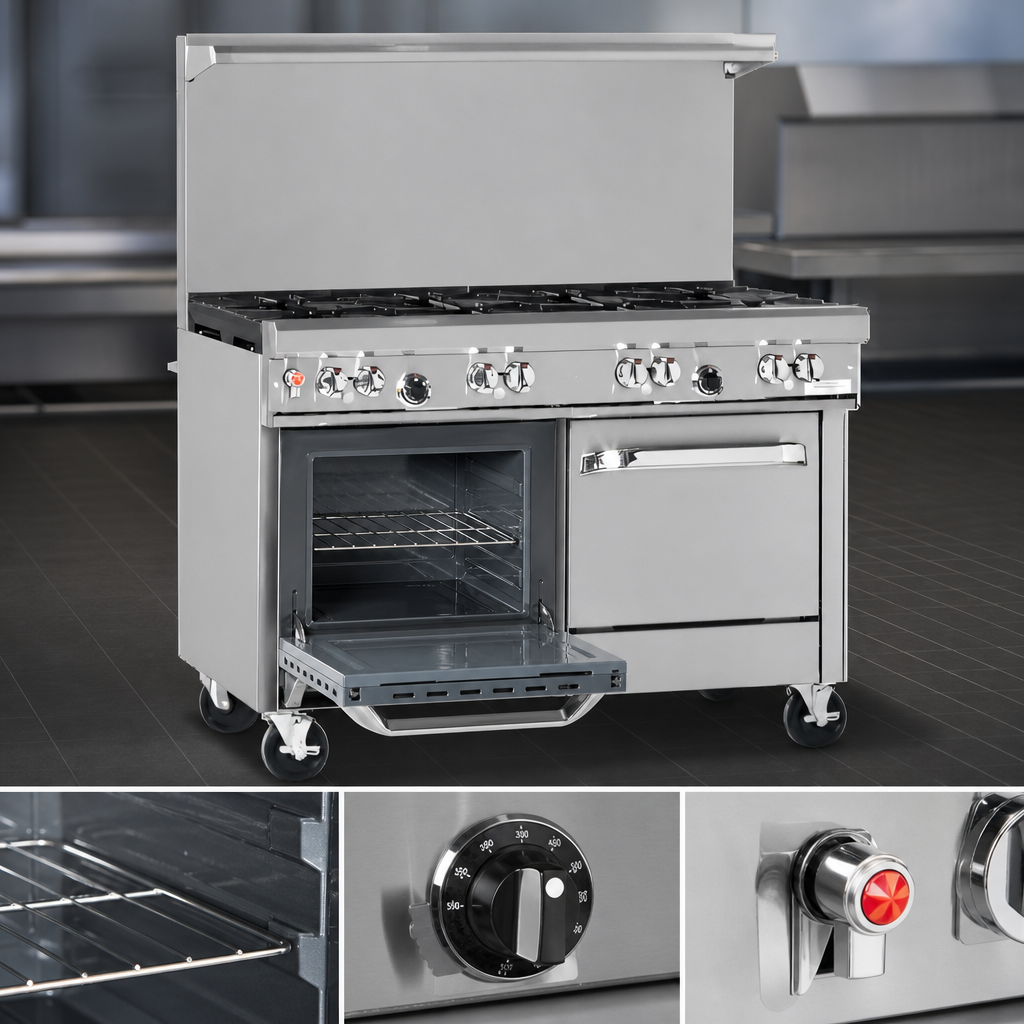

- 45,000 BTU standard oven with battery-spark ignition, 175 °F – 550 °F thermostat and porcelain interior that fits full-size sheet pans either direction.
- 18" stainless cabinet base keeps pans, lids and smallwares organized and within reach.
- 22-½" stainless flue riser with heavy-duty shelf – ideal for resting or warming plates.
- 6" stainless steel adjustable legs level the unit on uneven floors (casters optional).
- Factory-installed ¾" gas regulator and standing pilots on all open burners simplify installation.
- 1-year parts & labor warranty backed by Southbend’s nationwide service network.
Technical specifications
| Model | Ultimate 48" – Pyromax / Non-Clog, Std Oven & Cabinet |
|---|---|
| Total BTU | 271,000 BTU/hr (Natural Gas) |
| Open burners | 4 × 40,000 BTU Pyromax + 2 × 33,000 BTU Non-Clog |
| Oven | Standard; 45,000 BTU; 14"H × 26"W × 26.5"D cavity; 1 rack, 2 positions |
| Cooking surface | 48-5/8"W × 27"D cast-iron grates (rear accepts 14" stock pots) |
| Overall dimensions | 48-5/8"W × 34"D × 59-1/2"H (to top of flue riser) |
| Gas connection | ¾" NPT (left rear) with factory regulator |
| Clearances | Combustible: 10" sides & rear • Non-combustible: 0" |
| Construction | Stainless steel front, sides, 4" rail & flue; cast-iron grates; 6" S/S legs |
| Certifications | CSA, NSF |
| Warranty | 1-year limited parts & labor |
- Must be installed under a properly sized vent hood with a ¾" gas supply line that meets ANSI Z21.69.
- 6" legs (included) or optional casters are required on combustible floors.
- Use cookware 12" Ø or larger on rear grates to prevent excess heat on the front rail.
Looking for a different burner or base combination? The Ultimate Series is fully modular—reach out and we’ll tailor a range to your exact menu.
