Southbend (Middleby) 4481DC-5R Ultimate Gas Ranges
Description

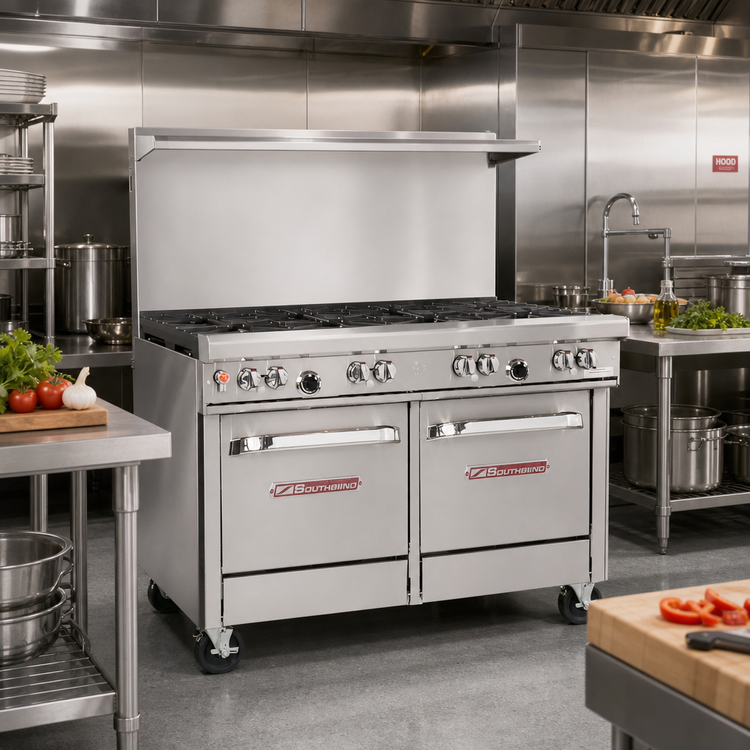

Southbend Ultimate 48″ Restaurant Range – Gas, 7-Burner, Oven & Cabinet
Model 448-DC | ≈ 290,000 BTU | CSA & NSF CertifiedBuilt for kitchens that run full-throttle from open to close, the Southbend Ultimate Series 48-inch range pairs heavy-duty stainless construction with the unmatched firepower of non-clog and Pyromax™ burners. A high-output standard oven and convenient cabinet base give you baking versatility and dry storage in the same footprint.
Key performance benefits

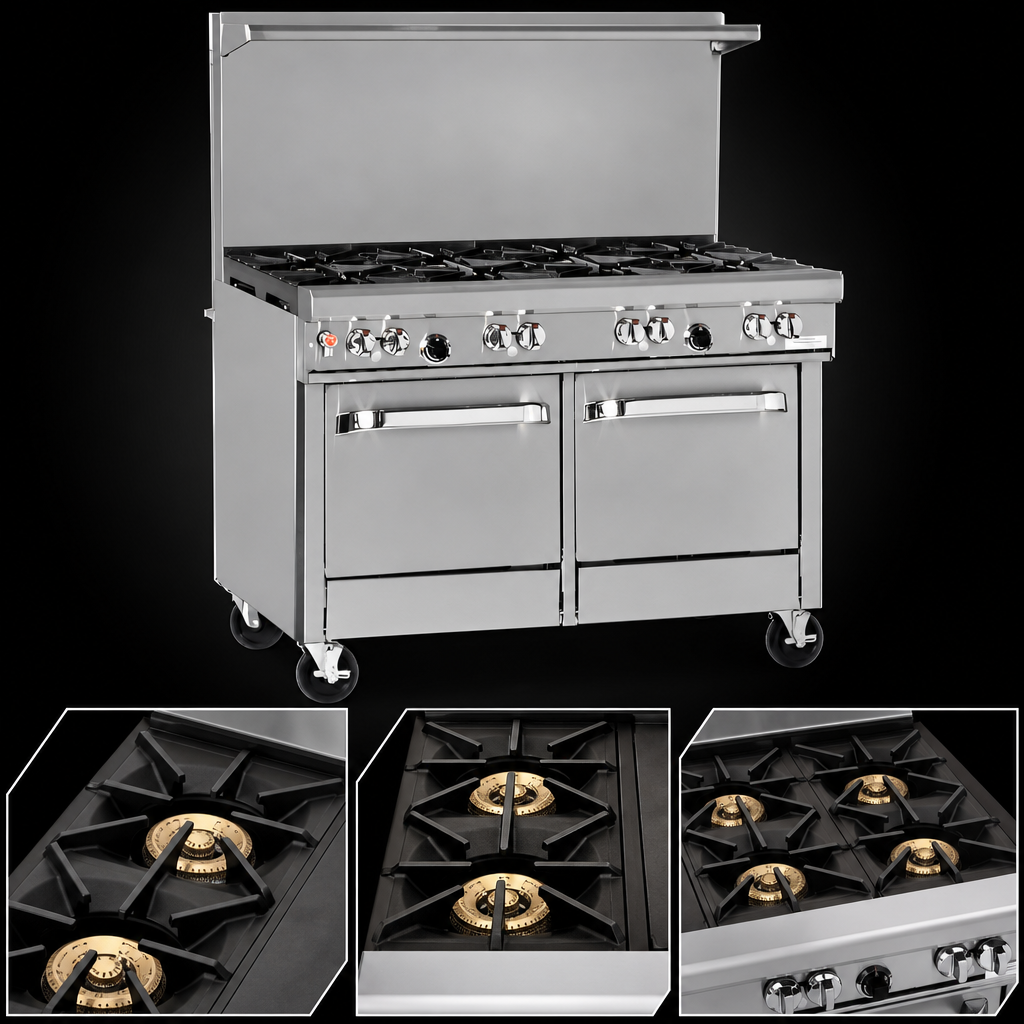

- 7 open burners – (5) 33,000 BTU non-clog burners & (2) 40,000 BTU Pyromax™ power burners.
- Tool-free clean-up – four removable, cast-iron grate tops plus twin drip trays.

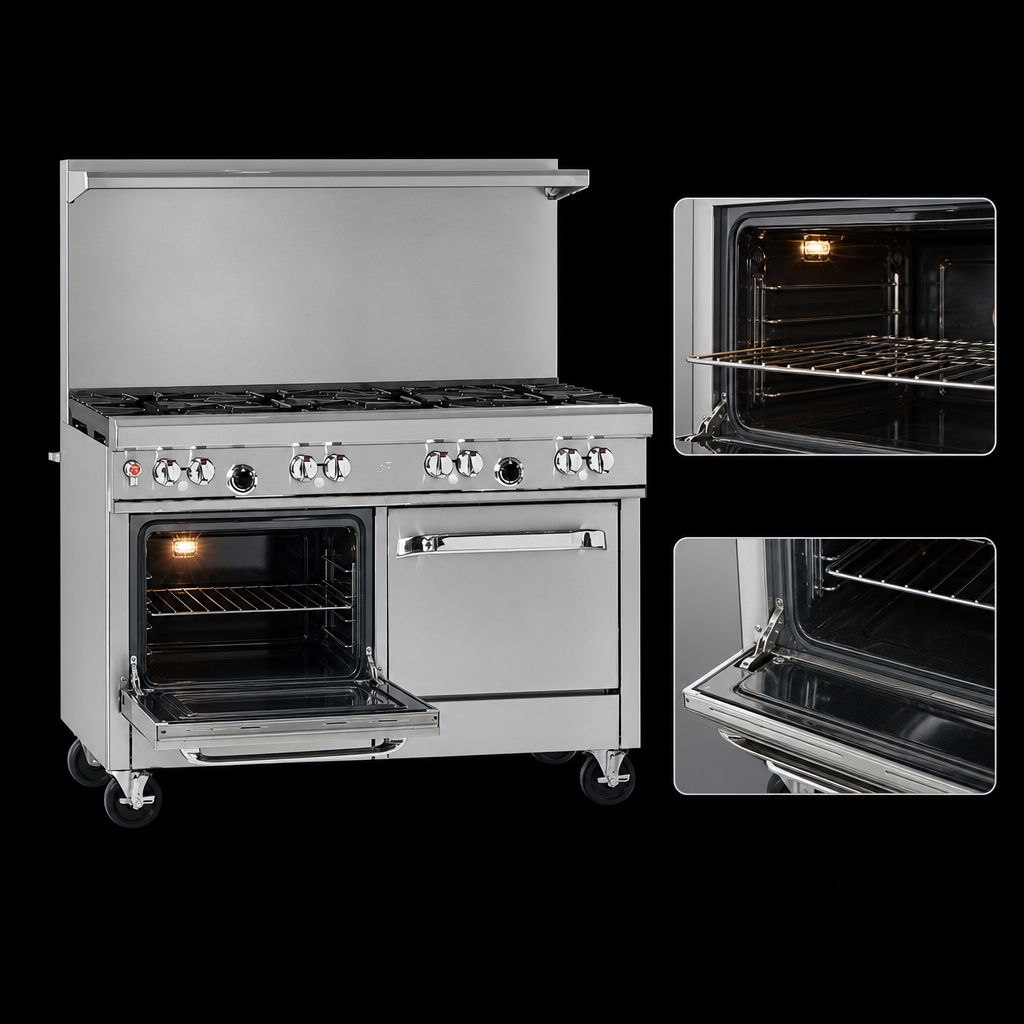

- 45,000 BTU standard oven – 175-550 °F thermostat, battery spark ignition, porcelain interior, 1 rack included.
- Stainless cabinet base – 18″ wide compartment keeps sheet pans, hotel pans or stockpots close at hand.
- 22-½″ flue riser with heavy-duty shelf doubles as a warming / plating station.
- Front-mounted manual gas shut-off & factory-installed ¾″ regulator for worry-free hookup.
- 6″ adjustable stainless legs for easy leveling on uneven floors.
- Backed by a 1-year parts & labor warranty from Southbend.
Technical specifications
| Total input | ≈ 290,000 BTU/hr |
|---|---|
| Open burners | (5) 33,000 BTU non-clog | (2) 40,000 BTU Pyromax™ |
| Oven | 45,000 BTU standard oven, 14″ H × 26″ W × 26.5″ D cavity, 1 rack / 2 positions |
| Cooking surface | 48-5/8″ W × 27″ D, 37″ working height |
| Overall dimensions | 48.63″ W × 42.13″ D × 59.50″ H (to top of flue shelf) |
| Gas connection | ¾″ NPT female, factory regulator included (Natural or LP) |
| Electrical | None required – battery ignition only |
| Shipping weight | ≈ 735 lb (crated) |
What’s in the box
- Range with 22-½″ flue riser & shelf
- 1 porcelain-coated oven rack
- Factory pressure regulator
- Owner’s manual & warranty documentation
Popular accessories (sold separately)
- All-swivel caster kit with front brakes
- Extra oven racks
- Stainless cabinet doors (no-charge option)
- 5″ or 10″ flue risers
- Rear step-up burner kit
• For floors other than quarry tile, contact the factory for approved installation methods.
• Keep cookware > 12″ Ø on rear grates to prevent excess heat on the front rail.
• Unit is intended for commercial kitchens only; install under a code-approved vent hood.
Specifications and availability are subject to change without notice.
