Southbend (Middleby)  |  Ultimate  |  SKU: 4481DC-5L

Southbend (Middleby) 4481DC-5L Ultimate Gas Ranges

$10,902.00
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Owner's manual Middleby financial flyer Warranty sheet
Related Searches
Commercial Gas Ranges Commercial Ranges Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

Southbend “Ultimate” 48" Restaurant Range – 7-Burner | Oven + Cabinet Base

Model 448DC  •  Natural Gas  •  290,000 BTU/hr

Put powerhouse performance on your cookline without giving up precious floor space. The Southbend Ultimate 448DC couples high-output Pyromax technology with lifetime non-clog burners, a full-size standard oven, and built-in storage—everything you need to keep service moving at peak hours.

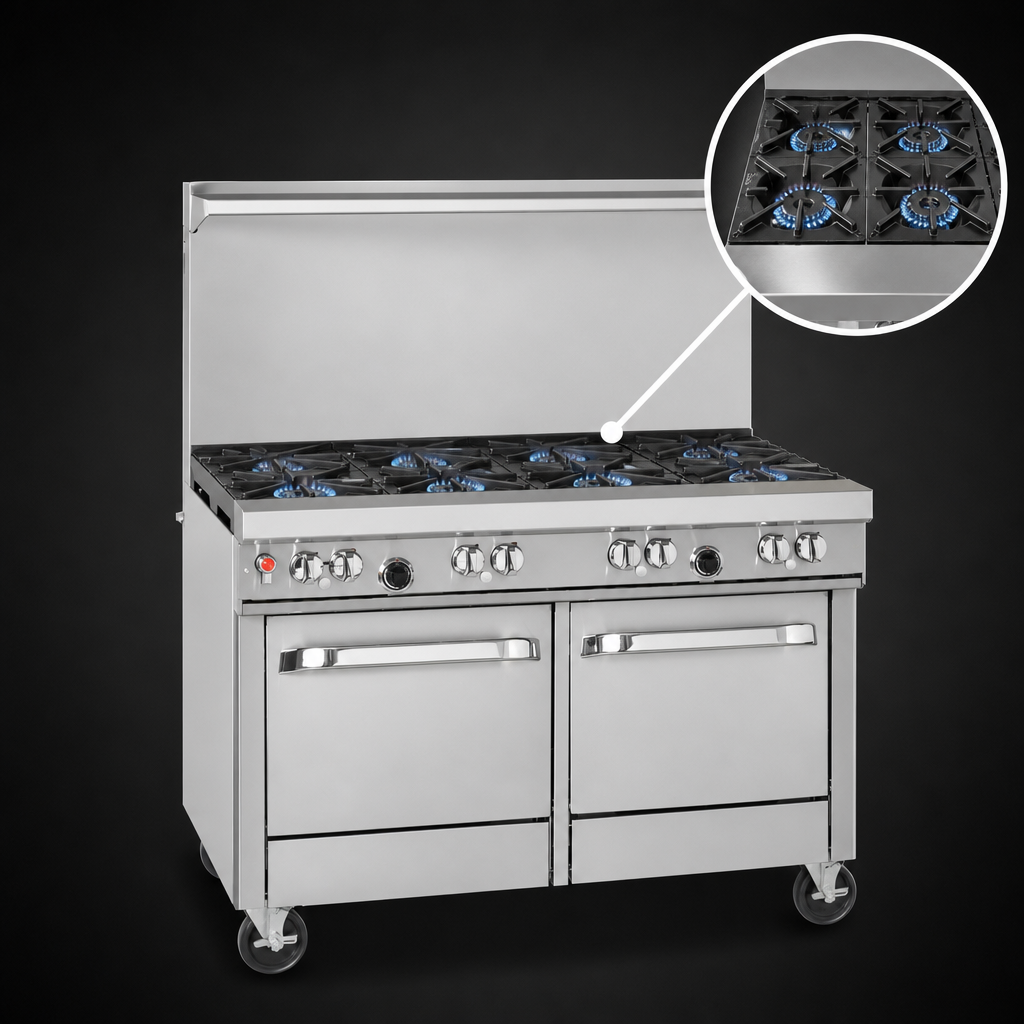

Custom Cooktop Layout

  • (3) × 33,000 BTU non-clog burners – front left
  • (2) × 40,000 BTU Pyromax burners – rear left
  • (2) × 33,000 BTU non-clog burners – right side
  • Heavy cast-iron top grates (rear positions handle stock pots up to 14" Ø)
  • Standing pilots for all open burners

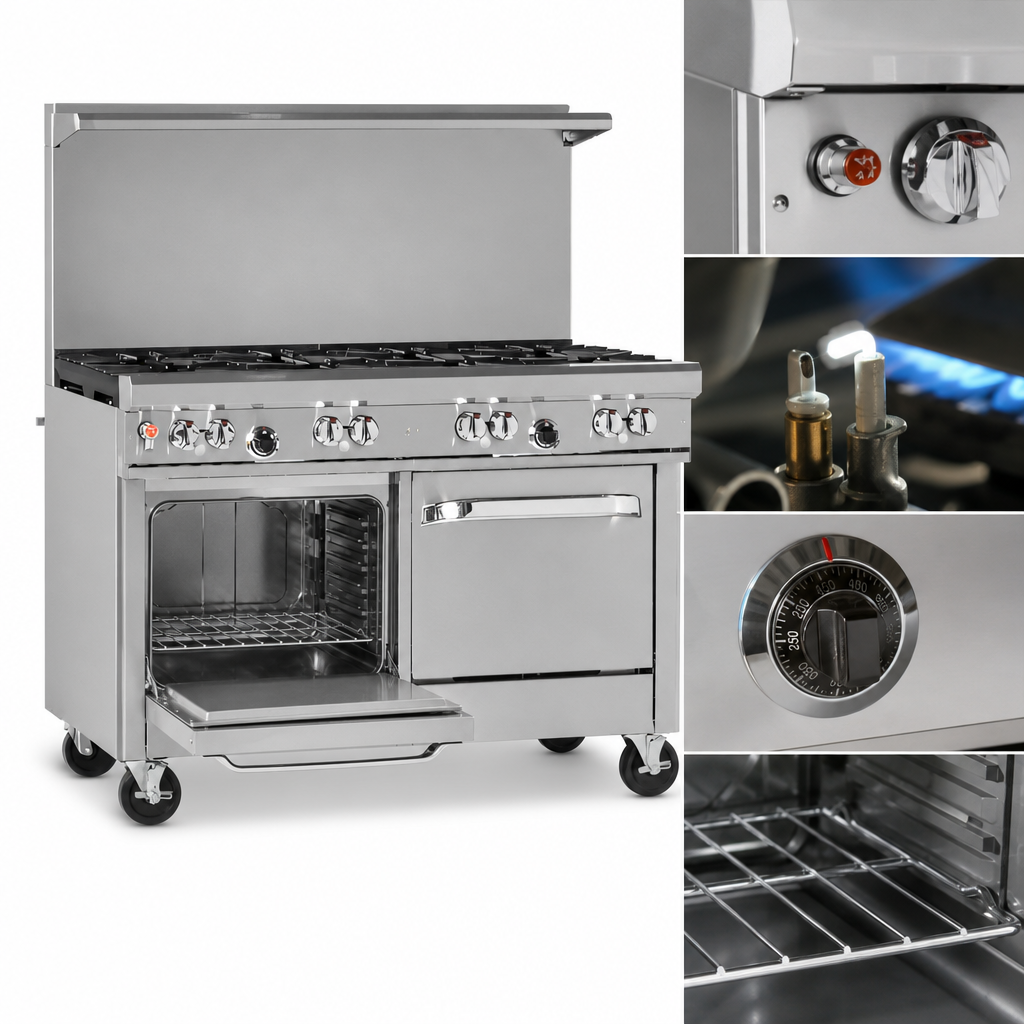

Base Components

  • Standard oven (left) – 45,000 BTU, 175 – 550 °F thermostat, porcelain interior, includes one rack with two positions
  • 18" stainless cabinet base (right) with adjustable rack slides
  • Battery spark ignition – no external electricity required

Built for Daily Service

  • 48 ⅝" wide cooking surface, 37" working height
  • 22 ½" flue riser with heavy-duty plate-warming shelf
  • 4" deep stainless front rail with front-mounted gas shut-off
  • Stainless steel front, sides, shelf, and 6" adjustable legs
  • Factory-installed ¾" pressure regulator
  • CSA & NSF listed for commercial kitchens

Technical Specifications

Overall width 48.63" / 1235 mm
Overall depth 42.13" / 1070 mm
Cooking surface height 37" / 940 mm
Height with riser shelf 59.5" / 1511 mm
Total input (natural gas) 290,000 BTU/hr
Gas connection ¾" NPT (rear, includes regulator)
Oven cavity (W × D × H) 26" × 26.5" × 14" / 660 × 673 × 356 mm
Warranty 1-year parts & labor

What’s Included

  • Range with 6" stainless legs
  • (1) oven rack
  • 22 ½" flue riser shelf
  • Battery pack & factory regulator
  • Owner’s manual & warranty registration
Installation Note: Supply a ¾" gas line at 7" W.C. (natural). For non-quarry tile floors or oversized cookware (≥ 12" Ø), follow Southbend guidelines to avoid damage and maintain warranty coverage.

Need easy monthly payments? Ask about Middleby Equipment Financing.

Features & Specs

Manufacturer

Southbend (Middleby)

Brand_name

Ultimate

Certifications

NSF, CSA

Height

59.5in

Width

48.63in

Depth

34.0in

Shipping Weight

735.0lbs

Exterior Finish

stainless steel front & sides

Top

(7) open burners

Vent

backriser with hi-shelf

Base

(1) standard oven, (1) cabinet

Specifications

Ultimate Restaurant Range, gas, 48", (3) non-clog burners front left, (2) pyromax burners back left, (2) non-clog burners right, standing pilot, (1) standard oven with battery spark ignition, (1) cabinet base, includes (1) rack, 22-1/2" flue riser with shelf, stainless steel front, sides, shelf & 6" adjustable legs, 290,000 BTU, CSA, NSF
