Southbend (Middleby) 4481DC-3CR Ultimate Gas Ranges
Southbend (Middleby) 4481DC-3CR Ultimate Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Southbend (Middleby) 4481DC-3CR Ultimate Gas Ranges
Description

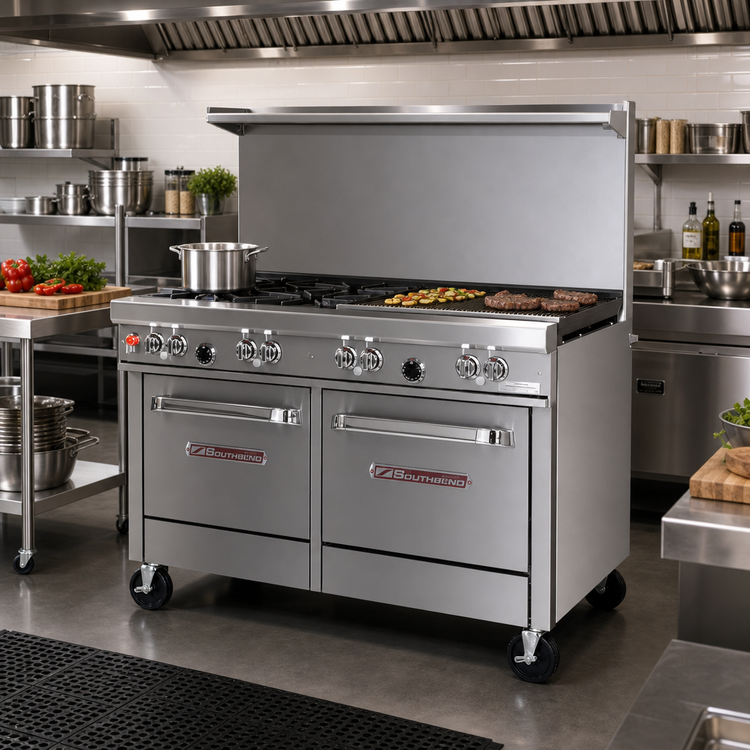

Southbend Ultimate 48" Restaurant Range – 2 Burners / 36" Charbroiler / Standard Oven & Cabinet
Model 448DC-2B-36CB | Natural or LP Gas | 207,000 BTUBuilt for high-volume, no-compromise kitchens, the Southbend Ultimate Series packs open-top firepower, a full-width charbroiler, a heavy-duty oven and a handy storage cabinet into a single 48-inch frame. If your line needs to sauté, sear, bake and hold without missing a beat, this is the range that keeps up.
Highlights

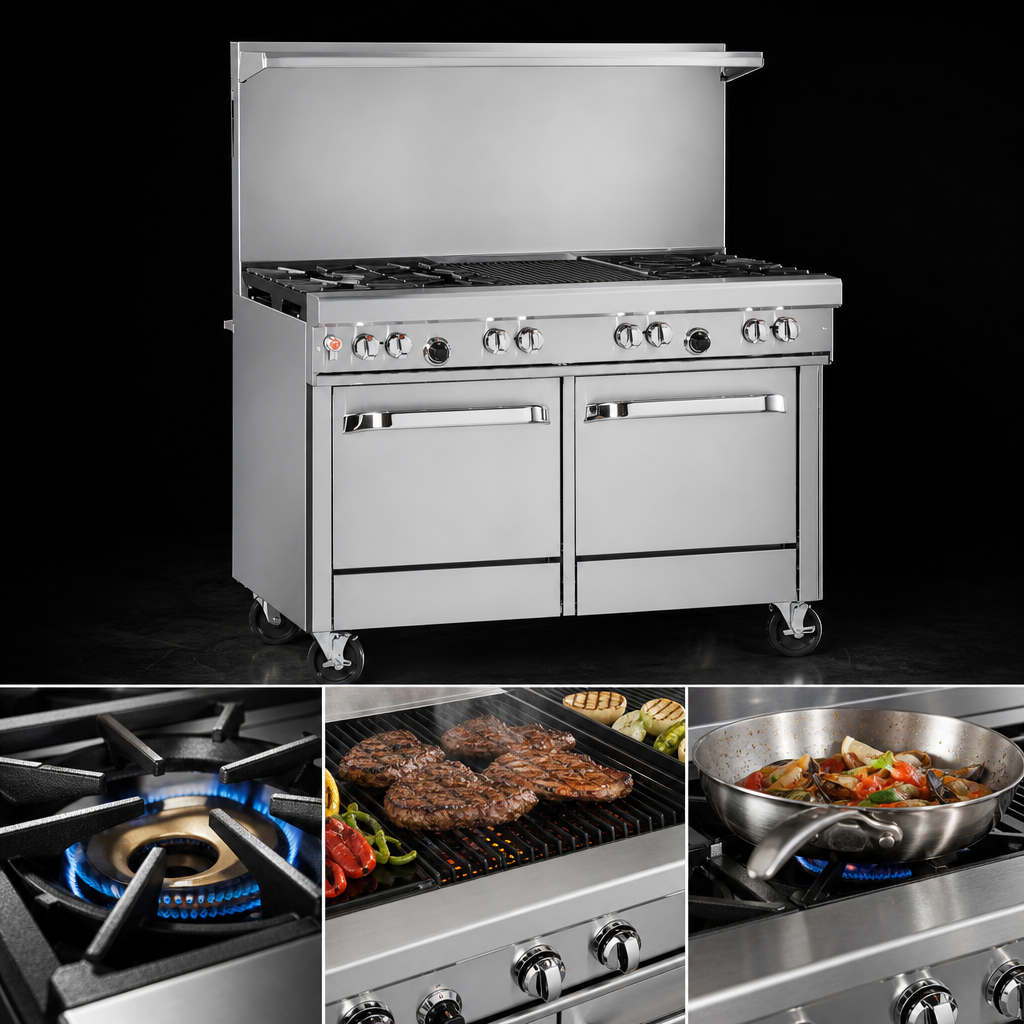

- Two (2) 33,000 BTU non-clog cast-iron burners (left side) with standing pilots & removable grates.
- 36" charbroiler (right side) delivers 96,000 BTU of flame-kissed heat; cast-iron radiants & grates lift out for easy cleaning.

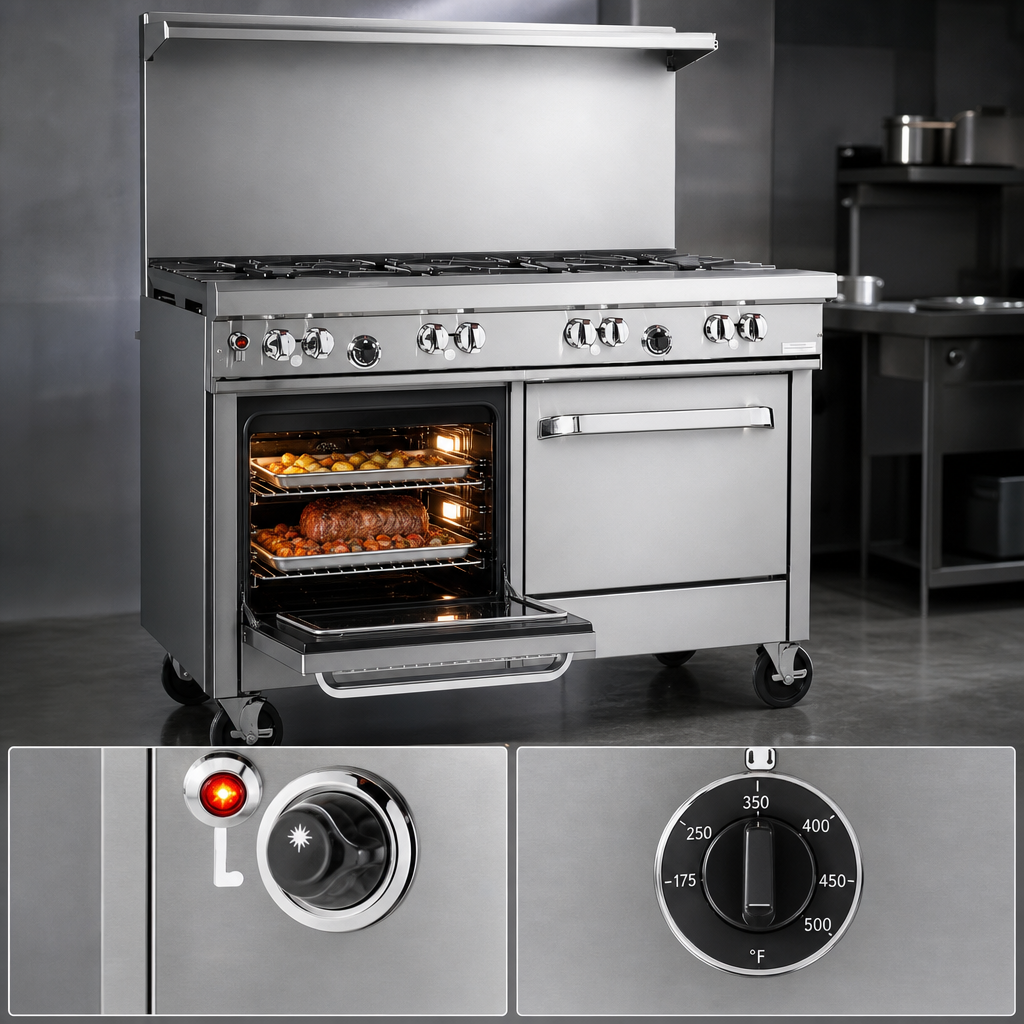

- One (1) 45,000 BTU standard oven with battery spark ignition, 175 °F–550 °F thermostat & porcelain interior (1 rack included).
- 18" stainless-steel cabinet base keeps sheet pans, sauces and tools within reach (optional doors available at no charge).
- 22-1/2" flue riser with integrated overshelf maximizes vertical workspace.
- Front-mounted manual gas shut-off & factory-installed 3/4" regulator for fast, code-compliant installs.
- 4" stainless front rail, full stainless exterior & pull-out drip trays for quick wipe-downs.
- 6" adjustable stainless legs; optional all-swivel locking casters available.
- CSA & NSF listed; ships with 1-year parts & labor warranty.
Specifications
| Overall width | 48 5/8" (1235 mm) |
|---|---|
| Overall depth | 42 1/8" (1070 mm) including front rail |
| Cooking surface height | 37" (940 mm) |
| Flue riser height | 22 1/2" (572 mm) |
| Total gas input | 207,000 BTU/hr |
| Gas connection | 3/4" NPT (rear, opposite charbroiler) |
| Oven interior (W × D × H) | 26" × 26.5" × 14" (660 × 673 × 356 mm) |
| Clearances | 0" sides & rear to non-combustible; 10" to combustible |
| Certifications | CSA, NSF |
| Warranty | 1-year parts & labor (commercial use) |
Looking for a different burner or griddle layout? Ask us about customizing any Southbend Ultimate Range.
- Never use sheet pans to cover the charbroiler while burners are lit—excess heat can cause permanent damage.
- Limit pots 12" + to rear grates to prevent overheating the front rail and control components.
